Weather-Resistant Case Hardware for Outdoor Sports and Equestrian Use

Weather-Resistant Case Hardware for Outdoor Sports and Equestrian Use

Sports and equestrian cases live outdoors – on truck beds, at riding arenas, beside competition fields, and in damp tack rooms. Rain, sweat, mud, and humidity attack hardware from every direction. A latch that corrodes shut after one season in a horse trailer is a failure. A handle that freezes open on a freezing morning at the range costs the athlete time. A hinge that rusts into a stiff grind across the tack box lid ruins the rhythm riders and coaches depend on.

This article covers hardware selection for equestrian gear cases, sports equipment boxes, and outdoor storage. It maps latch, handle, hinge, and corner protector models to the weather, load, and handling demands of each application. All product specifications are sourced from NRH product specification drawings.

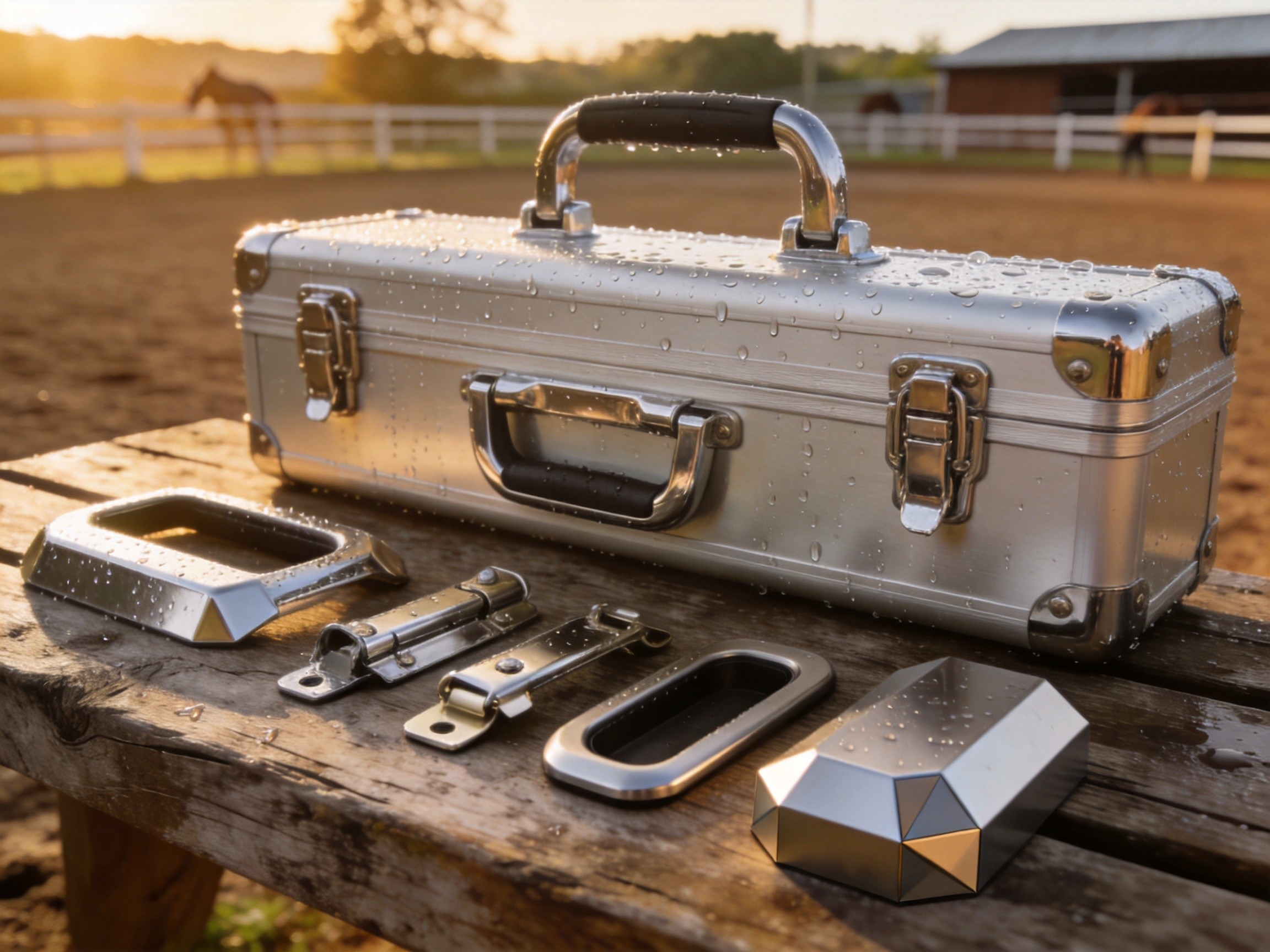

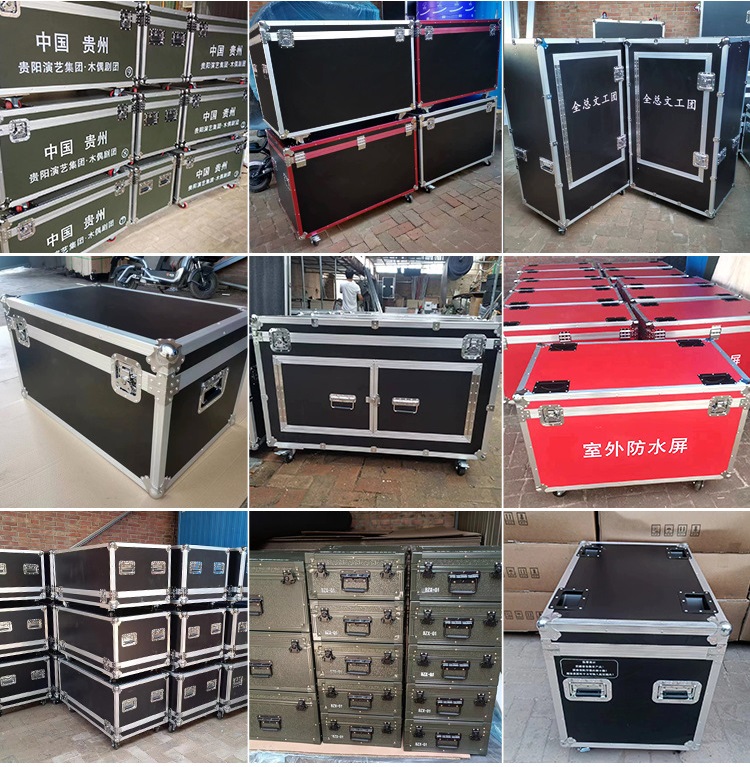

Figure 1: Equestrian tack trunk with SUS304 hardware for outdoor use

Applicable Buyers

• Tool case manufacturers and OEMs
• Industrial equipment enclosure fabricators
• Military and heavy-duty case producers
• Instrument and calibration box manufacturers
• Field service and mobile workshop case suppliers

What Happens If You Choose Wrong

Selecting improper hardware for outdoor sports and equestrian cases creates three critical failure modes:

• Corrosion failure. Hardware with zinc or chrome plating will degrade in humid, wet, or coastal environments. Corroded latches seize shut. Corroded handles break under load. Corroded hinges bind and fail to close properly. This leads to increased maintenance costs, unexpected downtime, and premature hardware replacement.
• Impact failure. Cases get thrown into truck beds, dropped on arena gravel, and stacked on wet ground. A latch that flexes on impact loses clamping force. A handle that bends under a loaded case fatigues at the bend radius. Corner protectors without adequate strength allow edge damage that compromises case integrity.
• Grit intrusion. Sand, dirt, and arena footing work into latch mechanisms and hinge barrels. Grit in a latch creates grinding wear. Grit in a hinge pin increases friction until the lid becomes hard to open. Weather-resistant hardware must either seal out grit or tolerate it.

The SUS304 and FE-CR hardware recommended in this guide eliminates these risks through proper material selection, verified load ratings, and weather-resistant design.

Configuration Summary

Material Selection for Weather Exposure

SUS304 Stainless Steel – ZG or LG Finish

SUS304 is the standard for outdoor case hardware. The chromium oxide passive layer self-repairs when scratched, providing excellent corrosion resistance without any plating. No plating means no plating to chip, crack, or peel. Vibratory finish (ZG) produces a uniform matte surface that hides scratches – practical for cases handled with dirty gloves. Bright finish (LG) gives a polished look preferred for premium equestrian gear cases.

Use SUS304 for any hardware directly exposed to rain, stable washdown, or coastal air. The 5101-96-S04-ZG toggle latch, 4201-100-S04-LG folding handle, and 8201-50-S04-LG short hinge are the primary outdoor recommendations.

Iron with Chrome Plating (FE-CR)

Chrome-plated iron provides good corrosion resistance at lower cost than stainless steel. FE-CR works for hardware on cases stored in covered trailers, tack rooms with controlled humidity, or indoor sports facilities. Not suitable for cases left outdoors overnight or exposed to direct rain.

Iron with Zinc Plating (FE-ZL)

Zinc plating offers sacrificial protection – the zinc corrodes preferentially to the iron beneath. FE-ZL offers moderate corrosion resistance. Use FE-ZL for indoor equipment storage, gym gear boxes, and cases that see occasional light moisture. Not recommended for direct outdoor exposure.

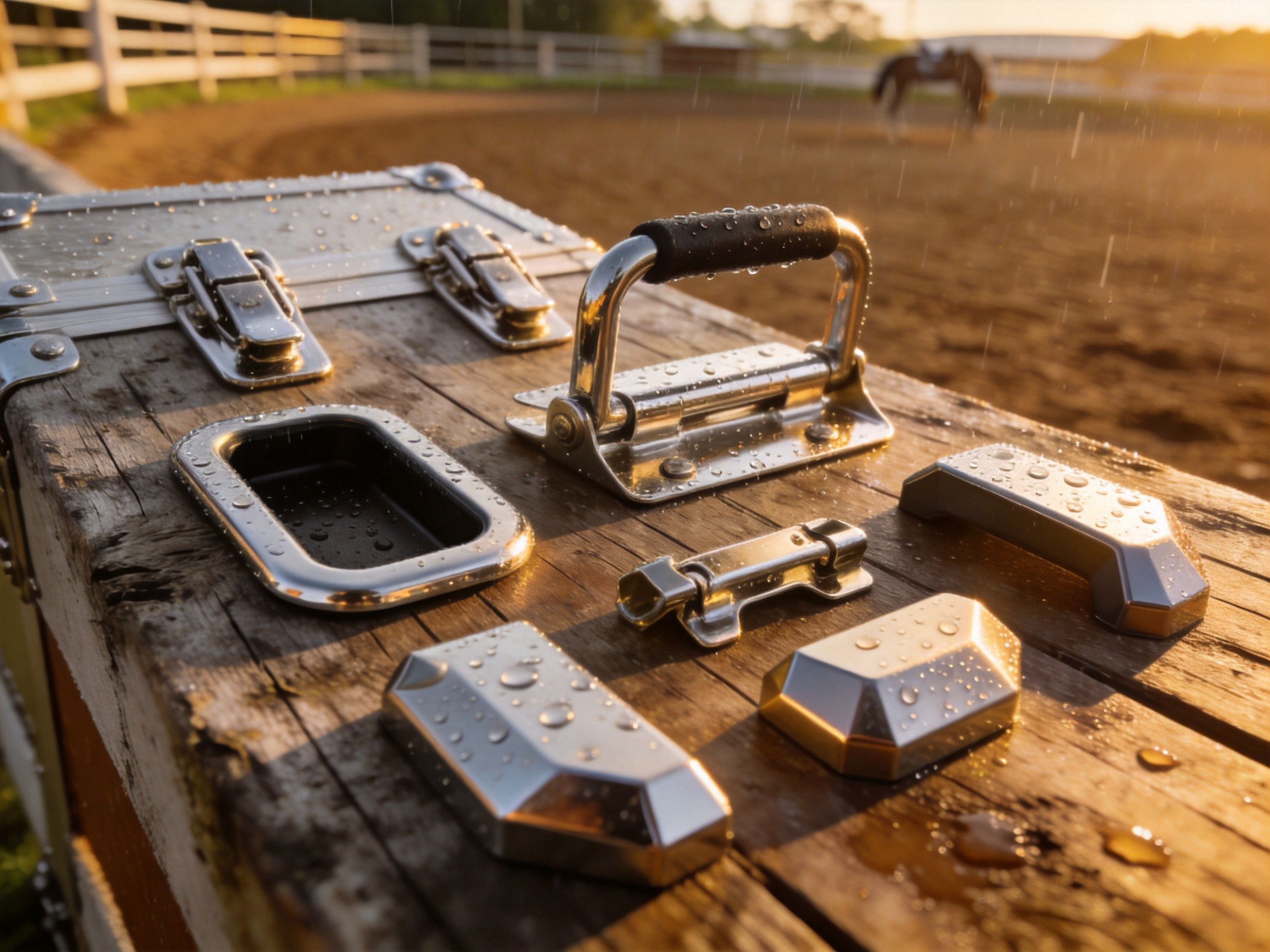

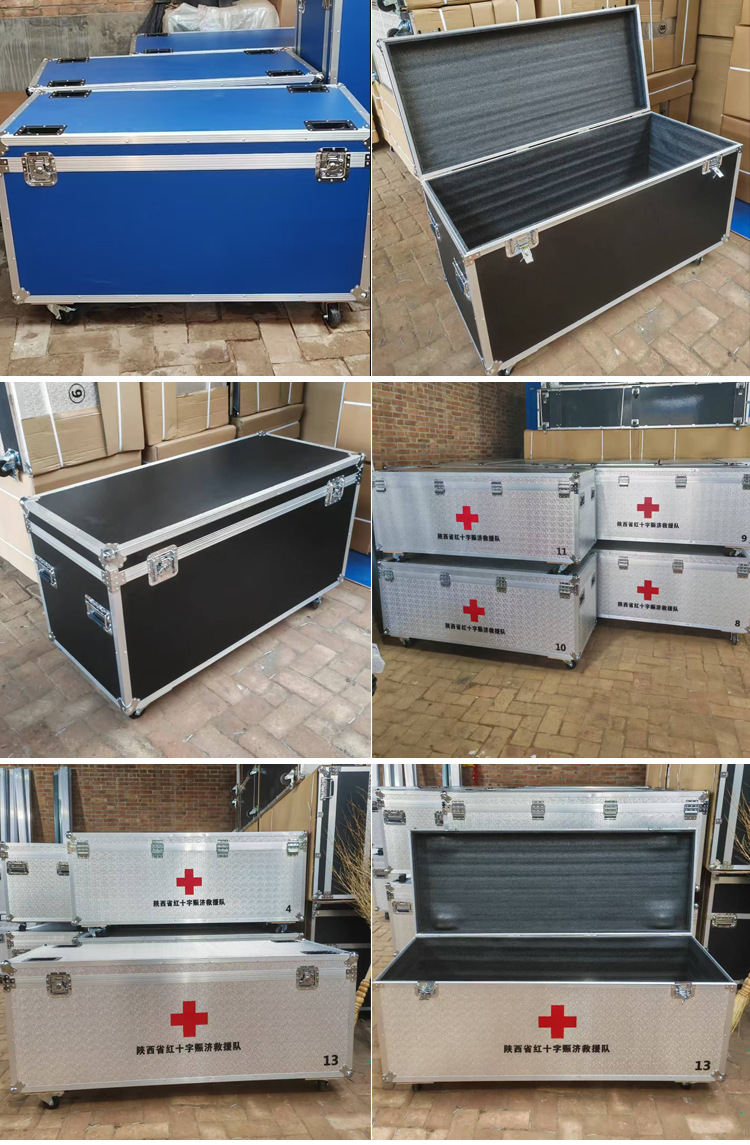

Figure 2: NRH hardware selection for outdoor sports and equestrian cases

Latches for Equestrian and Sports Cases

Latches on outdoor sports cases must hold under vibration, resist corrosion, and operate with gloved hands.

5101-96-S04-ZG Toggle Latch

The 5101-96-S04-ZG toggle latch (draw latch) delivers 392N tensile holding force (verified from NRH product specification drawings) with an adjustable hook that accommodates gasket compression. Constructed from 304 stainless steel with vibratory (ZG) finish, it resists corrosion in outdoor environments. The spring-loaded mechanism provides automatic return and maintains secure closure under vibration. Product weight: 90g.

5103-63K-S04-ZG Spring Latch with Lock

The 5103-63K-S04-ZG spring latch delivers 700N tensile load (verified from NRH product specification drawings) with positive closure feedback and an integrated lock. Constructed from 304 stainless steel with vibratory (ZG) finish, this latch is ideal for high-value tack and sensitive equipment. The spring mechanism provides automatic return and secure closure under transport vibration. Product weight: 36g.

6306-85-FE-ZL Butterfly Latch with Lock

The 6306-85-FE-ZL is a butterfly latch with an integrated lock, delivering 588N tensile load (verified from NRH product specification drawings). Constructed from iron with zinc plating (ZL), this latch is suitable for covered storage and indoor applications where cost efficiency matters more than maximum corrosion resistance. Product weight: 203g.

6101-108K-FE-CR Flush-Mounted Butterfly Lock

The 6101-108K-FE-CR is a flush-mounted butterfly lock with an integrated lock cylinder, delivering 392N tensile load (verified from NRH product specification drawings). Constructed from iron with chrome plating (CR), this lock offers good corrosion resistance at a lower price point than stainless steel. The flush-mount design sits level with the case surface when closed. Suitable for covered trailer applications and indoor sports storage. Product weight: 237g.

5301-112K-KS-FE-CR Compression Latch

The 5301-112K-KS-FE-CR compression latch uses a cam mechanism that draws the lid down with increasing force. Progressive compression suits cases with full-perimeter gaskets that need uniform contact for water resistance. Load capacity: 40kg (verified from NRH product specification drawings). Constructed from iron with chrome plating (CR). Product weight: 84g.

Handles That Carry Heavy Gear Comfortably

A loaded tack trunk weighs considerable amount. A team equipment box can be even heavier. Handle selection determines whether the carry is comfortable or punishing. Note: 4101 series recessed handles require panel cutouts for installation. Cutout dimensions should be verified from NRH product specification drawings before fabrication.

4201-100-S04-LG Folding Handle

The 4201-100-S04-LG folding handle carries 25kg load (verified from NRH product specification drawings) with a spring-loaded auto-return mechanism that snaps flat when released. Constructed from 304 stainless steel with bright (LG) finish. Two handles on a case provide capacity with margin. Product weight: 122g.

4101-132-S04-LG Recessed Handle

The 4101-132-S04-LG recessed handle carries 60kg load (verified from NRH product specification drawings) with a spring-assisted return to flush design. The bail drops into a recessed pocket when not in use, providing a flush profile that prevents interference when stacking. Constructed from 304 stainless steel with bright (LG) finish. Requires panel cutout for installation. Product weight: 215g.

4101-160-FE-CR Recessed Handle

The 4101-160-FE-CR recessed handle carries 80kg load (verified from NRH product specification drawings) – the highest capacity in the recessed handle line. The bail drops into a recessed pocket for flush stacking. Constructed from iron with chrome plating (CR). Suitable for covered trailer applications and indoor sports storage. Requires panel cutout for installation. Product weight: 371g.

4301-100-S04-ZG U-Handle

The 4301-100-S04-ZG U-handle provides a wide bridge grip rated at 50kg load (verified from NRH product specification drawings). The bridge design distributes weight across the full palm, reducing fatigue during long carries. No spring mechanism – eliminating spring fatigue risk. Constructed from 304 stainless steel with vibratory (ZG) finish. Product weight: 146g.

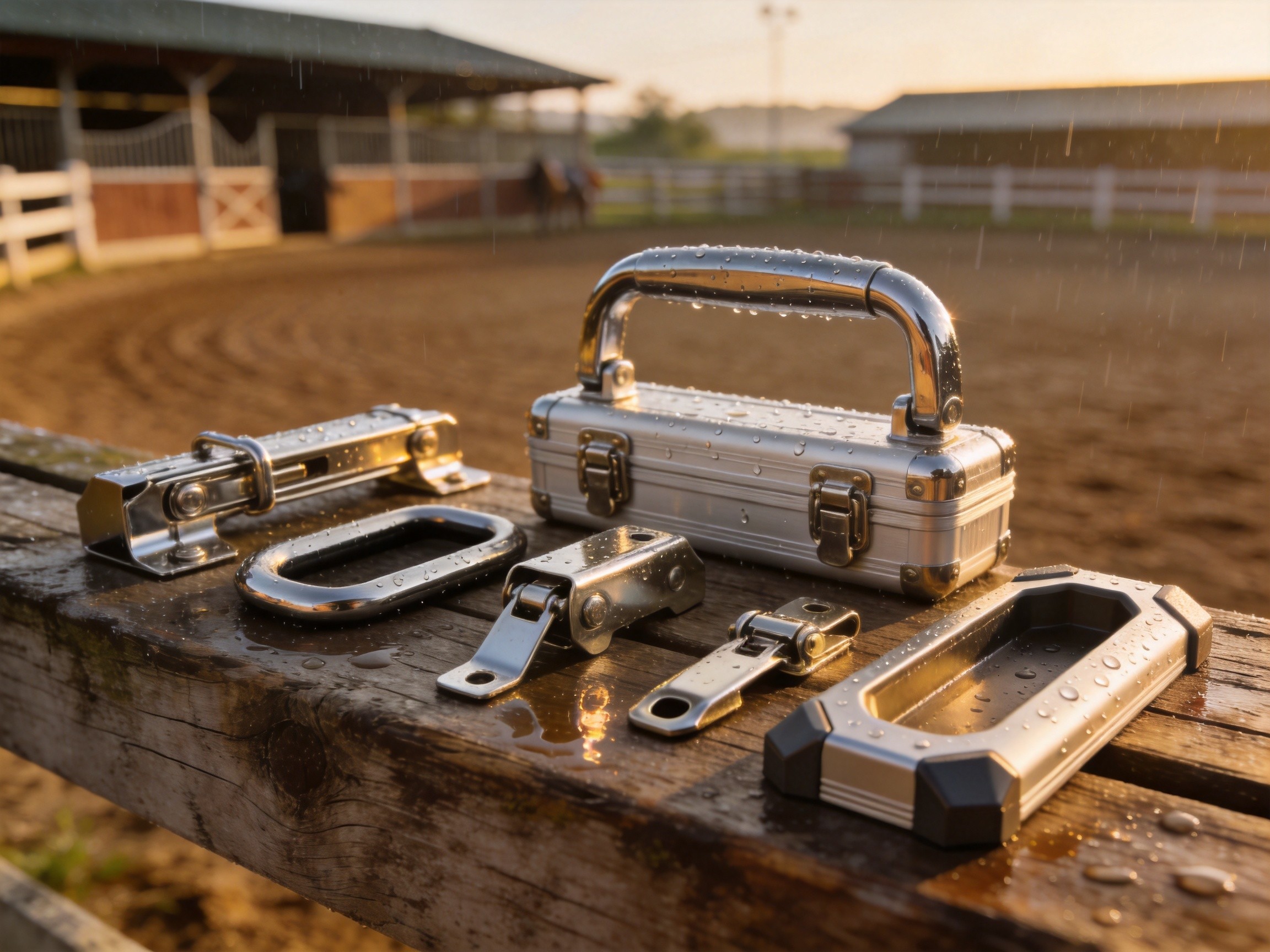

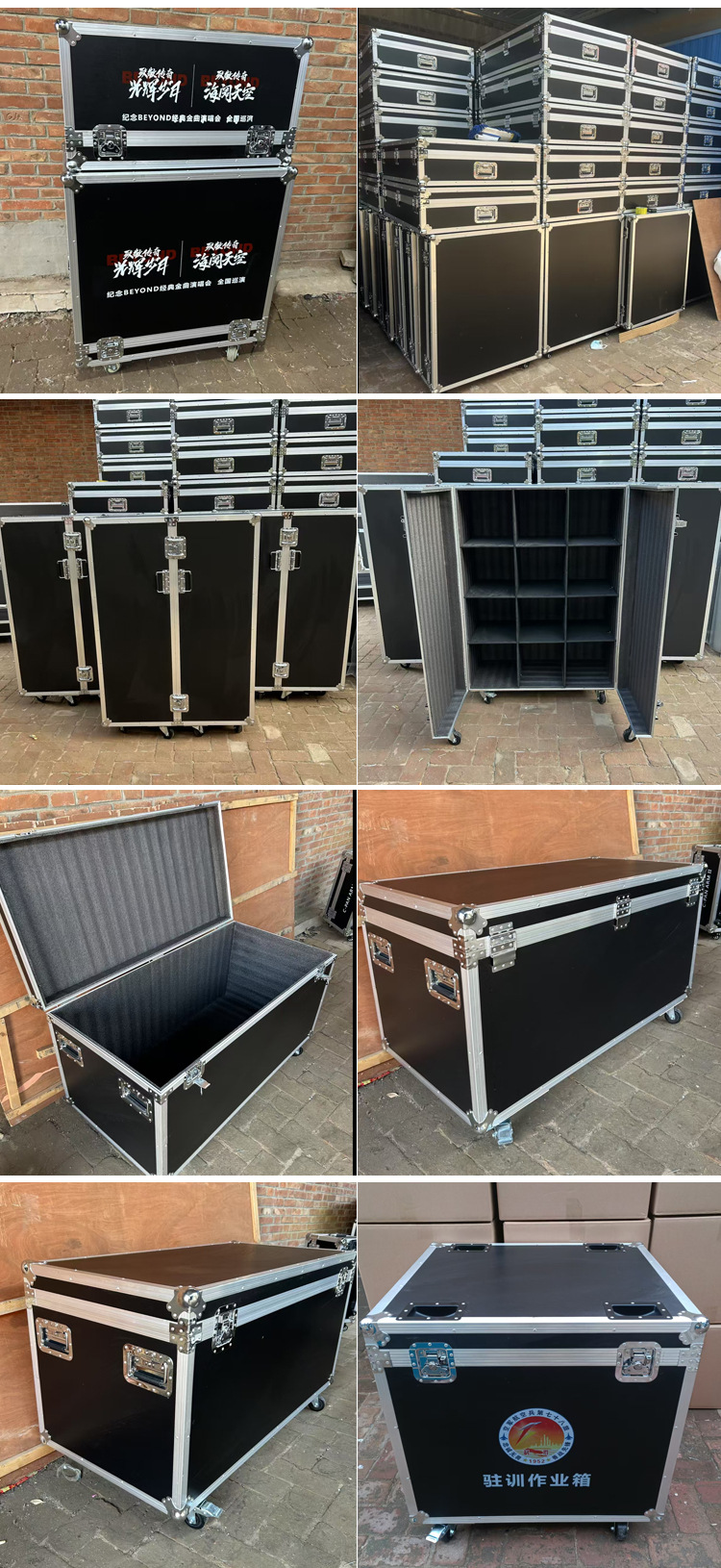

Figure 3: Folding handles (4201 series) and U-handle (4301 series) for outdoor cases

Hinges for Outdoor Case Lids

8201-50-S04-LG Short Hinge

The 8201-50-S04-LG short hinge carries 10kg load per hinge (verified from NRH product specification drawings) with a precision pin-and-barrel fit that minimizes rotational play. Constructed from 304 stainless steel with bright (LG) finish. Use four or more hinges on heavy lids to distribute load. Product weight: 52g.

8131-70-FE-CR Support Hinge

The 8131-70-FE-CR support hinge includes a 90-degree stay that holds the lid open – preventing wind-slam at outdoor venues. The stay also prevents overextension that stresses mounting screws. Load capacity: 10kg (verified from NRH product specification drawings). Constructed from iron with chrome plating (CR). Suitable for covered trailer applications. For direct rain exposure, specify the SUS304 version. Product weight: 137g.

Corner Protectors for Impact and Stacking

Corner protectors absorb impact when cases are dropped, thrown, or stacked. For outdoor use, specify SUS304 versions. For covered or indoor use, FE-CR versions provide the same geometry at lower cost.

• 7201-50-FE-CR – 3D box corner in chrome-plated iron. Wraps around the vertex, protecting all three faces. Standard for tack trunks and team boxes in covered storage.
• 7201-40-1-S04-ZG – 3D box corner in SUS304. Same geometry with excellent corrosion resistance for direct outdoor exposure.
• 7101-66-S04-ZG – Flat corner in SUS304. Edge protection where 3D corners are not needed. Lighter weight, lower profile.
• 7601-30-FE-CR – Compact corner protector for smaller accessory boxes.
• 7301-38-FE-CR – Flat corner for indoor sports storage applications.

Note: A rectangular case has 8 vertices (4 top + 4 bottom). Use 8 corner protectors per case for full protection.

Application Guide: Hardware by Sport and Storage Type

Equestrian Tack Trunks

Store saddles, bridles, grooming kits, and boots. Sit in stable aisles, travel in trailers, get hosed down after muddy events. Weight: 25-40kg loaded.

• Latches: Two 5101-96-S04-ZG toggle latches per lid. For high-value tack, use 5103-63K-S04-ZG (700N tensile, with lock).
• Handles: Two 4101-132-S04-LG recessed handles on front (60kg each, requires cutout). One 4201-100-S04-LG folding handle on top (25kg).
• Hinges: Four 8201-50-S04-LG hinges (10kg each, total 40kg) or full-length piano hinge. For wind protection, add 8131-70 support hinges.
• Corners: Eight 7201-40-1-S04-ZG 3D corners in SUS304.

Sports Team Equipment Boxes

Carry balls, protective gear, training aids, electronics. Travel in team vans, sit on field sidelines. Weight can exceed 50kg.

• Latches: Two 6306-85-FE-ZL butterfly latches with lock (588N tensile) per lid for security. For indoor-only use, 6101-108K-FE-CR flush-mounted butterfly lock (392N) offers good corrosion resistance at lower cost.
• Handles: Four 4101-160-FE-CR recessed handles (80kg each, requires cutout) for two-person carry.
• Hinges: Full-length piano hinge for primary load bearing, plus two 8131-70-FE-CR support hinges with 90-degree stay. Use at least four 8201-50 hinges if not using piano hinge.
• Corners: Eight 7201-50-FE-CR 3D corners in chrome-plated iron.

Outdoor Range and Field Cases

Direct rain, temperature extremes, rough ground. Every piece of hardware must be SUS304.

• Latches: Two 5103-63K-S04-ZG spring latches (700N tensile) with lock for gloved operation.
• Handles: Two 4301-100-S04-ZG U-handles (50kg each, no spring) for two-person carry. Or two 4101-132-S04-LG recessed handles (60kg each) for flush stacking.
• Hinges: Four 8201-50-S04-LG hinges (10kg each, total 40kg) or SUS304 piano hinge. Add 8131-70-S04-ZG (SUS304 version) for wind protection if available.
• Corners: Eight 7201-40-1-S04-ZG 3D corners in SUS304.

Gym and Indoor Sports Storage

Dry conditions. Cost efficiency over corrosion resistance.

• Latches: Two 5301-112K-KS-FE-CR compression latches (40kg load) for gasketed cases requiring uniform seal pressure. Or 6101-108K-FE-CR flush-mounted butterfly lock for basic security.
• Handles: Two 4257-100-FE-CR folding handles for ergonomic carry. Or 4101-160-FE-CR recessed handles for stacking.
• Hinges: Two 8101-100-FE-ZL butt hinges for light-duty cases. For heavier cases, use 8201-50 hinges or piano hinge.
• Corners: Eight 7301-38-FE-CR flat corners for edge protection. Or 7201-50-FE-CR for full 3D protection.

Installation Best Practices for Weather Resistance

Required Tools

• Drill with appropriate bit size
• Measuring tape or ruler
• Marker for hole positioning
• Rivet gun OR screwdriver (depending on chosen fasteners)
• Spot welding equipment (optional)
• Panel cutout tool (for 4101 series recessed handles)

Installation Steps

1. Position the hardware. Place the handle and latches on the case surface according to the design layout. For recessed handles (4101 series), verify cutout dimensions from NRH product specification drawings before cutting.
2. Mark hole locations. Using the product’s actual hole spacing dimensions as a guide, mark the mounting hole positions on the case surface.
3. Create cutouts (4101 series only). For recessed handles, cut the panel opening to the specified dimensions. Ensure clean, burr-free edges.
4. Drill mounting holes. Drill holes at the marked positions. Ensure holes are clean and burr-free.
5. Install the hardware. Secure the handle and latches using rivets, screws, or spot welding. For 1.2mm stainless steel panels, rivets or screws provide reliable attachment.
6. Test operation. Verify smooth handle operation and secure latch engagement. Adjust latch alignment if necessary to ensure proper closure.

Key Installation Notes

• Seal every penetration. Every screw hole is a potential water path. Apply sealant under handle flanges, latch base plates, and hinge leaves. Use rubber gaskets under all hardware that penetrates the case wall.
• 4101 series recessed handles require panel cutouts. Cutout dimensions must be verified from NRH product specification drawings before fabrication. Improper cutout size will compromise handle fit and water sealing.
• Hinge quantity depends on case weight. 8201-50 hinges are rated at 10kg each. For a 40kg case lid, use at least four hinges (40kg total capacity). For heavier lids, use piano hinges or increase hinge count accordingly.
• Use correct screw length. Screws that bottom out before clamping create gaps. Screws too long penetrate the interior, creating corrosion sites. Match screw length to wall thickness plus flange thickness.
• Stagger piano hinge screws. Place screws every other knuckle on each leaf. Adequate holding force with fewer wall penetrations.
• Orient latches to shed water. Mount toggle latches so the operating lever faces down or sideways in the normal resting position. This prevents water pooling on the mechanism.

Installation Method Comparison

Key Takeaways

• SUS304 with ZG or LG finish provides excellent corrosion resistance for hardware directly exposed to rain, washdown, or coastal air.
• Toggle latches (5101 series, 392N tensile) and spring latches (5103 series, 700N tensile) in SUS304 offer adjustable gasket compression and positive closure for outdoor cases. All data verified from NRH product specification drawings.
• Butterfly latches with locks (6306 series, 588N) and flush-mounted butterfly locks (6101 series, 392N) provide security for equipment cases in covered or indoor applications.
• Recessed handles (4101 series) provide flush stacking profiles with load ratings from 60kg (4101-132) to 80kg (4101-160). Require panel cutouts.
• Folding handles (4201 series, 25kg) offer spring-loaded auto-return for top carry applications.
• U-handles (4301 series, 50kg) provide wide grip comfort with no spring mechanism, eliminating spring fatigue risk.
• Support hinges with 90-degree stays (8131 series, 10kg) prevent wind-slam at outdoor venues.
• Short hinges (8201 series, 10kg each) – use at least four per heavy lid for adequate load distribution.
• 3D box corners in SUS304 (7201-40-1-S04-ZG) protect all three faces at vertices for outdoor use. Use 8 corners per rectangular case.

Frequently Asked Questions

For equestrian tack trunks stored outdoors, SUS304 stainless steel with vibratory (ZG) or bright (LG) finish is the recommended material. The 5101-96-S04-ZG toggle latch (392N tensile load) and 5103-63K-S04-ZG spring latch (700N tensile load) are verified from NRH product specification drawings and will not corrode in outdoor stable and trailer environments.

Yes, for cases stored in covered trailers, dry tack rooms, or indoor facilities. FE-CR provides good corrosion resistance at a lower cost than stainless steel. Do not use FE-CR on cases left outdoors overnight or exposed to direct rain.

The 4101-160-FE-CR recessed handle carries 80kg load (verified from NRH product specification drawings), the highest capacity in the recessed handle line. The 4101-132-S04-LG carries 60kg. Both require panel cutouts for installation.

The 4201-100-S04-LG folding handle carries 25kg load with a spring-loaded auto-return mechanism. The 4301-100-S04-ZG U-handle carries 50kg load with no spring mechanism. Choose folding handles for ergonomic top carry and U-handles for two-person side carry.

A loaded case over 30kg should have at least two handles. Use 4101-160-FE-CR recessed handles (80kg each) for stackable cases, or 4201-100-S04-LG folding handles (25kg each) for top carry. For cases over 50kg, use four recessed handles for two-person carry.

Any hinge exposed to direct rain, washdown, or coastal humidity should be SUS304. The 8201-50-S04-LG short hinge is rated at 10kg per hinge (verified from NRH product specification drawings). For heavy lids, use at least four hinges or a full-length piano hinge.

4101 series recessed handles require panel cutouts for installation. Cutout dimensions must be verified from NRH product specification drawings before fabrication. Improper cutout size will compromise handle fit and water sealing. Use sealant around all screw penetrations.

For outdoor use, the 7201-40-1-S04-ZG 3D box corner in SUS304 protects all three faces at each vertex with excellent corrosion resistance. For indoor and covered use, the 7201-50-FE-CR provides the same geometry at lower cost. Use eight corners per rectangular case.

A rectangular case has 8 vertices (4 top + 4 bottom). Use 8 corner protectors for full edge protection. This applies to all case types – tack trunks, equipment boxes, and field cases.

Need Help Choosing?

Selecting hardware for equestrian and sports equipment cases means matching material, load rating, and weather resistance to the specific environment – stable, trailer, arena, or field. If you need guidance on latch types for your tack trunk, handle sizing for your equipment box, corrosion-resistant hinge configurations, or cutout requirements for recessed handles, we can help.
