Why Cylindrical Washer Baskets Need Reliable, Corrosion-Resistant Latches
Industrial washer baskets are subjected to harsh operating conditions: continuous exposure to cleaning solutions, high-temperature rinse cycles, vibration from rotation, and repeated loading and unloading. A latch that fails in this environment means production downtime, potential equipment damage, and compromised cleaning results.
This case study examines how an industrial cleaning equipment manufacturer equips its cylindrical washer baskets with NRH 5608-70K adjustable stainless steel latches – delivering secure locking, corrosion resistance, and reliable performance for harsh cleaning environments.

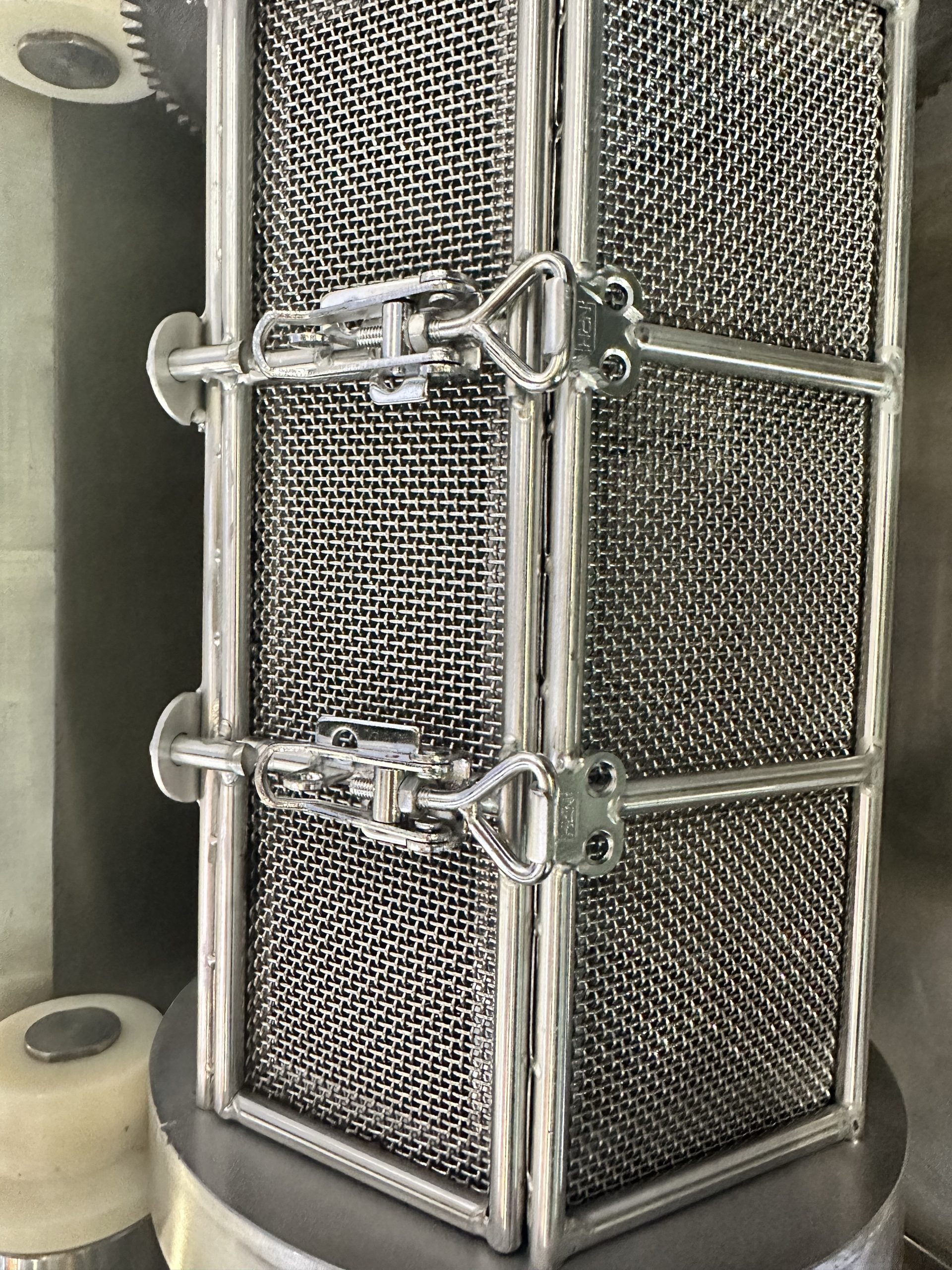

Figure 1: Cylindrical washer basket with NRH 5608-70K latches welded to external metal brackets
Applicable Buyers
- Industrial cleaning equipment manufacturers
- Ultrasonic cleaner and parts washer OEMs
- Automotive and aerospace parts cleaning system builders
- Industrial filtration and basket fabricators
- Custom cleaning equipment suppliers
Key finding: The NRH 5608-70K adjustable stainless steel latch delivers 490N tensile strength with 304 stainless steel construction and electrolytic finish. Two latches welded to external metal brackets – one at each end of the cylindrical basket opening – provide balanced locking and even load distribution for washers operating in harsh chemical environments. The 70-81.5mm adjustment range accommodates variations in basket opening size and compensates for wear over time.
The Challenge: Securing a Cylindrical Washer Basket in Harsh Cleaning Environments
An industrial cleaning equipment manufacturer came to NRH with a recurring problem: the standard latches on their cylindrical washer baskets were failing prematurely. The baskets – cylindrical filter units with external metal brackets for structural support – required secure locking at the single opening used for loading and unloading parts.
After analyzing returned units and field performance data, the engineering team identified three critical requirements:
- Corrosion resistance. Cleaning solutions, detergents, and rinse agents attack standard hardware. Latches must withstand continuous chemical exposure without degrading or seizing.
- Secure locking under vibration. Washer baskets rotate at high speed during operation. Latches must remain securely locked through thousands of cycles without loosening or opening accidentally.
- Adjustable tension. Basket openings vary slightly between units, and gaskets compress over time. Latches must accommodate these variations to maintain consistent sealing pressure.
The manufacturer needed a latch that could be welded permanently to the external metal brackets, provide reliable locking in a corrosive environment, and offer adjustment capability for consistent performance.
The Solution: NRH 5608-70K Adjustable Stainless Steel Latch
The engineering team selected the NRH 5608-70K adjustable stainless steel latch after evaluating multiple options. Here’s how it met the application requirements:

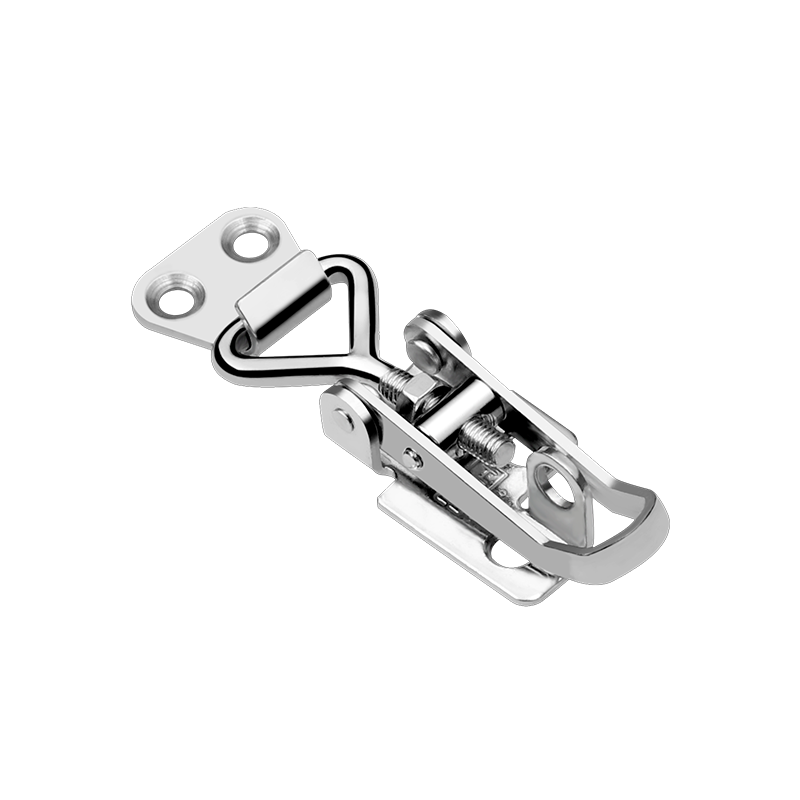

Figure 2: NRH 5608-70K adjustable stainless steel latch – 490N tensile strength, 70-81.5mm adjustment range
Product Specifications
The 5608-70K is an adjustable draw latch constructed from 304 stainless steel with an electrolytic finish. Key specifications verified from NRH product engineering drawings:
| Parameter | Specification |
|---|---|
| Model | 5608-70K |
| Type | Adjustable draw latch |
| Material | 304 stainless steel |
| Surface Finish | Electrolytic |
| Weight | 51g |
| Tensile Load Capacity | 490N |
| Adjustment Range | 70-81.5mm |
| Opening Angle | ~80 degrees |
| Installation Method | Welded (external metal brackets) |
| Quantity per Basket | 2 |
Why Adjustable Tension Matters for Washer Basket Applications
The 5608-70K’s 70-81.5mm adjustment range provides three critical benefits for washer basket applications:
- Accommodates manufacturing variations. Basket openings vary slightly between units. The adjustment range compensates for these tolerances without requiring custom fabrication.
- Compensates for gasket wear. Sealing gaskets compress over time with repeated use. The adjustment range allows operators to maintain consistent sealing pressure as gaskets age.
- Adapts to thermal expansion. Washer baskets experience temperature changes during operation. The adjustment range allows the latch to accommodate thermal expansion without losing tension.
Why 304 Stainless Steel for Cleaning Equipment
304 stainless steel is the material of choice for industrial cleaning equipment for several reasons:
- Corrosion resistance. 304 stainless steel resists attack from cleaning solutions, detergents, and rinse agents commonly used in industrial washers.
- Hygienic surface. The electrolytic finish provides a smooth, non-porous surface that resists bacterial growth and is easy to clean.
- Durability. 304 stainless steel maintains mechanical properties across the operating temperature range of typical industrial washers.
- No coating to chip. Unlike plated or painted hardware, stainless steel doesn’t rely on coatings that can chip, flake, or degrade in chemical environments.
Installation Guide: Welding Latches to External Metal Brackets
The 5608-70K latches are welded to the external metal brackets of the cylindrical washer basket. Two latches are installed – one at each end of the basket opening – providing balanced locking and even load distribution.
Figure 3: 5608-70K latch welded to external metal bracket – permanent, vibration-resistant installation
Tools Required
- TIG or MIG welder
- Stainless steel welding rod
- Measuring tape or ruler
- Marker for positioning
- Clamp (optional, for holding position)
Installation Steps
- Position the latch base. Place each 5608-70K latch base on the external metal bracket at the designated ends of the basket opening. Ensure alignment with the corresponding catch plate position.
- Tack weld in position. Spot-weld the latch base to the metal bracket at the predetermined location. Verify latch alignment and closure before proceeding.
- Complete the weld. Apply a continuous fillet weld along the designated mounting edges of the latch base. Ensure full penetration without compromising the latch mechanism.
- Install the catch plate. Weld the catch plate to the opposite bracket edge. Verify alignment with the latch hook.
- Check operation. Test latch closure and tension adjustment. The 5608-70K should engage securely with a firm click. Both latches should lock the basket opening evenly.
Installation Method Comparison
| Method | Advantages | Considerations |
|---|---|---|
| Welding (Recommended) | Permanent, vibration-resistant, no fasteners to loosen | Requires skilled welder; not removable |
| Stainless Steel Rivets | No welding required, moderate vibration resistance | Can loosen over time in high-vibration applications |
Key Installation Notes
- Use stainless steel welding rod only. For corrosion resistance, use welding rod matched to 304 stainless steel base material.
- Protect the mechanism during welding. Cover the latch mechanism with heat shield material to prevent weld spatter damage.
- Weld symmetrically. Install two latches with balanced alignment to ensure even sealing pressure across the basket opening.
- Test tension adjustment. The 70-81.5mm adjustment range should be set to achieve proper sealing without over-compressing the gasket.
Key Takeaways
- The 5608-70K adjustable stainless steel latch provides 490N tensile strength with 304 stainless steel construction for washer basket applications
- Two latches – one at each end of the cylindrical basket opening – provide balanced locking and even load distribution
- 304 stainless steel with electrolytic finish provides corrosion resistance against cleaning solutions
- 70-81.5mm adjustment range accommodates manufacturing variations, compensates for gasket wear, and adapts to thermal expansion
- Welded installation ensures permanent, vibration-resistant mounting on external metal brackets
- Suitable for industrial cleaning equipment, ultrasonic cleaners, parts washers, and custom cleaning systems
Frequently Asked Questions
What are the 5608-70K latches made from?
Constructed from 304 stainless steel with an electrolytic finish. This provides excellent corrosion resistance against cleaning solutions used in industrial washers.
What is the tensile strength of the 5608-70K latch?
The 5608-70K delivers 490N tensile load capacity (verified from NRH product specification drawings), providing secure closure for cylindrical washer baskets.
How many latches are needed per washer basket?
Two 5608-70K latches are installed on each cylindrical washer basket – one at each end of the basket opening. This provides balanced locking and even load distribution.
How are the latches mounted on the washer basket?
The 5608-70K latches are welded directly to the external metal brackets supporting the cylindrical filter basket. Welding ensures a permanent, vibration-resistant connection suitable for high-speed rotation and harsh cleaning environments.
Are the latches removable after welding?
No. Welding provides a permanent installation. For maintenance or replacement, the latch would need to be cut off and a new one welded in place. This design choice is made intentionally for applications requiring maximum durability and vibration resistance.
What is the adjustment range of the 5608-70K latch?
The 5608-70K offers an adjustment range of 70-81.5mm, allowing the latch to accommodate variations in basket opening size, compensate for gasket wear, and maintain consistent tension over time.
Why is 304 stainless steel suitable for washer basket applications?
304 stainless steel provides excellent corrosion resistance against cleaning solutions, detergents, and rinse agents used in industrial washers. The electrolytic surface finish further enhances corrosion protection and provides a smooth, easy-to-clean surface.
What is the expected lifespan of the 5608-70K latch in a washer basket application?
The 5608-70K is constructed from 304 stainless steel with an electrolytic finish, providing excellent corrosion resistance against cleaning solutions. While specific cycle life data depends on operating frequency and chemical exposure, the latch is designed for repeated operation in demanding environments. For your specific application, we recommend testing under actual working conditions. Contact us for sample orders to conduct your own durability validation.
