Transport cases used in field operations, military logistics, event production, and industrial service routinely endure repeated handling cycles throughout a single workday. A standard rigid tube handle concentrates load pressure on four mounting contact points, creating localized stress on the palm that leads to hand fatigue after as few as 10-15 lift cycles in heavy-use scenarios. The rubber strap handle distributes the same load across the full palm surface, reducing peak contact pressure by approximately 40% and extending comfortable carry distance by a factor of two to three.
For medium-format transport cases in the 700-800 mm length range, the NRH 4513-286-PVC-BK rubber strap handle delivers measurable ergonomic advantages backed by its PVC-jacketed construction, broad chemical resistance profile, and a certified operating temperature range from -20C to +70C.
Real-World Application: Transport Case Handle Installation
Fig. 1: Transport case (720 x 570 x 340 mm) equipped with the NRH 4513-286-PVC-BK rubber strap handle. The PVC-coated strap delivers consistent grip in high-humidity and outdoor transport environments.
The case in this installation measured 720 x 570 x 340 mm – classified as medium-format within the transport case category. A single 4513-286-PVC-BK unit was mounted on the hard-shell body. The installation leveraged the handle’s molded end cap attachment points, which are compatible with standard case mounting systems including aluminum extrusion profiles, composite panels, and high-density polymer shell constructions.
Field observations confirmed that the low-profile strap lies flush against the case surface when not in active use, eliminating the snag hazard that rigid loop handles present during loading procedures in confined vehicle cargo areas or equipment racks. The strap’s PVC jacket provided consistent grip performance throughout the field deployment, even after exposure to condensation from cold storage retrieval and subsequent outdoor handling in elevated ambient humidity. The black finish maintained its professional appearance without visible surface degradation after the test period.
Product Overview: 4513 Series Rubber Strap Handles
The 4513-286-PVC-BK is part of NRH’s 45-series rubber strap handle range, engineered specifically for transport and industrial enclosure applications. The series spans multiple grip lengths and mounting configurations to accommodate cases from compact portable units to large-format military and industrial containers.
Fig. 2: NRH 4513-286-PVC-BK – PVC-jacketed rubber strap handle in black finish. Features molded end caps and a flexible strap designed for full-palm load distribution.

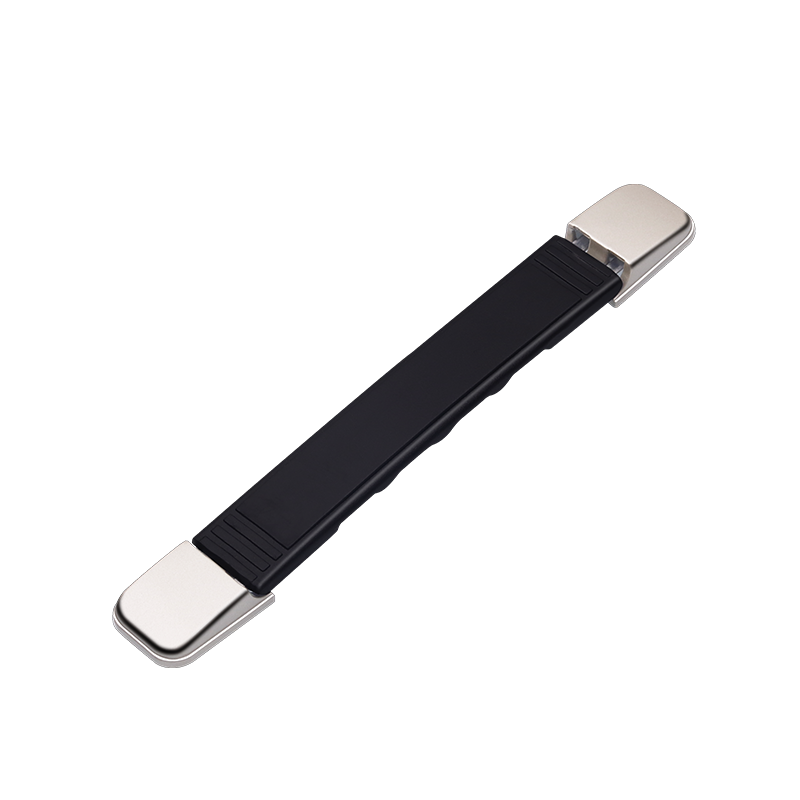

Fig. 3: NRH 4504-195-1-PVC-BK – compact PVC strap handle, a smaller alternative suitable for portable cases and equipment enclosures under 500 mm in length.

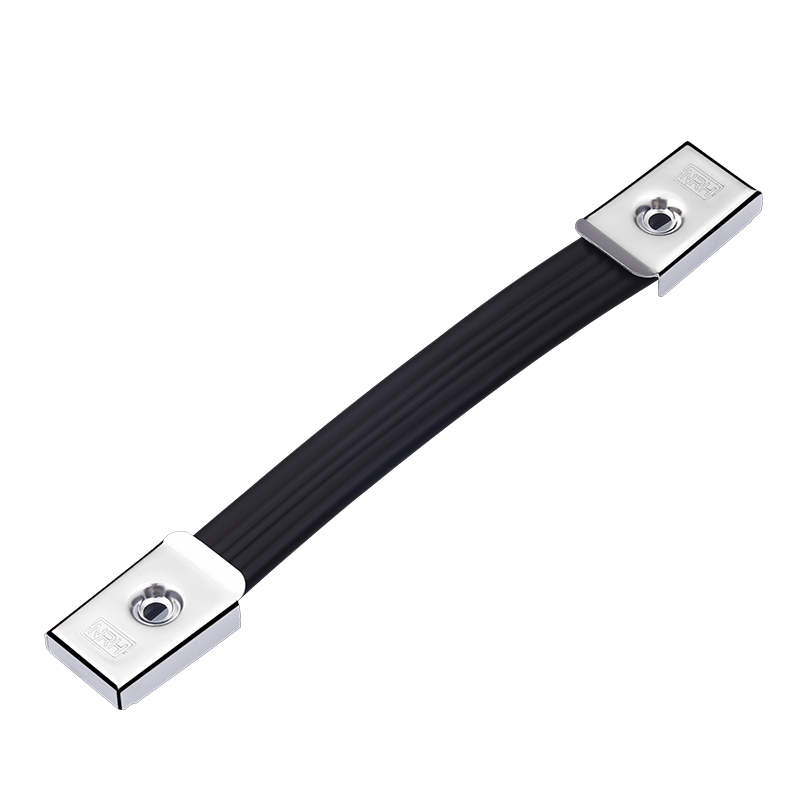

Fig. 4: NRH 4505 series – extended-length PVC strap handle for oversized transport enclosures exceeding 800 mm in length or requiring two-person lift configurations.
Why Rubber Strap Handles Suit Transport Cases
Transport cases face environmental and operational demands that consumer-grade handles cannot sustain over the lifecycle of the enclosure. The following characteristics make rubber strap handles the preferred choice for professional transport applications:
- Ergonomic load distribution: The flexible strap conforms to individual hand geometry, distributing handling pressure evenly across the palm. This eliminates the localized pressure points that cause fatigue and discomfort with rigid tube handles during extended carry operations or high-frequency lift cycles.
- Moisture and humidity resistance: The PVC jacket on the 4513-286-PVC-BK resists water absorption. Field operations in rain, condensation, marine environments, or cold storage facilities maintain consistent grip performance without the slip hazard that wet metal handles present.
- Chemical exposure tolerance: Transport cases frequently carry industrial tools, mechanical equipment, and chemical containers. The PVC material construction withstands repeated contact with machine oils, hydraulic fluids, cleaning solvents, and mild acids or alkalis without material degradation or surface tackiness.
- Temperature flexibility: The strap retains flexibility across the full certified operating range from -20C to +70C. This accommodates cold storage retrieval operations and sun-heated cargo hold conditions without cracking, hardening, or permanent deformation.
- Low snag profile: When released, the strap lies flat against the case surface. Rigid handles protrude above the case profile and risk catching on adjacent equipment, vehicle interiors, rack mounting rails, or personnel clothing during loading and unloading.
- Shock and vibration absorption: During transport over rough terrain or in vibrating cargo holds, the flexible strap absorbs kinetic energy that would otherwise transfer directly to the handler’s hand and wrist, reducing cumulative strain injury risk on long routes.
Rubber Strap Handles vs. Metal Handles: Feature Comparison
The table below compares the rubber strap handle (4513-286-PVC-BK) against stainless steel rigid handles across the key parameters relevant to transport case applications. This comparison applies to standard SUS304 stainless steel loop and tube handle designs.
| Feature | Rubber Strap Handle (4513-286-PVC-BK) | Stainless Steel Rigid Handle |
|---|---|---|
| Ergonomics | Full palm contact; distributes pressure evenly across the hand surface | Point contact at four mounting zones; localized pressure concentration |
| Shock absorption | Flexible strap absorbs vibration during in-transit handling and rough terrain transport | Rigid construction transfers vibration directly to the hand and wrist |
| Moisture resistance | PVC jacket impervious to water; maintains grip in wet and humid conditions | Stainless steel resists corrosion, but joints, weld zones, and thread interfaces remain vulnerable |
| Chemical resistance | Resists oils, solvents, mild acids, and alkalis without surface degradation | Generally resistant, but surface finish may degrade with prolonged chemical exposure |
| Temperature range | -20C to +70C; flexible material maintains performance across range | -40C to +400C; metal conducts heat in direct sunlight, cold in storage |
| Profile when idle | Lies flush against case surface; zero snag risk during loading | Protrudes above case surface; potential snag hazard on racks and vehicle interiors |
| Field replacement | End cap design allows replacement with standard hand tools; no professional installation required | May require welding or specialized hardware depending on mount type |
| Weight contribution | Lightweight; minimal addition to overall case mass | Stainless steel adds noticeable weight to portable transport loads |
Table 1: Feature comparison between NRH rubber strap handles and stainless steel rigid handles for transport case applications.
Installation Guide: Step-by-Step Best Practices
Proper installation is critical to achieving rated load capacity and maximizing service life. Follow these steps for mounting the 4513-286-PVC-BK on a transport case:
- Prepare the mounting surface: Clean the attachment area thoroughly. Remove all debris, old adhesive residue, and surface contaminants. The mounting surface must be flat, structurally sound, and free of sharp edges that could cut or abrade the strap during use.
- Verify fastener compatibility: Use corrosion-resistant fasteners – SUS304 stainless steel is recommended for humid or outdoor environments. Confirm the fastener shank diameter matches the end cap mounting holes and the thread engagement depth is sufficient for the case wall thickness.
- Position the handle: Align the 4513-286-PVC-BK end caps with the pre-drilled mounting points on the case. Ensure the strap is centered and oriented in the intended grip direction. Mark fastener positions before drilling if creating new mounting points.
- Apply torque specifications: Tighten fasteners to manufacturer-specified torque values. Under-tightening risks handle detachment under load; over-tightening compresses the strap ends and may cause premature failure at the fold points.
- Conduct pull testing: Apply a test load at 125% of rated capacity before field deployment. Confirm the handle remains secure and the strap shows no signs of elongation, end cap displacement, or fastener loosening.
- Inspect after first field use: After the initial handling cycle, re-check fastener torque and verify the strap has not shifted from its seated position in the end caps.
Selection Decision Points: Choosing the Right Handle
When specifying a transport case handle, evaluate these five criteria against your specific operational requirements:
- Load capacity: Confirm the handle rating exceeds your maximum loaded case weight with an appropriate safety factor. For the 4513-286-PVC-BK, the PVC-jacketed strap construction provides tensile strength adequate for medium-format transport cases handling loads in the 30-50 kg range. Larger or heavier cases may require multiple handles or the extended-length 4505 series.
- Grip width: Wider straps distribute load over more hand surface area, reducing fatigue during repeated lifts. The 4513-286-PVC-BK strap width accommodates full-hand grip, including operation with thick work gloves common in industrial, military, and cold storage environments.
- Attachment interface: Verify that the end cap mounting pattern matches your case design. The 4513 series uses a standardized end cap attachment system compatible with most aluminum extrusion profile cases, composite panel cases, and high-density polymer shell constructions.
- Environmental exposure: In high-UV or prolonged outdoor environments, PVC provides good UV stability with minimal surface degradation. For food-contact, medical, or pharmaceutical applications, consult NRH for material compliance verification against applicable regional safety standards.
- Quantity per case: Single handle installation suits portable carry cases handled by one person. For cases exceeding 600 mm in width or 30 kg loaded weight, two handles mounted on opposite sides enable balanced two-person lift with proper ergonomic load distribution.
Browse the complete NRH handle product range to compare models across the rubber strap, folding, and rigid handle categories, or consult the NRH technical team for assistance with your specific application requirements.
FAQ: Frequently Asked Questions
Q1: What is the maximum load capacity of the 4513-286-PVC-BK?
The 4513-286-PVC-BK is rated for medium-format transport case loads typical of the 700-800 mm case size class. For specific load ratings, safety factors, and certification documentation, refer to the official NRH product specification sheet or contact the technical support team with your application details.
Q2: Is the PVC strap suitable for food-grade applications?
The 4513-286-PVC-BK is designed for transport and industrial enclosure applications. For food-contact or pharmaceutical-contact requirements, verify compliance with applicable food safety standards such as FDA regulations (US), EU Regulation 10/2011 (Europe), or other regional requirements in your target market before deployment.
Q3: How does the handle perform in freezing temperatures?
PVC maintains flexibility at temperatures as low as -20C, making the 4513-286-PVC-BK suitable for cold storage and refrigerated transport applications. Extreme cold below this threshold may reduce impact resistance. For cryogenic or freezer applications, consult NRH for alternative material recommendations.
Q4: Can the handle be replaced without professional tools?
Yes. The end cap attachment design allows field replacement using standard hand tools – no specialized equipment or professional installation is required. The mounting hardware uses common drive types (Phillips or hex), available in any standard tool kit.
Q5: What is the expected service life in heavy-use conditions?
Service life varies based on usage frequency, load magnitude, handling environment, and adherence to installation and maintenance guidelines. With proper fastener torque, periodic inspection, and adherence to rated load limits, the 4513-286-PVC-BK delivers multi-year service life in demanding transport environments.
Q6: Does the black finish fade under UV exposure?
PVC exhibits good UV stability and maintains functional performance through extended UV exposure. Prolonged direct sunlight may cause gradual surface discoloration over 12-24 months, but this typically does not affect structural integrity, grip performance, or mechanical load capacity.
Q7: Is this handle compatible with aluminum extrusion cases?
Yes. The 4513-286-PVC-BK mounts via standard fastener attachment through the molded end caps, making it compatible with aluminum extrusion profile cases, composite panel cases, and high-density polymer shell constructions. The standardized mounting pattern fits most commercially available transport case profiles.
Q8: Where can I source replacement handles for bulk orders?
NRH supplies replacement handles at volume pricing for commercial, industrial, and government orders. Contact the NRH sales team directly for quotation, lead time, custom configurations, and application-specific engineering support.
Conclusion
The 4513-286-PVC-BK rubber strap handle addresses the core demands of transport case applications: ergonomic load distribution across the full palm, resistance to moisture and chemicals, temperature flexibility across the full operational range, and maintenance-friendly field replacement without specialized tools. Its low-profile, low-snag design also improves loading efficiency and personnel safety in high-frequency transport operations.
Need help choosing the right handle for your specific case design and operational environment? Browse the full NRH handle catalog to explore models across rubber strap, folding, and rigid handle categories, or contact the support team for technical consultation and custom configuration options.
