Eco-Enforcement and Personal Protection Equipment Case Hardware Durable Solutions for Field Operations
Applicable Buyers: Law enforcement equipment case manufacturers | Eco-enforcement gear suppliers | Personal protection equipment case builders | Tactical transport case fabricators | Government and military case OEMs
Key finding: An eco-enforcement and personal protection equipment case was configured with NRH 4202-124 pull rings (195g, 35kg load, chrome-plated iron), 6405-76K lockable latches (48g, 196N tensile, with lock cylinder), 7201-40 corner protectors (26g), and 7614-35-FE-CR edge protectors (7g). The combination of 2 pull rings, 2 lockable latches, 8 corner protectors, and 20 edge protectors provides comprehensive protection for field-deployable cases used in eco-enforcement and personal protection operations.
Eco-enforcement officers and personal protection personnel operate in demanding field environments where equipment reliability is critical. From wildlife inspection stations to border control checkpoints, the cases that carry enforcement tools, protective gear, and evidence collection materials must withstand rough handling, environmental exposure, and security threats. The hardware that seals, carries, and protects these cases determines operational readiness and equipment safety.
This case study examines an eco-enforcement and personal protection equipment case configured with NRH 4202-124 pull rings, 6405-76K lockable latches, 7201-40 corner protectors, and 7614-35-FE-CR edge protectors, documenting the configuration rationale, material selection, and installation practice.

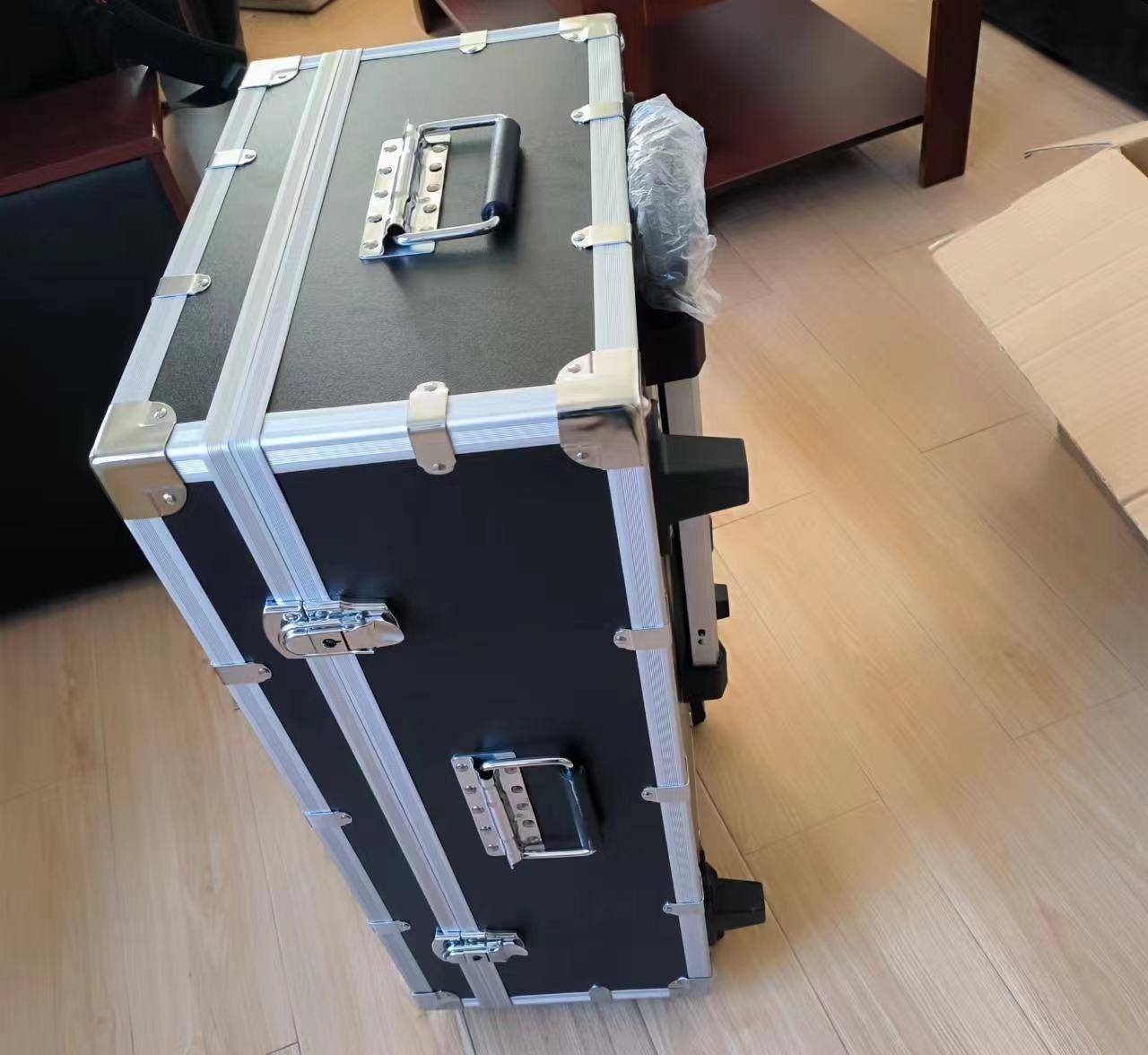

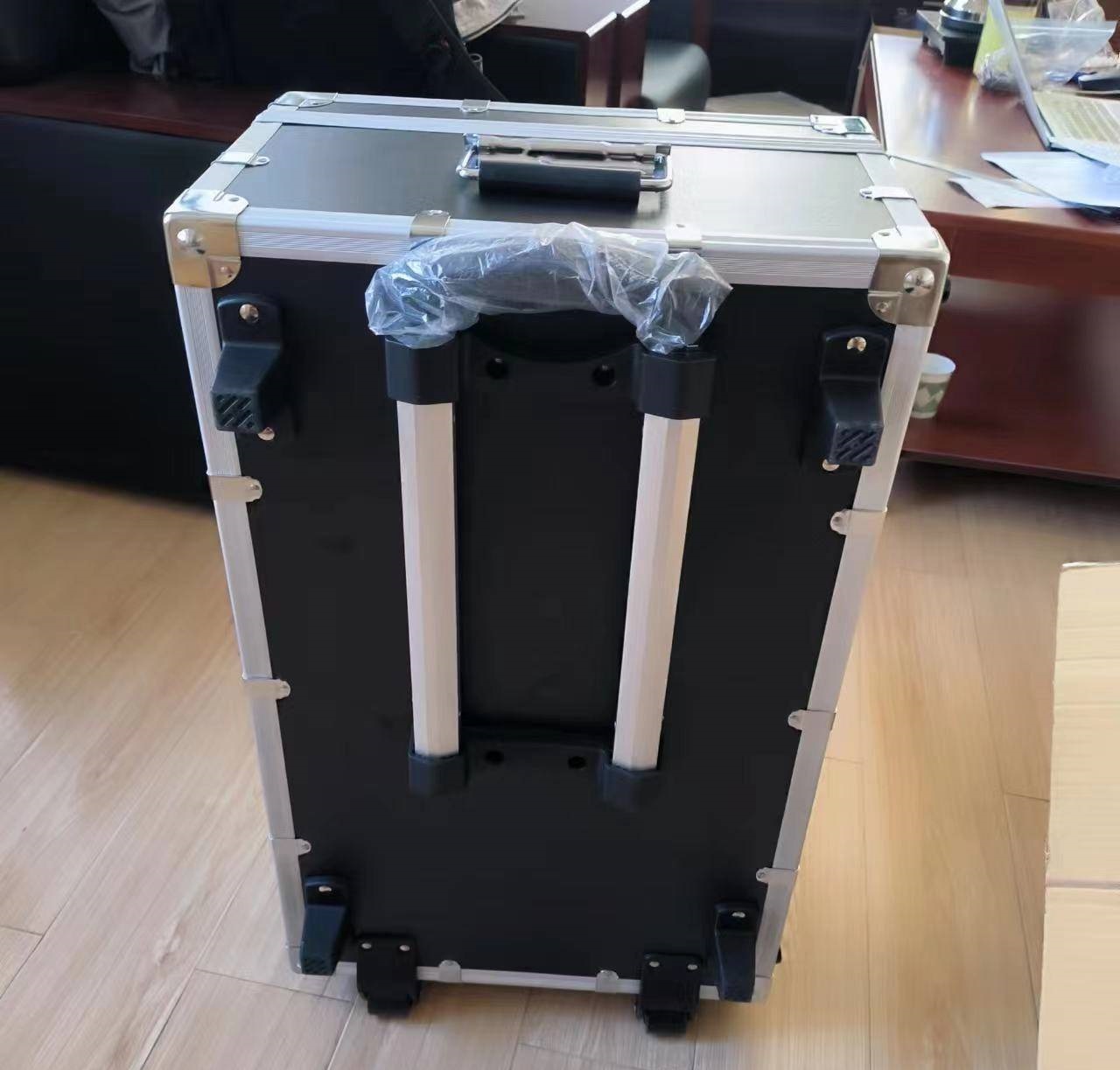

Eco-enforcement and personal protection equipment case configured with NRH 4202-124 pull rings, 6405-76K lockable latches, 7201-40 corner protectors, and 7614-35-FE-CR edge protectors
Configuration Summary
| Parameter | Value |
|---|---|
| Application | Eco-enforcement / Personal protection equipment case |
| Case Material | Aluminum and ABS construction |
| Pull Ring Model | 4202-124 |
| Pull Ring Material | Iron / Chrome-plated |
| Pull Ring Weight | 195g |
| Pull Ring Load Capacity | 35kg |
| Pull Ring Quantity | 2 units |
| Latch Model | 6405-76K |
| Latch Type | Lockable latch with key cylinder |
| Latch Material | Iron / Chrome-plated |
| Latch Weight | 48g |
| Latch Tensile Strength | 196N |
| Latch Quantity | 2 units |
| Corner Protector Model | 7201-40 |
| Corner Protector Material | Iron / Chrome-plated |
| Corner Protector Weight | 26g |
| Corner Protector Quantity | 8 units |
| Edge Protector Model | 7614-35-FE-CR |
| Edge Protector Material | Iron / Chrome-plated |
| Edge Protector Weight | 7g |
| Edge Protector Quantity | 20 units |
Product Specifications
4202-124 Pull Ring

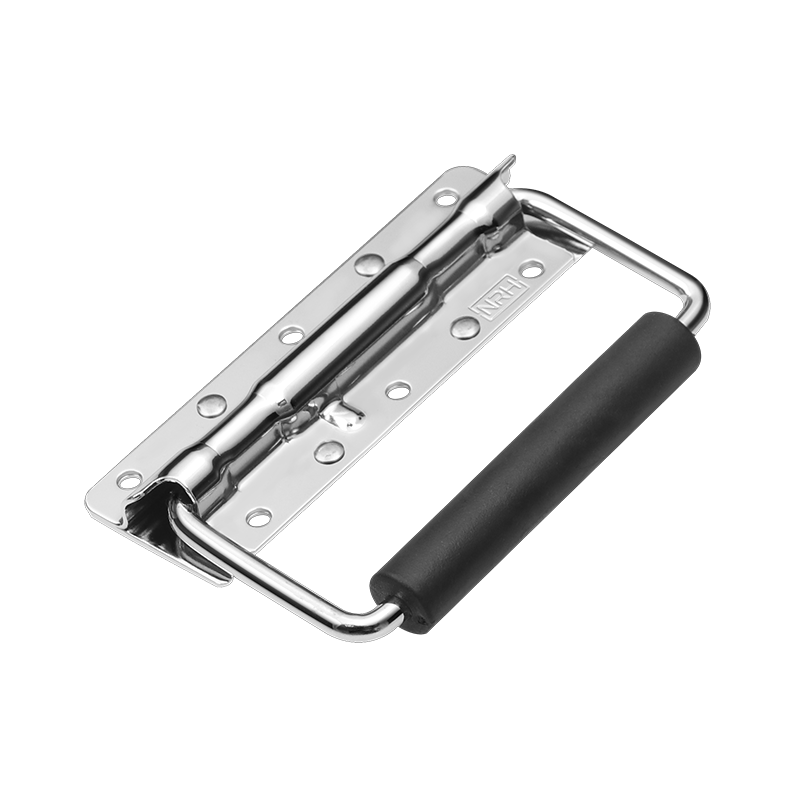

4202-124 pull ring, iron/chrome-plated, 195g, 35kg load capacity, 80-degree opening angle, 124mm centers
The 4202-124 is a pull ring from NRH’s 4202 series. Key specifications:
| Parameter | Specification |
|---|---|
| Model | 4202-124 |
| Type | Pull ring (thin style) |
| Material | Iron / Chrome-plated |
| Weight | 195g |
| Load Capacity | 35kg |
| Opening Angle | 80 degrees |
| Mounting Hole Centers | 124mm |
| Overall Dimensions | 124 x 51 x 44mm |
Why this pull ring was selected: The 4202-124 pull ring provides a low-profile carrying solution for eco-enforcement and personal protection cases. The 80-degree opening angle accommodates gloved operation in field conditions, while the 35kg load capacity per ring comfortably supports the weight of the case and its contents. The chrome-plated iron construction provides corrosion resistance for outdoor deployment. Two rings mounted on opposite sides allow for balanced two-person carry or single-person lifting from either side.
6405-76K Lockable Latch
6405-76K lockable latch, iron/chrome-plated, 48g, 196N tensile, key lock cylinder
The 6405-76K is a lockable latch from NRH’s 6405 series. Key specifications:
| Parameter | Specification |
|---|---|
| Model | 6405-76K |
| Type | Lockable latch (with key cylinder) |
| Material | Iron / Chrome-plated |
| Weight | 48g |
| Tensile Strength | 196N |
| Lock Function | Key lock cylinder (K variant) |
| Overall Dimensions | 71.5 x 44.5 x 29mm |
| Mounting Hole Diameter | 5 x 3.5mm |
Why this latch was selected: The 6405-76K provides secure closure with an integrated key lock cylinder, essential for eco-enforcement and personal protection cases where equipment security is critical. The 196N tensile strength ensures the lid remains securely closed under transport vibration and handling. The chrome-plated iron construction provides corrosion resistance for field deployment. Two latches distributed on the lid perimeter ensure even sealing pressure. The “K” designation indicates the key lock cylinder, providing chain-of-custody security for evidence and sensitive equipment.
7201-40 Corner Protector

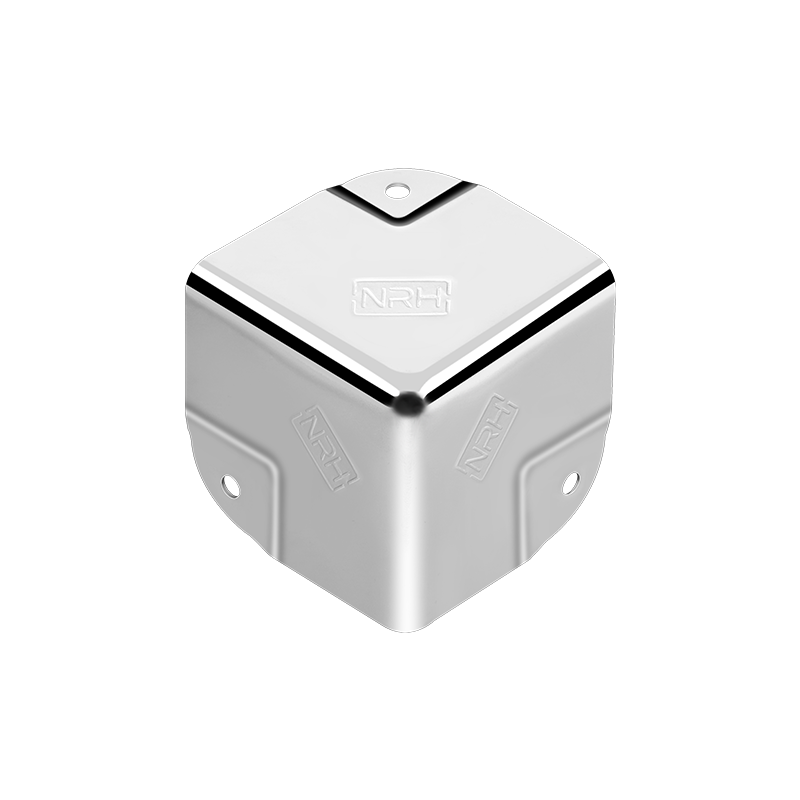

7201-40 corner protector, iron/chrome-plated, 26g
The 7201-40 is a corner protector from NRH’s 7201 series. Key specifications:
| Parameter | Specification |
|---|---|
| Model | 7201-40 |
| Type | Corner protector |
| Material | Iron / Chrome-plated |
| Weight | 26g |
| Mounting Hole Diameter | 3 x 4.2mm |
| Function | Impact protection at case corners |
Why corner protectors are required: Corners are the first points of impact when a case is dropped or struck. The 7201-40 corner protectors absorb and distribute impact energy, preserving case structural integrity. Eight units installed on all case corners provide comprehensive protection for field-deployable cases subjected to rough handling in eco-enforcement and personal protection operations.
7614-35-FE-CR Edge Protector

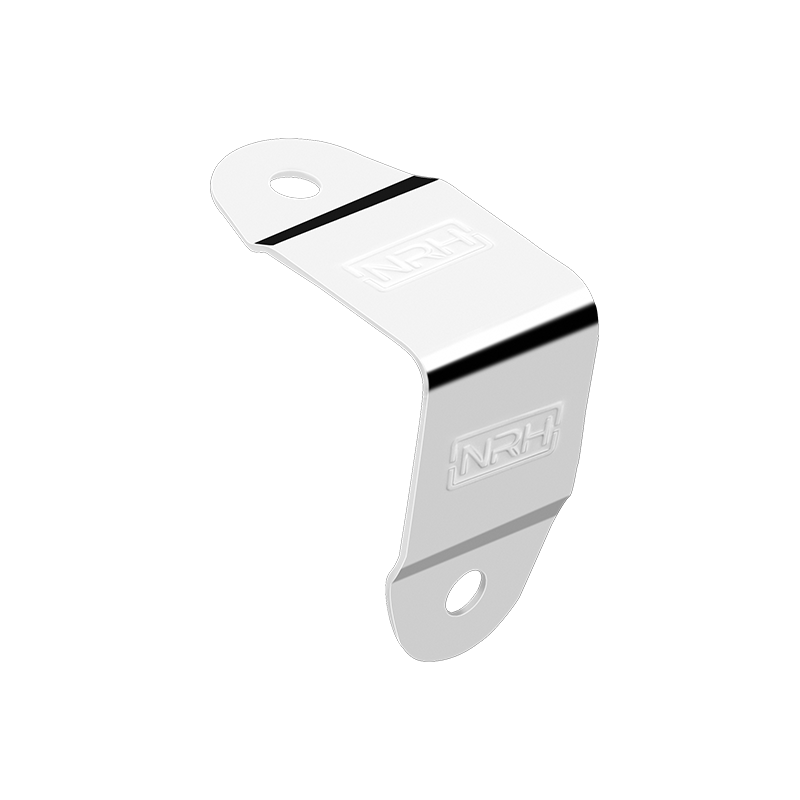

7614-35-FE-CR edge protector, iron/chrome-plated, 7g
The 7614-35-FE-CR is an edge protector from NRH’s 7614 series. Key specifications:
| Parameter | Specification |
|---|---|
| Model | 7614-35-FE-CR |
| Type | Edge protector |
| Material | Iron / Chrome-plated |
| Weight | 7g |
| Length | 18.5mm |
| Mounting Hole Diameter | 2 x 4.1mm |
| Function | Edge reinforcement and impact protection |
Why edge protectors are required: Case edges are vulnerable to impact and abrasion during transport and field deployment. The 7614-35-FE-CR edge protectors reinforce case edges, preventing damage that could compromise seal integrity or case structure. At just 7g per unit, these protectors add minimal weight while providing essential edge protection. Twenty units provide comprehensive edge coverage for the aluminum and ABS case construction.
Product Comparison
| Model | Type | Material | Weight | Load/Tensile | Lock | Application |
|---|---|---|---|---|---|---|
| 4202-124 | Pull Ring | Iron/CR | 195g | 35kg | No | Carrying |
| 6405-76K | Lockable Latch | Iron/CR | 48g | 196N | Yes | Lid closure |
| 7201-40 | Corner Protector | Iron/CR | 26g | N/A | No | Impact protection |
| 7614-35-FE-CR | Edge Protector | Iron/CR | 7g | N/A | No | Edge reinforcement |
Installation Guide
Tools Required
- Drill with appropriate bits for pilot holes
- Rivet gun (4mm or 4.8mm blind rivets)
- Marker or scribe
- Deburring tool
- Torque wrench (if using screw mounting)
Step-by-Step Installation
- Position the pull rings. Mount the two 4202-124 pull rings symmetrically on opposite sides of the case. Position rings approximately at the center of each side panel for balanced load distribution.
- Position the corner protectors. Install the 7201-40 corner protectors on all eight case corners. The protectors should wrap the three faces of each corner edge.
- Position the edge protectors. Install the 7614-35-FE-CR edge protectors along case edges at vulnerable points. Twenty units provide comprehensive edge coverage for the aluminum and ABS case construction.
- Position the latches. Mount the two 6405-76K lockable latches on the front panel, aligned for secure lid closure.
- Mark pilot hole locations. Use the mounting flanges as templates. Mark all mounting hole positions on both the case body and lid.
- Drill pilot holes. Drill pilot holes according to the product’s hole spacing specifications. For aluminum and ABS cases, use slow drill speed to prevent material damage.
- Deburr and clean. Remove burrs from all drilled holes. Clean the mounting surfaces to ensure flanges sit flush against the case surface.
- Secure the hardware. Insert blind rivets through each flange hole. Set rivets firmly. The flange must sit completely flat against the case surface.
- Verify operation. Close the lid and engage each latch. The 6405-76K latch should lock securely with the key cylinder. Verify pull rings deploy and retract smoothly.
- Test under vibration. Simulate transport vibration by gently shaking the case. Confirm all latches remain locked and hardware remains secure.
Mounting Method Options
| Method | Best For | Considerations |
|---|---|---|
| Rivet Fixing | Production assembly, aluminum cases | Fastest, tamper-resistant, consistent clamp force |
| Screw Fixing | Field replacement, adjustable installations | Use thread-locking compound for vibration-prone environments |
| Spot Welding | Metal cases | Use unfinished products to avoid coating damage |
What Happens If You Choose Wrong?
- Using non-locking latches on eco-enforcement cases: Equipment and evidence stored in cases without locking hardware is vulnerable to tampering. The 6405-76K provides keyed security essential for chain-of-custody requirements.
- Specifying insufficient corner protection: Cases dropped without corner protectors transfer impact energy directly to the case frame. Corner protectors (7201-40) absorb impact and preserve structural integrity.
- Using pull rings without adequate load capacity: A 20kg-rated ring on a 25kg case will fail prematurely. The 4202-124 provides 35kg capacity, ensuring adequate safety margin.
- Choosing unprotected edges on ABS cases: ABS is susceptible to edge damage from impacts. Edge protectors (7614-35-FE-CR) reinforce vulnerable edges and extend case service life.
- Using non-chrome-plated hardware in field environments: Uncoated iron corrodes rapidly in outdoor conditions. Chrome plating provides essential corrosion resistance for eco-enforcement and personal protection applications.
Application Summary
The eco-enforcement and personal protection equipment case demonstrates how properly specified hardware, pull rings with 35kg capacity, lockable latches with 196N tensile strength, corner protectors, and edge protectors, creates a durable, secure enclosure for field operations.
Key selection factors for this application included:
- Pull ring design: 4202-124 provides 35kg load capacity with 80-degree opening angle for gloved operation
- Lockable security: 6405-76K with key cylinder provides chain-of-custody protection
- Comprehensive impact protection: 8 corner protectors and 20 edge protectors for full case coverage
- Chrome-plated iron construction: Corrosion resistance for outdoor field deployment
- Two-latch configuration: Even sealing pressure across the case lid
- Two-ring configuration: Balanced carrying for single or two-person lift
Recommended for similar applications: This hardware configuration is also well-suited for law enforcement evidence cases, tactical gear transport, forensic equipment cases, wildlife inspection gear, and any field-deployable case requiring secure, durable hardware with comprehensive impact protection.
Frequently Asked Questions
Q: What is the load capacity of the 4202-124 pull ring?
Data answer: Each 4202-124 pull ring has a 35kg load capacity. With two rings installed, the total capacity is 70kg.
Q: Does the 6405-76K latch include a lock cylinder?
Data answer: Yes. The 6405-76K features an integrated key lock cylinder (K variant), providing security for eco-enforcement and personal protection equipment cases.
Q: What is the tensile strength of the 6405-76K latch?
Data answer: The 6405-76K has a tensile strength of 196N, providing secure lid closure under transport vibration and impact.
Q: How many corner protectors and edge protectors are needed?
Data answer: This configuration uses 8 corner protectors (7201-40) for all case corners and 20 edge protectors (7614-35-FE-CR) for comprehensive edge coverage on the aluminum and ABS case construction.
Q: Are these components compatible with aluminum and ABS cases?
Data answer: Yes. All components are compatible with aluminum and ABS construction. For ABS cases, use aluminum blind rivets to prevent cracking during installation.
Q: Can the 6405-76K be rekeyed to match existing case locks?
Data answer: Yes. NRH supports custom key coding for lockable latches. Specify your preferred key code at the time of order to standardize key management across your equipment fleet.
Q: What is the expected service life of chrome-plated hardware in field conditions?
Data answer: Chrome-plated iron hardware typically provides 5-8 years of service in field conditions with proper maintenance. Regular inspection and cleaning (especially after saltwater or dust exposure) extends service life. For prolonged outdoor exposure, SUS304 stainless steel alternatives are recommended.
