Portable Power Case Folding Handles: Recessed vs Surface-Mount

Portable power cases demand hardware that performs under field conditions while maintaining a professional appearance. These enclosures house batteries, inverters, and power distribution equipment that must remain accessible during deployment. Handle selection directly influences user experience, transport efficiency, and long-term durability. A poorly designed handle compromises the entire enclosure.

This article examines folding handles suited to portable power cases: recessed folding handles for flush installation and zero stacking height, and surface-mount folding handles for applications requiring maximum grip clearance. Real-world application data comes from a 400mm x 295mm x 252mm portable power supply carrying case using both handle types in a dual-configuration setup.

Case 29: Portable Power Case with Folding Handles

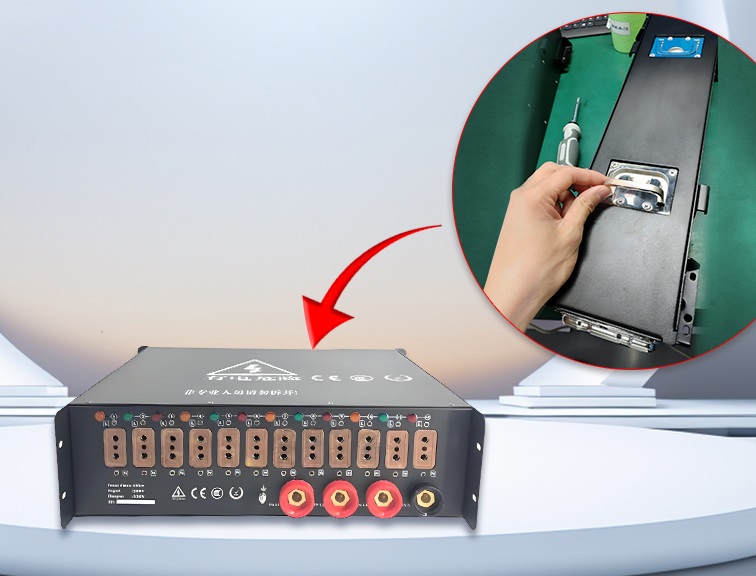

Case 29 – Portable power case (400mm x 295mm x 252mm) equipped with recessed folding handle 4111-76-S16-PG (top panel) and surface-mount folding handle 4201-100-S04-LG (front face) for dual-handle carrying configuration.

A 400mm x 295mm x 252mm portable power case for field equipment required two handle types working together. The recessed folding handle (4111-76-S16-PG) mounts flush on the top panel, allowing the case to stack cleanly without protruding hardware. The surface-mount folding handle (4201-100-S04-LG) mounts on the front face for direct access during transport. Both handles use stainless steel construction for corrosion resistance in varied field environments.

This dual-handle configuration is common in portable power cases where the recessed handle serves stacking and storage purposes while the surface-mount handle provides the primary carrying grip. The 4111-76-S16-PG recessed handle disappears into the top panel when folded, maintaining a flat surface for stacking. The 4201-100-S04-LG surface-mount handle stays accessible at all times, allowing immediate lifting without locating a recessed mechanism.

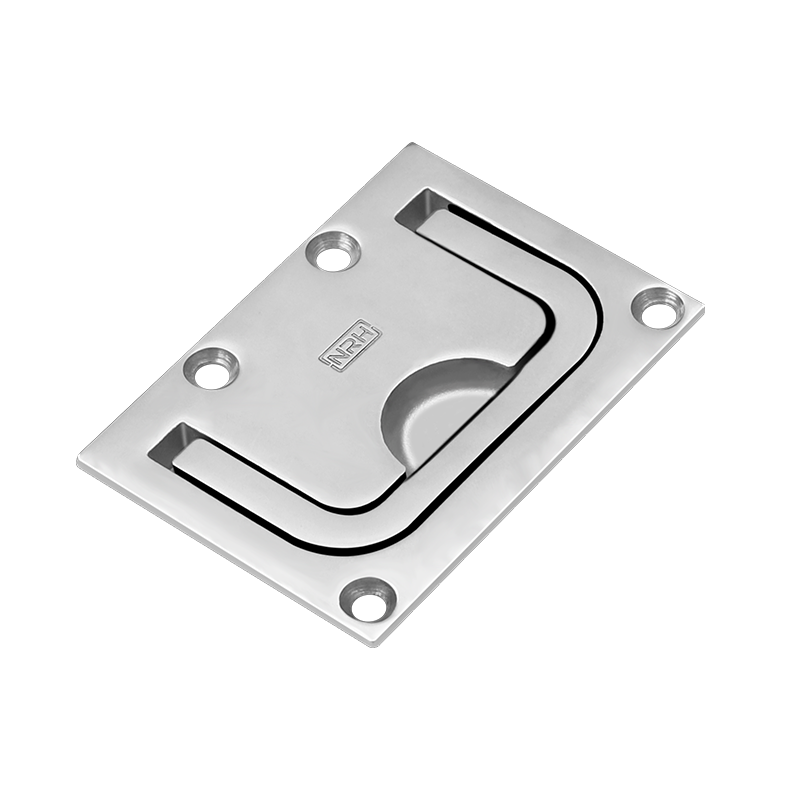

4111-76-S16-PG Recessed Folding Handle

The 4111-76-S16-PG is a recessed folding handle constructed from SUS316 stainless steel with powder-coated surface finish. SUS316 provides superior corrosion resistance compared to standard grades, making it suitable for cases that encounter moisture, field conditions, or variable humidity environments. The powder coat finish adds a protective layer that resists scratches and provides a uniform matte appearance aligned with professional equipment aesthetics.

The recessed design means the handle sits below the panel surface when in the folded position. When lifted, the handle extends upward for a comfortable carrying grip. When released, the handle returns to the flush position automatically. This automatic return function keeps the case top flat and unobstructed, which matters for cases stacked in vehicles, equipment racks, or storage shelves.

Two units of the 4111-76-S16-PG were installed in this case, positioned symmetrically to balance the load during top-lift carrying. The 76mm grip span accommodates most adult hand sizes comfortably. SUS316 material ensures the mechanism inside the housing remains resistant to corrosion even if the exterior powder coat wears at the contact edges over years of use.

• Model: 4111-76-S16-PG
• Material: SUS316 stainless steel
• Surface: Powder coat (PG finish)
• Weight: 131g
• Load capacity: 25kg
• Installation: Recessed/embedded, 2 pcs
• Application: Top panel flush mount for stacking and clean surface

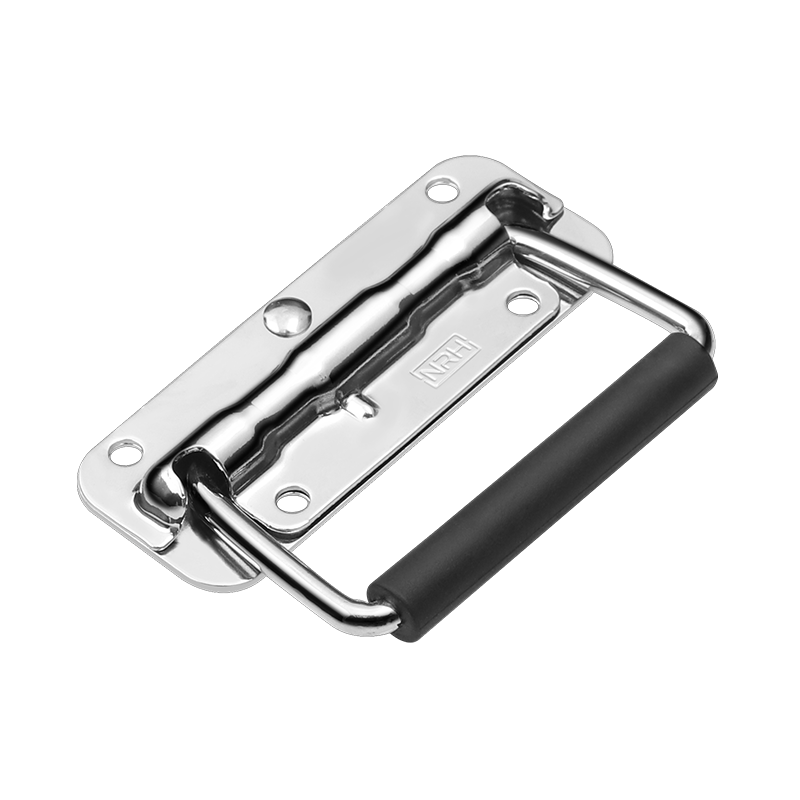

4201-100-S04-LG Surface-Mount Folding Handle

The 4201-100-S04-LG is a surface-mount folding handle constructed from SUS304 stainless steel with mirror-polished surface finish. The polished LG finish delivers a high-gloss reflective appearance that enhances the visual presentation of the case. SUS304 stainless steel resists corrosion under normal use conditions and maintains its shine through repeated cleaning.

Two units of the 4201-100-S04-LG were mounted on the front face of the case. The surface-mount position means the handle is always accessible for lifting without requiring the user to locate and extend a recessed mechanism. The 100mm grip span provides substantial hand clearance, and the swivel action allows the handle to rotate during use, distributing grip force more evenly.

The 4201-100-S04-LG carries a load rating of 122g per unit with a 25kg load capacity – sufficient for the 400mm x 295mm x 252mm case even when fully loaded. The polished finish resists fingerprints and minor scratches better than brushed alternatives, which simplifies maintenance for cases used in field environments.

• Model: 4201-100-S04-LG
• Material: SUS304 stainless steel
• Surface: Mirror polish (LG finish)
• Weight: 122g per unit
• Load capacity: 25kg per unit
• Installation: Surface mount, 2 pcs
• Application: Front face primary carrying handle

Product Overview

NRH 4111-76-S16-PG – SUS316 stainless steel recessed folding handle with powder coat finish for flush mounting in portable power cases. Weight: 131g. Load capacity: 25kg.

NRH 4201-100-S04-LG – SUS304 stainless steel surface-mount folding handle with mirror polish finish for external mounting on portable power cases. Weight: 122g. Load capacity: 25kg.

Portable Power Case Handle Selection Comparison

The table below compares the primary folding handle types used in portable power cases, equipment enclosures, and field transport cases based on material, surface finish, weight, and load capacity.

For portable power cases, the choice between recessed and surface-mount folding handles depends on the primary use case. Recessed handles (4111 series) contribute to a clean, flat exterior that works well when cases are stacked, stored, or transported alongside other equipment. Surface-mount handles (4201 series) prioritize accessibility and carrying comfort but add visible hardware to the case surface.

Installation Guide

Recessed Handle (4111-76-S16-PG) Installation

Recessed handles require a cutout in the panel surface matched to the handle body dimensions. Follow these steps for a secure installation:

1. Cutout preparation: Route or mill a rectangular recess in the panel to match the handle body footprint. Verify the recess depth allows the handle body to sit flush with or slightly below the panel surface. The 4111-76-S16-PG body requires a recess of approximately 76mm width and the specified body depth for this model.
2. Handle placement: Insert the handle body into the recess. Ensure the spring mechanism faces the direction of travel and the grip bar pivot is unobstructed.
3. Fastening: Secure the handle from below using the manufacturer-specified screws or bolts. For aluminum panels, use self-clinching fasteners if the panel thickness is under 2mm. For wood or composite panels, wood screws or machine screws with washers provide adequate pull-out resistance.
4. Functional test: Cycle the handle through five open-close operations to confirm the spring return functions correctly and the grip bar reaches full extension and retraction without binding.
5. Positioning: For dual-handle installations, mount handles symmetrically at equal distance from the case centerline. Uneven handle placement creates an imbalanced lifting experience and stresses one side of the case during transport.

Surface-Mount Handle (4201-100-S04-LG) Installation

1. Surface preparation: Clean the mounting surface and mark the hole pattern according to the handle’s pre-drilled fastener locations. Ensure the surface is flat and free of protrusions that could prevent flush mounting.
2. Reinforcement check: For panels under 3mm thickness or corrugated construction, install a reinforcement backing plate on the interior surface before mounting the handle. The backing plate distributes pull force across a wider area and prevents panel deformation.
3. Handle alignment: Position the handle so the grip bar is horizontal when viewed from the normal carrying angle. Misaligned handles create torque during lifting that stresses the mounting fasteners.
4. Fastening: Apply thread-locking compound to the fasteners before installation to prevent vibration-induced loosening during transport. Torque fasteners to the specified value – over-tightening can crack the handle body on plastic models or deform the grip bar on metal models.
5. Load test: Apply a test load equal to 120% of the rated capacity before deploying the case in service. Verify the mounting fasteners have not shifted and the handle pivots freely.

Handle Selection Decision Points

Selecting the right folding handle for a portable power case involves balancing several factors:

Material Selection

SUS316 stainless steel handles suit cases exposed to moisture, field environments, or frequent hand contact. The molybdenum content in SUS316 provides corrosion resistance that SUS304 cannot match in chloride-rich environments. For standard indoor or sheltered use, SUS304 stainless steel handles provide sufficient corrosion resistance with a polished finish that matches professional aesthetics.

Chrome-plated carbon steel handles offer the highest load capacity at the lowest cost but sacrifice some corrosion resistance compared to stainless steel. For cases with limited budget and indoor use, carbon steel with quality chrome plating delivers adequate durability.

Recessed vs. Surface Mount

Recessed handles contribute to a sleek product appearance and prevent the case from snagging on other items during transport or storage. They are the preferred choice when the case will be stacked, displayed, or shipped alongside delicate equipment. The spring return mechanism adds a quality tactile feel that reinforces the professional positioning of the product.

Surface-mount handles provide faster, more intuitive access. Users can grip and lift immediately without locating and operating a spring mechanism. For cases that are opened and closed frequently during field deployment, surface-mount handles reduce friction in the workflow. The polished handles also serve a visual function – the reflective hardware signals quality to observers.

Load Capacity Matching

Handle load capacity must exceed the fully-loaded case weight by a safety margin. A handle rated at 25kg supports a case loaded to approximately 15-20kg under normal use. The 4201-100-S04-LG at 25kg per unit suits compact power cases up to roughly 10-12kg when two handles share the load. For heavier equipment, the 4101-160-FE-CR at 80kg or the 4301-100-S04-ZG at 50kg provides the necessary margin.

Surface Finish Coordination

Match the handle finish to the case exterior: polished stainless steel (LG) works with glossy surfaces; powder coat (PG) complements matte finishes; vibratory polish (ZG) suits textured or industrial aesthetics. Mixed finishes require deliberate design intent – unintentional mismatch signals poor quality control.

Quantity and Placement

Two handles provide balanced load sharing for cases up to approximately 40-50cm in length. For longer cases, four handles (two per side) prevent sagging under load and distribute the carrying force more evenly. Case 29 demonstrates an effective hybrid approach: two recessed handles for top lifting and two surface-mount handles for front-face carrying, giving the user flexibility in how they transport the case.

What Happens If You Choose Wrong

A client spec’d chrome-plated carbon steel handles (4101-160-FE-CR) for a coastal field power case based on load capacity alone, ignoring the corrosive salt air environment. Within four months, the chrome plating developed pitting at the grip contact points where perspiration and salt air concentrated. The handles still carried the load, but the visible corrosion undermined the professional appearance the case was designed for. The client replaced them with SUS316 (4111-76-S16-PG) at 2.5x the cost – plus the labor to retrofit the recessed mounting. The lesson: match material to the full environment, not just the weight spec.

FAQ

Recessed vs surface-mount folding handles for portable power cases

Recessed folding handles mount inside a panel cutout and fold flush with the surface when released. This keeps the case surface flat and clean. Surface-mount handles mount on the outside of the case and remain visible and accessible at all times. Recessed handles prioritize stacking and aesthetics; surface-mount handles prioritize access speed and carrying comfort. Both types can achieve comparable load ratings depending on the model.

Best material for power case handles in field environments

SUS316 stainless steel provides the best corrosion resistance in field or moisture-prone environments. The molybdenum content resists chloride-induced pitting, which is relevant for cases that experience condensation, perspiration, or coastal air exposure. For standard indoor use, SUS304 stainless steel with polished finish delivers adequate corrosion resistance at a lower cost. Chrome-plated carbon steel handles are suitable for controlled environments but will corrode faster in field conditions without protective plating maintenance.

Determining the correct handle load capacity for your power case

Add the empty case weight to the maximum expected contents weight to get the fully-loaded weight. Divide this by the number of handles on the case. Each handle should have a rated capacity at least 1.5x the calculated per-handle load to provide a safety margin and account for dynamic forces during lifting. For a 10kg case with two handles, each handle should be rated for at least 7.5kg minimum – recommending a handle with 15-20kg capacity for comfortable daily use.

Recessed handles on thin panels

Recessed handles require adequate panel depth to accommodate the handle body and spring mechanism. For panels under 8mm thick, consider a surface-mount handle instead, or specify a low-profile recessed handle model designed for shallow installations. Some recessed handles also require clearance behind the panel for the spring mechanism to operate. Verify the full installation depth requirement before committing to a recessed design on a thin panel.

Finish options for portable power case handles

Common finishes include mirror polish (LG) for a high-gloss reflective appearance, vibratory polish (ZG) for a brushed satin look, powder coat (PG) for a matte uniform color, and chrome plating (CR) for bright reflective surfaces. Mirror polish and chrome plating work best with premium glossy case exteriors. Powder coat matches matte-finish cases and provides additional scratch resistance. Vibratory polish suits industrial or minimalist aesthetics.

How many handles for a 400x295x252mm power case?

Most portable power cases of this size use two handles – either both recessed, both surface-mount, or one of each. Two handles at symmetric positions provide balanced load distribution and allow one- or two-person carrying. For larger cases exceeding 600mm in length, four handles (two per side) prevent sagging and provide multiple grip positions.

Maintenance for power case handles

Stainless steel handles require minimal maintenance – periodic cleaning with a soft cloth and mild detergent keeps the polished finish looking new. Avoid abrasive cleaners that scratch the surface. For handles in coastal or industrial environments, a quarterly inspection of the mounting fasteners for looseness is recommended. Re-apply thread-locking compound if fasteners are found loose. Chrome-plated handles benefit from occasional reapplication of a protective wax coating to maintain the finish in corrosive atmospheres.

Custom handle sizes or finishes for OEM power case projects

NRH supports OEM and ODM customization for handle projects, including custom sizes, materials, finishes, logos, and load capacity modifications. For custom configurations, contact the team with the target specifications including required grip span, mounting dimensions, material grade, finish color, and projected volume. Sample units are available for qualified customers to verify fit and function before committing to production orders.
