Stainless Steel Hinges for Yacht Hatch Applications Marine Hardware Guide
Applicable Buyers: Luxury yacht builders | Marine OEM manufacturers | Boat repair and refit yards | Marine hardware distributors | Commercial vessel fabricators
Key finding: A 5300x1750x100mm yacht hatch panel was configured with six NRH 8201-50-S04-LG polished stainless steel hinges (52g each, 10kg load per hinge). The polished SUS304 construction provides corrosion resistance for saltwater exposure while the mirror finish complements luxury yacht interiors. Six hinges evenly spaced across the 5.3m panel length ensure optimal load distribution and long-term reliability.
Marine hardware demands exceptional performance under demanding conditions. Salt spray, UV radiation, and moisture exposure systematically degrade inferior hinges within months of installation. For yacht owners and marine engineers, selecting appropriate hardware is not merely a procurement decision; it is a critical factor determining vessel safety, maintenance costs, and long-term structural integrity.
Yacht hatch panels present unique challenges that standard hinges cannot address. These large-format access points must provide secure closures while remaining operable under varying loads, resist corrosion from continuous saltwater exposure, maintain watertight seals against deck flooding, and contribute to the vessel’s overall aesthetic presentation. In luxury yacht applications, visual integration with premium interiors is equally important as functional performance.
This case study demonstrates how six strategically positioned 8201-50-S04-LG polished stainless steel hinges solved a large yacht’s hatch panel requirement. The installation maintained both exceptional functionality and seamless aesthetic integration with the yacht’s interior design.
The Critical Role of Marine-Grade Hinges in Yacht Applications
Understanding why marine-grade hinges are essential requires examining the specific environmental factors affecting yacht hardware:
Corrosion Resistance
SUS304 stainless steel maintains structural integrity even when exposed to continuous saltwater spray. The chromium oxide layer provides passive corrosion resistance that self-repairs when scratched. This characteristic is essential for hinges that may accumulate minor surface damage during regular operation.
Load Distribution Requirements
Large hatch panels measuring 5300mm x 1750mm x 100mm present significant engineering challenges. The panel weight must be distributed evenly across mounting points while ensuring smooth operation throughout the hinge’s service life. Inadequate load distribution leads to hinge fatigue, panel distortion, and eventual failure.
Aesthetic Integration
Modern yachts demand seamless visual integration of all hardware elements. Polished stainless steel finishes complement the clean lines of contemporary yacht interiors while providing the durability required for marine service. The mirror finish of the 8201-50-S04-LG reflects the premium quality expected in high-end vessel construction.
Sealing Performance
Proper hinge selection and positioning directly impact hatch seal effectiveness. Hinges must enable complete panel closure while accommodating compression of perimeter seals. Improper hinge selection or positioning can compromise watertight integrity.
This case study application required six hinges to achieve optimal load distribution for the 5.3-meter panel length. This systematic approach ensures long-term reliability while preventing panel warping and seal degradation.
Marine-grade polished stainless steel hinges on yacht hatch panel. Six 8201-50-S04-LG units provide secure load distribution for panels exceeding 5 meters in length.
Product Specifications
The 8201-50-S04-LG is a marine hinge engineered for demanding maritime applications. This premium strap hinge combines superior materials with precision manufacturing.
| Specification | Value |
|---|---|
| Model | 8201-50-S04-LG |
| Material | SUS304 Stainless Steel |
| Surface Finish | Polished / Mirror (LG) |
| Weight | 52g |
| Load Capacity | 10kg per unit |
| Overall Dimensions | 53 x 70.5 x 20mm |
| Mounting Hole Diameter | 4 x 5mm (through) / 4 x 12mm (counterbore) |

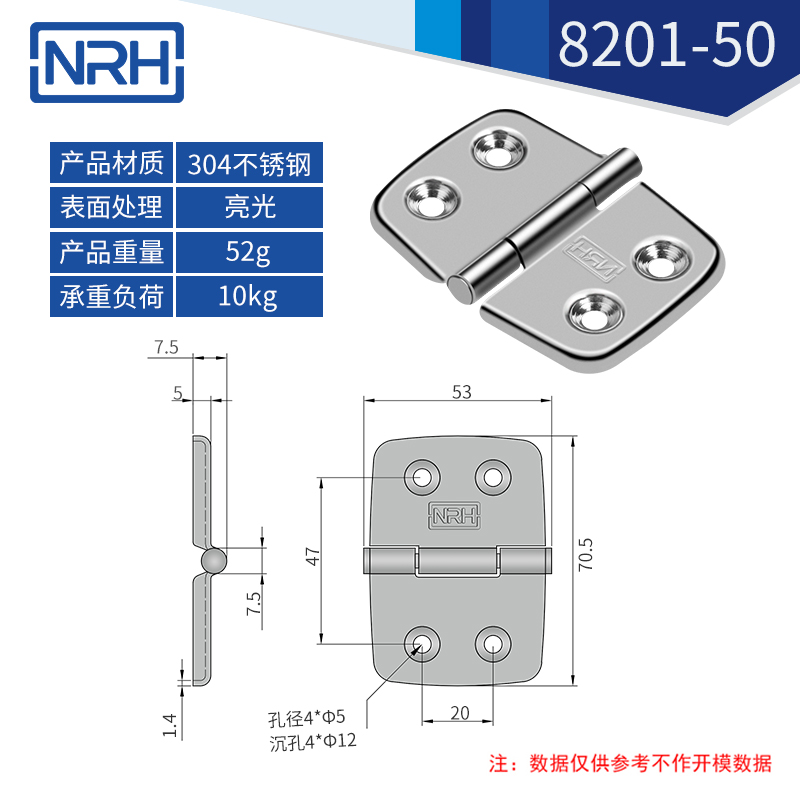

8201-50-S04-LG, polished SUS304 stainless steel hinge, 52g, 10kg load capacity

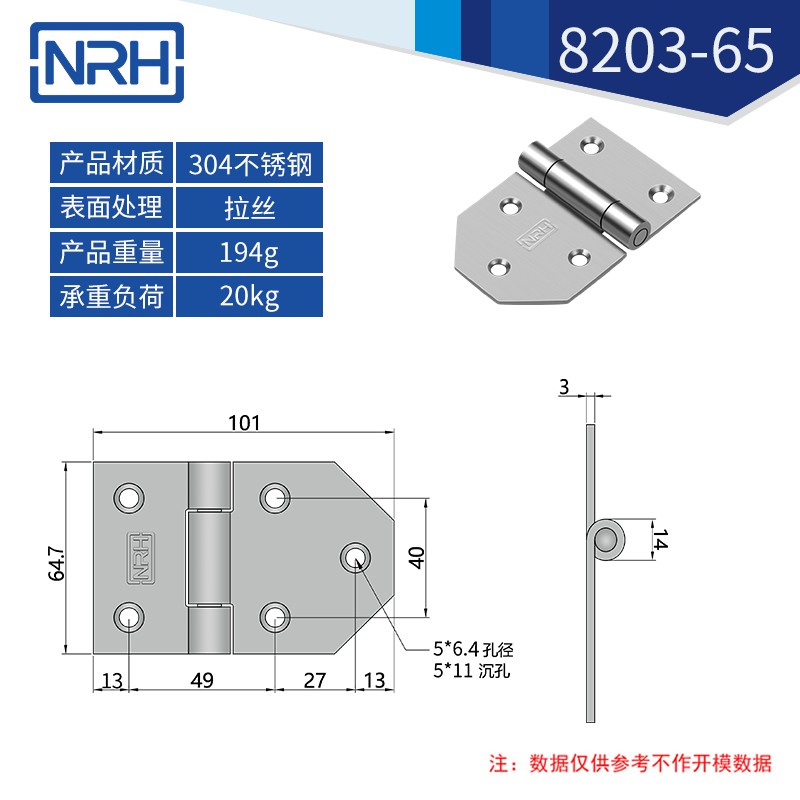

8203-65-S04-LS, extended 65mm hinge, brushed finish, 194g, 20kg load capacity
Comprehensive Marine Hinge Comparison
Selecting the appropriate marine hinge requires systematic evaluation of multiple parameters against your specific application requirements.
| Model | Material | Finish | Weight | Load Capacity | Marine Suitability |
|---|---|---|---|---|---|
| 8201-50-S04-LG | SUS304 | Polished | 52g | 10kg | Excellent, Primary Recommendation |
| 8202-50-S04-LS | SUS304 | Brushed | 136g | 18kg | Excellent, Brushed Alternative |
| 8203-65-S04-LS | SUS304 | Brushed | 194g | 20kg | Excellent, Heavy Duty |
| 8101-100-FE-ZL | Iron | Zinc-plated | 82g | 13kg | Not recommended for saltwater exposure |
Critical Selection Insight: For marine environments exposed to saltwater, SUS304 stainless steel is the minimum acceptable material. Zinc-plated and chrome-plated iron hinges are not recommended for saltwater exposure due to rapid corrosion. The additional investment in stainless steel provides returns through reduced maintenance and replacement costs.
Professional Installation Guidelines
Proper installation is fundamental to maximizing hinge performance and extending service life in marine environments.
1. Corrosion Prevention Measures
- Isolate dissimilar metals: Use nylon or rubber washers between stainless steel hinges and aluminum panels to prevent galvanic corrosion.
- Seal mounting points: Apply marine-grade silicone sealant around screw heads and hinge cavities to prevent moisture infiltration.
- Maintain appropriate clearances: Leave 1-2mm gaps between moving parts to enable proper drainage.
- Pre-treat cut edges: Any drilled holes should receive protective treatment before hinge installation.
2. Structural Mounting Considerations
- Panel reinforcement: Install backing plates or reinforcement strips for panels exceeding 2m in any dimension.
- Calculate load distribution: Position hinges with even spacing based on panel weight calculations. As a general recommendation, maintain 400-600mm maximum spacing between hinges for standard marine panels.
- Hardware selection: Use 316 stainless steel screws for all mounting points.
- Counter-sink properly: Ensure screw heads sit flush with hinge surfaces.
3. Sealing and Weatherproofing
- Verify hatch compression: Confirm hinge positioning provides adequate panel compression for seal engagement.
- Design drainage channels: Ensure panel design includes drainage provisions.
- Schedule regular inspection: Establish quarterly inspections during the first operational year.
Selection Decision Framework
Step 1: Evaluate Environmental Exposure
Saltwater exposure classification determines minimum material requirements. Open ocean and coastal exposure requires SUS304 minimum with appropriate sealing. Protected marina use permits alternative materials with appropriate protective measures.
Step 2: Calculate Load Requirements
Divide total panel weight by mounting point count. As a general engineering practice, ensure each hinge’s individual load capacity exceeds the calculated share by a conservative margin. Account for dynamic loads during vessel motion that can multiply static weights.
Step 3: Assess Aesthetic Requirements
Visible installations benefit from polished finishes (8201-50-S04-LG). Secondary compartments may use brushed alternatives (8202-50-S04-LS, 8203-65-S04-LS).
Step 4: Verify Dimensional Compatibility
Confirm hinge dimensions accommodate panel thickness with adequate clearance for full range of motion and seal compression.
What Happens If You Choose Wrong?
- Using iron hinges in saltwater environments: Iron hinges will show visible corrosion within 6-12 months of saltwater exposure. Within 24 months, structural integrity may be compromised, requiring costly replacement.
- Installing insufficient hinges on large panels: A 5300mm panel with only 4 hinges instead of 6 would create uneven load distribution. The panel would sag over time, compromising the watertight seal and potentially allowing water ingress.
- Using standard screws without isolation washers: Direct contact between stainless steel hinges and aluminum panels creates a galvanic cell. Aluminum corrosion accelerates rapidly, potentially requiring panel replacement.
- Choosing brushed finish where polished is required: While both finishes provide equivalent corrosion resistance, brushed finishes have a different visual appearance. For luxury yacht interiors where aesthetic integration matters, the wrong finish creates visual inconsistency.
Application Summary
The 5300x1750x100mm yacht hatch panel demonstrates how six 8201-50-S04-LG polished stainless steel hinges (52g each, 10kg load) provide reliable, corrosion-resistant support for large marine access panels. The polished SUS304 construction delivers the corrosion resistance essential for saltwater environments while the mirror finish seamlessly integrates with luxury yacht interiors.
Key selection factors for this application included:
- SUS304 stainless steel: Corrosion resistance essential for marine environments
- Polished finish: Premium aesthetic for visible installation
- Six-hinge configuration: Even load distribution across 5.3m panel length
- 10kg per-hinge capacity: Adequate for yacht hatch panel loads
- Corrosion prevention: Proper isolation and sealing as per marine best practices
Recommended for similar applications: This hinge configuration is also well-suited for deck hatches, cabin doors, storage compartment lids, engine room access points, and any marine application requiring corrosion-resistant hardware with premium appearance.
Frequently Asked Questions
Q: Why choose polished stainless steel over brushed finish for marine applications?
Data answer: Polished (mirror) finishes provide superior corrosion resistance by presenting a smoother, more uniform surface that resists salt deposit accumulation. The polishing process removes microscopic surface imperfections where corrosion can initiate. Both SUS304 finish options deliver excellent performance, but polished variants offer easier cleaning and enhanced aesthetic integration with luxury yacht interiors.
Q: What is the load capacity of the 8201-50-S04-LG hinge?
Data answer: Each 8201-50-S04-LG hinge has a 10kg load capacity. With six hinges on the 5300mm panel, the total capacity is 60kg. Always account for dynamic loads during vessel motion.
Q: Can these hinges be used on aluminum hatch panels?
Data answer: Yes, but proper isolation is essential for long-term reliability. Install non-conductive washers between the stainless steel hinge and aluminum panel to prevent galvanic corrosion. The electrical potential difference creates a galvanic cell when in direct contact with saltwater.
Q: How many hinges are required for large hatch panels?
Data answer: Hinge quantity depends on panel dimensions, weight, and operational loads. For the featured case study with 5300x1750mm dimensions, six hinges provided optimal load distribution. As a general recommendation, maintain 400-600mm maximum spacing between hinges for standard marine panels.
Q: Are these hinges suitable for underwater applications?
Data answer: The 8201-50-S04-LG is designed for above-waterline applications including deck hatches, cabin doors, and storage compartment lids. For submerged applications, specialized submarine-grade hardware with enhanced sealing and pressure resistance is required.
Q: What maintenance schedule is required for marine hinges?
Data answer: Recommended maintenance includes: quarterly fresh water rinsing to remove salt deposits, annual inspection of mounting hardware, periodic lubrication of pivot points (every 6-12 months), and immediate replacement of any hinges showing surface pitting or operational degradation.
Q: Can I get custom finish options for matching specific yacht interiors?
Data answer: NRH offers custom finishing services for volume orders. Standard options include polished mirror, brushed satin, black powder coat, and PVD coating. Custom finishes require minimum order quantities and 4-6 week lead times.
Q: What are the differences between the 8201, 8202, and 8203 series hinges?
Data answer: The 8201-50-S04-LG is a lightweight polished hinge (52g, 10kg load) ideal for visible luxury installations. The 8202-50-S04-LS is a brushed hinge (136g, 18kg) offering higher capacity. The 8203-65-S04-LS is the heavy-duty brushed hinge (194g, 20kg) for larger panels requiring maximum support.
