Quick Access Solutions for Compact Electrical Enclosures
Applicable Buyers: Fire alarm system integrators | Industrial automation panel builders | Electrical enclosure OEMs | Facilities maintenance contractors
Key finding: A single PVC rubber strap handle provides electrical insulation and one-handed access for 262mm fire alarm power controllers, eliminating the risk of short circuits during live maintenance while reducing hardware cost by 30-40% compared to metal alternatives.
Power controller enclosures in fire alarm systems and industrial automation equipment require hardware that balances security, accessibility, and durability. This case study examines a compact 262mm x 220mm x 182mm power controller enclosure fitted with the NRH 4504-195-1-PVC-BK rubber strap handle, demonstrating optimal handle selection for small-format electrical enclosures.
Modern industrial facilities demand hardware that performs reliably under challenging conditions while maintaining cost-effectiveness for volume deployments. The selection of appropriate handles for electrical enclosures involves careful consideration of material properties, environmental factors, and operational requirements that directly impact maintenance efficiency and technician safety.
Case Study: Power Controller Enclosure with PVC Rubber Handle

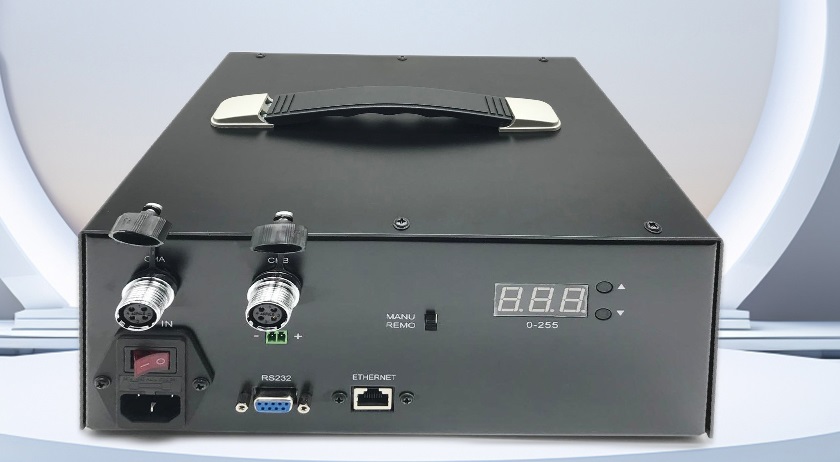

Compact power controller enclosure (262 x 220 x 182mm) fitted with NRH 4504-195-1-PVC-BK PVC rubber strap handle for quick maintenance access
Key Performance Data
- Enclosure Dimensions: 262mm x 220mm x 182mm
- Handle Model: 4504-195-1-PVC-BK
- Handle Material: PVC (polyvinyl chloride)
- Handle Color: Black
- Handle Length: 195mm
- Configuration: Single rubber strap handle
Application Context
This compact fire alarm power controller operates continuously in facilities where rapid maintenance access is critical. The small footprint limits available mounting surface, requiring a single-point handle solution rather than multi-point systems. The 4504-195-1-PVC-BK rubber handle provides adequate gripping force for enclosure handling while maintaining the low profile essential for installations in confined spaces common in control panel retrofits and utility room upgrades.
Product Specifications
The 4504-195 series represents NRH’s standard rubber strap handle line, designed specifically for industrial equipment enclosures. PVC construction provides essential properties for electrical equipment applications:
- Electrical insulation (dielectric strength: 11-15 kV/mm)
- Chemical resistance to cleaning solvents and industrial atmospheres
- Moisture resistance for humid environments
- Operating temperature range: -10C to +60C
- Non-conductive gripping surface for technician safety
- RoHS and REACH compliant materials
- Minimal maintenance requirements
The PVC material resists degradation from cleaning solvents and atmospheric moisture commonly found in basement electrical rooms and rooftop enclosures. These properties make the 4504-195 series particularly suitable for fire alarm control panels and power controllers that operate continuously in facilities requiring frequent maintenance access.
Product Images

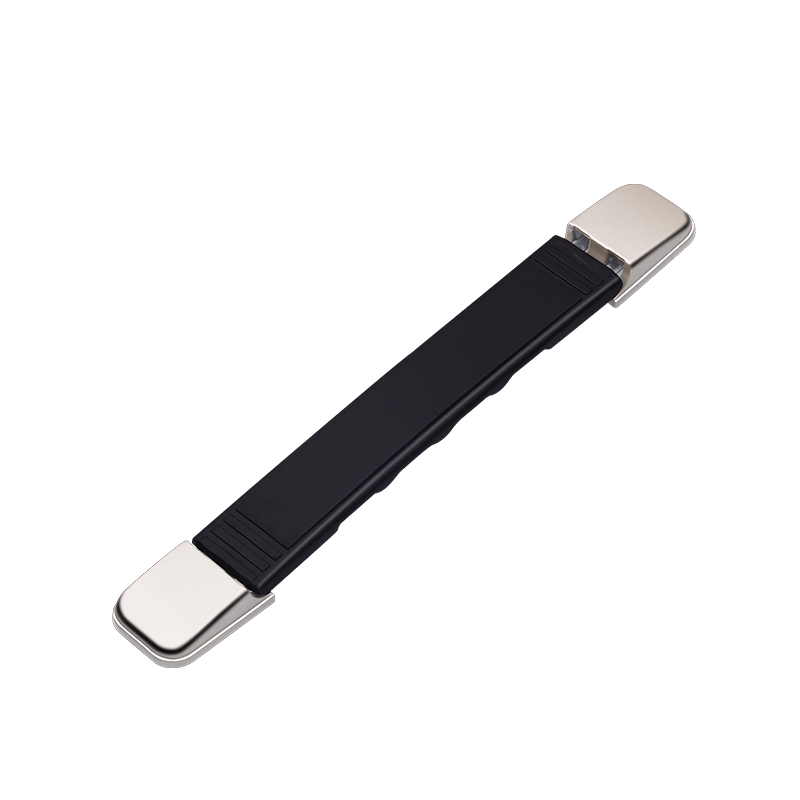

NRH 4504-195-1-PVC-BK PVC rubber strap handle – front view showing strap attachment and mounting provisions

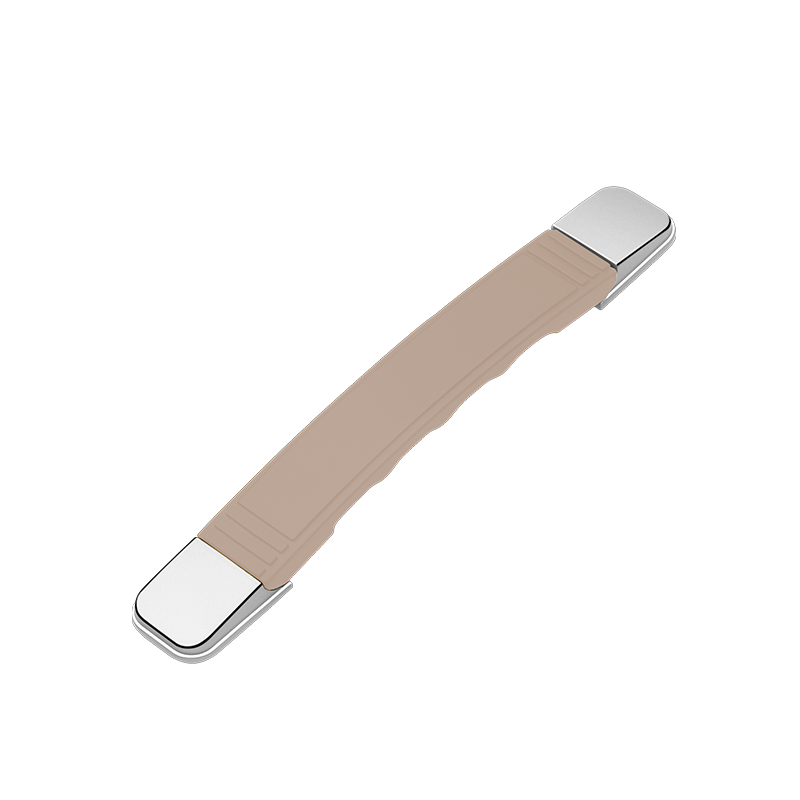

NRH 4504-195-1-PVC-BK PVC rubber strap handle – installation configuration on enclosure panel
Handle Comparison: Metal vs. Rubber/PVC Materials
| Model Number | Material | Surface Finish | Weight | Load Capacity | Primary Application |
|---|---|---|---|---|---|
| 4101-132-S04-LG | SUS304 Stainless | Mirror Polish | 215g | 60kg | Heavy-duty recessed mounting |
| 4201-100-S04-LG | SUS304 Stainless | Mirror Polish | 122g | 25kg | Standard pull applications |
| 4201-110-FE-CR | Carbon Steel | Chrome Plated | – | – | Cost-effective applications |
| 4301-100-S04-ZG | SUS304 Stainless | Vibratory Polish | 142g | 50kg | Medium-duty industrial use |
| 4504-195-1-PVC-BK | PVC | Black | – | – | Electrical insulation, portable |
Material Selection Matrix
Choose metal handles when:
- Maximum load capacity exceeds 25kg and precise load ratings are required
- High-cycle durability is critical (typically more than 10,000 cycles expected)
- Aesthetic appearance in customer-facing applications matters significantly
- Heavy industrial or outdoor exposure requires robust construction
- Spring-loaded automatic return functionality is needed
Choose PVC/rubber handles when:
- Electrical insulation is required for operator safety on live equipment
- Chemical resistance to cleaning agents or industrial atmospheres is needed
- Grip comfort during extended operation matters for frequent access
- Lightweight solution is preferred for portable equipment handling
- Cost-effective solution is required for single-point mounting configurations
- Non-marring grip is needed to protect painted or delicate surfaces
Selection Decision Points
1. Enclosure Size Assessment
For enclosures under 300mm in any dimension, single-point handle mounting typically provides adequate functionality without unnecessary complexity. The 262mm width in this case study positions the 4504-195-1-PVC-BK optimally at the top center, allowing one-handed operation while maintaining secure closure. Larger enclosures may require multiple mounting points or higher-capacity handles to distribute load effectively.
2. Environmental Conditions
PVC handles excel in environments with specific challenging characteristics:
- Temperature fluctuations common in unconditioned utility spaces and mechanical rooms
- Humidity levels exceeding 70% relative humidity in basement and outdoor installations
- Exposure to cleaning solvents, degreasers, or industrial chemicals during maintenance
- Requirements for electrical insulation in live equipment handling
- Limited UV exposure in covered or indoor installations
3. Operational Requirements
Consider the frequency of access and operator conditions when selecting handle type:
- Low frequency (less than 10 cycles/week): Standard PVC handles are suitable for periodic access applications
- Medium frequency (10-50 cycles/week): Verify strap integrity and mounting security periodically
- High frequency (more than 50 cycles/week): Consider reinforced metal handle alternatives with defined cycle ratings
4. Safety Compliance
For electrical equipment applications, PVC handles provide inherent advantages that support safety compliance:
- Dielectric properties protect technicians during live equipment maintenance procedures
- Non-conductive surface prevents accidental short circuits during handle operation
- Material complies with RoHS and REACH environmental standards
- Grip texture provides secure handling even with work gloves in low-light conditions
5. What Happens If You Choose Wrong?
- Using a metal handle on a live electrical enclosure: The conductive surface creates a shock hazard during maintenance and may cause short circuits, potentially damaging equipment or injuring technicians.
- Using a PVC handle in a high-load application exceeding 15kg: The flexible strap may stretch permanently or fail under sustained load, creating a safety hazard for operators.
- Installing a 195mm handle on an enclosure under 150mm wide: The handle may protrude beyond the enclosure profile, creating a snag hazard in tight equipment rooms.
Installation Guidelines
Required Tools
- Cross-head screwdriver (PH2 recommended)
- Torque wrench calibrated to 1.5-2.0 Nm
- Marking pen for mounting hole locations
- Spirit level for alignment verification
- Measuring tape for center-to-center spacing
- Optional: Center punch for pre-drilling guide marks
Step-by-Step Installation
- Surface Preparation: Clean the enclosure mounting surface thoroughly, removing any debris, oil, protective films, or manufacturing residues. Ensure the surface is flat and free from burrs or sharp edges that could affect seal integrity or injure technicians during operation.
- Positioning: Mark the mounting hole positions according to the handle’s center-to-center dimensions. For single-point mounting on compact enclosures, position at the primary access point (typically top center or offset for right-hand dominant operation).
- Pre-Drill (if required): For enclosures without pre-drilled mounting holes, drill mounting holes to match the fastener specifications. Recommended hole diameter: 4.5-5.0mm for M4 fasteners. Ensure holes are perpendicular to the mounting surface.
- Fastener Installation: Align the handle with marked positions and insert fasteners from the exterior of the enclosure. Install lock washers beneath the nut or screw head to prevent loosening under vibration.
- Torque Specification: Apply 1.5-2.0 Nm torque to each fastener using a calibrated torque wrench. Over-torquing may damage the handle body, strip the thread engagement, or deform the mounting panel.
- Functional Test: Verify smooth operation by actuating the handle through 10 complete cycles. Check for any binding, excessive play, unusual noise, or interference with enclosure operation.
- Final Inspection: Confirm secure mounting, proper alignment, and adequate clearance for full handle travel. Verify the handle returns to the neutral position properly after each actuation.
Panel Thickness Recommendations
For optimal performance and secure mounting, ensure panel thickness between 1.0mm and 2.5mm:
- Thin panels (less than 1.0mm): May require backing plates, reinforcement washers, or alternative mounting methods to distribute load and prevent pull-through
- Standard panels (1.0-2.0mm): Direct mounting with standard fasteners is recommended for most applications
- Thick panels (2.0-2.5mm): Verify adequate fastener engagement depth to ensure secure attachment
- Heavy panels (more than 2.5mm): May require extended-length fasteners or custom mounting hardware
Explore NRH Handle Solutions
NRH offers a comprehensive range of industrial handles designed for diverse applications including spring-loaded recessed handles for automatic return functionality, pull handles for ergonomic operation, D-ring anchors for tie-down applications, and rubber strap handles for electrical insulation and portable equipment. Each series undergoes rigorous load testing to ensure long-term durability in demanding industrial environments.
View the complete handle catalog and technical specifications at https://www.nrh.hk/product/handles/
Frequently Asked Questions
Q: What is the maximum load capacity of PVC rubber strap handles?
Data answer: PVC rubber strap handles like the 4504-195-1-PVC-BK are designed for manual carrying and pulling rather than high-load lifting applications. The flexible strap distributes load across the handle body, making them suitable for portable equipment and enclosures requiring periodic access. For heavy-load applications exceeding 15kg, metal handles with defined load ratings (25-80kg depending on model) are recommended. Refer to the comparison table above for specific capacity specifications by model.
Q: Are PVC handles suitable for outdoor applications?
Data answer: PVC handles perform well in covered outdoor environments but may experience accelerated material degradation under prolonged UV exposure. Standard PVC compounds can become brittle or discolored when exposed to direct sunlight for extended periods. For outdoor applications, verify the specific PVC compound meets your environmental requirements. Consider UV-stabilized formulations, alternative materials like EPDM rubber, or metal handles for direct sunlight exposure exceeding six months per year.
Q: What maintenance do rubber strap handles require?
Data answer: Rubber strap handles require minimal maintenance under normal operating conditions. Periodic inspection should include checking for cracks, tears, permanent deformation, or signs of material degradation in the strap. For applications involving chemical exposure, inspect more frequently for early signs of attack. Clean with mild soap solution and water; avoid harsh solvents or abrasive cleaners that may damage the PVC compound surface.
Q: Can rubber handles be used with quarter-turn latches?
Data answer: Yes, rubber strap handles complement quarter-turn latch systems effectively in many enclosure configurations. The handle provides convenient grip for opening while the latch maintains secure closure. This combination is particularly common in electrical enclosures, toolboxes, industrial equipment cases, and portable workstations where quick access and secure sealing are both operational priorities.
Q: What panel thicknesses are compatible with the 4504-195 series?
Data answer: The 4504-195-1-PVC-BK accommodates panel thicknesses from 0.8mm to 2.5mm with standard fasteners. For thinner panels, supplementary backing washers distribute load and prevent pull-through. For thicker panels, verify fastener engagement depth provides adequate thread engagement (minimum 2x fastener diameter) for secure attachment.
Q: Do PVC handles provide electrical insulation?
Data answer: Yes, PVC is an excellent electrical insulator with dielectric strength typically ranging from 11-15 kV/mm. This makes PVC handles ideal for electrical equipment applications where technician safety during live equipment maintenance is required. The non-conductive gripping surface prevents accidental short circuits during handle operation and provides an additional safety barrier when working with energized equipment.
Q: What is the temperature range for PVC rubber handles?
Data answer: Standard PVC handles operate effectively from approximately -10C to +60C. For applications outside this range, specialized PVC compounds or alternative materials like silicone rubber may be required to maintain performance. High-temperature environments above 60C typically require metal handles with appropriate heat-resistant coatings or specialized polymer handles rated for elevated temperatures.
Q: Are custom handle lengths available?
Data answer: NRH supports OEM/ODM customization for handle dimensions, materials, colors, and mounting configurations. Custom lengths, mounting patterns, strap widths, and material formulations can be developed for volume applications with specific performance requirements. Contact the NRH technical team to discuss your specific requirements, volume quantities, and obtain pricing for custom handle configurations.
Application Summary
The 4504-195-1-PVC-BK rubber strap handle addresses the core requirements for compact power controller enclosures in fire alarm and industrial automation applications. PVC construction provides the necessary electrical insulation for safe operation on live equipment, while the flexible strap design accommodates single-hand operation in confined spaces typical of utility rooms, basements, and control panel retrofits.
The 195mm handle length offers adequate gripping surface for gloved operation in low-light conditions common to basement electrical rooms and rooftop enclosures. The low profile design prevents accidental snagging during installation or maintenance procedures, reducing the risk of damage to surrounding equipment or injury to personnel. Black color selection ensures minimal visibility in institutional settings where aesthetic considerations favor subdued hardware that blends with building interiors.
Key selection factors for this application included electrical insulation properties required for live equipment handling, single-hand operation capability for one-person maintenance access, corrosion resistance in unconditioned utility spaces, and discreet black color for reduced visibility in institutional settings.
Recommended for similar applications: This handle series is also well-suited for security system control panels, building automation controllers, HVAC equipment enclosures, and any compact electrical enclosure requiring periodic technician access with electrical safety considerations.
Need help choosing? Contact our technical team to review your enclosure specifications and recommend optimal hardware configurations for your application.
