EV Charging Cabinet Handle Selection – Cover Ring vs. Folding Handles
Applicable Buyers: EV charging station manufacturers | Battery swap station integrators | Electrical enclosure fabricators | Industrial cabinet builders | Power distribution equipment suppliers
Key finding: Two handle configurations serve EV charging cabinets of the same 550x120x90mm footprint: Cover ring handles (4101-178-FE-CR, 4 units, 80kg load, slot mounting, spring return to flush) for flush, snag-free access in high-traffic installations, and folding handles (4201-160-FE-CR, 2 units, 60kg load, surface mounting, spring return to folded) for space-constrained installations where panel cutting is not feasible. Selection depends on available installation tools, cabinet door weight, and clearance requirements.
EV charging and battery swap stations operate in demanding environments where equipment reliability directly impacts service availability and safety. These cabinets house sensitive electrical components that must remain protected from accidental contact, environmental exposure, and mechanical damage. The handles that provide access to these cabinets must balance robust mechanical performance with operator safety features.
A common cabinet footprint for EV charging infrastructure is approximately 550mm x 120mm x 90mm. Within this compact form factor, two distinct handle configurations have been successfully deployed, each addressing different priorities. This guide compares both approaches to help specifiers select the optimal solution for their application requirements.
Case Study: Same Cabinet, Two Handle Configurations

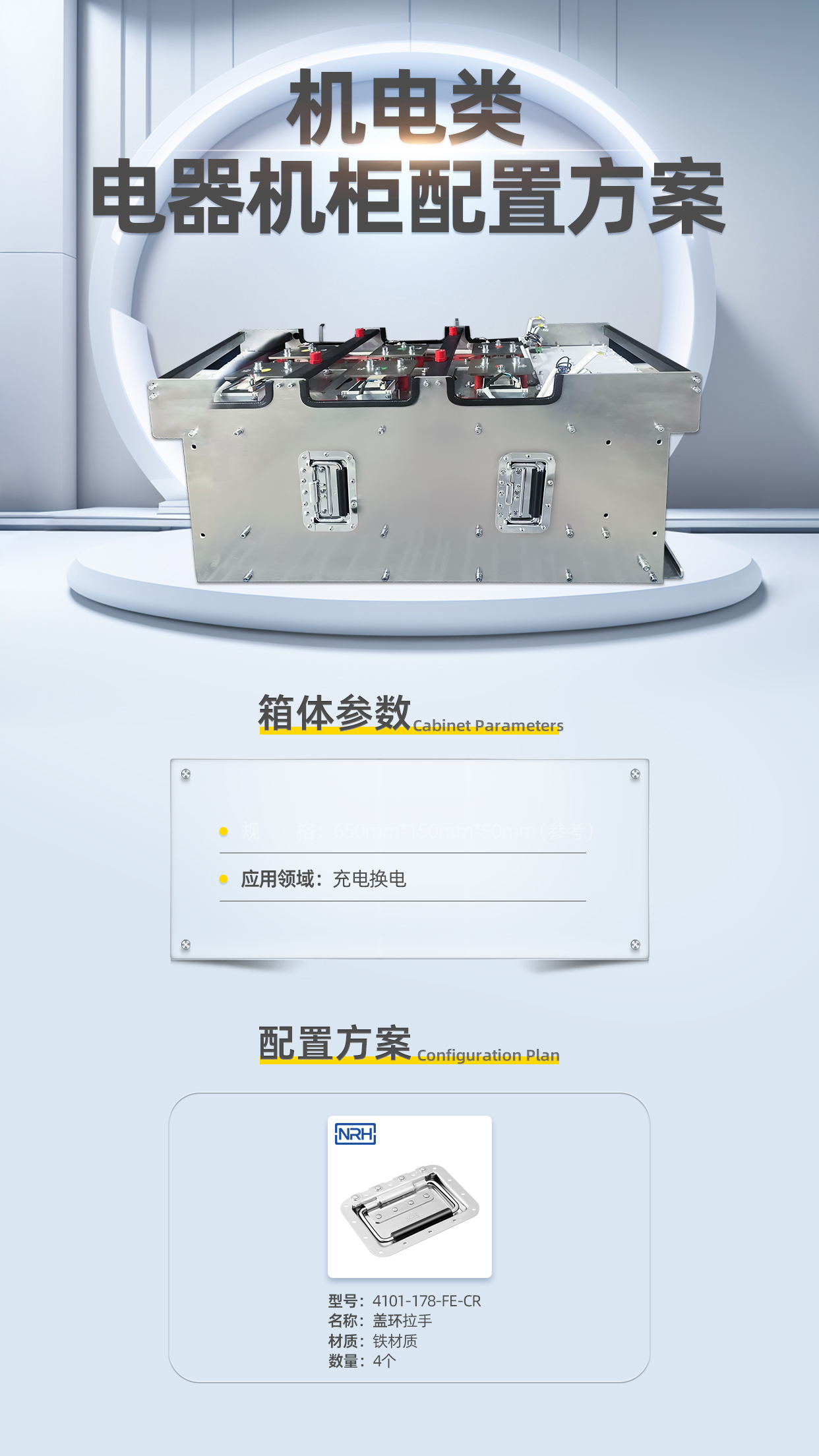

Fig. 1 – EV charging cabinet (550mm x 120mm x 90mm) configured with four 4101-178-FE-CR cover ring handles (slot mounting, 80kg load, spring return to flush)

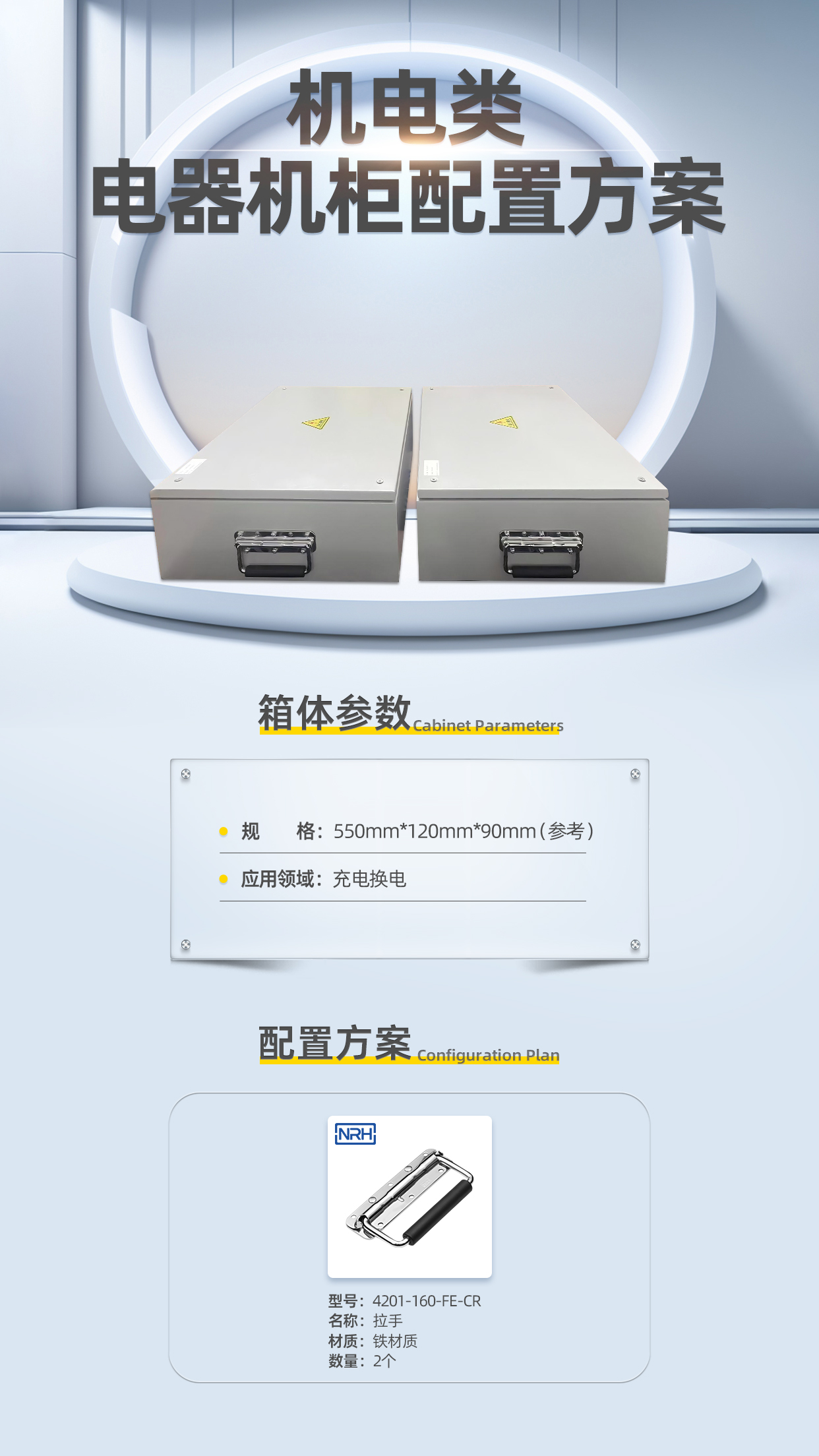

Fig. 2 – EV charging cabinet (550mm x 120mm x 90mm) configured with two 4201-160-FE-CR folding handles (surface mounting, 60kg load, spring return to folded)
Configuration Comparison
| Parameter | Configuration A 4101-178-FE-CR |
Configuration B 4201-160-FE-CR |
|---|---|---|
| Handle Type | Cover ring handle | Folding handle |
| Mounting Method | Slot mounting (recessed into panel) | Surface mounting (panel face) |
| Panel Cutout Required | 36mm x 136.5mm | None |
| Quantity Installed | 4 handles | 2 handles |
| Weight (per handle) | 453g | 312g |
| Load Capacity | 80kg | 60kg |
| Grip Length | 178mm | 160mm |
| Spring Function | Auto return to flush position | Auto return to folded position |
| Panel Surface | Flush (recessed, no protrusion) | Protruding (folds flat when not in use) |
| Installation Complexity | Higher (requires panel cutting) | Lower (direct surface mount) |
| Material | Iron / Chrome plated | Iron / Chrome plated |
| Mounting Support | Screws / Rivets / Welding | Screws / Rivets / Welding |
Product Specifications
4101-178-FE-CR – Cover Ring Handle
The 4101 series cover ring handle is a slot-mounted design that recesses into the cabinet panel through a precision cutout. This flush mounting eliminates protrusions from the panel surface, preventing snagging on clothing or equipment in busy environments. The integrated cover ring protects mounting hardware from debris and accidental contact. The flush design also maintains a clean, professional appearance suitable for public-facing EV charging infrastructure.
Key specifications for the 4101-178-FE-CR:
| Parameter | Specification |
|---|---|
| Model | 4101-178-FE-CR |
| Type | Cover ring handle (slot mounting) |
| Material | Iron / Chrome plated |
| Weight | 453g |
| Load Capacity | 80kg |
| Grip Length | 178mm |
| Panel Cutout | 36mm x 136.5mm |
| Mounting Holes | 14mm x 5mm |
| Spring Function | Auto return to flush |
4101-178-FE-CR – Cover ring handle, iron/chrome-plated, 453g, 80kg load, spring return to flush
4201-160-FE-CR – Folding Handle
The 4201 series folding handle is a surface-mounted design that mounts directly on the panel face without cutting. When not in use, the handle folds flat against the cabinet surface, reducing the profile by up to 60%. This provides a space-saving solution for installations where panel cutting is not feasible, while still maintaining a streamlined appearance when the handle is not in use. The spring-loaded return mechanism automatically returns the handle to the folded position when released.
Key specifications for the 4201-160-FE-CR:
| Parameter | Specification |
|---|---|
| Model | 4201-160-FE-CR |
| Type | Folding handle (surface mounting) |
| Material | Iron / Chrome plated |
| Weight | 312g |
| Load Capacity | 60kg |
| Grip Length | 160mm |
| Opening Angle | 90 degrees |
| Panel Cutout | None required |
| Spring Function | Auto return to folded |

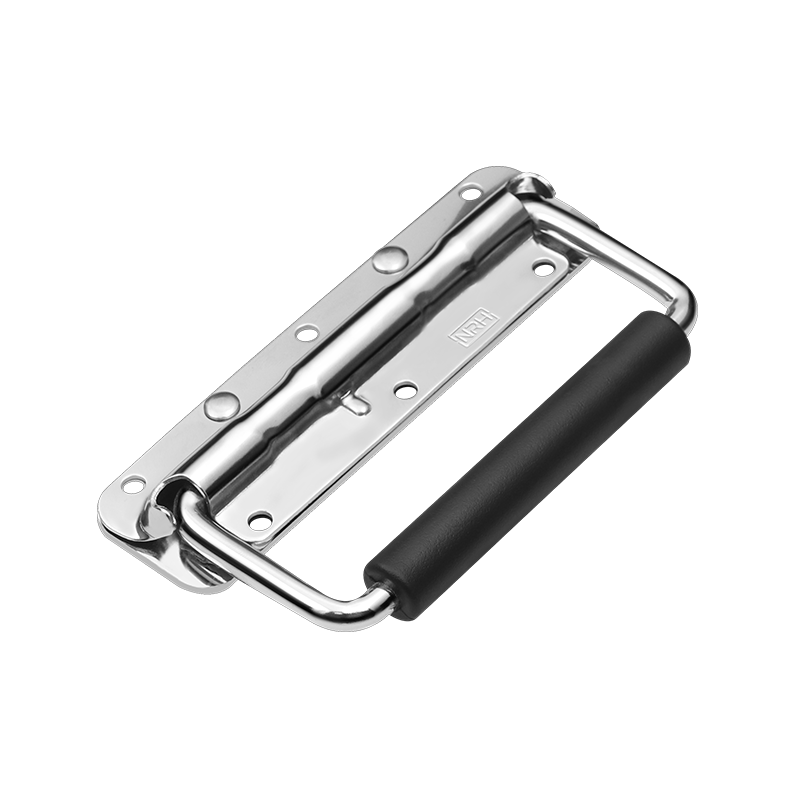

4201-160-FE-CR – Folding handle, iron/chrome-plated, 312g, 60kg load, spring return to folded, 90-degree opening
Installation Comparison
Slot Mounting (4101 Series)
The 4101-178-FE-CR requires a panel cutout of 36mm x 136.5mm to recess the handle into the cabinet surface. This installation method eliminates surface protrusions, providing a flush appearance and reducing snag hazards. However, it requires precision cutting equipment and careful deburring of cut edges to prevent damage to the handle coating and ensure operator safety.
Step-by-step:
- Mark and cut the 36mm x 136.5mm panel opening
- Deburr all cut edges and apply anti-corrosion compound
- Drill 5mm mounting holes at the 14mm x 5mm hole positions
- Insert handle into the cutout from the front side
- Secure using M5 or M6 fasteners (screws, rivets, or welding)
- Verify spring return to flush position
Surface Mounting (4201 Series)
The 4201-160-FE-CR mounts directly on the panel surface without cutting. This installation method is simpler and faster, requiring only drilling of mounting holes. The handle folds flat when not in use, minimizing protrusion while avoiding the need for panel cutouts.
Step-by-step:
- Position the handle on the panel surface
- Mark and drill mounting holes
- Deburr holes and apply anti-corrosion compound
- Secure handle using M6 fasteners
- Verify spring return to folded position
Selection Decision Framework
Choose 4101-178-FE-CR (Cover Ring / Slot Mounting) When:
- Flush, snag-free surface is critical for personnel safety in high-traffic or confined areas
- Cabinet doors exceed 40kg (80kg capacity needed)
- Panel cutting capability is available (laser, CNC, or punch)
- Professional, streamlined appearance is required for public-facing equipment
- Maximum durability and protection of mounting hardware are priorities
- Higher installation cost is acceptable for long-term safety and appearance benefits
Choose 4201-160-FE-CR (Folding / Surface Mounting) When:
- Panel cutting is not possible or cost-prohibitive
- Space is at a premium (folds flat, reducing profile by 60%)
- Cabinet doors are under 40kg (60kg capacity is sufficient)
- Quick, simple installation is required
- Aesthetics and streamlined appearance are priorities when handle is folded
- Weight reduction is important (312g vs 453g)
What Happens If You Choose Wrong?
- Using surface-mounted folding handles where flush, snag-free surfaces are critical: Surface-mounted handles protrude from the panel surface. In high-traffic areas such as public EV charging stations, protruding handles create snag hazards for passing pedestrians and can catch on clothing or equipment. Specify 4101 series for flush, recessed installation where personnel safety is paramount.
- Specifying cover ring handles without panel cutting capability: The 4101 series requires a 36mm x 136.5mm panel cutout. Without precision cutting equipment, installation is impossible. Choose 4201 surface-mounted handles for quick, tool-minimal installation.
- Using 4201 handles on heavy cabinet doors exceeding 40kg: The 4201-160-FE-CR is rated at 60kg. For doors approaching this limit, the 4101-178-FE-CR with 80kg capacity provides additional safety margin.
- Choosing non-spring-return handles for public EV charging cabinets: Handles left in the open position create snag hazards. Both 4101 and 4201 models include spring return – ensure this feature is not omitted.
- Using chrome-plated iron in outdoor coastal environments: Chrome plating corrodes in salt spray. For outdoor or coastal EV charging stations, specify SUS304 stainless steel versions (4101-132-S04-LG or 4201-100-S04-LG).
Application Summary
Both handle configurations successfully serve the same 550mm x 120mm x 90mm EV charging cabinet footprint, each optimized for different priorities:
- 4101-178-FE-CR (4 handles, slot mounting): Flush, snag-free surface, 80kg capacity, spring return to flush. Best for high-traffic public installations where personnel safety, professional appearance, and maximum durability are paramount.
- 4201-160-FE-CR (2 handles, surface mounting): 60kg capacity, folds flat (60% profile reduction), spring return to folded, simple installation. Best for space-constrained installations where panel cutting is not feasible and quick installation is prioritized.
Both models support screw, rivet, or weld mounting and include spring return functionality. The choice ultimately depends on available installation tools, cabinet door weight, and whether a flush or folding surface is preferred for the specific installation environment.
Recommended for similar applications: These handle configurations are also well-suited for EV charging station cabinets, industrial control panels, battery storage enclosures, power distribution cabinets, and any electrical enclosure requiring reliable access with personnel safety considerations.
Frequently Asked Questions
Q: What is the difference between slot mounting and surface mounting?
Data answer: Slot mounting (4101 series) requires a 36mm x 136.5mm panel cutout to recess the handle flush with the cabinet surface, eliminating protrusions and snag hazards. Surface mounting (4201 series) mounts directly on the panel face without cutting, offering simpler installation with the handle folding flat when not in use.
Q: Which handle has higher load capacity?
Data answer: The 4101-178-FE-CR has 80kg capacity. The 4201-160-FE-CR has 60kg capacity. For heavy cabinet doors exceeding 40kg, the 4101 series is recommended.
Q: Do both handles include spring return functionality?
Data answer: Yes. Both the 4101-178-FE-CR and 4201-160-FE-CR feature built-in spring mechanisms. The 4101 returns to flush position; the 4201 returns to folded position.
Q: What panel cutout is required for the 4101-178-FE-CR?
Data answer: The 4101-178-FE-CR requires a 36mm x 136.5mm panel cutout. Precision cutting (laser, CNC, or punch) is recommended. The 4201-160-FE-CR requires no panel cutout.
Q: What mounting methods are supported?
Data answer: Both handles support three mounting methods: screw fixing (M5/M6, 8-10 Nm for steel, 6-8 Nm for aluminum), rivet installation (aluminum or stainless steel rivets), and welding (for heavy-duty steel cabinets).
Q: Are these handles suitable for outdoor EV charging stations?
Data answer: For outdoor or coastal installations, SUS304 stainless steel versions are recommended (4101-132-S04-LG or 4201-100-S04-LG). Chrome-plated iron (FE-CR) is suitable for indoor environments with controlled humidity.
Q: How many handles are typically installed on a 550mm cabinet?
Data answer: Four 4101-178-FE-CR handles (one per corner area) or two 4201-160-FE-CR handles (one per side). Quantity depends on handle type, door weight, and desired load distribution.
Q: Do these handles require periodic maintenance?
Data answer: Annual inspection is recommended. Verify fastener torque, check for corrosion, and confirm spring return function. For high-cycle applications (100+ operations daily), quarterly inspection is advised.
