Key finding: A 1000x600x300mm iron transport case was configured with NRH 4301-100-S04-ZG surface-mount handles (2 units, SUS304, 146g, 50kg load, no spring) and 5808-128S-S04-ZG safety latches (4 units, SUS304, 124g, 588N tensile). The wide-plate base design maximizes grip strength and panel contact area, while the safety latch mechanism prevents the latch plate from disengaging or springing open accidentally under transport vibration.
Iron transport cases are the backbone of heavy-duty equipment logistics. From military gear to industrial machinery, these cases must withstand rough handling, stacking pressure, and repeated transport cycles. The hardware that seals and carries the case determines its service life and the safety of its contents.
This case study documents a 1000x600x300mm iron transport case configured with NRH 4301-100-S04-ZG surface-mount handles and 5808-128S-S04-ZG safety latches, examining the configuration rationale, material selection, and installation practice.
Case Study: 1000x600x300mm Iron Transport Case

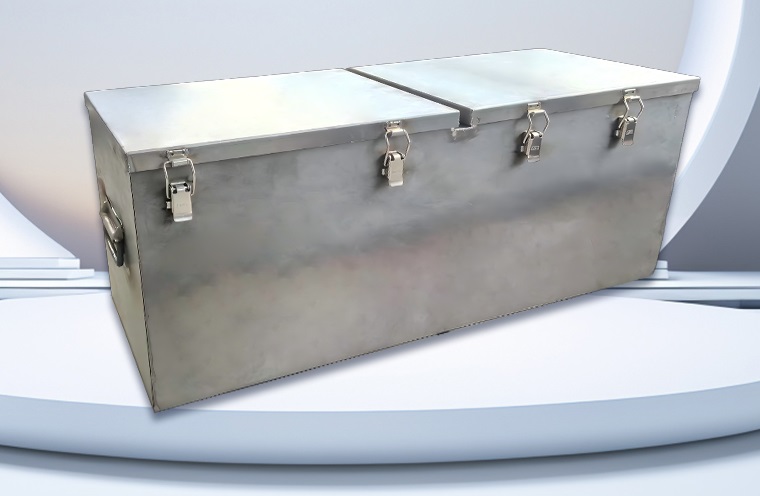

Iron transport case (1000x600x300mm) configured with 4301-100-S04-ZG surface-mount handles and 5808-128S-S04-ZG safety latches
Configuration Summary
| Parameter | Value |
|---|---|
| Case Dimensions | 1000mm x 600mm x 300mm |
| Case Material | Iron / Steel |
| Handle Model | 4301-100-S04-ZG |
| Handle Material | SUS304 Stainless Steel |
| Handle Weight | 146g |
| Handle Load Capacity | 50kg |
| Handle Spring | None (no auto-return) |
| Handle Quantity | 2 units (symmetrical positioning) |
| Latch Model | 5808-128S-S04-ZG |
| Latch Type | Safety latch with built-in safety mechanism (no padlock hole) |
| Latch Material | SUS304 Stainless Steel |
| Latch Weight | 124g |
| Latch Tensile Strength | 588N (approx. 60kg) |
| Latch Quantity | 4 units (lid perimeter distribution) |
Product Specifications
4301-100-S04-ZG – Surface-Mount Handle

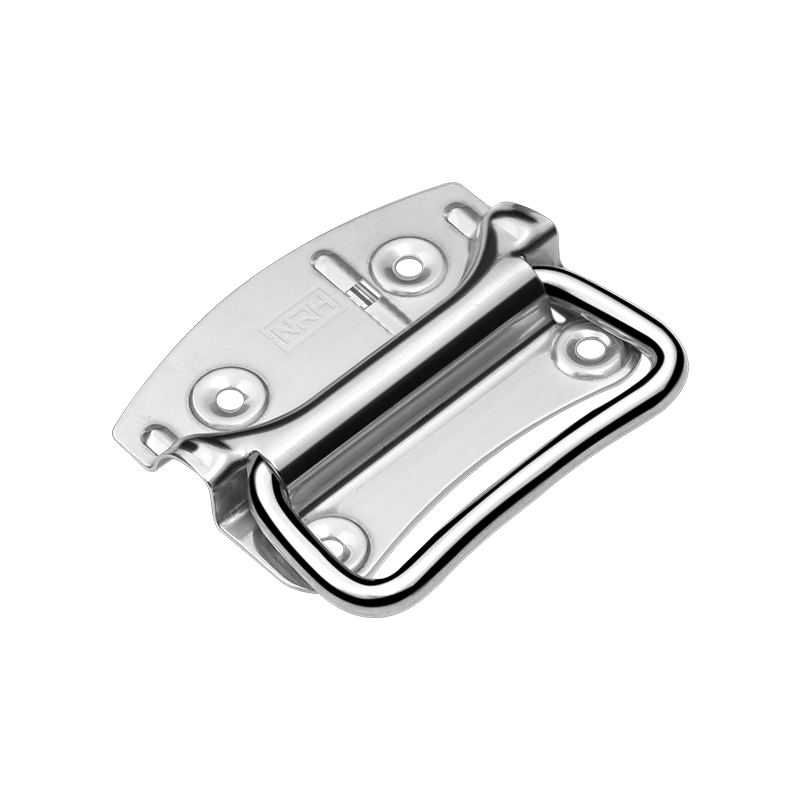

4301-100-S04-ZG – SUS304 stainless steel surface-mount handle, 146g, 50kg load capacity, wide-plate base design, no spring mechanism
The 4301-100-S04-ZG is a surface-mount handle from NRH’s 4301 series. Key specifications:
| Parameter | Specification |
|---|---|
| Model | 4301-100-S04-ZG |
| Type | Surface-mount handle (wide-plate base design) |
| Material | SUS304 Stainless Steel |
| Finish | Vibratory Grinding (ZG) |
| Weight | 146g |
| Load Capacity | 50kg |
| Spring Function | None (no auto-return) |
| Grip Length | 96mm |
| Overall Dimensions | 100.5 x 52 x 46.5mm |
| Mounting | Screws / Rivets / Welding |
Why this handle was selected: The 4301-100-S04-ZG’s wide-plate base design provides superior load distribution compared to standard handles, with a 50kg load capacity. For a 1000mm case expected to carry heavy equipment, this ensures the handle mounting points do not deform under load. The handle has no spring mechanism – it stays in the position the user leaves it, which is ideal for transport cases where the handle needs to remain accessible without constant manual hold. The SUS304 construction provides corrosion resistance for both indoor and outdoor transport scenarios.
5808-128S-S04-ZG – Safety Latch
5808-128S-S04-ZG – SUS304 stainless steel safety latch, 124g, 588N tensile strength, built-in safety mechanism (no padlock hole)
The 5808-128S-S04-ZG is a safety latch from NRH’s 5808 series. Key specifications:
| Parameter | Specification |
|---|---|
| Model | 5808-128S-S04-ZG |
| Type | Safety latch with built-in safety mechanism |
| Material | SUS304 Stainless Steel |
| Finish | Vibratory Grinding (ZG) |
| Weight | 124g |
| Tensile Strength | 588N (approx. 60kg) |
| Safety Function | Built-in safety mechanism (prevents accidental disengagement) |
| Padlock Hole | None |
| Operation | Single-handed closing, push-button release |
| Overall Dimensions | 128.5 x 75.5 x 68mm |
| Mounting Hole Diameter | 6 x 4mm |
Why this latch was selected: The 5808-128S-S04-ZG’s built-in safety mechanism is critical for transport cases. The safety feature prevents the latch plate from disengaging or springing open accidentally during transport vibration, ensuring the lid remains securely closed even under rough handling or stacking pressure. This is a no-padlock-hole version of the 5808 series – designed for applications requiring reliable safety closure without the need for external locking. The 588N tensile strength provides robust clamping force for heavy-duty transport cases. Four latches distributed around the lid perimeter ensure even sealing pressure across the 1000mm width.
5808 Series Variants: The 5808 series includes both padlock-hole and no-padlock-hole versions. The 5808-128S-S04-ZG is the no-padlock-hole variant, suitable for applications where security locking is not required but safety closure is essential. The operation mechanism supports single-handed closing with push-button release for quick access.
Installation Guide
Tools Required
- Drill with appropriate bits for pilot holes
- Rivet gun (4mm or 4.8mm blind rivets)
- Marker or scribe
- Deburring tool
- Torque wrench (if using screw mounting)
Step-by-Step Installation
- Position the handles. Mount the two 4301-100-S04-ZG handles symmetrically on the case ends or sides. For a 1000mm case, position handles approximately 150-200mm from each end for balanced load distribution.
- Position the latches. Mount the four 5808-128S-S04-ZG latches around the lid perimeter – typically two on the front edge and two on the back edge, or one at each corner of the lid. Ensure the latch receiver mounts on the stationary case body and the latch assembly on the moving lid.
- Mark pilot hole locations. Use the handle flange and latch flange as templates. Mark all mounting hole positions on both the case body and lid.
- Drill pilot holes. Drill pilot holes according to the product’s hole spacing specifications. For iron/steel cases, use appropriate drill bits and cutting fluid to prevent overheating.
- Deburr and clean. Remove burrs from all drilled holes. Clean the mounting surfaces to ensure flanges sit flush against the case surface.
- Secure the hardware. Insert blind rivets through each flange hole. Set rivets firmly. The flange must sit completely flat against the case surface – any gap reduces stability. For welding, use unfinished products to avoid high-temperature damage to surface finish.
- Verify operation. Close the lid and engage each latch. The safety mechanism should click into place securely. Test that the latch does not disengage under moderate pressure. Verify handles rotate freely.
- Test under vibration. Simulate transport vibration by gently shaking the case. Confirm all latches remain locked. The safety latch mechanism should prevent accidental opening.
Mounting Method Options
| Method | Best For | Considerations |
|---|---|---|
| Rivet Fixing | Production assembly | Fastest, tamper-resistant, consistent clamp force |
| Screw Fixing | Field replacement, adjustable installations | Use thread-locking compound for vibration-prone environments |
| Spot Welding | Heavy-duty steel cases | Use unfinished products to avoid coating damage |
What Happens If You Choose Wrong?
- Using standard latches without safety mechanism on a transport case: Standard latches lack the safety feature that prevents accidental disengagement. Under transport vibration, they can spring open, potentially causing the lid to open and contents to spill or become damaged.
- Using spring-return handles where constant grip access is needed: The 4301 series has no spring mechanism – the handle stays in the position the user leaves it. A spring-return handle would require the user to hold it open, which is impractical for heavy cases.
- Installing only 2 latches on a 1000mm case: Two latches create uneven sealing pressure across the 1000mm width. Four latches distribute the load evenly, preventing lid warping and ensuring consistent sealing.
- Using non-SUS304 hardware on outdoor transport cases: Iron or zinc-plated hardware will corrode in humid or outdoor environments. SUS304 provides corrosion resistance essential for transport cases exposed to weather.
Application Summary
The 1000x600x300mm iron transport case demonstrates how properly specified hardware – surface-mount handles with wide-plate base design and safety latches with built-in safety mechanism – creates a durable, secure enclosure for heavy-duty equipment transport.
Key selection factors for this application included:
- Wide-plate base handle design: The 4301-100-S04-ZG’s broad base plate distributes load across a larger area, preventing case deformation under heavy loads (50kg capacity)
- No-spring handle design: The handle stays in position without auto-retraction, ideal for transport cases where constant grip access is needed
- Safety latch mechanism: The 5808-128S-S04-ZG’s built-in safety mechanism prevents the latch plate from disengaging or springing open accidentally during transport
- No-padlock-hole variant: Selected for applications requiring reliable safety closure without external locking
- SUS304 corrosion resistance: Both handle and latch use stainless steel for durability in varied transport environments
- Four-latch perimeter distribution: Even sealing pressure across the 1000mm lid width
- Single-handed operation: Push-button release and single-handed closing for quick access
Recommended for similar applications: This hardware configuration is also well-suited for military equipment cases, aviation logistics containers, industrial machinery transport cases, export packaging crates, and any heavy-duty iron or steel case requiring secure closure and reliable handling.
Frequently Asked Questions
Q: What is the difference between the 4301-100-S04-ZG and a spring-return handle?
Data answer: The 4301-100-S04-ZG has no spring mechanism. It is a surface-mount handle with a wide-plate base design that stays in the position the user leaves it. This is ideal for transport cases where the handle needs to remain accessible without constant manual hold. Spring-return handles auto-retract, which can be inconvenient for heavy cases requiring extended grip.
Q: What makes the 5808-128S-S04-ZG a “safety latch”?
Data answer: The 5808-128S-S04-ZG features a built-in safety mechanism that prevents the latch plate from disengaging or springing open accidentally. This is critical for transport cases where vibration could otherwise cause standard latches to open. This is a no-padlock-hole version – it provides safety closure without external locking capability.
Q: Why use four latches on a 1000mm case instead of two?
Data answer: Four latches distribute sealing pressure evenly across the 1000mm lid perimeter. Two latches create stress concentration at the latch points, which can cause lid warping over time and compromise the seal. Four latches ensure consistent closure pressure and longer service life.
Q: Can I install the 4301-100-S04-ZG handle on an aluminum case?
Data answer: Yes. The 4301-100-S04-ZG can be installed on aluminum cases using the same mounting methods: rivets, screws, or welding. For aluminum panels, use aluminum-rated fasteners (A2-70 or equivalent) to prevent galvanic corrosion between dissimilar metals. For panels under 2mm thickness, reinforcement backing plates are recommended.
Q: Are there custom handle or latch configurations available?
Data answer: Yes. NRH supports OEM/ODM customization for handle dimensions, materials, finishes, and mounting configurations. Custom handle lengths, mounting patterns, and material formulations (iron, stainless steel, copper, zinc alloy, plastic, rubber) can be developed for volume applications. Contact the NRH technical team to discuss your specific requirements.
Q: What is the expected service life of this hardware configuration?
Data answer: With proper installation and SUS304 stainless steel construction, both the 4301-100-S04-ZG handles (50kg load capacity) and 5808-128S-S04-ZG latches (588N tensile strength) exceed 10,000 open-close cycles in normal use. The wide-plate base design and safety latch mechanism are engineered for heavy-duty transport applications, providing reliable service throughout the case’s operational life.
