Medical Cold Chain Case Study: Insulated Cooler Hardware Solutions

NRH 5103-70 Stainless Steel Latch for Insulated Coolers

Cold chain logistics has a hard rule: the moment a cooler opens in transit, the load is compromised. Vaccine efficacy drops when temperature wavers outside the 2-8 degrees C window. Biological reagents degrade. Medical liquid stability breaks. For ICERS 6L and 16L insulated coolers, the latch is not just a closure – it is the last line of defense between a temperature-sensitive payload and ambient air.

This case covers the NRH 5103-70 stainless steel latch on ICERS 6L and 16L insulated coolers for medical, food delivery, and outdoor applications. All specifications verified from NRH product specification drawings.

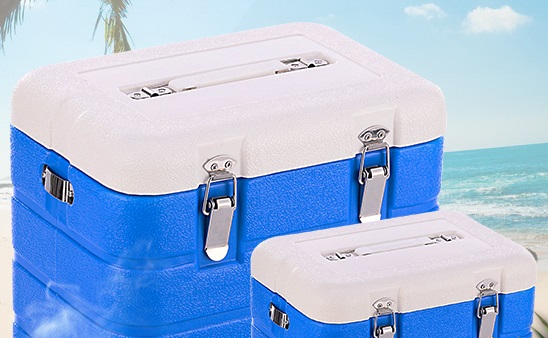

Figure 1: ICERS insulated coolers equipped with NRH 5103-70 stainless steel latches

Applicable Buyers

• Medical cooler manufacturers and medical device OEMs
• Pharmaceutical cold chain logistics suppliers
• Food delivery and catering equipment fabricators
• Outdoor and camping gear brands
• Custom insulated case and cooler builders

What Happens If You Choose Wrong

Choosing the wrong latch for an insulated cooler creates three critical failure modes:

• Latch pop-open during transport. A latch without adequate tensile strength can release when the cooler hits a pothole or is dropped. The lid opens, cold air escapes, and the temperature inside rises. For medical payloads, this means thousands of dollars in spoiled vaccines. For food delivery, it means unhappy customers and lost business.
• Corrosion failure. Coolers get washed down frequently. Plated latches rust. Rusted latches seize. Seized latches will not close properly, leaving gaps that break the thermal seal. Once the seal is compromised, the cooler cannot maintain its temperature rating.
• Gasket compression loss. A latch that does not maintain consistent closure pressure allows the gasket to relax. Gasket relaxation creates air gaps. Air gaps allow thermal bypass. The cooler’s 24-hour temperature rating becomes meaningless.

The 5103-70 eliminates all three risks through 1500N tensile strength, 304 stainless steel construction, and spring-loaded positive closure mechanism.

Configuration Summary

Product Specifications: 5103-70-S04-ZG

The 5103-70-S04-ZG is a spring latch designed for coolers, insulated cases, and equipment enclosures requiring secure closure with high tensile strength. The latch features a spring mechanism that provides automatic return and maintains consistent closure pressure.

Figure 2: NRH 5103-70 latch dimension drawing – 304 stainless steel, 1500N tensile load, 36g

Why 5103-70 for ICERS Coolers?

ICERS coolers (6L and 16L capacities) are built around 6-face PU polyurethane foaming technology that maintains a 2-8 degrees C internal temperature for 24 hours. The latches on these coolers directly impact whether that temperature rating holds.

The 5103-70 addresses each challenge with specific design features:

1. 1500N Tensile Strength – The “No Pop-Open” Guarantee

At 1500N (approximately 153kg of holding force), the 5103-70 provides a substantial safety margin for cooler closure. Even if a loaded 16L cooler (weighing 10-15kg with contents) is thrown across the back of a delivery truck, the lid stays sealed. This is critical for medical applications where temperature logs must show continuous compliance.

2. 304 Stainless Steel – No Rust, No Contamination

Medical and food coolers require hardware that will not corrode, flake, or contaminate the interior. The 5103-70’s 304 stainless steel construction provides:

• Corrosion resistance against washdown detergents and disinfectants
• No coating to chip, peel, or flake
• Passivation layer that self-heals when scratched
• Smooth surface that will not harbor bacteria

3. Vibratory (ZG) Finish – Hides Scratches, Grips Better

The vibratory-polished (ZG) finish provides a uniform matte surface that:

• Hides the scratches from daily handling and impacts
• Provides better grip for operators wearing gloves
• Reduces glare – practical for outdoor use
• Cost-effective compared to bright-polished finishes

4. 36g Lightweight – Does Not Add Bulk

For a portable cooler, every gram matters. At 36g per latch (72g for two), the 5103-70 adds negligible weight to the ICERS 6L and 16L coolers while delivering exceptional strength.

5. Spring-Loaded Mechanism – Consistent Closure Pressure

The spring mechanism maintains consistent closure pressure even as the lid gasket settles over time. This ensures the thermal seal remains intact through thousands of open-close cycles.

Application Scenarios

Medical and Pharmaceutical Cold Chain

ICERS coolers with 5103-70 latches are used for vaccines, blood products, biological reagents, IV fluids, and diagnostic samples. The 1500N holding force ensures temperature logs remain compliant even when coolers are transported in the back of ambulances, delivery vans, or by courier. The latch will not pop open during UAV medical deliveries where drones are subject to sudden accelerations. For neonatal transport and emergency response, the latch provides quick, one-handed operation for medical staff.

Recommended configuration: Two 5103-70 latches per cooler for balanced sealing pressure.

Pharmaceutical Logistics

For pharmaceutical logistics providers shipping biologics and vaccines, the 5103-70’s 304 stainless steel construction will not corrode after repeated washdowns with disinfectants. The ZG finish provides a clean, professional appearance that meets medical facility standards.

Food Delivery and Catering

Food delivery operators need coolers that survive daily use. The 5103-70’s 1500N tensile load handles abuse from delivery bags, bicycle vibration, and vehicle transport. The latch’s corrosion resistance stands up to food spills and cleaning chemicals.

Recommended configuration: Two 5103-70 latches per cooler. The lightweight design adds minimal burden to delivery operators.

Outdoor and Camping

Outdoor enthusiasts demand gear that works in rough conditions. The 5103-70’s 304 stainless steel construction resists moisture, mud, and temperature extremes. The ZG finish hides scratches from rocks and camp stoves. The secure closure keeps food fresh and prevents leaks from spoiled contents.

Recommended configuration: Two 5103-70 latches per cooler. For high-vibration off-road use, the 1500N holding force provides a welcome margin.

Installation Guide

Tools Required

• Drill with 4.2mm bit (mounting holes)
• Measuring tape or ruler
• Marker for hole positioning
• Rivet gun OR screwdriver with M4 fasteners
• Deburring tool

Installation Steps

1. Position the latches. Place two 5103-70 latches on the front face of the ICERS cooler. Position them symmetrically at equal distances from the left and right edges for balanced sealing pressure. For a 16L cooler, typical placement is near each edge of the front face.
2. Mark hole locations. Use the latch mounting flanges as templates. Mark the positions of the 4.2mm mounting holes on the cooler body and lid. Verify alignment by closing the lid and marking the catch plate position simultaneously.
3. Drill mounting holes. Drill 4.2mm holes at the marked positions. For PU foam cooler walls, use a sharp bit and apply minimal pressure to avoid tearing the outer skin.
4. Deburr and clean. Remove burrs from all drilled holes. Clean mounting surfaces with isopropyl alcohol to ensure proper adhesion of any sealant.
5. Install the latch body. Secure the body-side latch component to the cooler body using M4 rivets or screws. For PU coolers with thin walls, use backing plates or larger washers to distribute load and prevent pull-through.
6. Install the catch plate. Align the lid catch plate with the latch hook. The catch plate should engage when the lid is closed and the latch is flipped down. Adjust position as needed.
7. Test operation. Close the lid and engage both latches. The latch should flip smoothly and the lid should sit flush. If the latch is too tight or too loose, adjust the catch plate position.
8. Test the seal. Close the cooler and inspect the gasket contact around the full perimeter. Both latches should create even compression.

Installation Method Comparison

Key Takeaways

• The 5103-70 latch delivers 1500N tensile strength for coolers that travel in delivery vehicles, drones, and outdoor environments
• 304 stainless steel construction provides corrosion resistance for washdown and disinfection
• Lightweight at 36g – minimal impact on cooler portability
• Spring-loaded mechanism maintains consistent gasket compression through thousands of cycles
• Two latches per cooler provide balanced sealing pressure for the full lid perimeter
• Vibratory (ZG) finish hides scratches and provides secure grip with gloves
• Suitable for medical cold chain, pharmaceutical logistics, food delivery, and outdoor applications

Frequently Asked Questions

What is the tensile load capacity of the 5103-70 latch?
The 5103-70 delivers 1500N tensile load capacity (verified from NRH product specification drawings). This is approximately 153kg of holding force, providing a substantial safety margin for cooler closure.

How many 5103-70 latches should be installed on a cooler?
Two latches per cooler is the recommended configuration. This provides balanced sealing pressure across the lid perimeter and ensures even gasket compression.

What material is the 5103-70 made from?
The 5103-70 is constructed from 304 stainless steel with a vibratory-polished (ZG) finish. 304 stainless steel provides excellent corrosion resistance without coatings that can chip or flake.

How much does the 5103-70 weigh?
Each 5103-70 latch weighs only 36g. Two latches add just 72g to the cooler, making them ideal for portable applications where weight matters.

Is the 5103-70 suitable for medical coolers?
Yes. The 304 stainless steel construction will not corrode, flake, or contaminate the cooler interior. The 1500N holding force ensures the lid stays sealed during transport, maintaining temperature compliance for vaccines and biologics. The latch can be operated with gloved hands.

Can the 5103-70 be used on PU foam coolers?
Yes. For PU foam coolers with thin walls, use backing plates or large washers behind the mounting holes to distribute the clamping load and prevent pull-through. Pre-drill with a sharp 4.2mm bit to prevent tearing the foam skin.

Does the 5103-70 require lubrication?
No. The 304 stainless steel spring mechanism operates smoothly without lubrication in normal use. Lubricants can attract dirt and are not recommended for medical or food-contact applications. If friction increases, clean with isopropyl alcohol and dry thoroughly.

What is the difference between 5103-70 and other NRH latches?
The 5103-70 is specifically designed for applications requiring high tensile strength (1500N) with low weight (36g). It offers exceptional strength-to-weight ratio compared to other latches in the NRH product line.

Where should 5103-70 latches be mounted on a cooler?
Mount two latches symmetrically on the front face of the cooler, positioned at equal distances from each side. The lid catch plates must align precisely with the latch hooks. For balanced sealing, position them near the corners of the front face.

What fasteners are recommended for the 5103-70?
For PU foam coolers, use M4 rivets or M4 machine screws with large washers to distribute the load. For coolers with thicker walls, blind rivets provide a permanent, vibration-resistant connection. Backing plates are recommended to prevent pull-through on thin-wall coolers.

Need Help Choosing?

Selecting the right latch for a medical cooler, food delivery box, or outdoor cooler means matching tensile strength, material, and weight to the specific application. If you need guidance on latch quantity, mounting position, or fastener selection for your cooler project, we can help.
