Stage production cases take more abuse than almost any other enclosure type. A single touring season can mean 100+ load cycles, truck vibrations, and temperature swings from stage lighting. The right hardware keeps audio, lighting, and video gear secure through it all.

For touring professionals, case hardware is not just about keeping lids closed – it is about protecting expensive gear night after night. When a butterfly latch fails at 2 AM during load-out, or a handle rips out on the way to the next venue, the consequences go beyond equipment damage. Shows get delayed. Reputations suffer. Revenue is lost.

This case study examines how professional road cases use specific hardware configurations that have been battle-tested on tours worldwide. The combination of recessed butterfly latches, flush-mount handles, and ball corner protectors has become the industry standard for a reason.

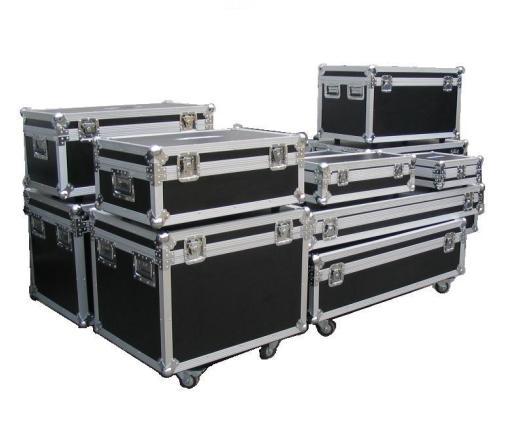

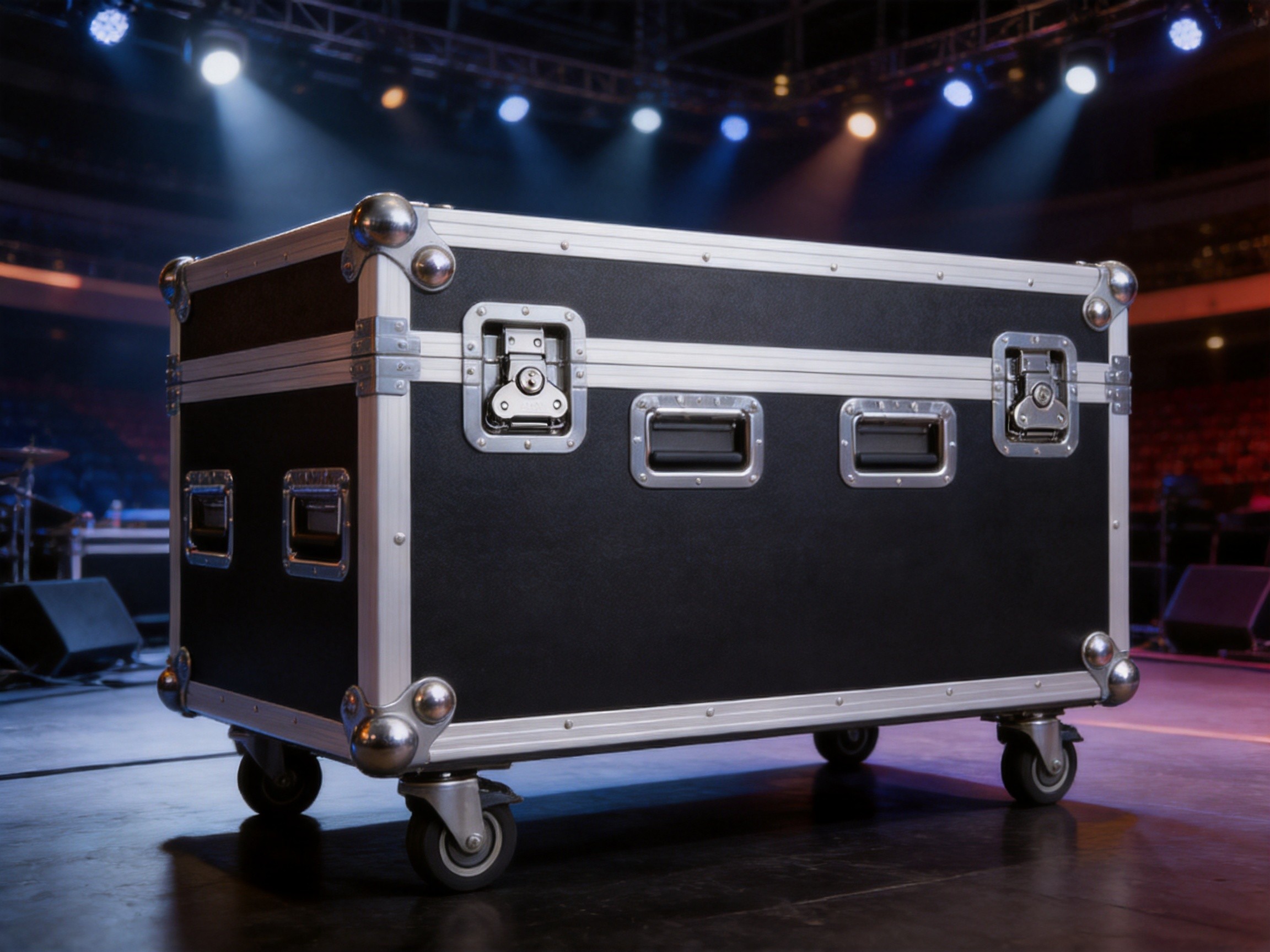

Figure 1: Professional touring case with NRH butterfly locks, recessed handles, and ball corner protectors

Applicable Buyers

• Stage equipment manufacturers
• Touring case fabricators
• AV rental companies
• Live event production suppliers
• Mixer and lighting case builders

Why Touring Cases Demand Premium Hardware

Stage production cases are subjected to extreme conditions that ordinary luggage never encounters. According to ATA Specification 300 – the industry standard for air transport packaging – shipping containers must withstand drops, vibration, and stacking loads during air and ground transport. Touring cases are held to this same rigorous standard.

Figure 1a: ATA 300 compliant touring cases with NRH hardware for air transport

ATA 300 compliance requires that cases protect their contents through:

• Impact resistance. Cases must survive drops onto hard surfaces during loading and unloading. Ball corner protectors like the 7101-66 help meet this requirement by absorbing and distributing impact forces at the most vulnerable points.
• Vibration endurance. Truck and air transport subjects cases to sustained vibration. Hardware like the 6101-108K butterfly lock must maintain closure tension through thousands of miles of vibration without loosening.
• Stacking strength. Cases are stacked floor-to-ceiling in trucks and cargo holds. Handles like the 4101-160 must support the weight of cases above them while remaining flush to prevent damage during stacking.

Touring professionals who spec their cases to ATA 300 standards can ship their equipment by air with confidence, knowing their hardware will survive the journey.

Core Hardware Components for Touring Cases

Three hardware components form the backbone of every professional road case: secure closure, comfortable carrying, and impact protection. Here is how each one works on tour.

6101-108K Flush-Mount Butterfly Lock

The 6101-108K is a recessed butterfly lock designed for security-minded touring applications. Its flush-mount design sits level with the case surface, preventing snagging during truck loading and venue moves. The integrated key cylinder adds a layer of security that standard latches cannot match. For high-value consoles, cameras, and recording equipment that sit unattended between sets, this is non-negotiable.

Why Touring Professionals Choose It:

• Flush profile prevents snagging on other cases and truck walls
• Keyed lock deters theft at shared venues and loading docks
• Chrome plating resists corrosion from sweat, humidity, and stage fog
• 392N tensile strength keeps lids closed during transport vibration

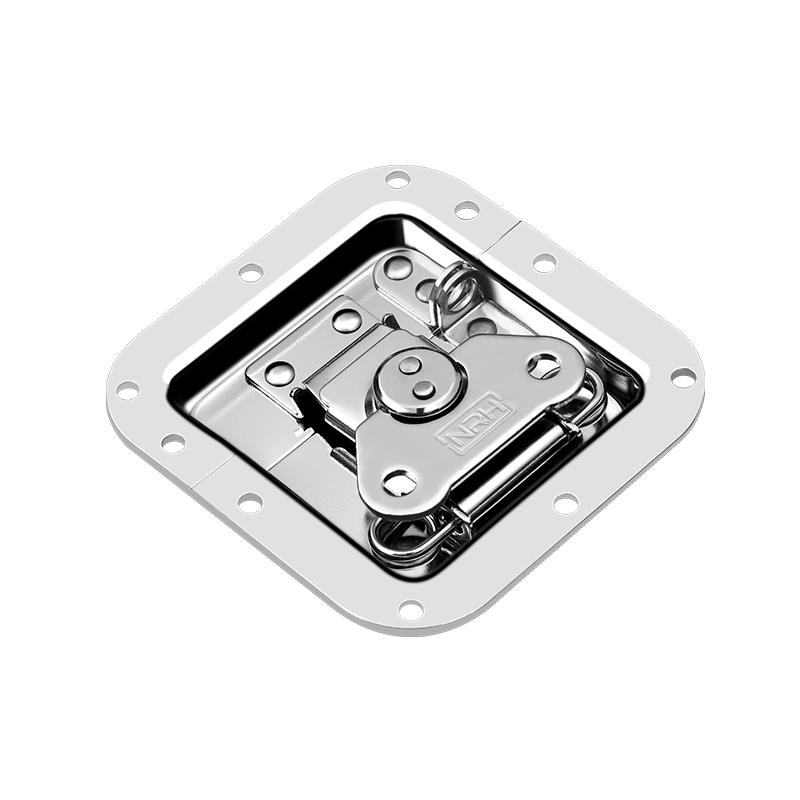

Figure 2: NRH 6101-108K flush-mount butterfly lock – 392N tensile strength, keyed security

4101-160 Recessed Handle

The 4101-160 is a recessed, spring-loaded carrying handle engineered for heavy touring cases. Its flush design means no protruding parts to catch on door frames or other equipment, while the spring mechanism returns the handle to its recessed position when released. At 80kg per handle, a pair of handles can support 160kg – enough for even the heaviest 16U rack cases.

Why Touring Professionals Choose It:

• 80kg load capacity per handle for heavy touring gear
• Spring-loaded return keeps handle flush when not in use
• Chrome-plated finish stands up to road wear
• Recessed design protects the handle from impact damage

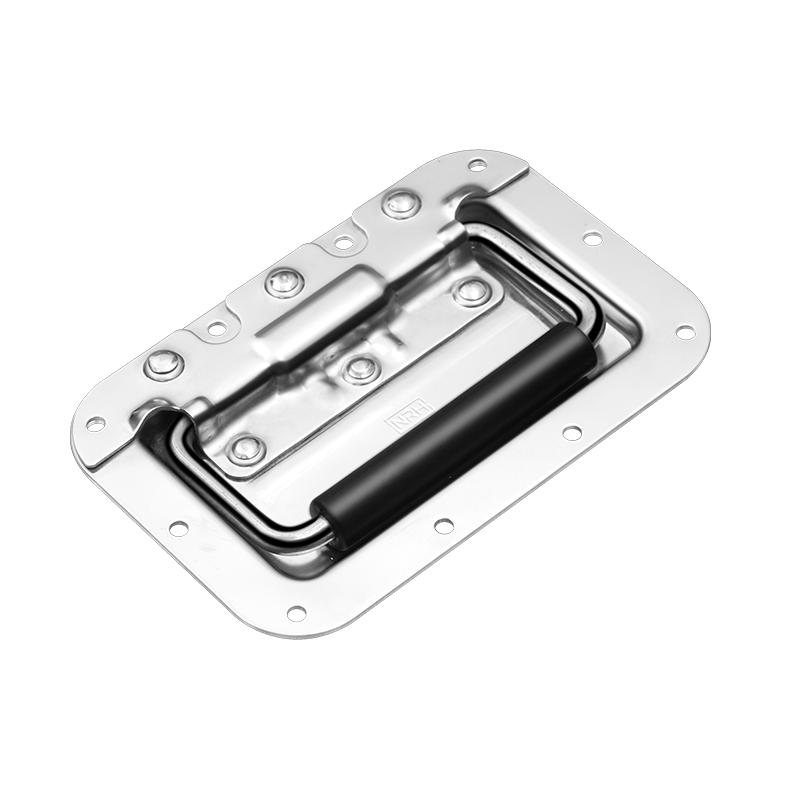

Figure 3: NRH 4101-160 recessed handle – 80kg load capacity, spring-loaded return

7101-66 Ball Corner Protector

The 7101-66 is a spherical corner protector that absorbs impact at the most vulnerable points on any road case. The ball shape distributes impact forces more effectively than flat or angled corners, reducing the chance of case failure during truck loading and stacking. ATA 300 requires cases to survive multiple 1.2-meter drops onto hard surfaces; ball corner protectors are essential for meeting this standard. Eight ball corners per case – one at each vertex – provide comprehensive impact protection.

Why Touring Professionals Choose It:

• Spherical design distributes impact forces evenly
• Chrome plating protects against rust and corrosion
• Six mounting points ensure secure attachment
• 95g weight adds minimal mass to the case

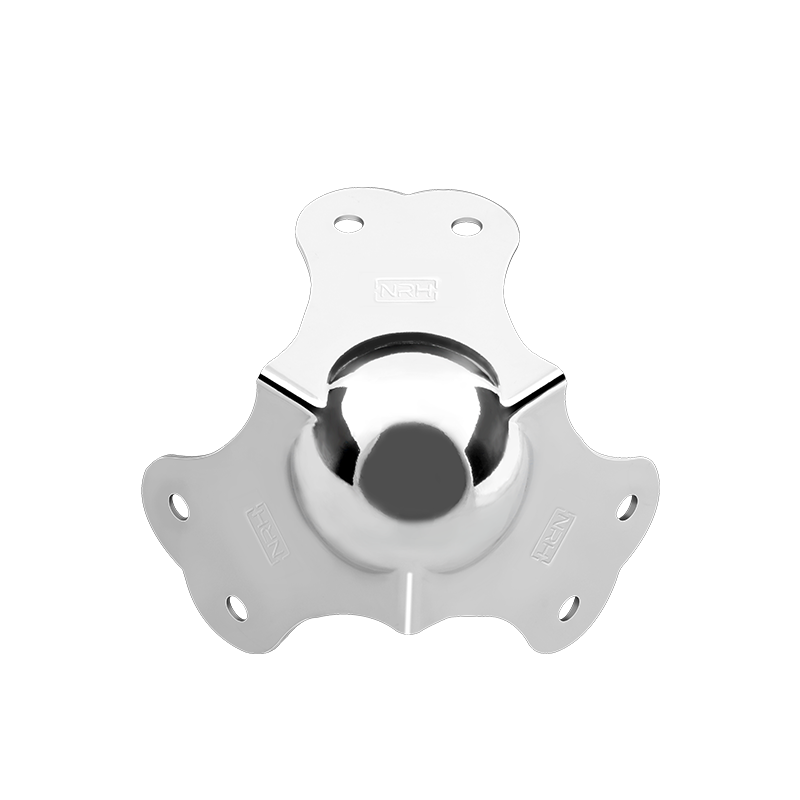

Figure 4: NRH 7101-66 ball corner protector – impact protection at all eight vertices

Product Comparison

Configuration Guide by Case Type

Different stage equipment requires different hardware configurations. Here is how the 6101-108K, 4101-160, and 7101-66 work together across common touring case types.

Mixer Console Cases (Approx. 600 x 500 x 400mm / 24 x 20 x 16 inches)

16U Rack Cases (Approx. 715 x 527 x 890mm / 28 x 21 x 35 inches)

Lighting Equipment Cases (Custom sizes)

Installation Guide

Tools Required

• Drill with 4.8mm bit (for 7101-66 mounting holes)
• Screwdriver or rivet gun
• Measuring tape
• Marker for hole positioning

Installation Steps

1. Position the butterfly locks. Mount 6101-108K locks on the front face of the case. For mixer cases, center two locks. For 16U racks, position two near the top and two near the bottom. Ensure the lock bodies align perfectly with the catch plates on the lid.
2. Position the recessed handles. Mount 4101-160 handles on the side panels. For optimal ergonomics, position handles approximately one-third from the top and bottom of the case. This provides balanced lifting.
3. Position the ball corners. Install 7101-66 ball corners at all eight vertices. Each corner requires six 4.8mm mounting holes. The ball should fully cover the corner edge, wrapping around all three faces.
4. Drill mounting holes. Use a 4.8mm bit for 7101-66 corners. For 6101-108K and 4101-160, follow the product’s specific hole spacing dimensions from the specification drawings.
5. Secure the hardware. Use stainless steel rivets or screws for all installations. For plywood cases, pre-drill pilot holes to prevent splitting. For aluminum cases, use appropriate fasteners for the material thickness.
6. Test operation. Close the lid and engage each butterfly lock. The locks should click into place with firm, even pressure. Test each handle for smooth spring return. Verify all ball corners are securely attached with no movement.

Installation Method Comparison

Key Installation Notes

• Use stainless steel fasteners only. For touring applications where vibration is constant, use stainless steel rivets or screws to maintain corrosion resistance and prevent loosening.
• Align locks precisely. The 6101-108K catch plates must align with the lock bodies for proper engagement. Use the closed lid position to mark catch plate locations.
• Countersink handle mounting holes. For flush-mount handles like the 4101-160, countersink the mounting holes so screws sit flush with the case surface.
• Test all corners. After installing all eight 7101-66 corners, verify each is securely attached with no movement. Loose corners can rattle during transport.

Key Takeaways

• The 6101-108K butterfly lock provides 392N tensile strength with keyed security for touring cases
• The 4101-160 recessed handle delivers 80kg load capacity per handle for heavy equipment
• The 7101-66 ball corner protector absorbs impact at all eight vertices of the case
• Chrome-plated finish across all components provides corrosion resistance for touring environments
• Mixer cases use 2 locks + 2 handles + 8 corners; 16U rack cases use 4 locks + 4 handles + 8 corners
• ATA 300 compliant – hardware meets industry standards for air transport and touring durability
• Suitable for stage production, AV rental, live events, and any touring application requiring professional-grade hardware

Frequently Asked Questions

What hardware does a standard touring road case need?

A basic mixer or rack case needs 2-4 butterfly locks (6101-108K), 2-4 recessed handles (4101-160), and 8 ball corner protectors (7101-66). Heavier cases add more locks and handles.

What is the tensile load of the 6101-108K butterfly lock?

392N (approximately 40kg of holding force per lock). Four locks provide 160kg of total holding force for large rack cases. Verified from NRH product specification drawings.

How much weight can the 4101-160 handle carry?

80kg per handle. Two handles provide 160kg of lifting capacity – sufficient for even the heaviest touring equipment. Verified from NRH product specification drawings.

Where are ball corner protectors installed on a road case?

All eight corners of the case. Each 7101-66 ball corner is mounted at one vertex, providing impact protection from every angle.

What is ATA 300 and why does it matter for touring cases?

ATA Specification 300 is the industry standard for air transport packaging. It defines testing requirements for shipping containers including drop tests, vibration tests, and compression tests. Touring cases built with NRH hardware are designed to meet these rigorous standards.

What cases are these products suitable for?

Mixer consoles, 19-inch rack cases (2U to 16U+), lighting equipment, camera cases, and any touring or production case requiring professional-grade hardware.

What finish is best for touring case hardware?

Chrome-plated iron (CR) is the industry standard for road cases. It resists corrosion from sweat, humidity, and stage fog residue. For coastal outdoor festivals, SUS304 stainless steel offers superior salt-spray resistance.

Can 6101-108K locks be keyed alike?

Yes. NRH supports custom key coding for butterfly locks. Specify your preferred key code at order to standardize key management across your entire case fleet.

Need Help Choosing?

Selecting the right hardware for touring cases means matching load capacity, security needs, and impact protection to the specific application – mixer consoles, rack cases, or lighting equipment. If you need guidance on hardware selection, configuration, or installation for your stage and event production case project, we can help.
