Campers, overlanders, and outdoor enthusiasts rely on storage boxes to keep gear organized, protected, and accessible. A handle that fails during a weekend trip means a dropped box and damaged equipment. A latch that pops open on a rough trail means lost gear scattered across the road. For outdoor storage boxes, hardware must be as durable as the adventures they accompany.

This case study examines how a professional outdoor storage box manufacturer equips its aluminum storage boxes with NRH 4262-115 spring-loaded handles and 5881-87-1 locking latches – delivering comfortable carrying, secure closure, and reliable performance for camping, overlanding, and vehicle trunk storage applications.

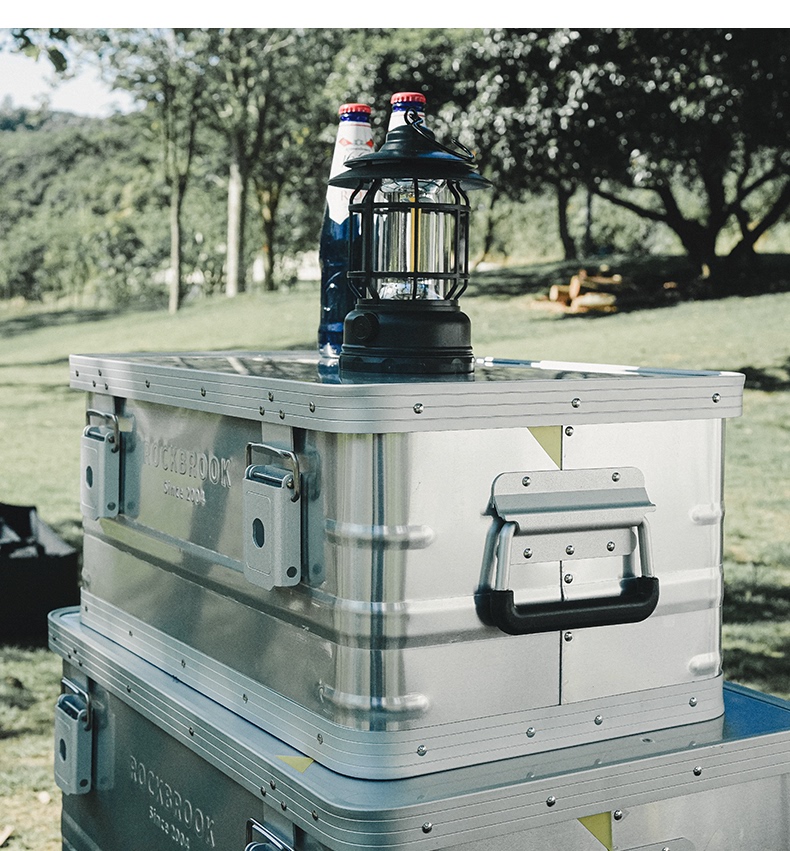

Figure 1: Aluminum outdoor storage box with NRH 4262-115 handles and 5881-87-1 locking latches

Applicable Buyers

• Outdoor storage box manufacturers
• Camping and overlanding equipment brands
• Vehicle trunk and cargo box fabricators
• Aluminum case and enclosure builders
• Custom storage solution providers for outdoor applications

What Happens If You Choose Wrong

Choosing the wrong hardware for an outdoor storage box creates three critical failure modes:

• Handle failure under load. A handle without adequate load capacity can break when the box is fully loaded with camping gear. For storage boxes weighing up to 6kg empty and significantly more loaded, handle failure means dropped equipment and damaged contents.
• Latch pop-open during transport. A latch without sufficient load capacity can release when the box hits a pothole or is jostled on rough trails. The lid opens, gear spills, and the weather seal is compromised. For food and sensitive equipment, this means contamination and spoilage.
• Corrosion from outdoor exposure. Storage boxes are used outdoors in rain, humidity, and temperature extremes. Hardware without proper corrosion resistance will rust, seize, or degrade. Rusted handles break. Seized latches will not close properly, leaving gaps that allow moisture and dust to enter.

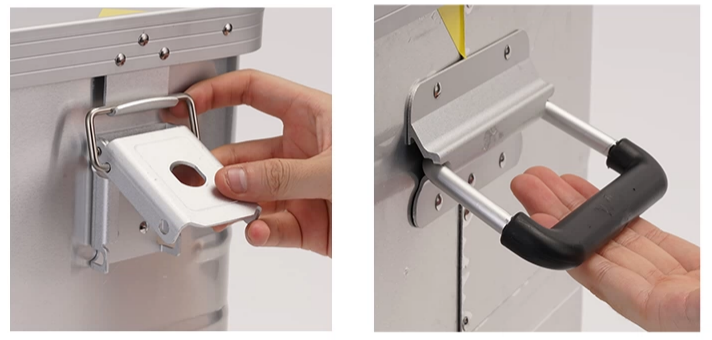

Figure 1a: NRH 4262-115 handle and 5881-87-1 locking latch configuration

The 4262-115 spring-loaded handle and 5881-87-1 locking latch eliminate these risks through 25kg handle load capacity, 35kg latch load capacity, aluminum construction, and corrosion-resistant finishes – ensuring reliable performance through years of outdoor adventures.

Configuration Summary

Product Specifications

4262-115 Spring-Loaded Handle

Constructed from aluminum with a sandblasted finish, the 4262-115 is a spring-loaded handle designed for outdoor storage boxes requiring comfortable carrying with automatic fold-flat functionality. Its 25kg load capacity makes it suitable for small to medium storage boxes, while the spring mechanism returns the handle to a folded position when released – preventing snagging during stacking and transport. At only 87g, it adds minimal weight to the box.

Key features:

• 25kg load capacity for camping and overlanding gear boxes
• Spring-loaded auto-fold mechanism keeps handle flat when not in use
• Sandblasted finish for scratch resistance and professional appearance
• Lightweight at 87g – minimal impact on box weight
• Suitable for aluminum storage boxes of various sizes

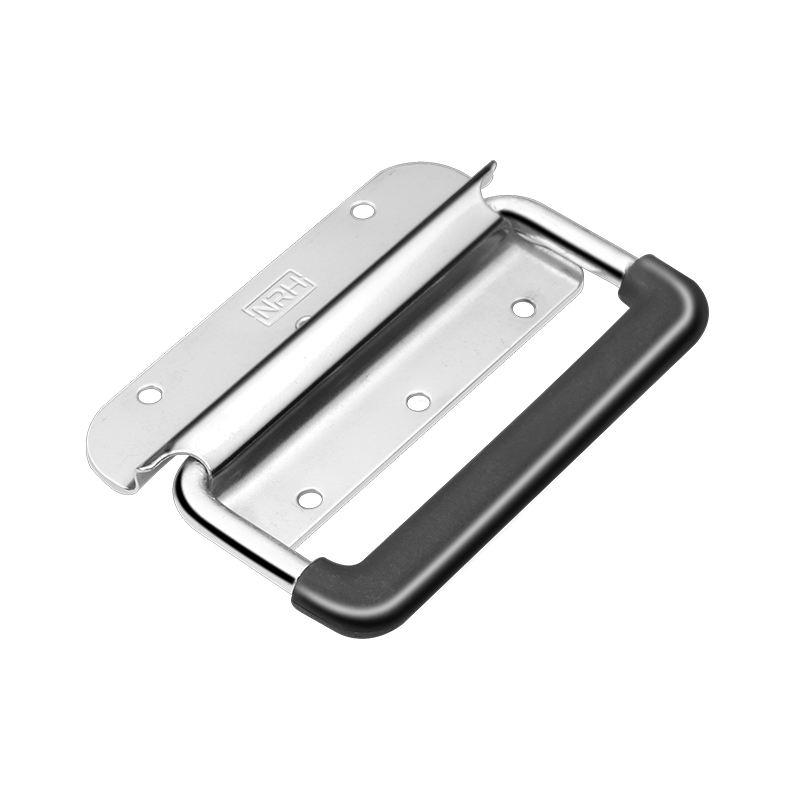

Figure 2: NRH 4262-115 spring-loaded handle – aluminum, sandblasted finish, 25kg load capacity, 87g

5881-87-1 Locking Latch

The 5881-87-1 is a locking latch designed for outdoor storage boxes requiring secure closure with key access. Constructed from aluminum with an oxidized finish, it provides 35kg load capacity – enough holding force to keep the lid closed even on rough trails. The integrated lock cylinder accepts a standard key for authorized access, providing security for valuable gear. The oxidized finish provides a durable, corrosion-resistant surface that stands up to outdoor exposure.

Key features:

• 35kg load capacity for secure closure on rough terrain
• Aluminum construction for lightweight durability
• Oxidized finish for corrosion resistance
• Integrated lock cylinder for security
• Ultra-lightweight at 52g – minimal impact on box weight

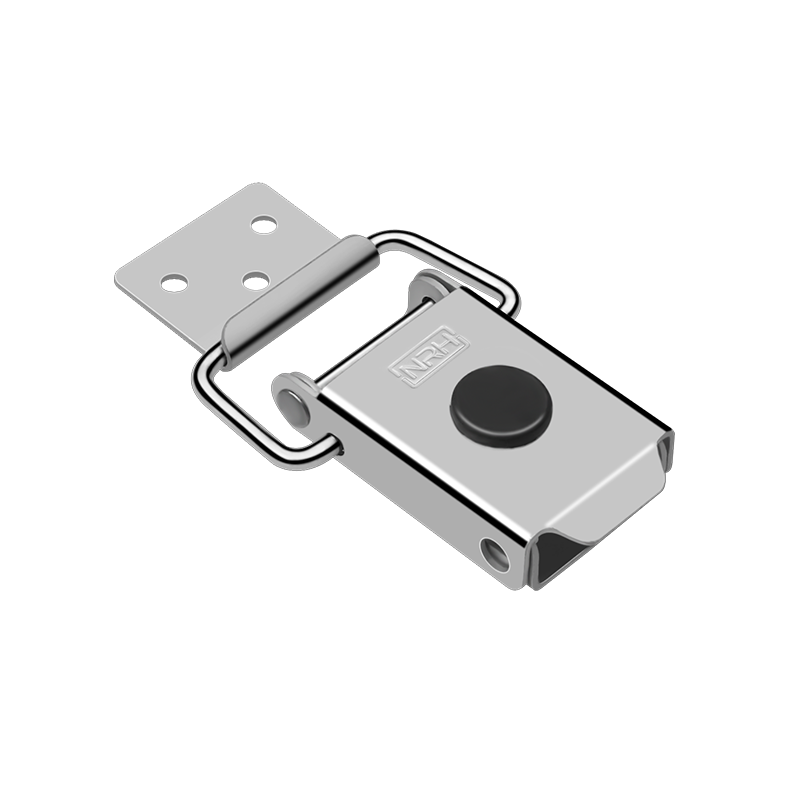

Figure 3: NRH 5881-87-1 locking latch – aluminum, oxidized finish, 35kg load capacity, 52g

Storage Box (Custom)

The aluminum storage boxes are constructed from aluminum with a coated or film-laminated finish. Available in three standard sizes:

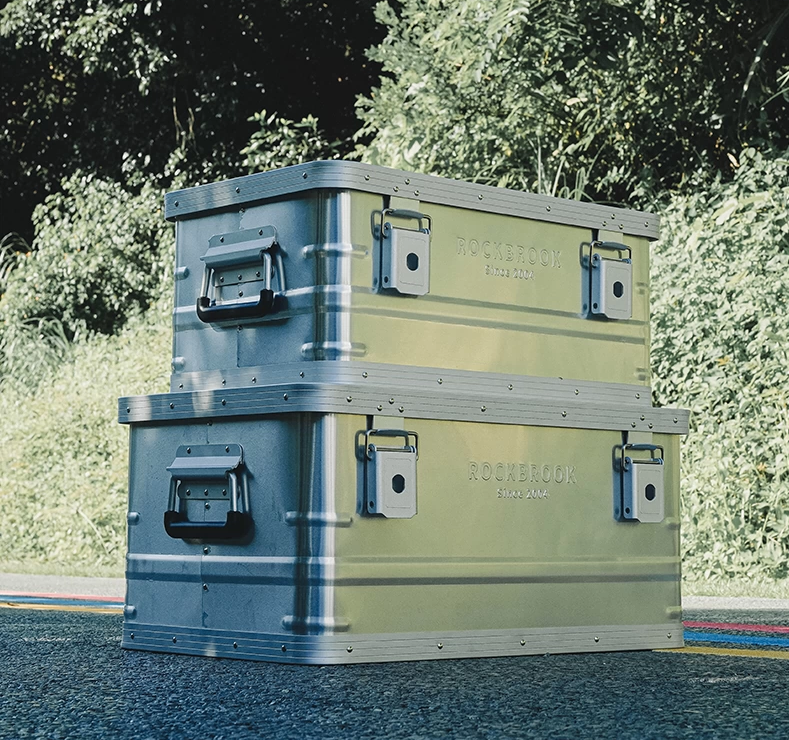

Figure 4: Small, medium, and large aluminum storage boxes with NRH hardware

Product Comparison

Application Scenarios

Outdoor Camping and Overlanding

Campers and overlanders need storage that survives rough trails and unpredictable weather. The 4262-115 handle’s spring-loaded auto-fold mechanism keeps the handle flat when not in use, preventing snagging during vehicle loading and stacking. The 5881-87-1 latch’s 35kg load capacity keeps the lid closed even on washboard roads. The aluminum and oxidized finish ensures the hardware will not corrode in rain or humidity.

Vehicle Trunk and Cargo Storage

SUV and truck owners use storage boxes to organize gear, tools, and supplies. Two 4262-115 handles (25kg each) provide 50kg total lifting capacity – sufficient for boxes weighing up to 20kg loaded. Two 5881-87-1 latches (35kg each) provide balanced closure pressure across the lid. The small and medium sizes (51.5 x 32 x 23cm and 57 x 37.4 x 27.3cm) are ideal for trunk storage, while the large size (77 x 42.4 x 33.3cm) suits truck beds and roof racks.

Gear Organization and Stackable Storage

The stackable design of the aluminum storage boxes allows efficient space use in vehicles and storage areas. The 4262-115 handle’s flush-fold design ensures handles do not interfere with stacking. The 5881-87-1 latch’s low-profile design prevents snagging when boxes are stacked. The oxidized finish hides scratches from sliding and stacking.

Installation Guide

Tools Required

• Drill with appropriate bit size (5.2mm for 4262-115, 5.0mm for 5881-87-1)
• Measuring tape
• Marker for hole positioning
• Screwdriver or rivet gun with appropriate fasteners

Installation Steps

1. Position the handles. Place two 4262-115 handles symmetrically on the front and back faces or side panels of the storage box. For optimal ergonomics, center handles horizontally.
2. Position the latches. Place two 5881-87-1 locking latches on the front face of the box lid, aligned with the catch plates on the box body.
3. Mark hole locations. Use the hardware mounting flanges as templates. Mark hole positions for the handles (5 x 5.2mm) and latches (front: 3 x 5mm, rear: 3 x 5mm).
4. Drill mounting holes. Drill holes at the marked positions. For aluminum boxes, use sharp bits and moderate speed to prevent burring.
5. Install the hardware. Secure the 4262-115 handles and 5881-87-1 latches using appropriate fasteners. For aluminum boxes, use stainless steel screws or rivets to prevent galvanic corrosion.
6. Test operation. Verify smooth handle spring action and latch engagement. Test the lock cylinder with the supplied key.

Installation Method Comparison

Key Installation Notes

• Use stainless steel fasteners only. For outdoor applications, use stainless steel fasteners to maintain corrosion resistance and prevent galvanic corrosion with aluminum boxes.
• Deburr drilled holes. For aluminum boxes, deburr all drilled holes to prevent sharp edges that can damage hardware or cause injury.
• Center handles precisely. Handles should be centered on their mounting faces for balanced carrying and aesthetic symmetry.
• Test spring function. The 4262-115’s spring-loaded mechanism should return the handle to a folded position when released.

Key Takeaways

• The 4262-115 spring-loaded handle provides 25kg load capacity with auto-fold spring mechanism for outdoor storage boxes
• The 5881-87-1 locking latch delivers 35kg load capacity with integrated lock for gear security
• Aluminum construction across all components provides lightweight durability and corrosion resistance for outdoor use
• Three sizes available – small (51.5 x 32 x 23cm), medium (57 x 37.4 x 27.3cm), and large (77 x 42.4 x 33.3cm)
• Two handles per box provide 50kg total lifting capacity; two latches provide balanced closure pressure
• Suitable for camping, overlanding, vehicle trunk storage, and outdoor gear organization

Frequently Asked Questions

What is the 4262-115 handle made from?

Constructed from aluminum with a sandblasted finish. The lightweight aluminum construction keeps the handle weight low (87g) while providing 25kg load capacity.

Does the 4262-115 handle have a spring mechanism?

Yes. The 4262-115 features a spring-loaded auto-fold mechanism that returns the handle to a folded position when released, preventing snagging during stacking and transport.

What is the load capacity of the 5881-87-1 latch?

The 5881-87-1 delivers 35kg load capacity (verified from NRH product specification drawings). This provides secure closure for outdoor storage boxes on rough trails.

Does the 5881-87-1 include a lock?

Yes. It includes an integrated lock cylinder that accepts a standard key, providing secure closure for valuable gear.

What sizes of storage boxes use these components?

Three sizes are available: small (51.5 x 32 x 23cm), medium (57 x 37.4 x 27.3cm), and large (77 x 42.4 x 33.3cm). All three sizes use the same hardware configuration: two 4262-115 handles and two 5881-87-1 latches.

How many handles and latches are installed per box?

Two handles (one on each side or opposite faces) and two latches (on the front face) per box. This provides balanced lifting and secure closure.

Is the 5881-87-1 suitable for outdoor use?

Yes. The aluminum construction and oxidized finish provide corrosion resistance for outdoor environments, including rain, humidity, and temperature fluctuations.

What fasteners are recommended for installation?

Use stainless steel screws with thread-locker for vibration-prone applications. For permanent installation, stainless steel rivets are an alternative. Always use stainless steel fasteners to prevent galvanic corrosion with aluminum boxes.
