Case Study: Rescue Equipment Box Hardware for Emergency and Mining Use

Case Study: Rescue Equipment Box Hardware for Emergency and Mining Use

Firefighters, rescue teams, and mine workers rely on equipment that must perform in the most extreme conditions. A storage box that fails in the field means lost time, compromised safety, and potentially lives at risk. For rescue equipment boxes, hardware must be as rugged as the environments they serve.

This case study examines how rescue equipment manufacturers equip their roll-molded storage boxes with NRH 4259-108 spring-loaded handles and 6324-74 stainless steel butterfly latches – delivering comfortable carrying, secure closure, and reliable performance for fire rescue, mining operations, and emergency response applications.

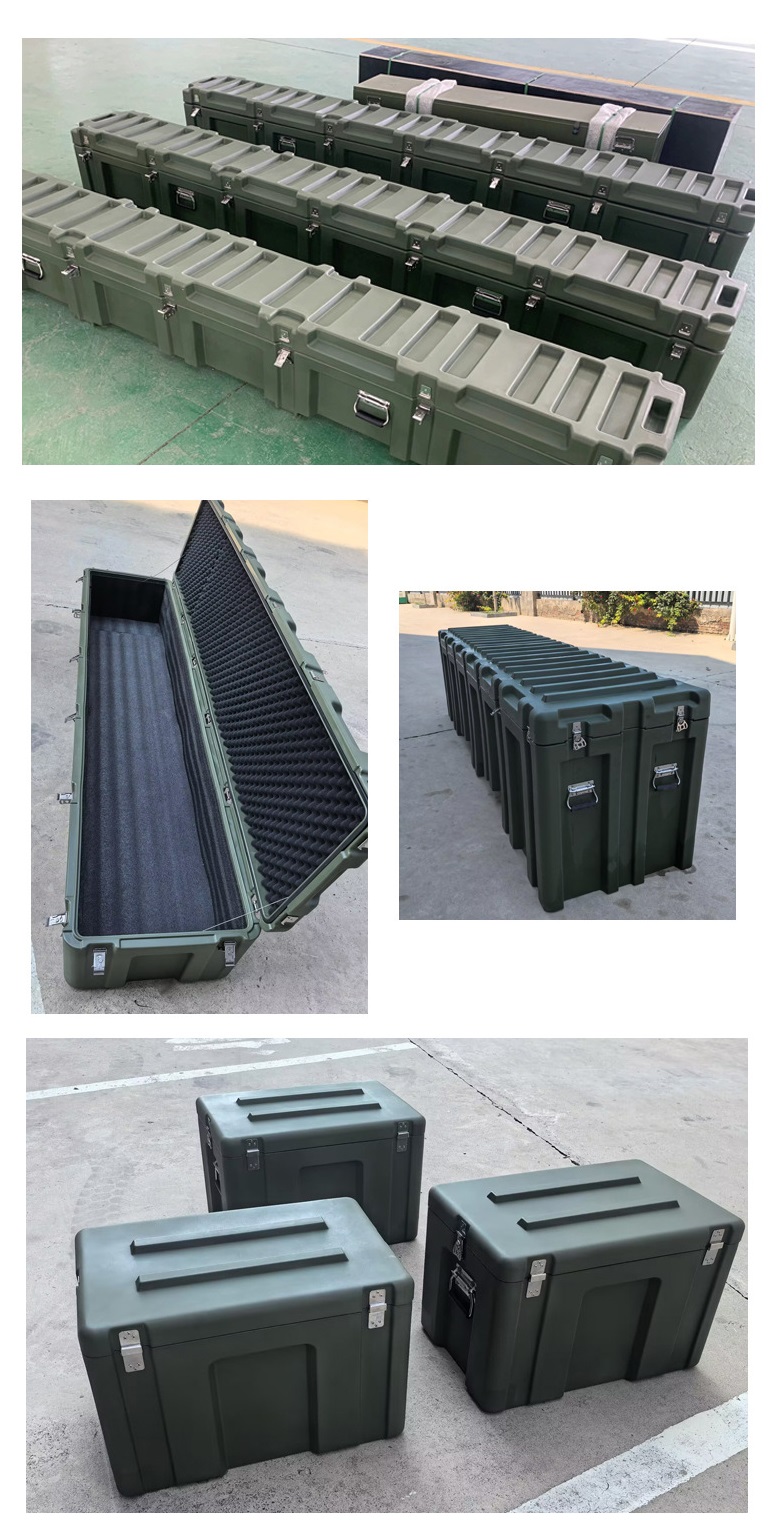

Figure 1: Roll-molded rescue equipment box with NRH 4259-108 handles and 6324-74 butterfly latches

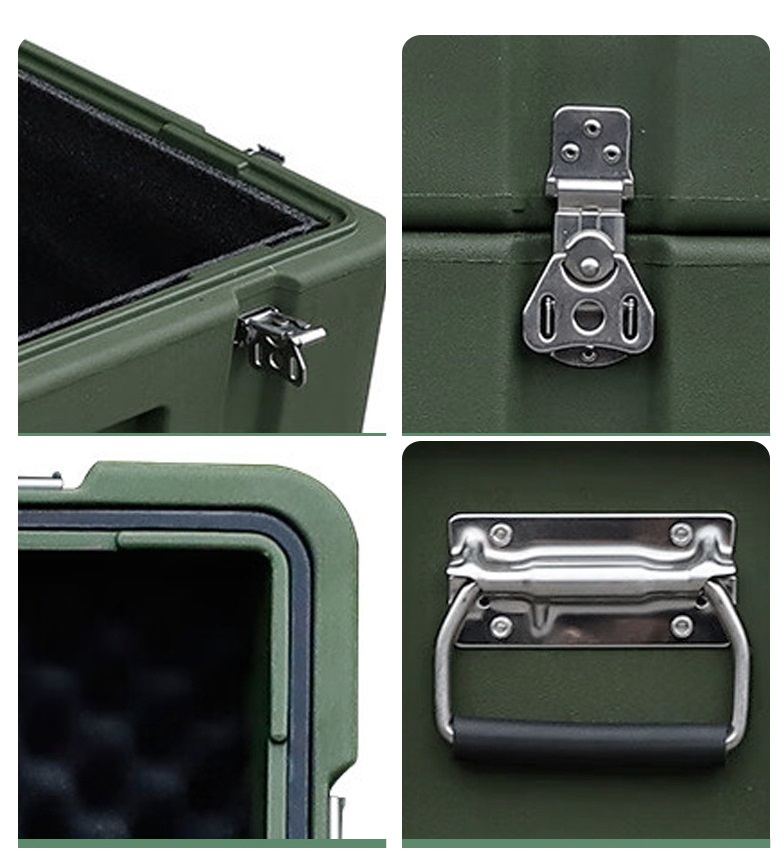

Figure 1a: Close-up of NRH 4259-108 handle and 6324-74 latch on rescue equipment box

Applicable Buyers

• Fire and rescue equipment manufacturers
• Mining and industrial safety suppliers
• Military and defense case fabricators
• Emergency response equipment providers
• Roll-molded plastic case builders

Why Rescue Equipment Boxes Demand Premium Hardware

Roll-molded rescue equipment boxes are subjected to conditions that destroy ordinary storage containers. According to NFPA 1901 and NFPA 1981 standards for fire and rescue equipment, storage boxes must protect their contents through drops, vibration, and extreme temperature exposure.

Rescue equipment boxes face four critical challenges:

• Extreme temperature exposure. Rescue boxes must function in temperatures from -40 degrees C to +90 degrees C. Hardware must maintain performance across this range without seizing or degrading.
• Impact and drop resistance. Equipment is thrown into vehicles, dropped on uneven terrain, and stacked in transport. Roll-molded boxes are designed to survive significant impacts without deformation. Hardware must stay attached and functional through these impacts.
• Water and dust intrusion. Rescue boxes are often rated IP66 or IP67 for water and dust protection. Hardware must not compromise these seals – latches must maintain consistent pressure on gaskets, and handles must not create gaps or stress points.
• Heavy load capacity. Fully loaded rescue boxes can weigh 30-50kg or more. Handles must support these loads, and latches must keep lids closed during transport. The KG1208060 model weighs 32kg empty and can accommodate substantial equipment loads, though the handles are rated for up to 40kg each (160kg total for four handles).

The 4259-108 spring-loaded handle and 6324-74 butterfly latch eliminate these risks through 40kg load capacity, 588N tensile strength, 304 stainless steel construction, and corrosion-resistant finishes – ensuring reliable performance through years of field service.

Product Specifications

4259-108 Spring-Loaded Handle

Constructed from 304 stainless steel with a bright-polished finish, the 4259-108 is a spring-loaded handle designed for rescue equipment boxes requiring comfortable carrying with automatic fold-flat functionality. Its 40kg load capacity makes it suitable for large equipment trunks, while the spring mechanism returns the handle to a folded position when released – preventing snagging during stacking and vehicle loading. At only 215g, it adds minimal weight to the box.

Key features:

• 40kg load capacity for heavy rescue and mining equipment boxes
• Spring-loaded auto-fold mechanism keeps handle flat when not in use
• 304 stainless steel construction for corrosion resistance
• Bright-polished finish for professional appearance
• Suitable for roll-molded plastic boxes of various sizes

Figure 2: NRH 4259-108 spring-loaded handle – 304 stainless steel, bright-polished finish, 40kg load capacity, 215g

6324-74 Stainless Steel Butterfly Latch

The 6324-74 is a stainless steel butterfly latch designed for rescue equipment boxes requiring secure closure with reliable operation. Constructed from 304 stainless steel with a vibratory (ZG) finish, it provides 588N tensile strength – enough holding force to keep the lid closed even in extreme conditions. The butterfly design provides positive closure feedback and easy operation with gloved hands. The vibratory finish provides a uniform matte surface that hides scratches from field use.

Key features:

• 588N tensile strength for secure closure in extreme conditions
• 304 stainless steel construction for corrosion resistance
• Vibratory (ZG) finish hides scratches from field use
• Butterfly design for easy operation with gloved hands
• Lightweight at 97g – minimal impact on box weight

Figure 3: NRH 6324-74 stainless steel butterfly latch – 304 stainless steel, 588N tensile strength, 97g

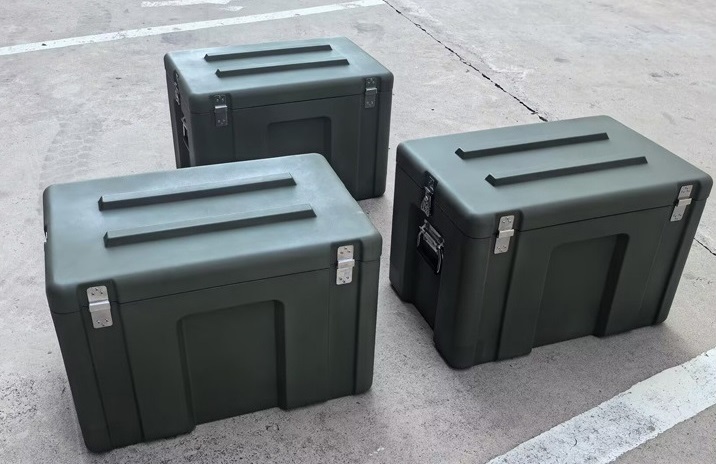

Rescue Equipment Box (Custom)

Roll-molded rescue equipment boxes are constructed from linear low-density polyethylene (LLDPE) with a roto-molding process. The boxes are IP66 rated for water and dust resistance and can withstand temperatures from -40 degrees C to +90 degrees C.

Available in multiple sizes for different applications:

Configuration Guide by Box Size

Different rescue equipment box sizes require different hardware configurations. Here is the recommended configuration for the 4259-108 handle and 6324-74 latch:

Application Scenarios

Fire and Rescue Equipment Storage

Fire departments use roll-molded boxes to store hoses, nozzles, breathing apparatus, and rescue tools. The 4259-108 handle’s 40kg load capacity supports fully loaded equipment trunks. The 6324-74 latch’s 588N tensile strength keeps lids closed during emergency response transport – even with the vehicle maneuvering through traffic and rough terrain.

Mining and Industrial Safety

Mine rescue teams carry specialized equipment for underground emergencies. The 6324-74’s butterfly design allows operation with gloved hands, critical when responding to emergencies in cold or hazardous conditions. The 304 stainless steel construction resists corrosion from mine water and chemical exposure. The 4259-108 handle’s spring-loaded auto-fold mechanism keeps handles flat for stacking in confined spaces.

Military and Defense Logistics

Military units use roll-molded boxes for weapons, communications equipment, and field supplies. The 4259-108 handle’s bright-polished finish provides a professional appearance while the 304 stainless steel construction ensures durability in field conditions. The 6324-74 latch’s vibratory finish hides scratches from rough handling and transport.

Emergency Response and Disaster Relief

Emergency response teams deploy roll-molded boxes for medical supplies, communications gear, and survival equipment. The combination of 4259-108 handles (40kg capacity each) and 6324-74 latches (588N tensile) provides a complete, durable hardware solution that survives the rigors of disaster response – from helicopter drops to truck transport.

Installation Guide

Tools Required

• Drill with appropriate bit size (5mm for 4259-108, 3.4mm for 6324-74)
• Measuring tape
• Marker for hole positioning
• Screwdriver or rivet gun with appropriate fasteners

Installation Steps

1. Position the handles. Place 4259-108 handles on the box sides or ends. For large boxes, position handles for balanced carrying – typically centered on opposite sides. For boxes weighing over 50kg loaded, position handles for team lifting.
2. Position the latches. Place 6324-74 latches on the front lid edge, aligned with the catch plates on the box body. Space latches evenly for balanced closure pressure. For large boxes, position latches at approximately one-third and two-thirds of the lid width.
3. Mark hole locations. Use the hardware mounting flanges as templates. Mark hole positions for the handles (4 x 5mm) and latches (6 x 3.4mm).
4. Drill mounting holes. Drill holes at the marked positions. For roll-molded plastic boxes, use sharp bits and moderate speed to prevent cracking or deforming the plastic.
5. Install the hardware. Secure the 4259-108 handles and 6324-74 latches using appropriate fasteners. For plastic boxes, use rivets or machine screws with backing plates to distribute load and prevent pull-through.
6. Test operation. Verify smooth handle spring action and latch engagement. The 4259-108 handle should return to a folded position when released. The 6324-74 latch should engage with positive closure feedback.

Installation Method Comparison

Key Installation Notes

• Use stainless steel fasteners only. For rescue equipment applications where corrosion resistance is critical, use stainless steel rivets or screws to maintain durability.
• Use backing plates for plastic boxes. For roll-molded plastic boxes with thin walls, use backing plates or large washers behind mounting holes to distribute clamping load and prevent pull-through.
• Position handles for balanced lifting. Handles should be positioned for balanced carrying when the box is fully loaded. For large boxes, position handles for team lifting.
• Test latch closure pressure. The 6324-74 latches should provide even pressure across the lid. Adjust catch plate positions to achieve uniform gasket compression.

Key Takeaways

• The 4259-108 spring-loaded handle provides 40kg load capacity with 304 stainless steel construction for rescue equipment boxes
• The 6324-74 stainless steel butterfly latch delivers 588N tensile strength with vibratory finish for secure closure
• 304 stainless steel construction across all components provides corrosion resistance for extreme environments
• Multiple sizes available – from 300mm compact cases to 1200mm equipment trunks
• Hardware quantity varies by box size – small boxes use 1-2 handles and 1-2 latches; large boxes use 3-4 handles and 4-6 latches
• IP66 rated boxes maintain water and dust protection when properly sealed with NRH hardware
• Suitable for fire rescue, mining operations, military logistics, and emergency response applications

Frequently Asked Questions

What is the 4259-108 handle made from?

Constructed from 304 stainless steel with a bright-polished (LG) finish. 304 stainless steel provides excellent corrosion resistance without coatings that can chip or flake.

What is the load capacity of the 4259-108 handle?

The 4259-108 delivers 40kg load capacity (verified from NRH product specification drawings). Four handles provide 160kg total lifting capacity for large equipment trunks.

What is the tensile load capacity of the 6324-74 latch?

The 6324-74 delivers 588N tensile load capacity (verified from NRH product specification drawings). This provides secure closure for rescue boxes through extreme transport conditions.

How many handles and latches are needed for a rescue equipment box?

Configuration depends on box size. Small boxes (under 500mm) use 1-2 handles and 1-2 latches. Medium boxes (500-800mm) use 2 handles and 2-3 latches. Large boxes (800-1000mm) use 2-3 handles and 3-4 latches. Extra-large boxes (1000mm+) use 3-4 handles and 4-6 latches.

Are these components suitable for roll-molded plastic boxes?

Yes. Both components are designed for use with roll-molded plastic boxes. Use backing plates or large washers to distribute load and prevent pull-through on plastic walls.

Is the 6324-74 latch easy to operate with gloves?

Yes. The butterfly design provides a large grip surface that is easy to operate with gloved hands – critical for rescue and emergency response applications.

What temperature range can these components withstand?

304 stainless steel construction maintains performance across extreme temperature ranges typical of rescue equipment applications. Hardware remains functional from -40 degrees C to +90 degrees C.

What fasteners are recommended for installation?

Use stainless steel rivets or machine screws with backing plates. For plastic boxes, use backing plates to distribute load and prevent pull-through. Use thread-locker in high-vibration applications.
