Case Study: Rotomolded Case Hardware for Medical and Food Transport

Why Rotomolded Cases for Medical and Food Transport Demand Purpose-Built Hardware

A field hospital in a forward operating base receives a pallet of rotomolded medical cases after a 48-hour logistics chain – air-dropped, trucked over unpaved roads, and finally hand-carried to the aid station. Every case must arrive with its contents intact: surgical instruments, diagnostic devices, temperature-sensitive reagents. The hardware on each case – latches, handles, hinges – is the first line of defense against the shocks, vibrations, moisture, and dust of military logistics.

Rotomolded cases are the industry standard for protecting sensitive military and field equipment. Their seamless one-piece construction offers excellent resistance to mechanical damage, moisture, dust, and temperature extremes. But the enclosure is only half the story. The hardware – latches, handles, hinges – determines whether the case can be securely sealed, comfortably carried, and reliably opened in the field.

This article examines three real rotomolded case configurations: a 1200mm medical equipment case, a 450mm medical instrument case, and a 390mm insulated food transport case. Each represents a distinct approach to hardware selection, balancing case size, load weight, sealing requirements, and cost.

Why Rotomolded Cases for Military and Field Applications

Rotomolded cases are the preferred choice for military medical and field logistics for several reasons:

Seamless durability. Rotational molding creates cases with no welded seams or joints – the traditional failure points in impact and vibration. The one-piece construction ensures that the case remains watertight even after repeated drops and rough handling.

Impact resistance. LLDPE (linear low-density polyethylene) construction absorbs shocks that would crack or shatter injection-molded or vacuum-formed cases. Military-grade rotomolded cases routinely pass 1.5-1.8 meter drop tests with 25kg+ loads.

Environmental sealing. With proper gasket design and sufficient latch compression, rotomolded cases achieve IP67 or higher ratings – fully protected against dust and capable of immersion in 1 meter of water for 30 minutes. This is critical for field hospitals operating in rain, mud, and coastal environments.

Stackability. Rotomolded cases are designed to be stacked multiple layers high during transport and storage. This places significant demands on hardware: latches must remain securely closed under the weight of stacked cases, and handles must lie flat to prevent snagging.

Temperature tolerance. Military-grade rotomolded cases maintain structural integrity from -40 degrees Celsius to +70 degrees Celsius – essential for equipment moving between climate-controlled medical facilities and extreme field environments.

Case 49: Large Medical Equipment Case (1200 x 800 x 600mm)

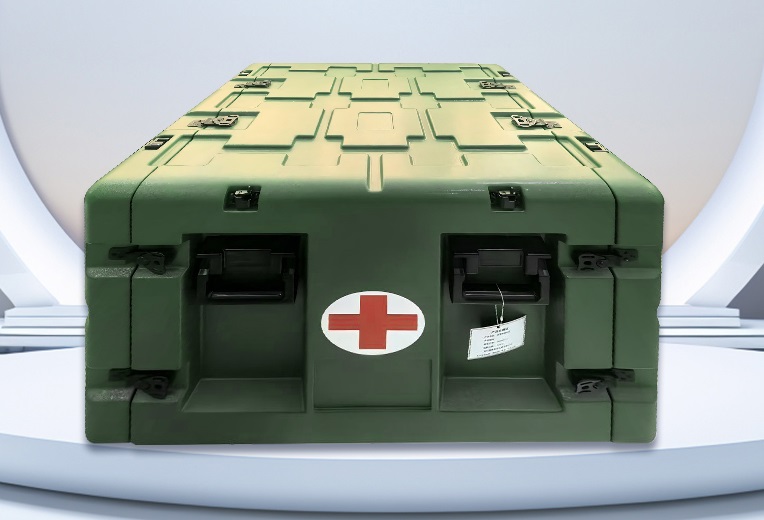

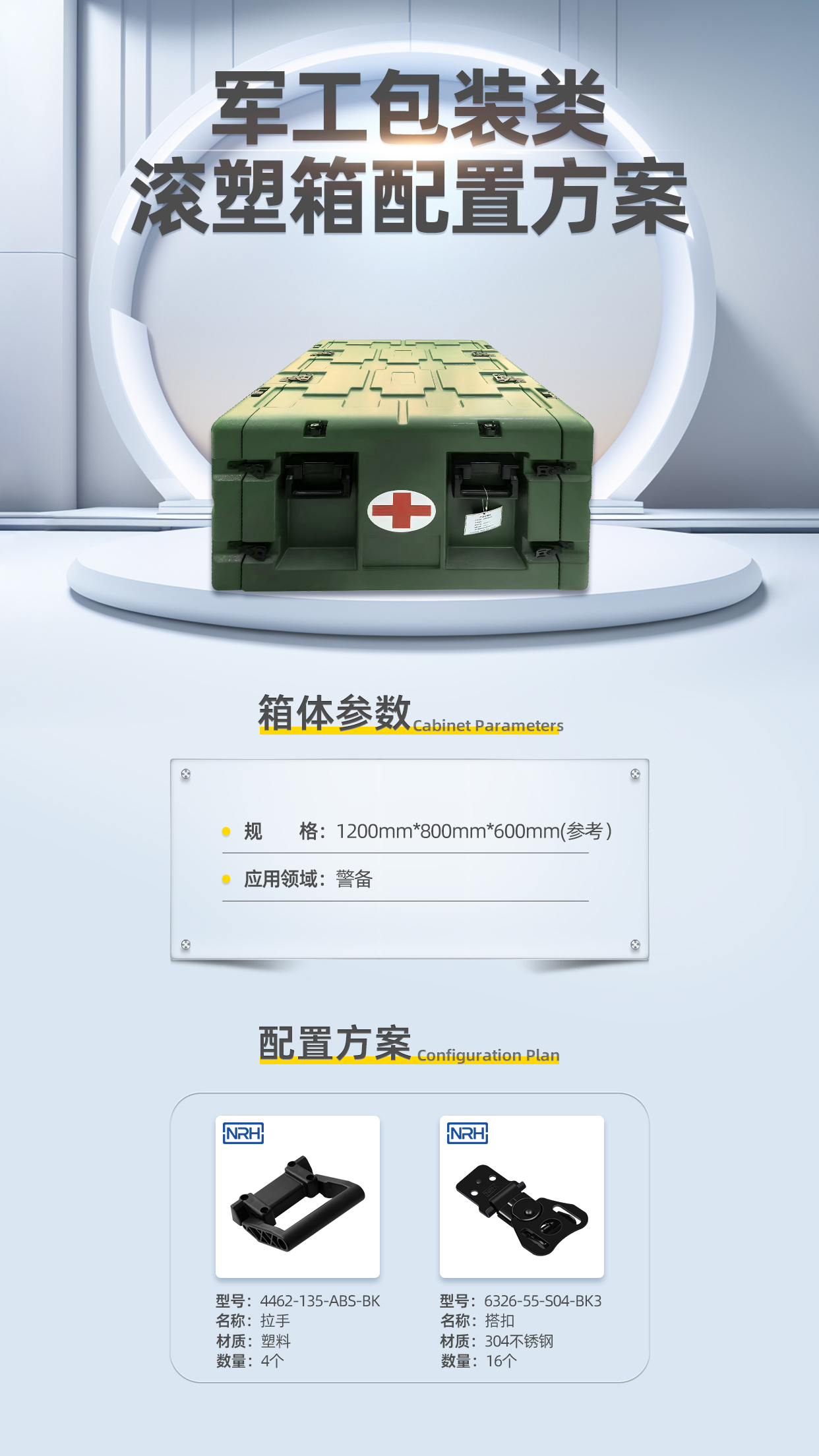

Case 49: Large rotomolded medical equipment case (1200x800x600mm) with nylon handles and 16 stainless steel toggle latches

This 1200mm x 800mm x 600mm rotomolded case is designed for transporting bulky medical equipment – portable X-ray machines, ultrasound units, ventilator systems, or surgical light heads – to field hospitals and forward operating bases. At this scale, the case itself weighs approximately 25-35kg empty, and fully loaded can exceed 80-100kg. The hardware configuration must address three challenges: sealing a large lid area, providing comfortable carry points for heavy loads, and maintaining durability through repeated field deployments.

Hardware Configuration

4462-135 Nylon Carry Handle – 40kg load rating, 162g weight

Why This Configuration Works

16 stainless steel toggle latches (6326-55-S04-BK3) for absolute sealing. The 1200mm x 800mm lid presents a large sealing surface. To maintain an IP67 or higher seal under the vibrations of vehicle transport and the impacts of air-drop deployment, the gasket must be compressed evenly around the entire perimeter. Sixteen 6326-55 latches – each with a 392N (approximately 40kg) tensile load rating – are distributed around the lid to provide uniform clamping force. This prevents the lid from flexing in the center, which would break the gasket seal and expose medical equipment to moisture and dust. The 6326-55’s blackened finish provides additional corrosion resistance for field deployments in high-humidity or coastal environments.

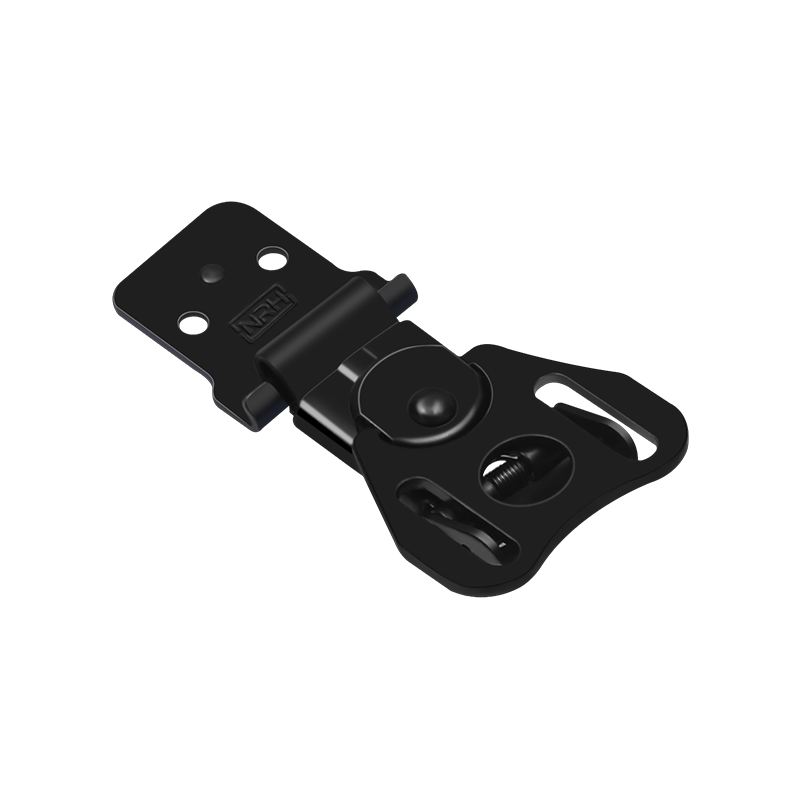

6326-55 Stainless Steel Toggle Latch – 392N tensile load, blackened finish

Nylon handles (4462-135) for lightweight durability. At 162g each and rated for 40kg load, the 4462-135 nylon handles offer an excellent strength-to-weight ratio. Four handles – two on each long side – allow two personnel to carry the case safely, distributing the load. The nylon material provides a comfortable, non-slip grip even when wet, and unlike metal handles, it does not conduct heat or cold – important when handling cases in extreme temperatures. The 4462-135’s 135mm mounting width provides ample hand clearance even when wearing tactical gloves.

Material differentiation: good steel where it counts. This configuration exemplifies a key engineering principle: use high-strength materials where they matter most, and lightweight materials where they suffice. The latches – responsible for sealing and security – are 304 stainless steel with a blackened finish for maximum corrosion resistance and durability. The handles – responsible for carrying comfort and weight reduction – are nylon. This approach reduces overall case weight without compromising the critical sealing function. For a 1200mm case that may be carried over long distances, every gram saved matters.

Stackability consideration. The 4462-135 nylon handles are designed to lie relatively flat against the case surface when not in use, preventing snagging during stacking. This is critical when cases are stacked three or four high on pallets or in vehicle cargo areas – protruding handles would be damaged or would damage adjacent cases.

Case 50: Medical Instrument Case (450 x 260 x 200mm)

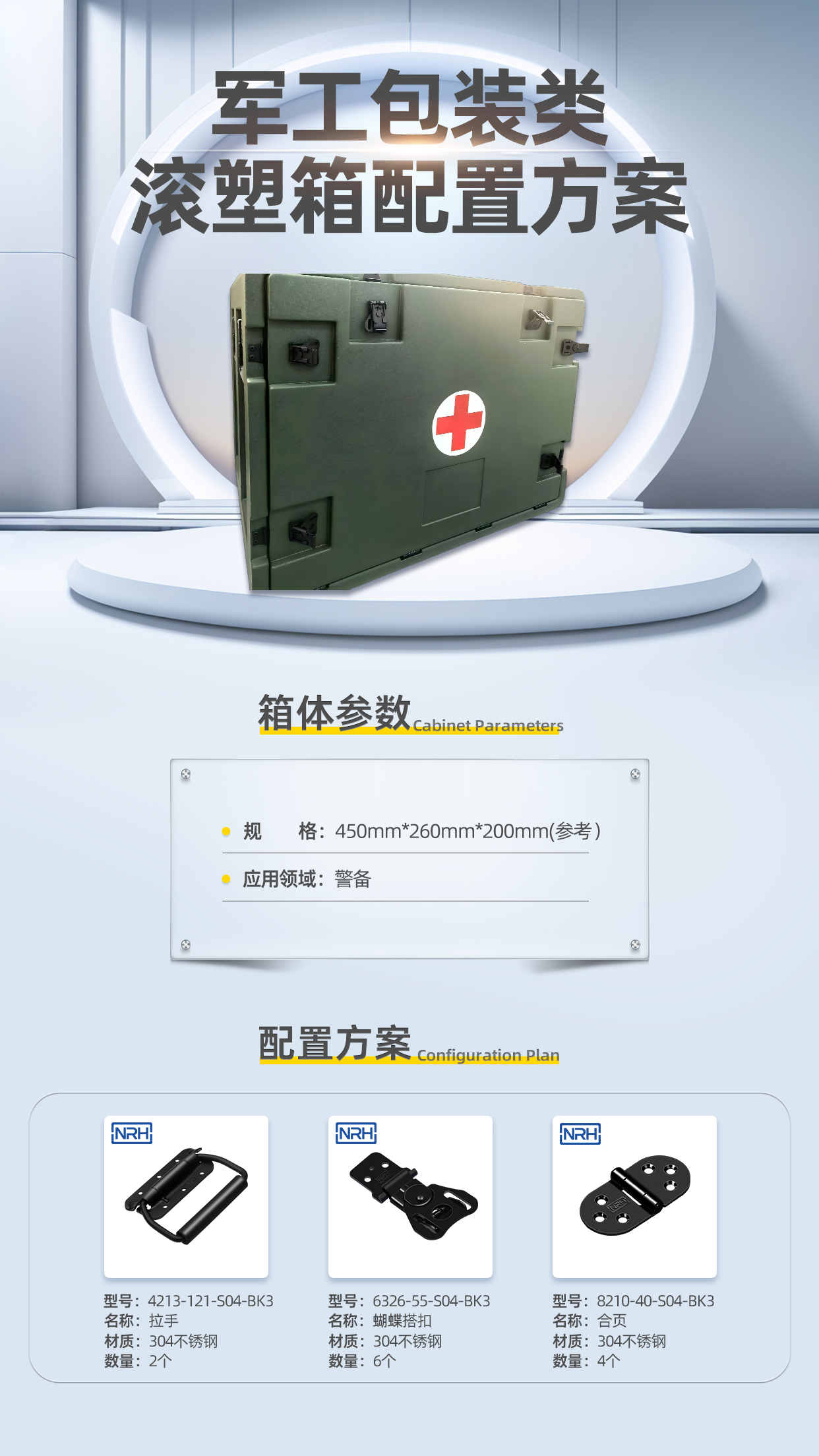

Case 50: Medical instrument case (450x260x200mm) with 304 stainless steel handle, 6 toggle latches, and 4 hinges

This 450mm x 260mm x 200mm rotomolded case is designed for transporting smaller medical instruments – surgical tool sets, diagnostic devices, monitoring equipment, or emergency medical supplies. At this scale, the case is typically carried by a single person and may be opened and closed frequently during medical operations. The hardware configuration represents the gold standard for mid-size military medical cases: a full 304 stainless steel three-piece set.

Hardware Configuration

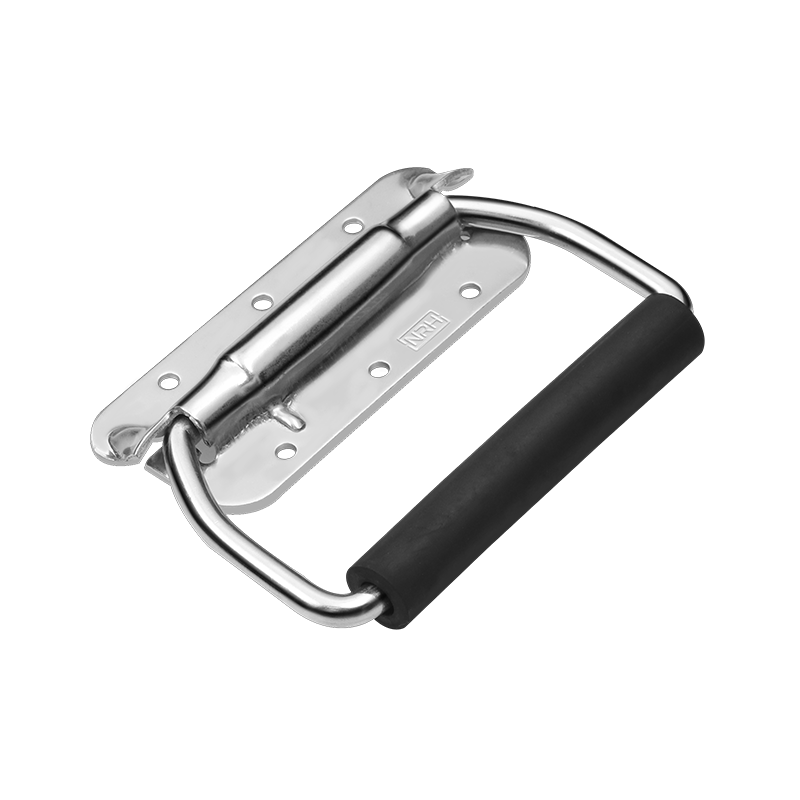

4213-121 Stainless Steel Spring Handle – 80kg load rating, spring-loaded auto-return

Why This Configuration Works

80kg-rated stainless steel handle (4213-121-S04-BK3). Medical instruments are heavy – a fully loaded 450mm case containing surgical tools or monitoring equipment can weigh 20-30kg. The 4213-121 handle, rated for 80kg, provides a significant safety margin. The spring-loaded auto-return mechanism keeps the handle flat against the case when not in use, preventing snagging during stacking and storage. The 287g weight reflects the robust 304 stainless steel construction – a trade-off of weight for durability that is appropriate for a case of this size.

Six toggle latches (6326-55-S04-BK3) for even sealing. At 450mm x 260mm, the lid requires six latch points to maintain uniform gasket compression. Three latches along the front edge and three along the back (or distributed around the perimeter) ensure that the gasket is compressed evenly, maintaining the case’s IP rating. Each 6326-55 latch provides 392N of clamping force – more than sufficient for this application. The blackened finish on the 304 stainless steel provides corrosion resistance for field deployments.

Four hinges (8210-40-S04-BK3) for smooth, durable opening. The 8210-40 hinge is rated for 12kg per hinge in vertical orientation – with four hinges installed, the total vertical load capacity is 48kg, well above the expected case weight. The 304 stainless steel construction ensures that the hinge pins do not corrode and seize, which is a common failure point on cases deployed in humid or coastal environments. The 82mm hinge length provides ample mounting surface for secure attachment to the rotomolded case wall, which typically requires pre-installed metal inserts.

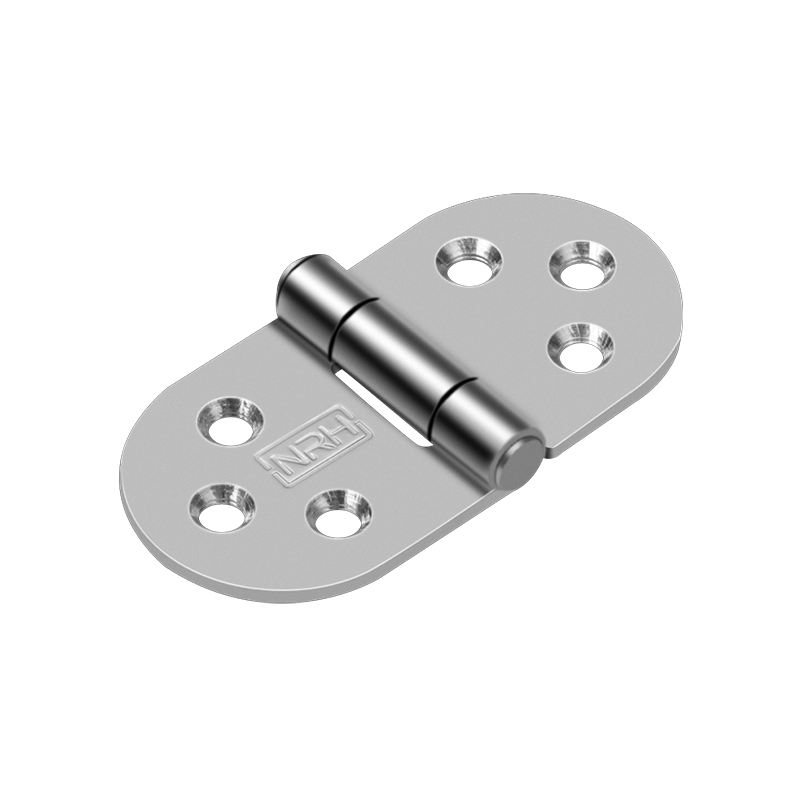

8210-40 Stainless Steel Hinge – 12kg vertical load rating per hinge

The full stainless three-piece set philosophy. This configuration – handle, latches, hinges – all in 304 stainless steel with blackened finish – represents the standard for mid-size military medical cases. Every exposed hardware component is corrosion-resistant, ensuring that the case remains fully functional through years of field deployments. The blackened finish provides a low-visibility appearance appropriate for tactical environments while adding an additional layer of corrosion protection.

Case 51: Insulated Food Transport Case (390 x 215 x 270mm)

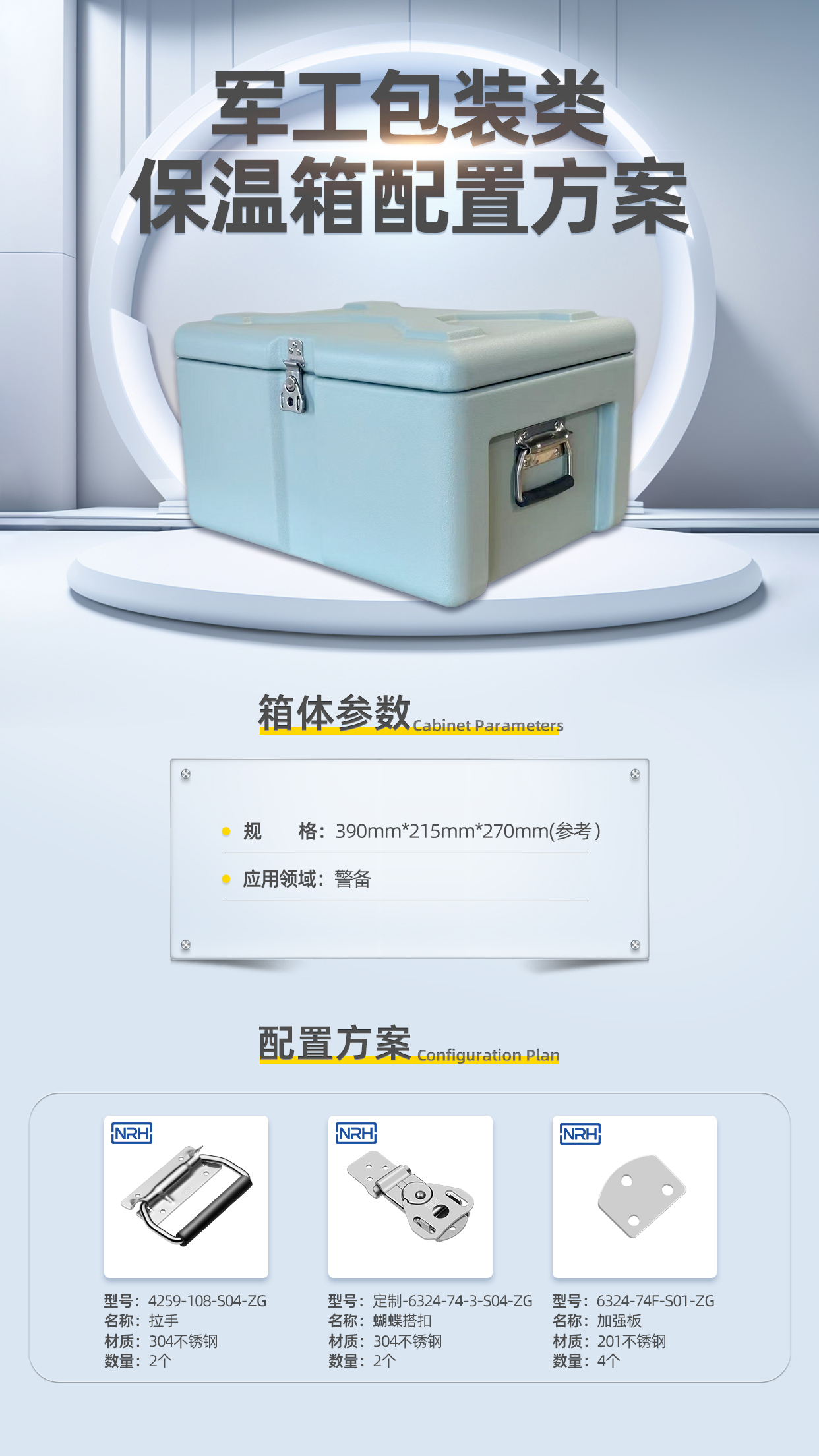

Case 51: Insulated food transport case (390x215x270mm) with custom stainless steel latches and reinforcement plates

This 390mm x 215mm x 270mm rotomolded case is designed for insulated food transport – hot meals, cold supplies, or temperature-sensitive rations for field operations. Unlike the medical cases, this case must maintain internal temperature while being stacked during transport. The hardware configuration reflects a cost-optimized approach: custom-designed 304 stainless steel latches with 201 stainless steel reinforcement plates.

Hardware Configuration

4259-108 Stainless Steel Spring Handle – 40kg load rating, bright finish

6324-74-3 Custom Stainless Steel Toggle Latch – 588kg tensile load

Why This Configuration Works

Custom 304 stainless steel latches (6324-74-3) with 588kg tensile load. The custom designation indicates that this latch was specifically engineered for this application. The 588kg tensile load rating – nearly 1.5x the rating of the standard 6326-55 – provides an exceptional safety margin for cases that are stacked during transport. When cases are stacked three or four high, the lower cases bear the weight of those above. The latch must remain securely closed under this compressive load, and the 588kg rating ensures that it will. The vibratory polished finish provides a smooth, corrosion-resistant surface that is easy to clean – important for food transport applications.

201 stainless steel reinforcement plates (6324-74F). The 6324-74F reinforcement plates are installed inside the case, directly behind the latch mounting points. They share the same mounting hole pattern as the 6324-74-3 latch, sandwiching the rotomolded case wall between the latch and the plate. This distributes the latch’s clamping force over a larger area, preventing the case wall from deforming under the 588kg tensile load. The 201 stainless steel material provides adequate strength for this reinforcement function at a lower cost than 304 stainless steel – a practical cost optimization that does not compromise performance. Each 4g plate weighs almost nothing, adding negligible weight to the case.

304 stainless steel handles (4259-108) with 40kg load rating. The 4259-108 handle provides a 40kg load rating – more than sufficient for a 390mm food case that typically carries 10-15kg of contents. The bright finish provides a clean, easy-to-clean surface – important for food contact applications where sanitation is a concern. The 215g weight reflects the robust 304 stainless steel construction. Two handles – one on each end – allow the case to be carried by two people when fully loaded, or provide multiple grip options for a single carrier.

Customization as a strategic choice. This configuration demonstrates that custom does not always mean more expensive. The 6324-74-3 custom latch and 6324-74F reinforcement plate were designed specifically for this application to optimize the balance of strength, weight, and cost. By using 201 stainless steel for the reinforcement plate (where the material sees less corrosive exposure) and 304 stainless steel for the latch (where corrosion resistance is critical), the design achieves the required performance at a lower total cost than an all-304 configuration.

Comparative Analysis: Three Approaches to Rotomolded Case Hardware

These three cases represent a progression of hardware configuration strategies, each optimized for a specific application.

Design Philosophy: Three Approaches

Case 49: Lightweight where possible, steel where it counts. The large medical equipment case uses nylon handles to reduce weight – a critical consideration for a case that may weigh over 80kg fully loaded. Every gram saved in hardware reduces the load on the personnel carrying it. The 16 stainless steel latches, however, are non-negotiable – the sealing requirement for a 1200mm lid demands the strength and corrosion resistance of 304 stainless steel.

Case 50: The full stainless standard. The medical instrument case uses 304 stainless steel for every hardware component – handle, latches, hinges. This is the gold standard for mid-size military medical cases. The consistency of material simplifies procurement, ensures uniform corrosion resistance, and provides a known, reliable performance envelope. For cases that may be deployed in any environment – from desert to jungle to arctic – this all-stainless approach eliminates the risk of a single component failing due to corrosion.

Case 51: Customization for optimization. The insulated food transport case uses a custom-designed latch with a 588kg tensile load rating and 201 stainless steel reinforcement plates. This approach optimizes the balance of strength, weight, and cost. The custom latch provides exceptional strength for stacked transport, while the 201 stainless steel reinforcement plates – hidden inside the case and not exposed to the external environment – provide the necessary structural reinforcement at a lower cost than 304 stainless steel.

Product Specifications

4462-135 – Nylon Carry Handle

This nylon carry handle is designed for large rotomolded cases where weight reduction is a priority. The nylon material provides a comfortable, non-slip grip in wet conditions and does not conduct heat or cold. The 135mm mounting width provides ample hand clearance.

4213-121-S04-BK3 – Stainless Steel Spring Handle

This spring-loaded handle features a robust 304 stainless steel construction with a blackened finish. The auto-return mechanism keeps the handle flat against the case when not in use, preventing snagging during stacking.

6326-55-S04-BK3 – Stainless Steel Toggle Latch

This toggle latch provides 392N of clamping force for securing rotomolded case lids. The 304 stainless steel construction with blackened finish offers excellent corrosion resistance for field deployments.

8210-40-S04-BK3 – Stainless Steel Hinge

This hinge provides a durable connection point between the case body and lid. The 304 stainless steel construction with blackened finish ensures corrosion resistance and smooth operation.

4259-108 – Stainless Steel Spring Handle

This spring handle features a bright finish 304 stainless steel construction with a 40kg load rating. The bright finish provides a clean, easy-to-clean surface suitable for food transport applications.

Custom 6324-74-3 – Custom Stainless Steel Toggle Latch

This custom-designed toggle latch provides an exceptional 588kg tensile load rating for demanding stacking applications. The vibratory polished finish provides a smooth, corrosion-resistant surface.

6324-74F – Stainless Steel Reinforcement Plate

This reinforcement plate is installed inside the case behind the latch mounting points. It shares the same mounting hole pattern as the 6324-74-3 latch, distributing clamping force over a larger area to prevent case wall deformation.

Selection Considerations for Rotomolded Case Hardware

Based on these three configurations, here are the key decision points for specifying hardware on rotomolded cases:

1. Case size determines latch quantity. A 1200mm case requires 16 latches to maintain an even seal. A 450mm case requires 6. A 390mm case requires 2. The rule is simple: more latches for larger lids, distributed evenly around the perimeter to ensure uniform gasket compression.

2. Load weight determines handle rating. The 4213-121 (80kg) is specified for cases carrying heavy medical instruments. The 4462-135 (40kg) and 4259-108 (40kg) are specified for lighter loads. Always specify a handle with a load rating that exceeds the maximum expected case weight, including a safety margin.

3. Stacking determines latch strength. If cases will be stacked during transport, specify latches with higher tensile load ratings. The custom 6324-74-3 (588kg) was designed specifically for this purpose. Standard latches like the 6326-55 (392N) are adequate for non-stacked applications.

4. Environment determines material and finish. 304 stainless steel with blackened or vibratory polished finish provides excellent corrosion resistance for field deployments. For cases that will be used in coastal or high-humidity environments, 304 stainless steel is the minimum specification. 201 stainless steel may be used for internal components that are not exposed to the external environment.

5. Application determines handle material. Nylon handles (4462-135) reduce weight on large cases. Stainless steel handles (4213-121, 4259-108) provide maximum durability and a sanitary surface for food or medical applications.

6. Stacking and storage determine handle design. Spring-loaded handles that lie flat against the case (4213-121, 4259-108) are essential for cases that will be stacked. Protruding handles would be damaged or would damage adjacent cases.

Installation Guide

Tools Required

• Phillips screwdriver (for mounting screws)
• Flathead screwdriver (for latch adjustment)
• Measuring tape or ruler
• Marker or pencil (for marking hole positions)
• Drill with appropriate bits (if mounting holes are not pre-drilled)
• Riveting tool (for cases with pre-installed metal inserts)

Installation Steps for Toggle Latches

1. Position the latch. Place the latch on the case exterior at the desired location. For cases with pre-installed metal inserts, align the latch mounting holes with the insert positions.
2. Mark mounting holes. Use a marker to trace the mounting hole positions through the latch base.
3. Drill or prepare holes. If holes are not pre-drilled, drill pilot holes at the marked positions. For rotomolded cases, ensure that holes align with any pre-installed metal inserts.
4. Install reinforcement plates (if applicable). For cases using the 6324-74F reinforcement plate, position the plate on the interior of the case, aligned with the latch mounting holes.
5. Secure the latch. Attach the latch using the provided mounting screws or rivets. Do not fully tighten until all fasteners are started.
6. Align and tighten. Check alignment, then tighten all fasteners evenly.
7. Install the catch. Mount the catch plate on the case body, aligned with the latch hook. Close the lid and test engagement. Adjust catch position if needed.
8. Test the latch. Open and close the latch several times to verify smooth operation and secure engagement.

Installation Steps for Handles

1. Position the handle. Place the handle on the case exterior at the desired location. For cases with pre-installed metal inserts, align the handle mounting holes with the insert positions.
2. Mark mounting holes. Trace the mounting hole positions through the handle bracket.
3. Drill or prepare holes. Drill pilot holes at the marked positions if needed.
4. Secure the handle. Attach the handle using the provided mounting screws or rivets. Tighten evenly.
5. Test the handle. Pull the handle to verify secure attachment and comfortable grip. For spring-loaded handles, verify that the auto-return mechanism operates smoothly.

Mounting Options Comparison

Key Takeaways

• Rotomolded cases for medical and food transport require hardware that balances sealing integrity, load capacity, corrosion resistance, and weight.
• Large cases (1200mm+) require high latch counts (16+) to maintain even gasket compression across the full lid perimeter.
• Nylon handles provide significant weight reduction on large cases without compromising load capacity (40kg per handle).
• The full stainless three-piece set (handle + latches + hinges) is the standard for mid-size military medical cases.
• Custom latches with high tensile load ratings (588kg) are essential for cases that will be stacked during transport.
• 201 stainless steel reinforcement plates provide cost-effective structural reinforcement for high-load latch applications.
• 304 stainless steel with blackened or vibratory polished finish provides the corrosion resistance required for field deployments in all environments.
• Spring-loaded handles that lie flat against the case are essential for stackable designs.

Frequently Asked Questions

Why does the large medical case use nylon handles instead of stainless steel?

The 4462-135 nylon handles weigh 162g each – significantly less than a comparable stainless steel handle. For a 1200mm case that may weigh over 80kg when fully loaded, every gram of weight reduction reduces the physical burden on personnel carrying the case. The nylon handles still provide a 40kg load rating each, which is more than sufficient for the application.

Why does the insulated food case use 201 stainless steel for the reinforcement plates?

The 6324-74F reinforcement plates are installed inside the case, behind the latch mounting points. They are not exposed to the external environment, so they do not require the same level of corrosion resistance as externally exposed components. 201 stainless steel provides adequate strength for this reinforcement function at a lower cost than 304 stainless steel.

What is the difference between the 6326-55 and the custom 6324-74-3 latches?

The 6326-55 is a standard toggle latch with a 392N tensile load rating, suitable for most rotomolded case applications. The custom 6324-74-3 is a purpose-built latch with a 588kg tensile load rating – nearly 1.5x higher – designed specifically for cases that will be stacked during transport. The higher rating ensures that the latch remains securely closed under the compressive load of stacked cases.

How many latches does a rotomolded case need?

The number of latches depends on the case size and the required sealing integrity. A 1200mm case requires 16 latches distributed around the perimeter to maintain even gasket compression. A 450mm case requires 6 latches. A 390mm case requires 2 latches. The guiding principle is uniform distribution of clamping force around the entire lid perimeter.

What finish is best for military field applications?

Blackened (BK3) or vibratory polished finishes on 304 stainless steel provide excellent corrosion resistance for field deployments. Blackened finishes offer the additional benefit of low-visibility appearance for tactical environments. Bright finishes are suitable for applications where easy cleaning is a priority, such as food transport.

Can rotomolded cases achieve IP67 or higher ratings?

Yes. With proper gasket design and sufficient latch compression, rotomolded cases routinely achieve IP67 ratings – fully protected against dust and capable of immersion in 1 meter of water for 30 minutes. The key is ensuring that latches are distributed evenly around the lid to provide uniform gasket compression.

What is the expected service life of 304 stainless steel hardware on a rotomolded case?

With proper maintenance, 304 stainless steel hardware on rotomolded cases can last the full service life of the case – typically 10+ years in military field applications. The corrosion resistance of 304 stainless steel ensures that latches, handles, and hinges remain functional even after years of exposure to moisture, salt spray, and temperature extremes.

---
