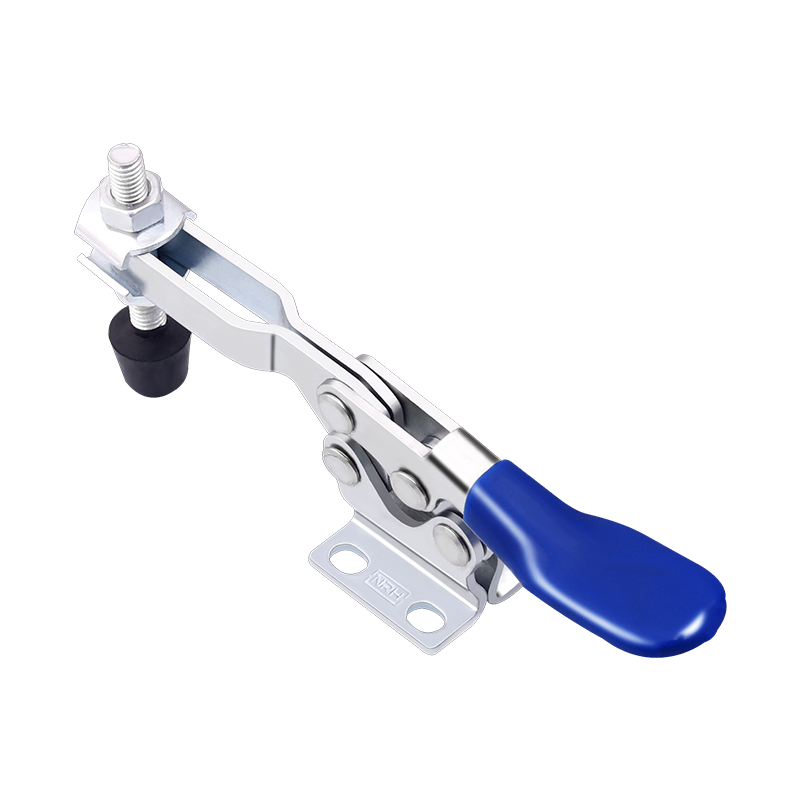

Toggle Clamp 3306-170 3D Model
Interactive 3D model of 3306-170 toggle clamp from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number3306-170
- CategoryToggle Clamps
- Material304 Stainless Steel (SUS304)
- Surface FinishVibratory Polished
- ColorNatural Stainless Finish
- Working Load227kg
Product Overview
The 3306-170 heavy-duty toggle clamp delivers substantial holding force for demanding industrial applications. Engineered for heavy workloads and high-cycle operations, it provides robust clamping performance that operators can trust in critical manufacturing environments.
Design & Construction
This heavy-duty toggle clamp is built with industrial-grade components for maximum durability and holding power. The robust base flange anchors the clamp securely, while the forged steel toggle linkage transfers substantial force to the clamping point. An extra-long handle provides increased mechanical advantage for generating high clamping pressure with moderate operator effort.
Materials & Finish
Crafted from high-quality 304 Stainless Steel (SUS304), the 3306-170 clamp offers excellent corrosion resistance, making it ideal for use in wet, humid, or corrosive environments. Stainless steel construction ensures long-lasting performance without rusting, and the natural finish provides a clean, professional appearance suitable for food processing, pharmaceutical, and marine applications where hygiene and corrosion resistance are essential.
Performance & Specifications
The 3306-170 heavy-duty toggle clamp delivers substantial holding force for demanding industrial applications. Rated for heavy-duty performance, the clamp is engineered with reinforced components throughout to handle high clamping forces without deformation or premature wear. The heavy-gauge linkage and oversized pivot hardware ensure consistent, reliable performance even under the most demanding production conditions. Working load: 227kg.
Typical Applications
The 3306-170 heavy-duty toggle clamp is essential in heavy industrial applications where substantial clamping force is required to secure large, heavy, or rigid workpieces. Primary applications include heavy welding fixtures for structural steel and large fabrications, heavy machining setups for large metal components, and assembly fixtures for heavy industrial equipment. The heavy-duty construction ensures reliable performance even when subjected to the vibrations and forces generated by heavy manufacturing processes.
Installation & Usage
Installation of the 3306-170 heavy-duty toggle clamp requires a robust mounting setup to safely handle the substantial clamping forces generated by the mechanism. The mounting surface must be thick, rigid, and structurally sound, capable of withstanding the full rated clamping force without deflection or failure. Use the clamp base as a template to mark mounting hole positions, then drill or machine holes for the appropriate heavy-duty fasteners. Install the clamp using high-strength bolts or studs with nuts and washers, and tighten to the specified torque in a crisscross pattern. After mounting, carefully adjust the clamping spindle to set the proper closing height and ensure the mechanism reaches a positive over-center lock position. Test the clamp through multiple operating cycles under load to verify performance before putting it into full production service. Periodically inspect all mounting hardware and pivot pins for wear and tightness.
Why Choose NRH
With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.
Every Toggle Clamp in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
Specifications
| Model Number | 3306-170 |
|---|---|
| Product Category | Toggle Clamps |
| Material | 304 Stainless Steel (SUS304) |
| Surface Finish | Vibratory Polished |
| Color | Natural Stainless Finish |
| Working Load | 227kg |
| Brand | NRH |
Frequently Asked Questions
The 3306-170 toggle clamp has a working load capacity of 227kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 3306-170 is constructed from 304 Stainless Steel (SUS304) with a Vibratory Polished finish. This material is selected for its durability, excellent corrosion resistance, and suitability for hygienic and outdoor environments.
The 3306-170 toggle clamp is suitable for a wide range of Heavy-duty industrial applications, including heavy welding fixtures, large assembly jigs, and heavy industrial workholding. Its heavy-duty rating makes it ideal for demanding industrial environments where strength and durability are critical. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 3306-170, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 3306-170 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
