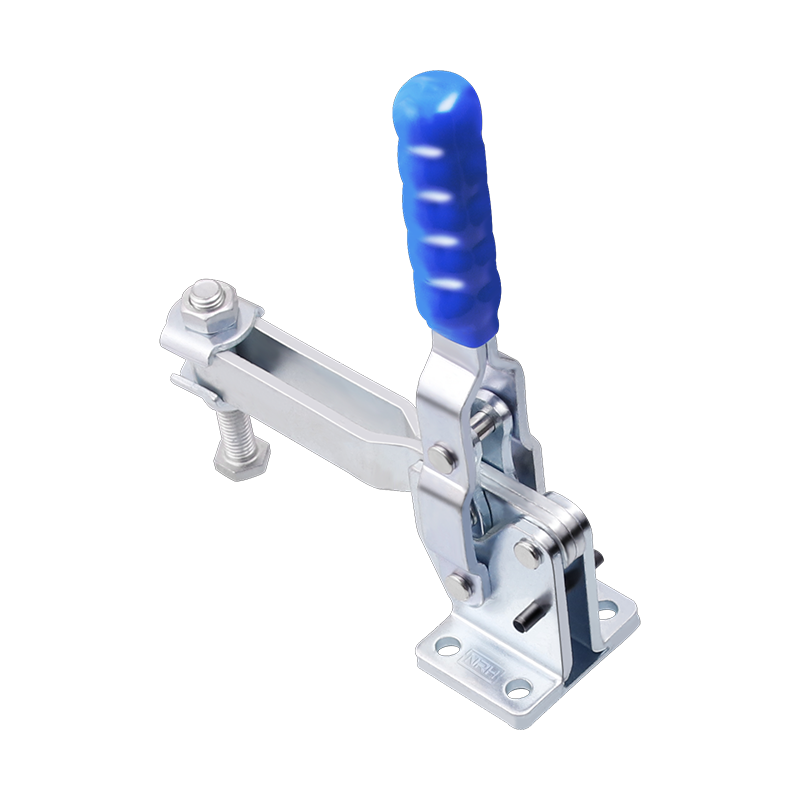

Toggle Clamp 3201-180 3D Model
Interactive 3D model of 3201-180 toggle clamp from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number3201-180
- CategoryToggle Clamps
- Material304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC)
- Surface FinishZinc Plated, Vibratory Polished
- ColorBlue Zinc Plated, Natural Stainless Finish
- Working Load100kg
Product Overview
Versatile and dependable, the 3201-180 toggle clamp is built for medium-duty industrial use. Its robust construction and ergonomic operation make it a workhorse in assembly lines, welding fixtures, and general manufacturing environments.
Design & Construction
Designed with a reinforced base and solid steel linkage, this medium-duty toggle clamp delivers consistent clamping force across thousands of operating cycles. The vertical clamping action provides straight-line pressure ideal for fixtures, jigs, and assembly workstations. The ergonomic handle grip reduces operator fatigue during extended use, and the adjustable clamping spindle accommodates varying workpiece dimensions.
Materials & Finish
The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) construction of this toggle clamp provides superior corrosion resistance and durability compared to standard steel alternatives. The material maintains its structural integrity across a wide temperature range and resists degradation from moisture, chemicals, and outdoor exposure, making it a reliable choice for demanding operating environments.
Performance & Specifications
The 3201-180 medium-duty toggle clamp delivers reliable clamping force for a broad range of industrial workholding applications. Rated for dependable performance under normal production conditions, the clamp maintains consistent holding force across repeated operating cycles. The robust toggle mechanism provides solid mechanical advantage, and all pivot points are sized and finished for low-friction operation and long service life. Working load: 100kg.
Typical Applications
The 3201-180 medium-duty toggle clamp is widely used across general manufacturing, assembly, and fabrication industries. It serves as a standard workholding solution in welding fixtures, assembly line stations, and machining jigs where moderate clamping force is required. The versatility of this clamp makes it suitable for use in automotive component assembly, metal fabrication shops, woodworking operations, and general industrial manufacturing environments.
Installation & Usage
Proper installation of the 3201-180 medium-duty clamp is essential for safe, reliable performance. Start with a flat, rigid mounting surface that can withstand the full clamping force without bending or flexing. Position the clamp so that clamping force is applied in the desired direction, and mark the mounting hole locations. Drill or machine the mounting holes to the correct size, then install the clamp using bolts or screws with sufficient load capacity. Tighten fasteners evenly and to the recommended torque. Adjust the clamping screw to achieve proper workpiece contact and over-center travel, then cycle the clamp several times to confirm smooth operation and positive locking. Periodically inspect mounting fasteners for tightness during service.
Why Choose NRH
With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.
Every Toggle Clamp in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
Specifications
| Model Number | 3201-180 |
|---|---|
| Product Category | Toggle Clamps |
| Material | 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) |
| Surface Finish | Zinc Plated, Vibratory Polished |
| Color | Blue Zinc Plated, Natural Stainless Finish |
| Working Load | 100kg |
| Brand | NRH |
Frequently Asked Questions
The 3201-180 toggle clamp has a working load capacity of 100kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 3201-180 is constructed from 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated, Vibratory Polished finish. This material is selected for its durability, excellent corrosion resistance, and suitability for hygienic and outdoor environments.
The 3201-180 toggle clamp is suitable for a wide range of Medium-duty industrial applications, including welding fixtures, assembly lines, and general manufacturing workholding. Its medium-duty rating makes it ideal for everyday industrial use where consistent, dependable performance is required. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 3201-180, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 3201-180 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
