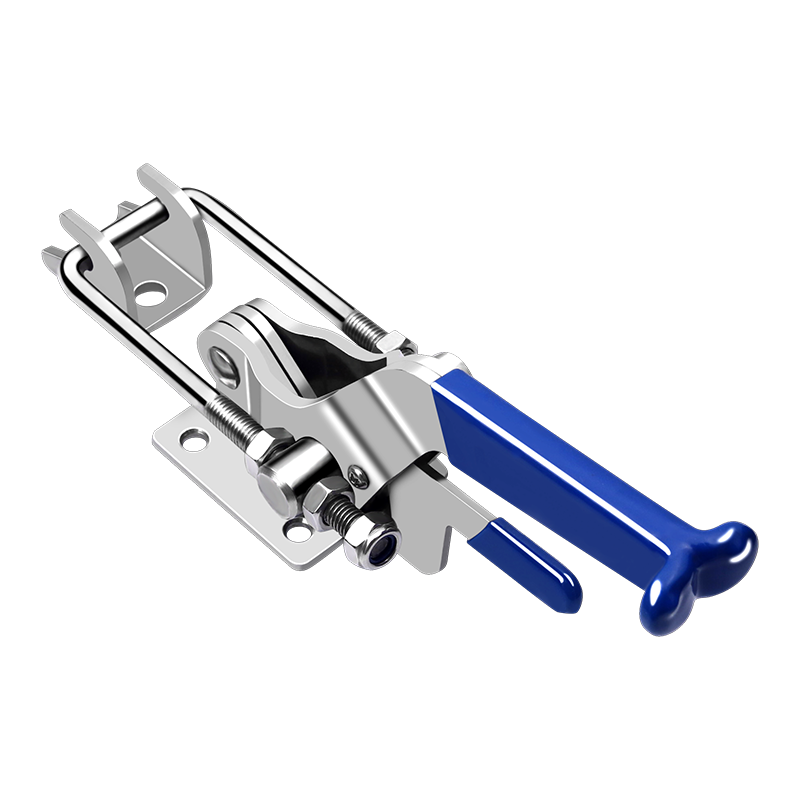

Toggle Clamp 3101-230S 3D Model

Product Overview

Built for heavy-duty industrial environments, the 3101-230S toggle clamp delivers powerful, reliable holding force when it matters most. The reinforced structure and heavy-duty mechanism are designed to withstand repeated use in demanding production settings.

Design & Construction

Engineered for heavy-duty service, the 3101-230S toggle clamp features a reinforced vertical clamping mechanism with substantial structural components throughout. The extra-thick base plate provides maximum mounting stability, while the heavy-gauge steel linkage is sized to handle high clamping forces without flexing or distortion. The oversized pivot pins and hardened bearing surfaces ensure smooth operation and extended service life even under demanding production conditions.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) construction of this toggle clamp provides superior corrosion resistance and durability compared to standard steel alternatives. The material maintains its structural integrity across a wide temperature range and resists degradation from moisture, chemicals, and outdoor exposure, making it a reliable choice for demanding operating environments.

Performance & Specifications

Built for serious industrial workholding, the 3101-230S heavy clamp provides powerful, dependable clamping force for heavy assembly, large welding fixtures, and demanding production environments. The mechanism generates substantial mechanical advantage, and all load-bearing components are sized with generous safety margins for reliable operation. The rated working load of 650kg represents the maximum recommended holding force under normal operating conditions.

Typical Applications

The 3101-230S heavy-duty toggle clamp is essential in heavy industrial applications where substantial clamping force is required to secure large, heavy, or rigid workpieces. Primary applications include heavy welding fixtures for structural steel and large fabrications, heavy machining setups for large metal components, and assembly fixtures for heavy industrial equipment. The heavy-duty construction ensures reliable performance even when subjected to the vibrations and forces generated by heavy manufacturing processes.

Installation & Usage

Installation of the 3101-230S heavy-duty toggle clamp requires a robust mounting setup to safely handle the substantial clamping forces generated by the mechanism. The mounting surface must be thick, rigid, and structurally sound, capable of withstanding the full rated clamping force without deflection or failure. Use the clamp base as a template to mark mounting hole positions, then drill or machine holes for the appropriate heavy-duty fasteners. Install the clamp using high-strength bolts or studs with nuts and washers, and tighten to the specified torque in a crisscross pattern. After mounting, carefully adjust the clamping spindle to set the proper closing height and ensure the mechanism reaches a positive over-center lock position. Test the clamp through multiple operating cycles under load to verify performance before putting it into full production service. Periodically inspect all mounting hardware and pivot pins for wear and tightness.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Toggle Clamp in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.

Specifications

Frequently Asked Questions
