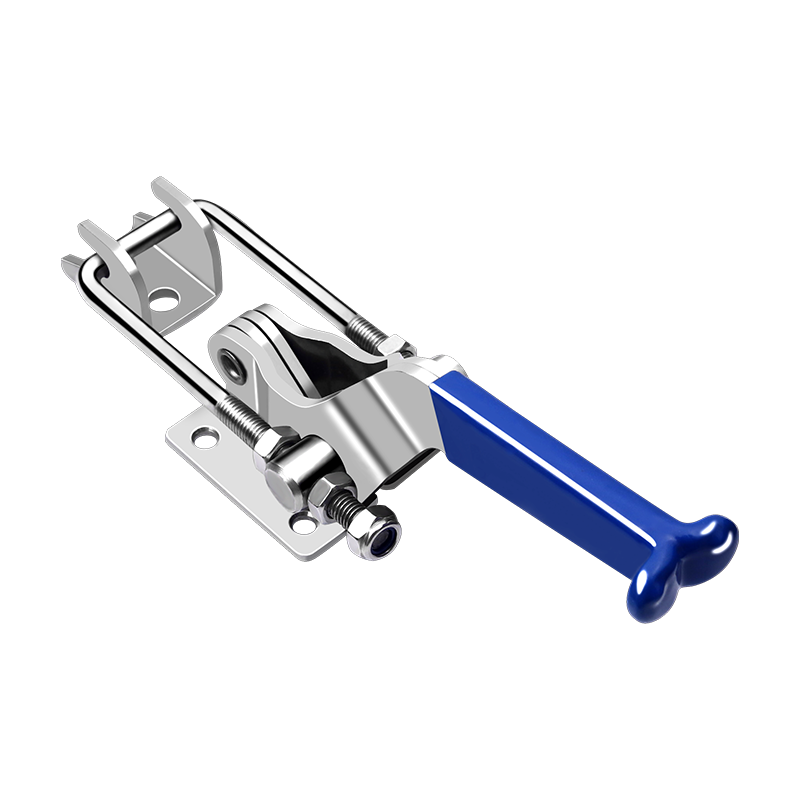

Toggle Clamp 3101-230 3D Model
Interactive 3D model of 3101-230 toggle clamp from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number3101-230
- CategoryToggle Clamps
- Material304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC)
- Surface FinishZinc Plated, Vibratory Polished
- ColorBlue Zinc Plated, Natural Stainless Finish
- Working Load650kg
Product Overview
Featuring substantial holding capacity, the 3101-230 heavy-duty toggle clamp is engineered for applications that demand strong, consistent clamping performance. From heavy assembly work to large welding fixtures, this clamp delivers the holding power required for serious industrial work.
Design & Construction
The 3101-230 heavy clamp incorporates a heavy-duty vertical clamping design engineered for rigorous industrial use. All load-bearing components are oversized for safety and longevity, and the mechanism is designed with a wide over-center lock point to prevent accidental release under vibration or shock loads. The adjustable spindle with heavy-duty contact pad distributes clamping force evenly across large workpieces.
Materials & Finish
Crafted from high-quality 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC), the 3101-230 clamp offers excellent corrosion resistance, making it ideal for use in wet, humid, or corrosive environments. Stainless steel construction ensures long-lasting performance without rusting, and the natural finish provides a clean, professional appearance suitable for food processing, pharmaceutical, and marine applications where hygiene and corrosion resistance are essential.
Performance & Specifications
Built for serious industrial workholding, the 3101-230 heavy clamp provides powerful, dependable clamping force for heavy assembly, large welding fixtures, and demanding production environments. The mechanism generates substantial mechanical advantage, and all load-bearing components are sized with generous safety margins for reliable operation. The rated working load of 650kg represents the maximum recommended holding force under normal operating conditions.
Typical Applications
Industries that rely on the 3101-230 heavy clamp include heavy equipment manufacturing, shipbuilding, rail car production, large structural fabrication, and aerospace component assembly. The substantial holding force makes it suitable for securing heavy castings, large weldments, and bulky assemblies during production. Wherever heavy workpieces must be held securely and reliably during manufacturing operations, this clamp delivers the required performance.
Installation & Usage
Heavy-duty toggle clamps like the 3101-230 require careful installation planning and execution for safe, reliable operation. Begin by evaluating the mounting structure to ensure it can resist the maximum clamping force without deformation. Reinforce the mounting area with back-up plates or additional structural support if necessary. Position the clamp precisely, mark mounting holes, and machine them to the correct size for heavy-duty fasteners. Install the clamp using grade-appropriate bolts with washers, and torque them evenly to the manufacturer specifications. Adjust the clamping spindle to achieve the correct pressure and over-center travel, then test thoroughly. Inspect the entire installation periodically, including fasteners, pivot points, and base material, to maintain safe operation over the clamp service life.
Why Choose NRH
With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.
Every Toggle Clamp in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
Specifications
| Model Number | 3101-230 |
|---|---|
| Product Category | Toggle Clamps |
| Material | 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) |
| Surface Finish | Zinc Plated, Vibratory Polished |
| Color | Blue Zinc Plated, Natural Stainless Finish |
| Working Load | 650kg |
| Brand | NRH |
Frequently Asked Questions
The 3101-230 toggle clamp has a working load capacity of 650kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 3101-230 is constructed from 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated, Vibratory Polished finish. This material is selected for its durability, excellent corrosion resistance, and suitability for hygienic and outdoor environments.
The 3101-230 toggle clamp is suitable for a wide range of Heavy-duty industrial applications, including heavy welding fixtures, large assembly jigs, and heavy industrial workholding. Its heavy-duty rating makes it ideal for demanding industrial environments where strength and durability are critical. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 3101-230, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 3101-230 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
