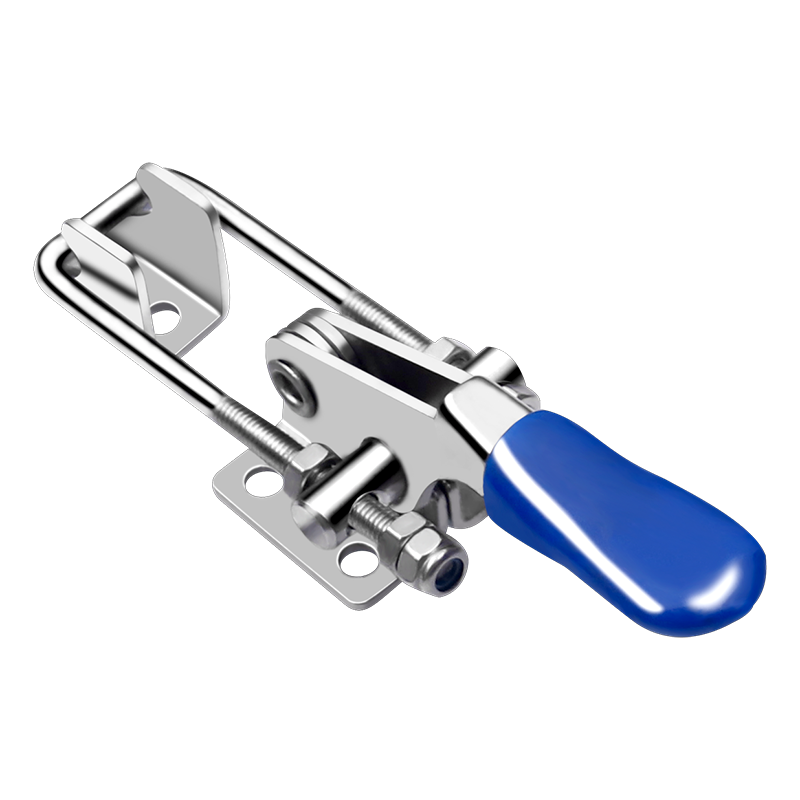

Toggle Clamp 3101-115 3D Model

Product Overview

Versatile and dependable, the 3101-115 toggle clamp is built for medium-duty industrial use. Its robust construction and ergonomic operation make it a workhorse in assembly lines, welding fixtures, and general manufacturing environments.

Design & Construction

The vertical clamping design of the 3101-115 provides reliable hold-down force for general industrial applications. The toggle mechanism uses precision-machined pivots for smooth operation and long service life. A slotted base flange offers flexible mounting options, and the clamping screw with swivel pad ensures even pressure distribution across the workpiece surface.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) construction of this toggle clamp provides superior corrosion resistance and durability compared to standard steel alternatives. The material maintains its structural integrity across a wide temperature range and resists degradation from moisture, chemicals, and outdoor exposure, making it a reliable choice for demanding operating environments.

Performance & Specifications

The 3101-115 medium-duty toggle clamp delivers reliable clamping force for a broad range of industrial workholding applications. Rated for dependable performance under normal production conditions, the clamp maintains consistent holding force across repeated operating cycles. The robust toggle mechanism provides solid mechanical advantage, and all pivot points are sized and finished for low-friction operation and long service life. Working load: 100kg.

Typical Applications

Common applications for the 3101-115 clamp include welding and fabrication fixtures, assembly line workholding, machining and milling setups, and inspection stations. It is frequently used in the production of industrial equipment, automotive components, consumer goods, and metal furniture. The medium-duty rating strikes a balance between holding power and ease of use, making it a versatile choice for many standard industrial operations.

Installation & Usage

Installation of the 3101-115 toggle clamp requires careful attention to mounting surface preparation and fastener selection to ensure safe, reliable performance. Begin by ensuring the mounting surface is flat, rigid, and capable of supporting the clamping forces without deflection. Position the clamp in the desired location, ensuring proper alignment with the workpiece and adequate clearance for full handle travel. Mark and drill mounting holes, then secure the clamp using high-quality fasteners appropriate for your base material, tightened to proper torque specifications. After mounting, adjust the clamping spindle height to achieve the correct clamping pressure and over-center position. Test the clamp through multiple cycles to verify smooth operation and positive locking before putting it into service.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Toggle Clamp in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.

Specifications

Frequently Asked Questions
