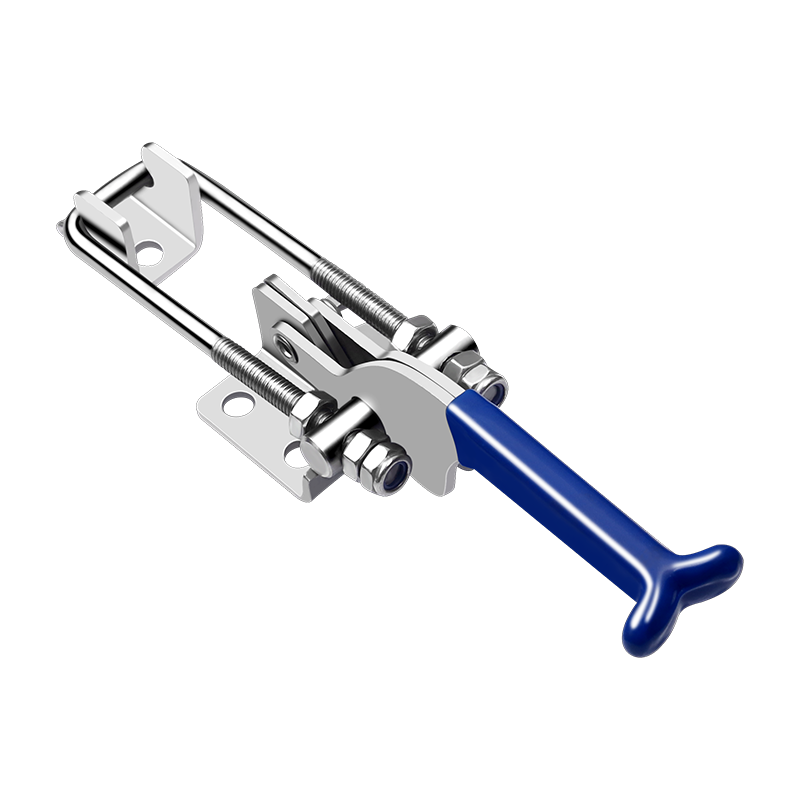

Toggle Clamp 3101-180 3D Model

Product Overview

Built for heavy-duty industrial environments, the 3101-180 toggle clamp delivers powerful, reliable holding force when it matters most. The reinforced structure and heavy-duty mechanism are designed to withstand repeated use in demanding production settings.

Design & Construction

The 3101-180 heavy clamp incorporates a heavy-duty vertical clamping design engineered for rigorous industrial use. All load-bearing components are oversized for safety and longevity, and the mechanism is designed with a wide over-center lock point to prevent accidental release under vibration or shock loads. The adjustable spindle with heavy-duty contact pad distributes clamping force evenly across large workpieces.

Materials & Finish

Crafted from high-quality 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC), the 3101-180 clamp offers excellent corrosion resistance, making it ideal for use in wet, humid, or corrosive environments. Stainless steel construction ensures long-lasting performance without rusting, and the natural finish provides a clean, professional appearance suitable for food processing, pharmaceutical, and marine applications where hygiene and corrosion resistance are essential.

Performance & Specifications

The 3101-180 heavy-duty toggle clamp delivers substantial holding force for demanding industrial applications. Rated for heavy-duty performance, the clamp is engineered with reinforced components throughout to handle high clamping forces without deformation or premature wear. The heavy-gauge linkage and oversized pivot hardware ensure consistent, reliable performance even under the most demanding production conditions. Working load: 280kg.

Typical Applications

The 3101-180 heavy-duty toggle clamp is essential in heavy industrial applications where substantial clamping force is required to secure large, heavy, or rigid workpieces. Primary applications include heavy welding fixtures for structural steel and large fabrications, heavy machining setups for large metal components, and assembly fixtures for heavy industrial equipment. The heavy-duty construction ensures reliable performance even when subjected to the vibrations and forces generated by heavy manufacturing processes.

Installation & Usage

Heavy-duty toggle clamps like the 3101-180 require careful installation planning and execution for safe, reliable operation. Begin by evaluating the mounting structure to ensure it can resist the maximum clamping force without deformation. Reinforce the mounting area with back-up plates or additional structural support if necessary. Position the clamp precisely, mark mounting holes, and machine them to the correct size for heavy-duty fasteners. Install the clamp using grade-appropriate bolts with washers, and torque them evenly to the manufacturer specifications. Adjust the clamping spindle to achieve the correct pressure and over-center travel, then test thoroughly. Inspect the entire installation periodically, including fasteners, pivot points, and base material, to maintain safe operation over the clamp service life.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Toggle Clamp in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
