Yellow Zinc Over Center Draw Latch 15kg for Mini Case

5406-57-KS-FE-CL Ultra-Compact Long Pattern Latch Hook - Lightweight Industrial Over Center Draw Latch

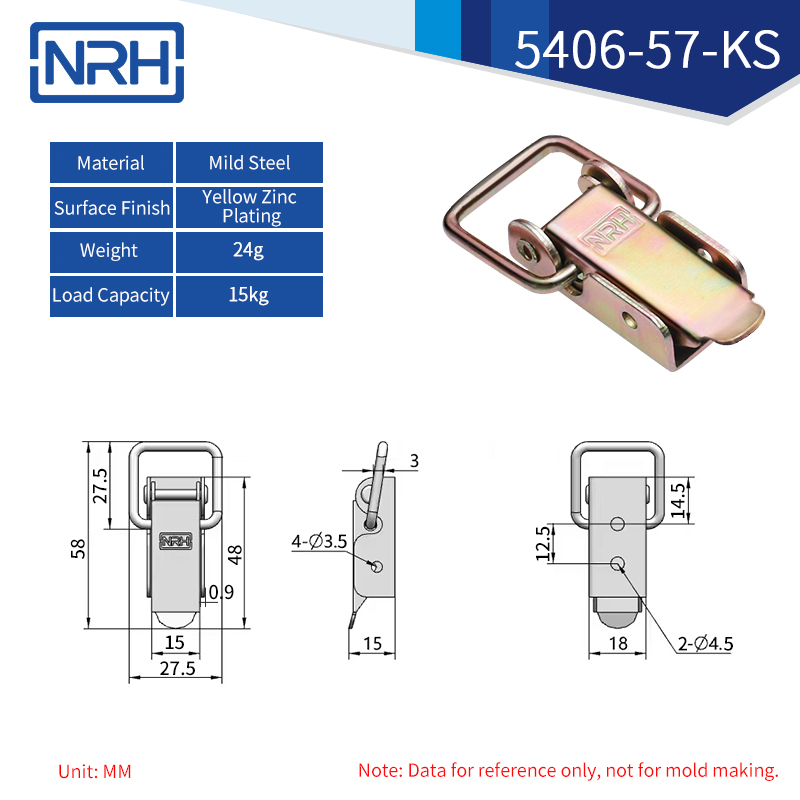

Specifications

Product Overview & Positioning

The 5406-57-KS-FE-CL is one of the most compact and lightweight latch hooks in NRH's 5400 series of over center draw latches. Since 1996, NRH has specialized in precision case hardware. This model is designed for applications with extremely limited space and light load requirements (15kg) - such as mini flight cases, instrument enclosures, small toolboxes, and electronic device cabinets. Made from mild steel with yellow zinc plating, it weighs only 24g, has an overall length of 58mm, and requires just 2 screws for mounting, saving valuable space on narrow frames. As part of a complete over-center latching system, this hook must be paired with a matching strike plate, making it ideal for 15kg-rated light-duty latching.

Working Principle Explained

This latch uses a classic lever and over-center (toggle-lock) mechanism. The hook pivots on a fixed base plate. When the lid is closed, the operator presses the hook downward. The hook engages an opening in the strike plate mounted on the case body. Further downward rotation generates a pulling force that draws the lid tightly against the case. When the latch is fully pressed flat (flush with the base plate), the mechanism passes the over-center point and self-locks. In this position, any external vibration or shock actually tightens the latch further instead of causing it to open. No springs are used; the latch relies solely on metal geometry and friction, making it extremely durable. To open, simply lift the tail of the hook upward. Despite its compact size and shorter lever arm, the 15kg load rating keeps operation comfortable.

Material & Finish Advantages

Mild Steel: With carbon content below 0.25%, mild steel offers excellent ductility and stamping formability for small precision latches. Yield strength is approximately 200-250 MPa, sufficient for 15kg static load. It is cost-effective and widely used for economy latches.

Yellow Zinc Plating: After electroplating, a chromate passivation treatment produces the yellow finish. The passivation film on yellow zinc is thicker than that on clear or blue-white zinc, providing better corrosion resistance. In dry indoor environments, it prevents rust for many years; in humid or mildly corrosive conditions, it offers basic protection. The yellow surface is smooth with slight lubricity, promoting smooth opening and closing, while the distinctive color makes latches easy to locate. For long-term high-humidity or outdoor use, regular inspection or upgrade to stainless steel is recommended.

Installation & Strike Plate Matching Guide

With only 2 mounting holes, installation is quicker. Follow these steps:

• Tools: Ø4.6mm drill bit, M4 tap (for metal cases), screwdriver.
• Marking: Place the hook on the lid edge and mark the 2 hole positions. Close the lid and mark strike plate holes on the case body accordingly (strike plate sold separately).
• Drilling: Drill Ø4.6mm holes. For plastic or wood, use self-tapping screws. For metal, tap M4 threads or use rivet nuts.
• Screw selection: Use M4×8-10mm stainless steel pan head screws with anti-rust washers. For vibration, use threadlocker (e.g., Loctite 243).
• Alignment: Loosely mount both hook and strike plate, close the lid, and press the latch. Adjust strike plate position if the hook scrapes.
• Gap adjustment: With the latch fully closed, there should be no visible gap. If a gap exists, move strike plate inward; if too tight to close, move it outward.
• Anti-vibration: Check screw tightness every 6 months.

Maintenance & Service Life

This simple latch requires low maintenance:

• Cleaning: Wipe the latch every 3-6 months with a dry cloth to prevent dust buildup.
• Lubrication: Apply a drop of light oil to the pivot point only. Avoid the hook/strike plate contact area.
• Inspection: Regularly check for red rust or hook wear. Replace if rust appears.
• Replacement criteria: If the latch fails to stay closed (pops open) or allows significant movement when locked, replace it immediately.

In-Depth Application Scenarios

Based on its 15kg load, ultra-compact 58mm length, and two-hole mounting, this latch is ideal for:

• Mini ATA Flight Cases: For drone controllers, wireless mic receivers, small cameras, portable mixers. One or two latches per side.
• Portable Medical Devices: Handheld ultrasound, glucometer cases, first-aid kits. Yellow zinc withstands alcohol wipes; light weight aids portability.
• Small Military Accessory Boxes: Battery cases, scope storage, personal communication equipment. Meets basic vibration requirements.
• Firefighting Tool Boxes: Small tool drawers or personal gear boxes on fire trucks. 15kg load sufficient for lightweight equipment.
• Photography Equipment Cases: Lens cases, filter organizers, portable light cases. Ultra-compact size saves space.
• Electronic Racks: Modular panel latches in 19-inch racks, small control cabinet doors. Quick two-hole mounting.
• DIY Toolboxes: Hobbyist wooden toolboxes, plastic parts bins. Affordable and easy to install.
• Display / Sample Cases: Product display boxes, jewelry cases. Gold color adds decorative value.

Comparison with Other Models & Selection Advice

Compare this model with similar series latches:

• 5406-57-KS-FE-CL (this model): Ultra-compact (58mm), 2 holes, 15kg load, 24g. Best for very small spaces and light loads.
• 5404-75-KS-FE-CL: Longer (74mm), 3 holes, 20kg load, 33g. For standard small to medium cases.
• 5403-83-KS: Longer (83mm), 3 holes, 20kg load, 52g. For medium cases needing more pull force.
• 5402-100-KS: Long (99mm), 3 holes, 40kg load, 84g. For heavy-duty cases.

If your case frame width is under 60mm and total weight under 15kg, this model is the best choice. For higher loads or more mounting points, choose larger series.

Ordering & Compliance Information

This product is the latch hook only; strike plate and screws are sold separately. Order matching NRH 5406 series strike plate. Certifications (e.g., RoHS, REACH) are available upon request. OEM laser marking and custom packaging supported.
