SUS304 Stainless Steel Latch with Strike Plate – 20kg for Flight Case

5422-66-S04-ZG Stainless Steel Long Pattern Latch Set with Strike Plate - Complete Latching System

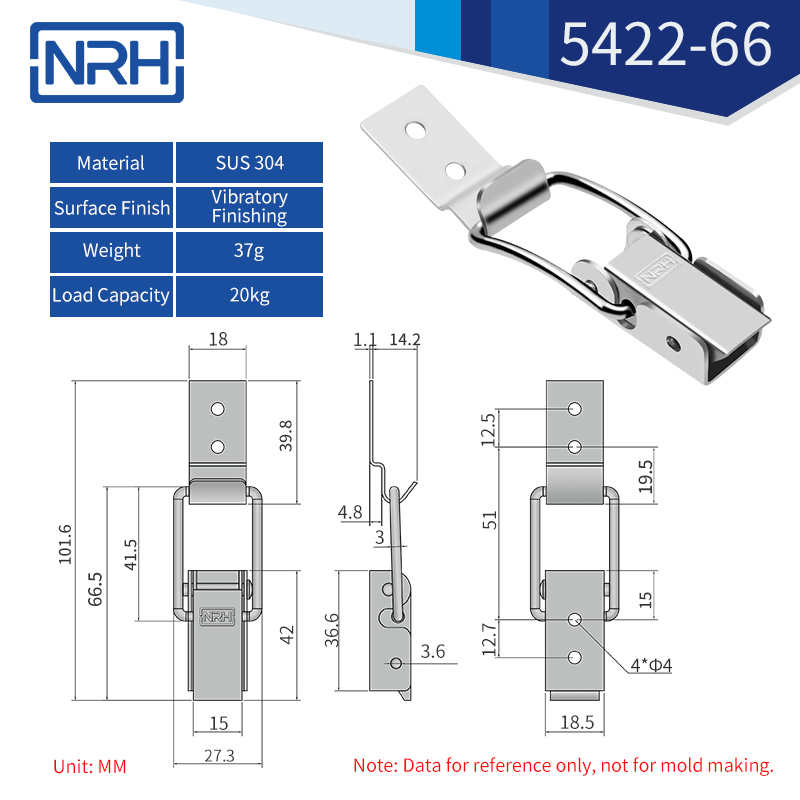

Specifications

Product Overview & Positioning

The 5422-66-S04-ZG is a complete stainless steel long pattern latch set from NRH, including both the latch hook and the strike plate - no additional purchase required. Since 1996, NRH has specialized in precision case hardware. This model is manufactured from SUS304 stainless steel with a vibratory finishing surface, offering excellent corrosion resistance and a hygienic matte finish. The complete set is rated for 20kg static load, making it ideal for flight cases, medical equipment, military transit cases, firefighting boxes, heavy-duty luggage, and industrial machinery enclosures.

Working Principle Explained

This latch operates on a classic lever and over-center (toggle-lock) mechanism. Mount the hook on the lid and the strike plate on the opposing case body. Pressing the hook downward slides it into the strike plate opening, generating linear clamping force. As the hook flattens flush with the base plate, the mechanism passes the over-center point, creating a self-locking state. In this position, any external vibration or shock actually tightens the latch further rather than causing it to open. To open, simply lift the tail of the hook. The mechanism contains no springs or other wear-prone parts, relying entirely on stainless steel-to-stainless steel over-center friction for long-term reliability without rust.

Material & Finish Advantages

SUS304 Stainless Steel: Contains 18% chromium and 8% nickel, providing excellent corrosion resistance against moisture, acids, alkalis, and high temperatures (operating range -196°C to 800°C). It is lead-free and mercury-free, suitable for food contact and medical device hygiene requirements. SUS304 also offers good stamping formability and weldability for precision latch components.

Vibratory Finishing: This process uses vibrating media to finely grind the stainless steel surface, removing burrs and oxide scale, resulting in a uniform, smooth, satin finish. The vibratory finished surface resists dirt adhesion, is easy to clean and disinfect, and eliminates sharp edges that could scratch operators or case contents. This finish is particularly suitable for medical equipment, food processing devices, laboratory instruments, and premium flight cases where hygiene and appearance matter.

Installation Guide

This complete set includes both hook and strike plate. Installation steps:

• Tools: Φ4.2mm drill bit, M4 tap (for metal cases), screwdriver.
• Marking: Place the hook on the lid edge and mark its 4 hole positions. Close the lid, place the strike plate on the case body aligned with the hook, and mark its 4 holes.
• Drilling: Drill Φ4.2mm holes. For plastic or wood, use self-tapping screws. For metal, tap M4 threads or use rivet nuts.
• Screw selection: Use M4×8-12mm stainless steel pan head or countersunk screws with anti-rust washers. For vibration, use threadlocker (e.g., Loctite 243).
• Alignment: Loosely mount both parts, close the lid, and press the latch. Adjust the strike plate position if the hook scrapes.
• Gap adjustment: With the latch fully closed, there should be no visible gap. If a gap exists, move strike plate inward; if too tight, move it outward.
• Anti-vibration: Check screw tightness every 6 months.

Maintenance & Service Life

Stainless steel with vibratory finishing requires minimal maintenance:

• Cleaning: Wipe with a damp cloth or mild detergent. Alcohol or chlorine-based disinfectants are safe (for medical environments).
• Lubrication: Apply a drop of light oil to the pivot point only. Avoid the hook/strike plate contact area.
• Inspection: Regularly check for scratches or hook wear. Stainless steel will not rust, but wear may occur over time.
• Replacement criteria: Replace if the latch fails to stay closed (pops open) or allows significant movement when locked.

Typical Applications

Based on its 20kg load, stainless steel construction, and vibratory finish, this latch set is ideal for:

• ATA Flight Cases: Stage audio, film camera equipment, drone transport cases. Stainless steel never rusts, maintaining a premium appearance.
• Medical Equipment Cases: Portable ultrasound, defibrillator emergency kits, mobile nursing carts. Vibratory finish is easy to wipe clean with disinfectants.
• Military Transit Cases: Communication equipment cases, night vision storage, ammunition boxes. Meets stringent salt spray and mold requirements.
• Firefighting Cases: Personal protective equipment cases, rescue tool storage. Heat and chemical resistant, with quick opening.
• Food Processing Equipment: Mobile food testing cases, portable refrigerated boxes. Meets food contact safety standards.
• Laboratory Instrument Cases: Portable analyzers, bio-safety transport boxes. Stainless steel resists acids and alkalis.
• Outdoor Power Distribution Boxes: Low-IP-rated outdoor junction boxes, solar controller enclosures. Long-term weather resistance without plating peeling.
• Premium Tool Cases: Professional tool travel cases, camera equipment cases. Stainless steel enhances product quality perception.

Ordering & Compliance Information

This product is a complete set (hook + strike plate) - no separate strike plate purchase needed. Certifications (e.g., RoHS, REACH, food contact safety) are available upon request. OEM laser marking and custom packaging supported.
