5404-75 Long Pattern Latch Hook – Compact Industrial Safety Latch

5404-75-KS-FE-CL Long Pattern Latch Hook - Compact Industrial Safety Latch

Specifications

Product Overview & Positioning

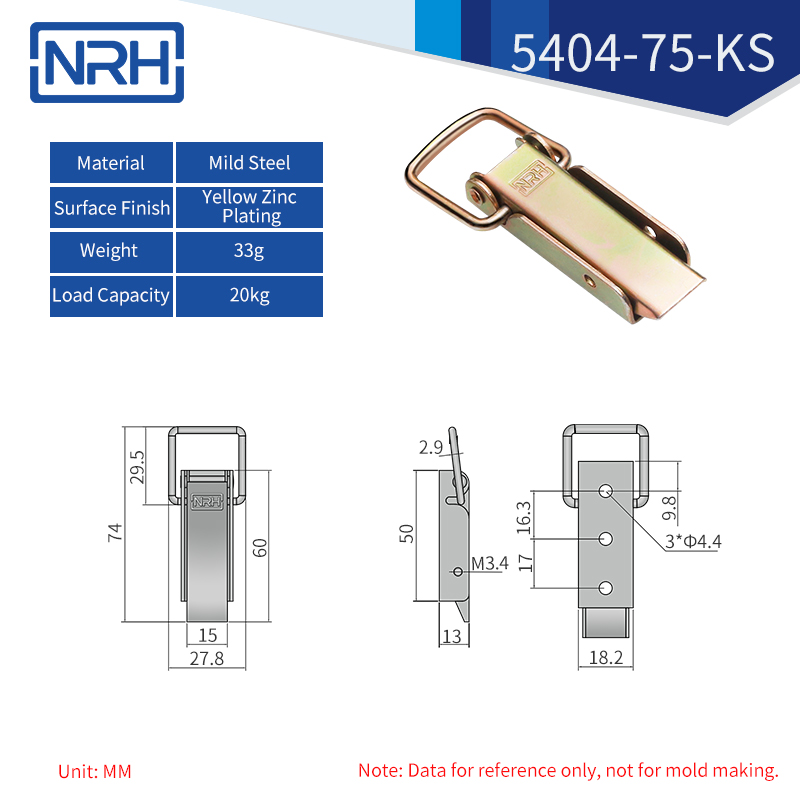

The 5404-75-KS-FE-CL is a compact long pattern latch hook from NRH's 5400 series. Since 1996, NRH has focused on high-end case hardware. This latch is designed for industrial cases, transit boxes, and equipment cabinets that require 20kg holding force but have limited mounting space. Made from mild steel with a yellow zinc plating finish, it provides basic rust resistance in a lightweight package (33g) with an overall length of just 74mm. It is the “hook” part of a two-piece latching system and must be used with a matching strike plate to achieve over-center self-locking. Typical applications include flight cases, medical equipment cases, military transit cases, firefighting toolboxes, heavy-duty luggage, and machinery access covers.

Working Principle Explained

The latch uses a classic lever and over-center (toggle-lock) mechanism. The hook pivots on a fixed base plate. When the lid is closed, the operator presses the hook downward. The hook engages an opening in the strike plate mounted on the case body. Further downward rotation generates a pulling force that draws the lid tightly against the case. When the latch is fully pressed flat (flush with the base plate), the pivot center, the hook contact point, and the strike plate edge align just past a straight line - the “over-center” point. At this position, the mechanism self-locks. Vibration or impact from outside actually drives the latch further into the closed position, making it even more secure. No springs are used; the latch relies solely on metal geometry and friction, resulting in exceptional durability and no spring fatigue failure. To open, simply lift the tail of the hook upward, disengaging it from the strike plate.

Engineering Value of Mild Steel & Yellow Zinc Plating

Mild Steel: With carbon content below 0.25%, mild steel offers excellent ductility and stamping formability, making it ideal for mass-producing complex latch shapes. Yield strength is approximately 200-250 MPa, sufficient to withstand the 20kg static load without permanent deformation. Mild steel is cost-effective and the most common substrate for industrial latches. Compared to stainless steel, mild steel allows tighter dimensional control and causes less tool wear during machining.

Yellow Zinc Plating: After electroplating, a chromate passivation treatment produces the yellow finish. The passivation film on yellow zinc is thicker than that on clear or blue-white zinc, offering longer corrosion protection. In dry indoor environments, yellow zinc can prevent rust for 5-10 years. In humid or mildly corrosive conditions (e.g., coastal warehouses, equipment subject to condensation), it typically provides 1-3 years of protection. Actual performance depends on humidity, salt, chemicals, etc. The yellow surface is glossy and slightly lubricious, facilitating smooth opening and closing, while the distinctive color makes latches easy to locate on cases. Note that yellow zinc is not stainless steel; it should not be immersed in water or exposed to strong acids/alkalis. For long-term outdoor use, regular maintenance is recommended.

Installation & Strike Plate Matching Guide

Follow these steps for optimal performance:

• Tools required: Φ4.5mm drill bit, M4 tap (for metal cases), cross-head or hex driver, ruler, marker.
• Marking: Place the latch hook on the lid edge and mark the three mounting hole positions. Then place the strike plate on the case body with the lid closed so it aligns with the hook. Mark those positions. For accuracy, mount one side loosely first, then close to determine the other side.
• Drilling & tapping: For plastic or wood, drill Φ4.5mm holes and use self-tapping screws. For metal (aluminum, steel), drill Φ4.5mm then tap M4 threads, or use M4 rivet nuts.
• Screw selection: Use M4×8-12mm stainless steel pan head (for through holes) or countersunk screws (for countersunk holes). Stainless steel prevents galvanic corrosion with the yellow zinc coating. For vibrating environments, use screws with nylon patch or apply medium-strength threadlocker (e.g., Loctite 243). Torque to 2-3 N·m - do not overtighten.
• Alignment: Lightly fasten both hook and strike plate, close the lid, and press the latch. Watch for smooth engagement. If the hook scrapes the strike plate edge, adjust the strike plate position slightly.
• Gap adjustment: With the latch fully closed, there should be no visible gap between lid and case. If a gap exists, move the strike plate inward (towards the case interior). If the latch is very hard to close or feels too tight, move the strike plate outward. Optimal hook engagement depth is 1-2mm.
• Anti-vibration measures: For applications with strong vibration (vehicle transport, engine compartments), use threadlocker or anti-vibration washers. Check screw tightness every 6 months.

Maintenance & Service Life

Under normal use, this latch design can typically achieve over 10,000 open-close cycles (industry average, not a certified figure). Regular maintenance extends service life:

• Cleaning: Wipe the latch every 3-6 months with a dry cloth to remove dust. In salty or chemical environments, rinse with clean water and dry thoroughly.
• Lubrication: Apply a small amount of lithium grease to the pivot point only. Avoid grease on the hook/strike plate contact area as it attracts abrasive dust.
• Inspection: Before each use, check for blistering, peeling, or red rust on the plating. If red rust appears, replace the latch immediately. Also inspect the hook for wear (thinning or deformation).
• Replacement criteria: If the latch fails to stay closed (pops open by itself) or allows noticeable gap movement when locked, the over-center mechanism has worn out - replace it.

In-Depth Application Scenarios

Based on its 20kg load, compact size, and yellow zinc corrosion resistance, this latch is ideal for:

• Small to Medium ATA Flight Cases: For stage audio controllers, lighting consoles, wireless mic receivers, video monitors, small drones. Use 2-3 latches per side.
• Portable Medical Equipment Cases: Defibrillators, portable ultrasound, emergency backpacks, dental kits. Yellow zinc withstands alcohol/disinfectant wipes better than clear zinc.
• Military Communication Cases: Field communication terminals, battery boxes, antenna cases. Mild steel performs well in wide temperature ranges (-40°C to +70°C).
• Firefighting Tool Storage: Truck-mounted tool cabinets, rescue equipment boxes. Flush with water after exposure to foam/chemicals; upgrade to stainless steel for high humidity.
• Professional Tool Cases (Pelican-style): For precision tools, measuring instruments, camera gear. 20kg capacity suitable for most medium tool cases.
• Industrial Machinery Access Doors: VFD cabinets, PLC enclosures, small generator covers. Over-center lock prevents vibration-induced opening.
• Returnable Transit Cases: For automotive parts, electronics. High-cycle applications benefit from springless design.
• Outdoor Power Distribution Boxes (low IP rating): Solar controller boxes, landscape lighting enclosures with rain cover. Not for coastal high-salt or long-term wet conditions.

Material Comparison & Selection Advice

Compare this model with similar variants:

• 5404-75-KS-FE-CL (Mild steel + yellow zinc): Best value. For indoor, light humidity, non-aggressive environments. Golden color.
• 5404-75-KS-2-S04-ZG (SUS304 + vibratory finishing): Higher cost, best corrosion resistance and hygiene. For medical, food, coastal, outdoor. Satin silver finish.
• 5403-83-KS (Mild steel + yellow zinc, longer): 83mm overall length, same load. For cases with more mounting space.

If uncertain, provide your environment details (humidity, chemical exposure, disinfection frequency, budget) for a specific recommendation.

Ordering & Compliance

This product is the latch hook only; strike plate and screws are sold separately. Order matching NRH 5404 series strike plate. Compliant with RoHS 2011/65/EU and (EU) 2015/863 - free of lead, mercury, cadmium, hexavalent chromium. CE declaration and REACH reports available upon request. MOQ varies - contact sales. OEM laser marking (brand or model) and custom packaging supported.
