Functional characteristics

NRH 5101-96K heavy-duty toggle latch with integrated lock hole. SPCC steel, Brushing finish, 343N load. Features a dedicated Φ2.4mm hole for padlock/security seal. Ideal for tool chests, transport cases & secure cabinets. NRH stamped. Certified.

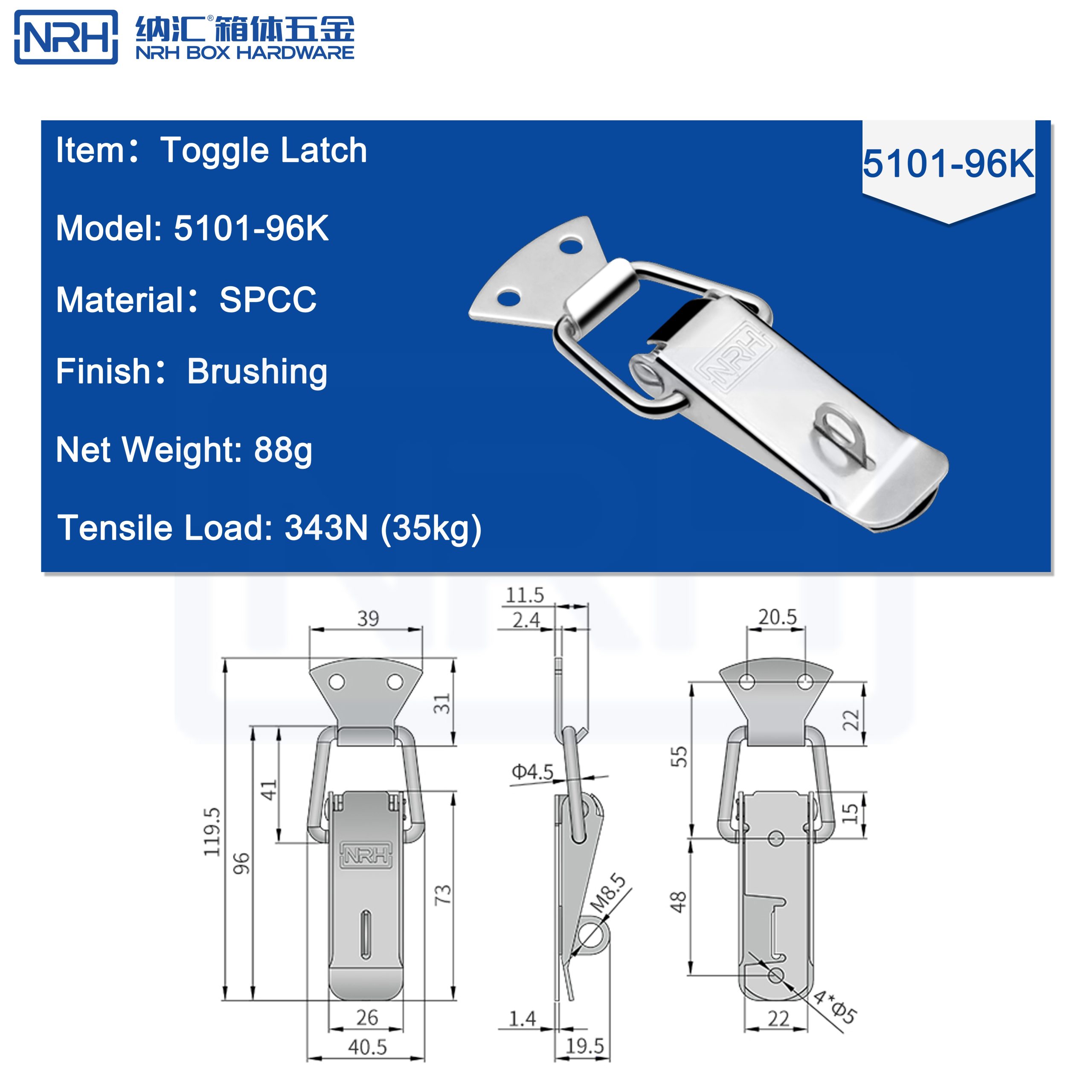

The NRH 5101-96K is a professional-grade toggle latch designed for applications requiring both secure closure and the option for added physical security. As detailed in the official specification drawing, it is constructed from SPCC steel with a durable Brushing finish and includes a critical design feature: a dedicated Φ2.4mm lock hole on the hook mechanism. This allows for the easy addition of a padlock, security seal, or wire tie to prevent unauthorized access. Featuring the clear “NRH” brand stamp, this latch is built to the highest standards, backed by certifications including ISO 9001 and RoHS.

Primary Applications (Detailed with Security Focus):

This latch is engineered for securing enclosures where tamper-evidence or restricted access is important:

Secure Storage & Transport Cases: Lockable tool chests, sample transport cases requiring tamper-evident seals, field service kits, and calibrated equipment boxes.
Industrial Control & Utility Cabinets: Electrical panels, PLC cabinets, network server racks, and outdoor communication boxes where a padlock may be added.
Logistics & Shipping Containers: Equipment cases for sensitive goods, reusable shipping containers needing a seal point.
OEM Machinery & Equipment: Integration into machinery guards, access panels, or inspection hatches that require occasional lockdown.

How It Works (Operating Principle & Security Feature):

This latch functions as a standard over-center toggle mechanism for robust daily closure. Its standout security feature is the Φ2.4mm lock hole integrated into the hook. When the latch is engaged, this hole aligns with a corresponding point on the base or strike plate, allowing a padlock shackle, security wire, or numbered seal to be passed through. This physically prevents the latch from being disengaged without first removing the external lock or seal.

Features & Specifications:

Integrated Security Lock Hole: Designed with a Φ2.4mm hole (as per drawing) specifically for attaching padlocks or tamper-evident seals.
Durable SPCC & Brushing Finish: Made from cold-rolled SPCC steel with a wear-resistant Brushing surface finish.
High Load Capacity: Rated for a tensile load of 343N (35kg), ensuring a strong mechanical hold.
Clear Branding & Traceability: Features the “NRH” logo stamped on the product.
Precision Engineered: Detailed dimensions provided (e.g., Overall Length: 119.5mm, Mounting Holes: 4xΦ4.5mm) for easy integration.
Certified Quality: Manufactured under an ISO 9001:2000 certified system. Compliant with RoHS, REACH, and SVHC environmental standards.

Technical Specifications:

Item	Specification
Brand	NRH Box Hardware
Model Number	5101-96K
Product Name	Toggle Latch (with Lock Hole)
Primary Material	SPCC Steel
Surface Finish	Brushing
Security Feature	Lock Hole: Φ2.4mm
Product Weight	88g
Tensile Load	343N (35kg)
Key Dimensions	Overall Length: 119.5mm, Width: 39mm, Mounting Holes: 4 x Φ4.5mm. Refer to the provided technical drawing.
Compliance	ISO 9001:2000, SGS, REACH, RoHS, SVHC
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
