5103-70K Chrome-Plated Toggle Latch with Padlock Hole, Ideal for Various Enclosures and Cases

The NRH 5103-70K, as clearly detailed in the provided specification image, is a versatile and robust latch designed for one core purpose: to securely fasten and optionally lock two parts of an enclosure or case together. Crafted from SPCC steel with a bright Chrome Plating finish, it offers durability and corrosion resistance. With a net weight of 36g and a reliable 245N (25kg) tensile load, it provides substantial holding power for its compact size of 83.5mm in length and 70.5mm in height. The integrated Φ5.5mm padlock hole is its standout security feature. Comprehensive dimensional drawings are included for seamless integration into your product design. NRH, a specialist since 1996, ensures quality with certifications like ISO 9001 and offers OEM/ODM flexibility.

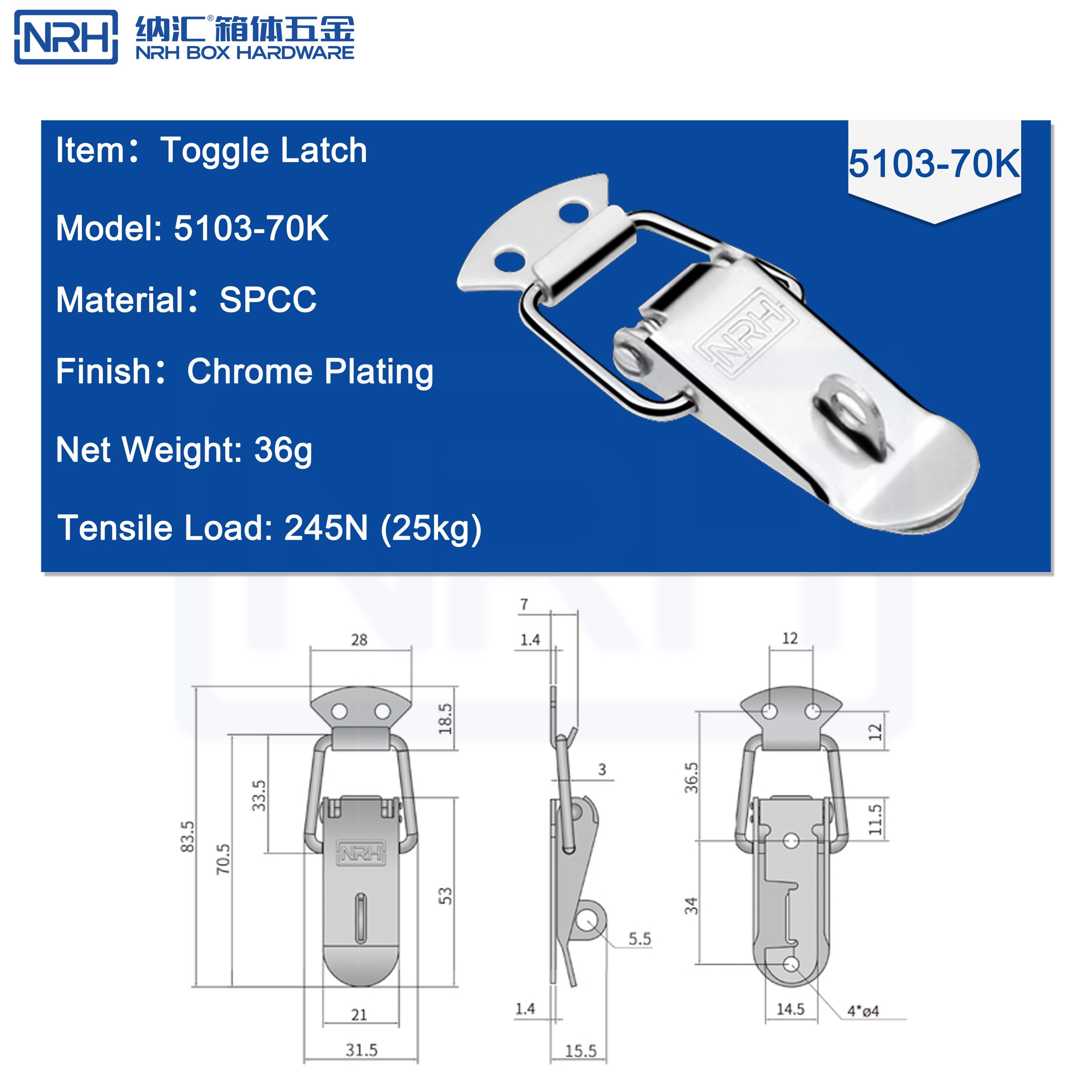

Technical Specifications (Based on Provided Product Image)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	5103-70K
Product Name	Toggle Latch
Material	SPCC (Steel)
Finish	Chrome Plating
Net Weight	36g
Tensile Load	245N (25kg)
Security Feature	Padlock Hole (Φ5.5mm)
Key Dimensions (from drawing)	Overall Length: 83.5mm Latch Body Height: 70.5mm Mounting Plate Width: 33.5mm Mounting Plate Length: 28mm Hook Span: 36.5mm Mounting Holes: 4 x Φ4mm Padlock Hole Diameter: Φ5.5mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001, REACH, RoHS, SVHC Compliant

Product Overview: The Secure Closure for Countless Boxes and Cases

This latch excels in applications where a lid, door, or panel needs to be held firmly shut, with the added option for a padlock. The spring-assisted toggle mechanism ensures a tight, rattle-free seal, while the padlock hole transforms a simple closure into a secure one. Its chrome-plated finish resists rust, making it suitable for both indoor and protected outdoor use on various enclosures.

Core Features

Secure Fastening & Locking: Provides a strong 245N mechanical hold and features a dedicated Φ5.5mm padlock hole, allowing the transition from a tight closure to a theft-deterrent or access-controlled one.
Compact & Robust Build: With dimensions like 83.5mm (L) x 33.5mm (W) and a weight of only 36g, it offers a high strength-to-size ratio, perfect for applications where space and weight are considerations.
Durable Chrome-Plated Steel: The SPCC steel core and Chrome Plating finish ensure longevity and good resistance to wear and environmental factors.
Easy Integration: Detailed dimensional drawings (e.g., 4x Φ4mm mounting holes, 1.4mm material thickness) allow for straightforward design and installation.

Extended Application Scenarios: A World of Boxes & Cases

The NRH 5103-70K is the ideal closure solution for a vast array of enclosures requiring reliable latching and optional security:

Professional & DIY Toolboxes: For mechanics’, electricians’, or carpenters’ tool chests. The latch keeps the lid securely closed during transport, and the padlock hole secures valuable tools on a job site or in a van.
Instrument & Calibration Cases: For protecting delicate test equipment, surveying instruments, or musical gear. The secure latch prevents accidental opening, and the lock prevents tampering.
Field Service & Maintenance Kits: Used on cases for HVAC technicians, telecom engineers, or military personnel. It withstands bumps during transit, and the lock secures sensitive components.
Electrical & Utility Enclosures: Ideal for small to medium-sized junction boxes, control panels, or meter cabinets. It provides a robust seal against dust/moisture and can be locked for safety or to prevent unauthorized access.
Transport & Shipping Containers: For securing smaller shipping crates, sample cases, or military ammunition boxes. The latch handles vibration, and the lock ensures contents remain secure.
Outdoor Equipment Cases: Perfect for generator enclosures, portable power station cases, or outdoor speaker boxes. The chrome finish offers weather resistance, and the lock adds security.
Retail & Display Cases: Can be used on the back panels of display cases for electronics, collectibles, or retail merchandise, allowing staff access while preventing customer tampering.
Medical & Laboratory Equipment Carts: Secures doors on mobile medication carts, diagnostic device cases, or lab sample storage, with locking for controlled access.

One latch, infinite applications. The NRH 5103-70K is the reliable, lockable closure choice for virtually any box, case, or enclosure that needs to stay shut—and stay secure.
