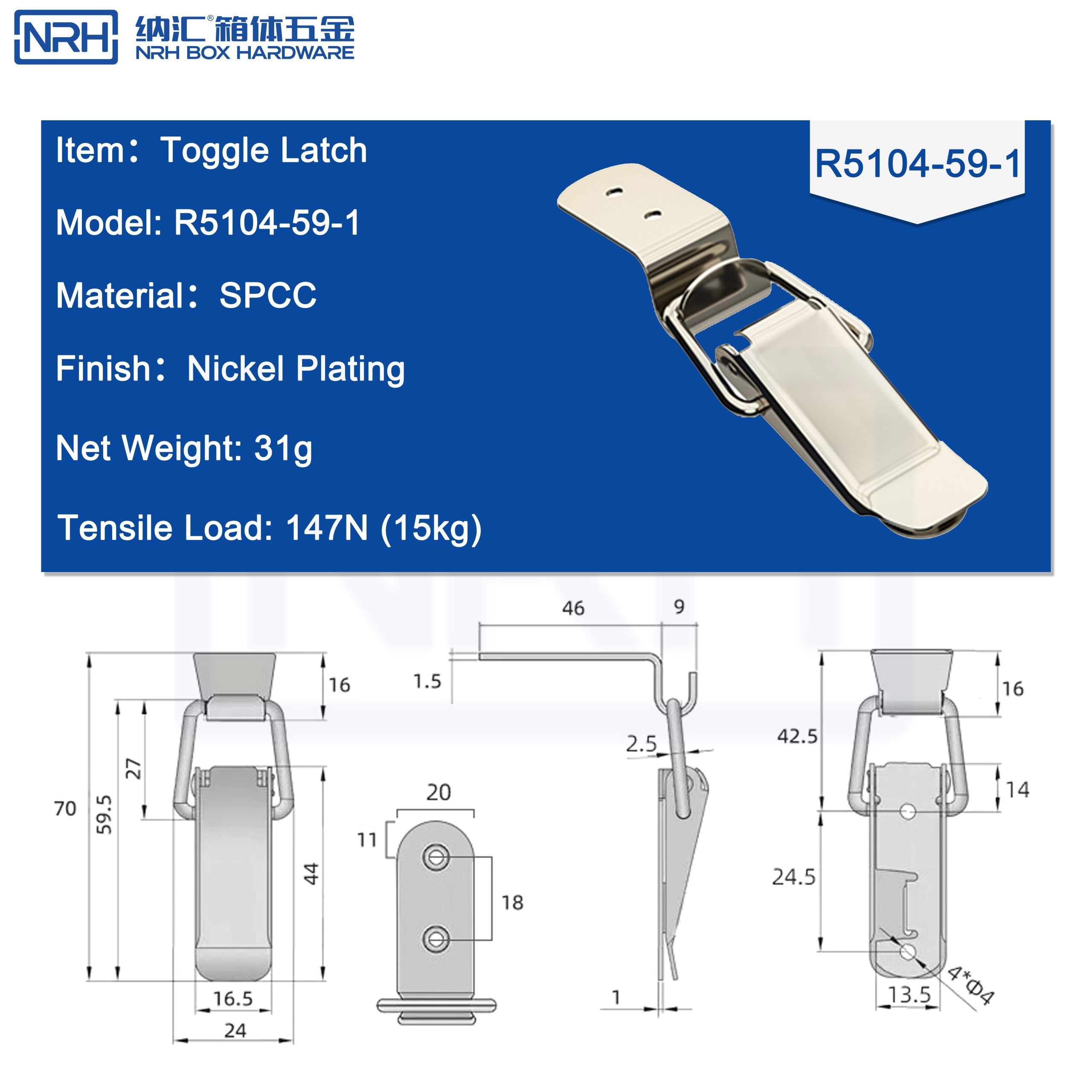

NRH R5104-59-1 90° Toggle Latch | SPCC Nickel-Plated Spring Latch for Enclosures

The NRH R5104-59-1 is a robust 90-degree toggle latch​ engineered for securing cabinet doors, panels, and access points where a right-angle fastening solution is required. Constructed from durable SPCC steel​ and finished with a corrosion-resistant Nickel Plating, this latch offers reliable, spring-assisted operation at an economical price point. As a product from NRH Box Hardware, a specialist manufacturer since 1996, it meets high standards of quality and is backed by certifications including ISO 9001:2000, SGS, REACH, RoHS, and SVHC. With a net weight of 31g​ and a tensile load of 147N (15kg), it provides a dependable clamping force for a wide range of applications.

Primary Applications:​

This 90-degree latch is designed for applications where panels meet at a perpendicular angle. It is ideal for:

How It Works (Operating Principle):​

This latch utilizes a spring-assisted toggle mechanism​ to clamp two surfaces together at a 90-degree angle. The base plate is mounted on one surface (e.g., the side of a cabinet), while the pivoting lever engages with a strike plate mounted on the perpendicular surface (e.g., the door). Pushing the lever down engages the spring and activates the over-center toggle action, pulling the door firmly shut against the frame. Lifting the lever releases the clamping force, allowing the door to open.
