5103-70 SPCC Chrome Plated Spring Toggle Latch, Industrial Fastener

The NRH 5103-70 is a compact and reliable spring toggle latch engineered to securely clamp two panels or objects together. As detailed in the provided product specification image, it is constructe……

Send Inquiry

Functional characteristics

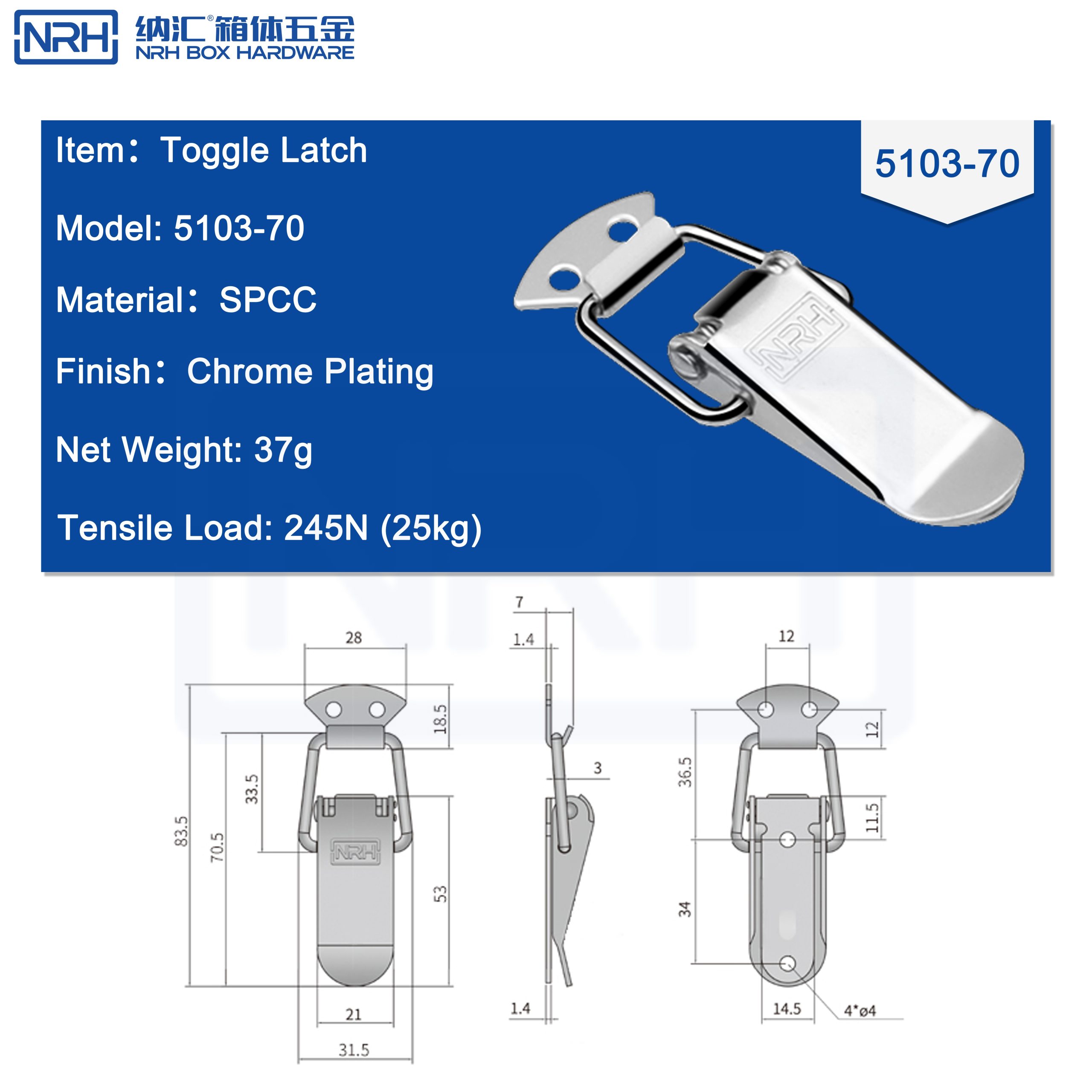

The NRH 5103-70 is a compact and reliable spring toggle latch engineered to securely clamp two panels or objects together. As detailed in the provided product specification image, it is constructed from SPCC (Cold Rolled Steel) with a Chrome Plating finish, offering a bright silver appearance and corrosion resistance. Key specs include a net weight of 37g and a tensile load capacity of 245N (25kg). Detailed multi-view dimensional drawings are provided, showing precise measurements like the 70.5mm latch body length, 83.5mm overall length, and 4 x Φ4.2mm mounting holes for easy integration. NRH, established in 1996, supports OEM/ODM services and holds certifications including ISO 9001, REACH, RoHS, and SVHC.

Technical Specifications (Based on Provided Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	5103-70
Product Name	Spring Toggle Latch
Material	SPCC (Cold Rolled Steel)
Finish	Chrome Plating
Net Weight	37g
Tensile Load	245N (25kg)
Key Dimensions (from drawings)	Overall Length: 83.5mm Latch Body Height: 70.5mm Mounting Plate Width: 33.5mm Mounting Plate Length: 28mm Hook Span: 36.5mm Mounting Holes: 4 x Φ4.2mm Material Thickness: 1.4mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001, REACH, RoHS, SVHC Compliant

(Note: Comprehensive dimensioned drawings are available in the product image. 3D CAD files for design integration can be provided upon request.)

Product Overview: The Reliable Clamping Solution

The NRH 5103-70’s primary function is to create a simple, strong, and secure connection between two surfaces. Its internal spring-assisted mechanism ensures smooth, positive action when engaging and disengaging the over-center lock, requiring minimal effort from the user. The Chrome Plating on the SPCC steel provides a durable and rust-resistant finish suitable for various environments. Its compact size (e.g., 70.5mm height) and versatile mounting (via 4 x Φ4.2mm holes) make it an ideal choice for applications where space and reliable fastening are key considerations.

Core Features

Secure & Smooth Clamping Action: Engineered to firmly clamp two objects together with a reliable 245N force. The spring assist ensures effortless operation and a secure feel.
Durable & Protective Build: The combination of SPCC steel and Chrome Plating offers a cost-effective balance of strength and good environmental resistance.
Compact & Precise Design: Detailed engineering drawings with exact dimensions (e.g., 83.5mm L, 33.5mm W) allow for predictable performance and straightforward installation in space-conscious designs.
Trusted Brand & Certifications: Manufactured by NRH with a heritage since 1996. The product is backed by international quality and material safety certifications (ISO 9001, REACH, RoHS, SVHC), and OEM/ODM services are available.

Ideal Applications

This versatile and robust latch is perfect for numerous applications requiring a secure, easy-to-operate closure:

Industrial & Electrical Enclosures: Securing doors on control panels, PLC cabinets, small server racks, and network equipment boxes.
Communication & Outdoor Cabinets: For outdoor telecommunication boxes, fiber optic terminal enclosures, and power distribution cases where the chrome finish resists elements.
Commercial & Public Equipment: Vending machine service doors, parcel locker access panels, exhibition display case backs, and public signage enclosures.
Professional Equipment Cases: Clamping lids on field service toolkits, medical device carts, audio/video equipment road cases, and surveying instrument boxes.
Transportation & Vehicle Interiors: Securing access panels, battery covers, or storage compartment doors in utility vehicles, RVs, or marine applications.
Machinery & Automation Guards: Fastening removable safety shields or inspection hatches on smaller industrial machinery and automation equipment.

Clamp with confidence. The NRH 5103-70 combines a compact form factor, smooth spring action, and proven durability to provide a reliable fastening solution across countless industries.
