NRH R5104-59K-1 Toggle Latch with Lock Hole | Nickel-Plated SPCC Cabinet Latch

The NRH R5104-59K-1 is a versatile and secure toggle latch designed with an integrated lock hole for added security. Crafted from SPCC steel with a durable Nickel Plating finish, this latch from NRH Box Hardware provides reliable closure with the option for padlock attachment. Weighing only 28g with a 147N (15kg) tensile load, it is a lightweight yet robust solution for various enclosures. Detailed engineering drawings ensure precise installation.

Primary Applications:

This latch with lock hole is ideal for applications requiring both secure fastening and tamper resistance:

Secure Storage: Toolboxes, equipment cases, and storage cabinets where a padlock can be added.
Electrical & Industrial Panels: Control cabinet doors, network server racks, and machinery access panels.
Transport & Logistics: Shipping containers, flight cases, and transport boxes for sensitive goods.
Communication Enclosures: Outdoor telecom cabinets and field equipment boxes.

How It Works (Operating Principle):

This latch functions as a standard spring-assisted toggle mechanism. The lever engages a hook with a strike plate, pulling two surfaces together. The key security feature is the integrated Φ5mm lock hole on the lever, which aligns with the base when closed, allowing for a padlock or security seal to be inserted, preventing unauthorized opening.

Features & Specifications:

Integrated Security Feature: Includes a dedicated Φ5mm lock hole for attaching a padlock or tamper-evident seal.
Durable SPCC & Nickel Finish: Made from SPCC steel with nickel plating for corrosion resistance and a clean appearance.
Lightweight & Strong: Net weight of 28g with a 147N tensile load capacity.

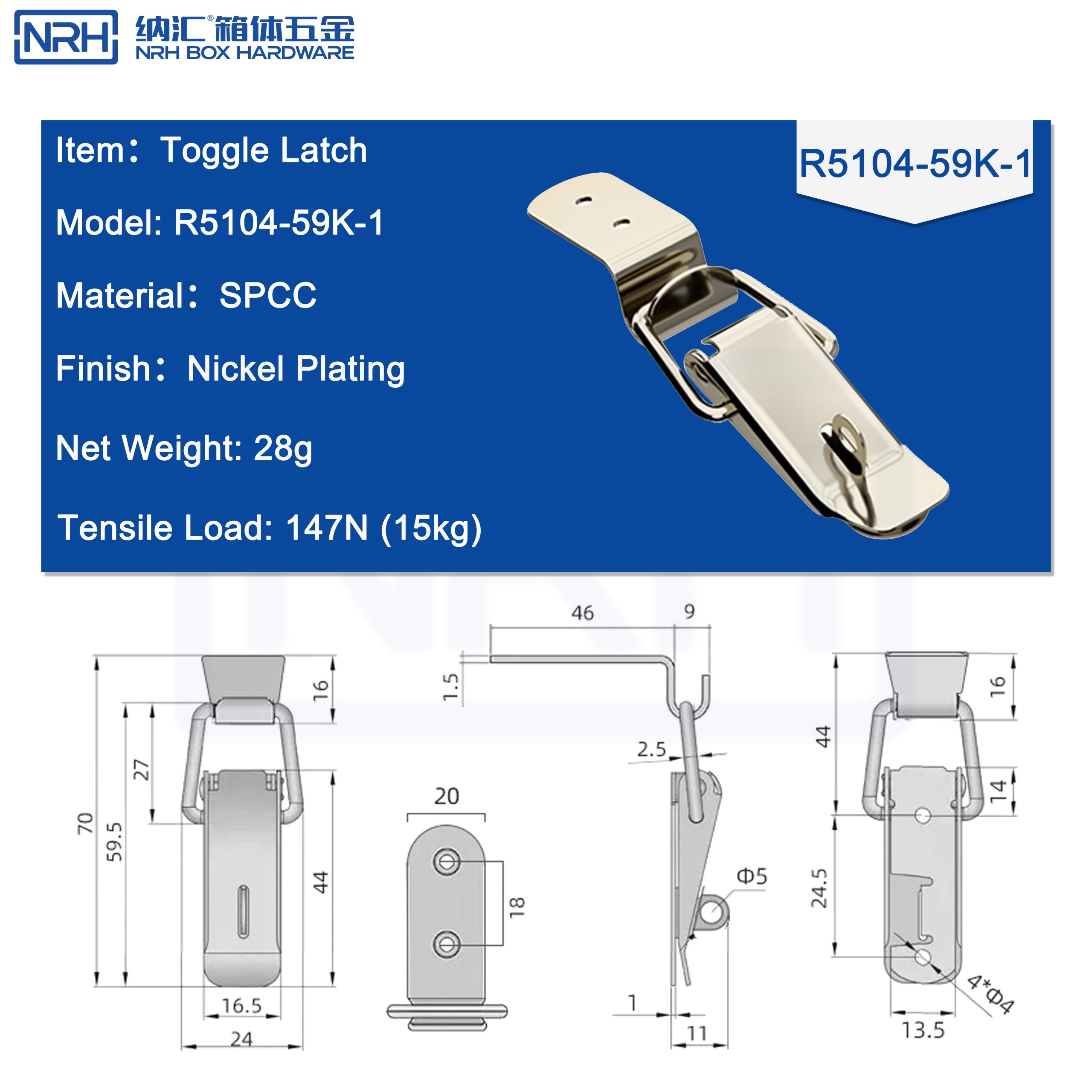

Precision Engineering: Detailed dimensions provided: Overall Height 70mm, Length 59.5mm, Width 24mm, with 4x Φ4mm mounting holes.

Technical Specifications:

Item	Specification
Brand	NRH Box Hardware
Model Number	R5104-59K-1
Product Name	Toggle Latch
Primary Material	SPCC Steel
Surface Finish	Nickel Plating
Lock Hole	Φ5mm
Product Weight	28g
Tensile Load	147N (15kg)
Key Dimensions	Height: 70mm, Length: 59.5mm, Width: 24mm, Mounting Holes: 4 x Φ4mm. Refer to the detailed engineering drawing for all specifications.
Compliance	ISO 9001, SGS, REACH, RoHS, SVHC
