NRH 5101-96 Toggle Latch | Heavy Duty Box & Cabinet Lock

The NRH 5101-96 is a robust toggle latch, unmistakably identified by the “NRH” logo stamped on its lever. As detailed in the official specifications, it is constructed from SPCC steel and features a Brushing finish. It is designed for heavy-duty applications where reliable closure is critical. Backed by the manufacturer’s heritage since 1996 and multiple international certifications (visible in the product image), this latch represents professional-grade box hardware.

Primary Applications (Detailed – Expanded for Box/Case Products):

This latch is engineered to secure a wide array of enclosures:

Industrial & Machinery Guards: CNC machine enclosures, laser cutter cases, welding equipment boxes, compressor housings.
Professional Tool Storage: Heavy-duty rolling tool chests, modular tool cabinet systems, mobile service carts for automotive/aviation technicians.
Transport & Logistics: Truck toolboxes, shipping and freight containers, airline cargo containers (ULDs), military transport and equipment cases.
Specialized Transit Cases: Flight cases for audio/lighting, waterproof equipment cases, field test kits, and custom-foamed protective cases.
Outdoor & Utility Enclosures: Generator cabinets, power distribution boxes, telecommunications shelters, agricultural control units.

How It Works (Operating Principle):

This latch utilizes a simple yet effective toggle mechanism. The lever pivots to engage a hook with a strike plate. The over-center action pulls the door securely against the frame, creating a vibration-resistant lock. It allows for easy one-handed operation.

Features & Specifications:

Durable Material: Constructed from SPCC cold-rolled steel for strength.
Specified Finish: Features a Brushing finish as per the official product sheet.
High Load Capacity: Rated for a tensile load of 343N (35kg), suitable for heavy doors and lids.
Clear Branding: Proudly displays the “NRH” brand stamp on the product.

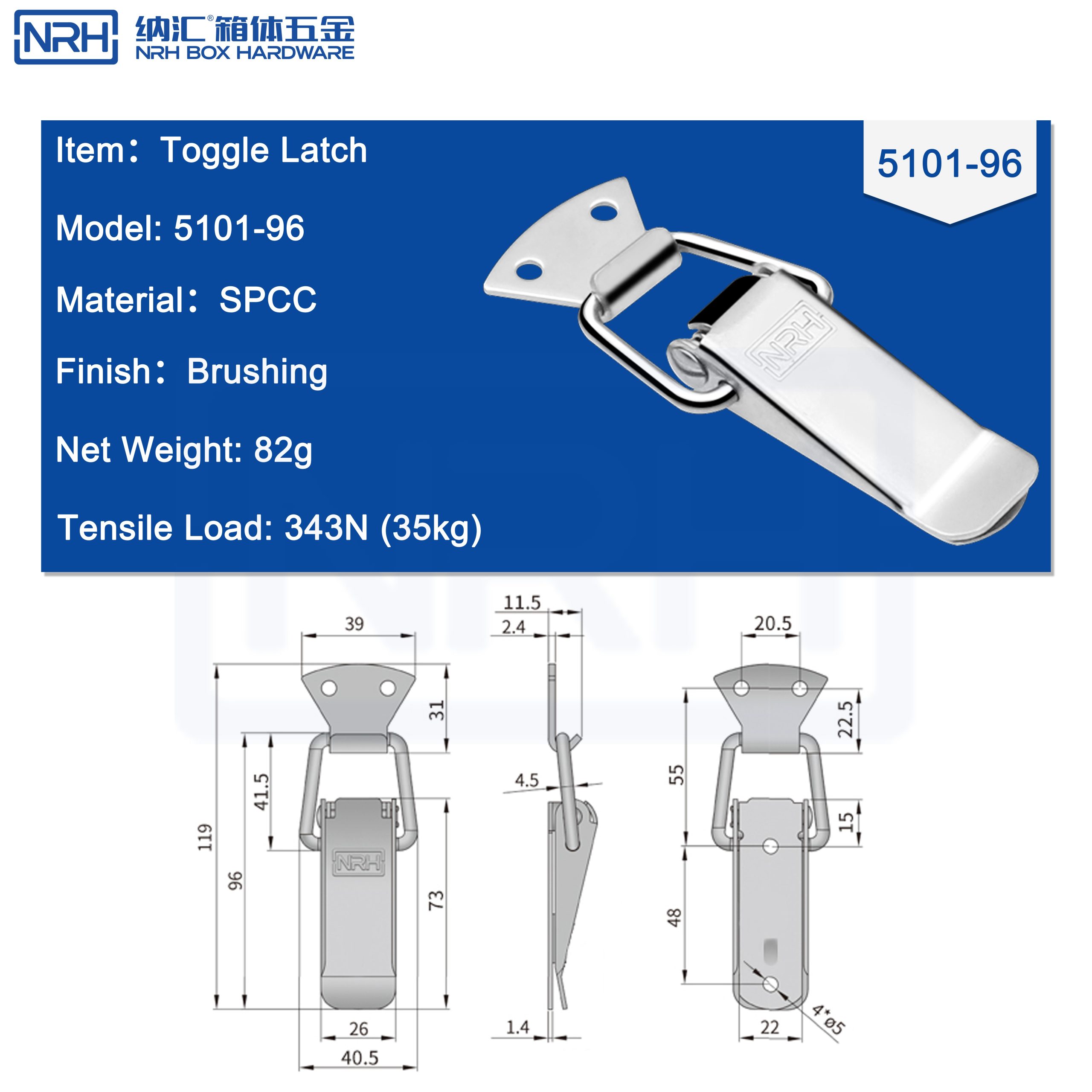

Precise Dimensions: Detailed technical drawing is provided (Model: 5101-96, Overall Length: 96mm, Width: 39mm, etc.) for easy integration.
Certified Quality: Complies with ISO 9001, SGS, REACH, RoHS, and SVHC standards, as shown on the product label.

Technical Specifications:

Item	Specification
Brand	NRH Box Hardware
Model Number	5101-96
Product Name	Toggle Latch
Primary Material	SPCC Steel
Surface Finish	Brushing
Product Weight	82g
Tensile Load	343N (35kg)
Key Dimensions	Overall Length: 96mm, Width: 39mm, Mounting Plate: 40.5mm x 26mm. Refer to the provided technical drawing for all details.
Compliance	ISO 9001, SGS, REACH, RoHS, SVHC
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
