R5101-105K SUS201 Stainless Steel Spring Toggle Latch with Padlock Hole, Heavy Duty Industrial Fastener

The NRH R5101-105K is a heavy-duty industrial toggle latch designed for high-security needs, combining strong mechanical clamping with physical theft deterrence. As per the specification sheet, it……

Send Inquiry

Functional characteristics

R5101-105K SUS201 Stainless Steel Spring Toggle Latch with Padlock Hole, Heavy Duty Industrial Fastener

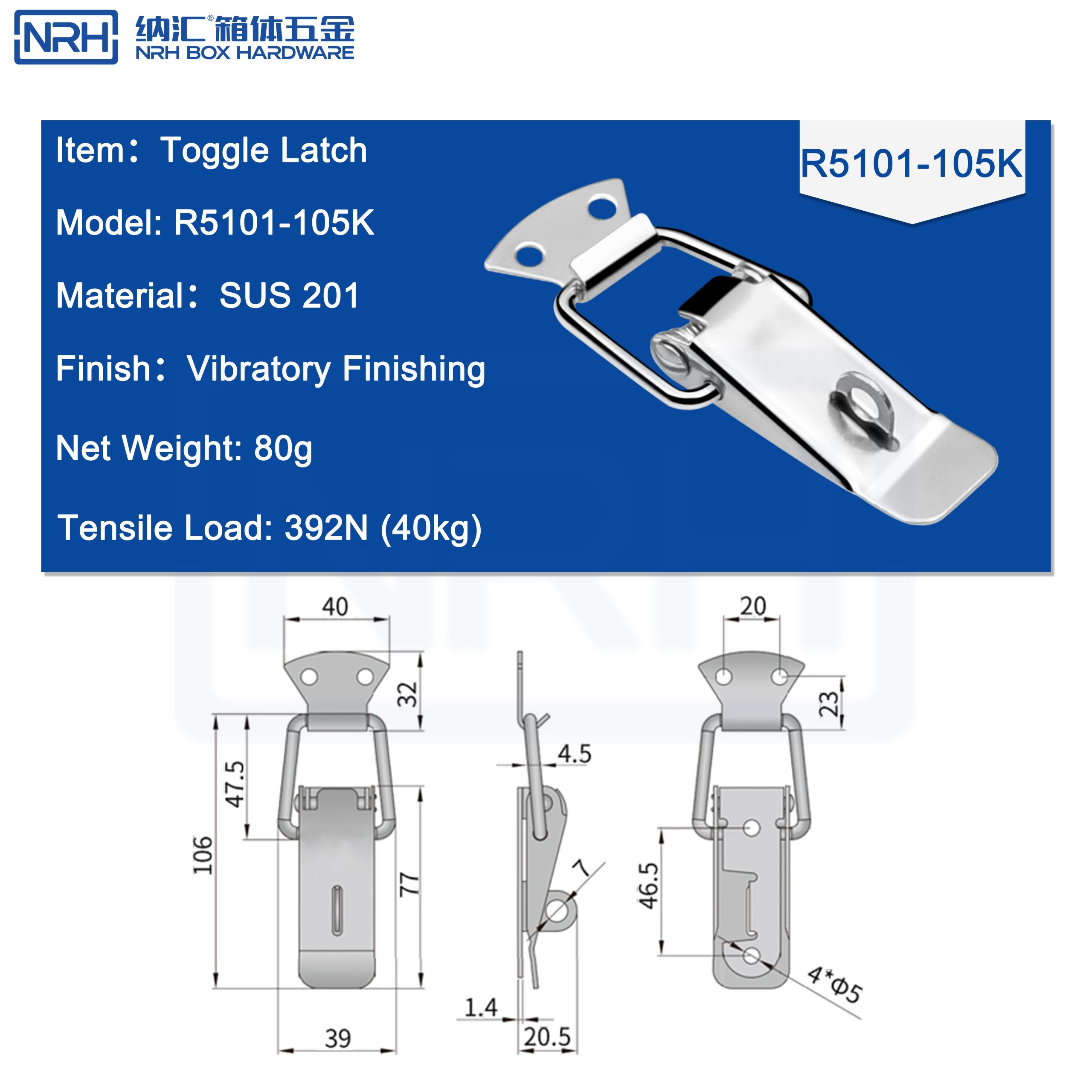

The NRH R5101-105K is a heavy-duty industrial toggle latch designed for high-security needs, combining strong mechanical clamping with physical theft deterrence. As per the specification sheet, it is made of SUS 201 Stainless Steel with a Vibratory Finish, offering durability and a smooth texture. Its core security feature is the integrated padlock hole on the latch hook. Key specs: net weight 80g and a high tensile load of 392N (40kg). Orthogonal technical drawings detail all dimensions, including 106mm overall height, 40mm mounting plate width, and 4Φ5 mounting holes, providing a reliable basis for design. From NRH Since 1996, with OEM/ODM services and full certifications (ISO 9001, REACH, RoHS, SVHC, CNAS*), it’s a trusted industrial security solution.

Technical Specifications (Based on Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5101-105K
Product Name	Toggle Latch
Material	SUS 201 Stainless Steel
Finish	Vibratory Finishing
Net Weight	80g
Tensile Load	392N (40kg)
Key Security Feature	Integrated Padlock Hole
Key Dimensions (from drawings)	Overall Height: 106mm Mounting Plate Width: 40mm Mounting Plate Length: ~20.5mm Hook Span: 47.5mm Mounting Holes: 4 x Φ5mm Material Thickness: 1.4mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001:2000, SGS, REACH, RoHS, SVHC, CNAS

(Note: The above are key dimensions from drawings. For 3D CAD files for design integration, please contact us.)

Product Overview: Strong Clamping with Padlock Security

The NRH R5101-105K industrial latch merges performance with security. Its over-center locking mechanism generates a powerful 392N (40kg) clamping force for tight closure. The dedicated padlock hole on the hook allows for adding a standard padlock, upgrading security from “fastened” to “physically locked” against unauthorized access. The SUS 201 Stainless Steel construction with Vibratory Finishing provides excellent strength, corrosion resistance, and a smooth feel. Precisely designed with comprehensive drawings, it meets the dual demands of reliability and security in harsh industrial settings.

Core Features

Dual-Function: High Load & Padlock Ready: Delivers a powerful 392N clamping force and includes an integrated padlock hole for adding a padlock, enabling access control and theft prevention.
High-Strength Stainless Steel Build: Made from SUS 201 Stainless Steel with Vibratory Finishing, ensuring exceptional strength, good corrosion resistance, and a professional appearance.
Precision Engineering & Full Certifications: Precisely dimensioned (e.g., 106mm height) with comprehensive drawings. Manufactured under the ISO 9001:2000 quality system and certified to SGS, REACH, RoHS, SVHC, CNAS international standards.
Brand Service & Technical Support: NRH offers OEM/ODM services and can provide 3D product drawings upon request to facilitate product development.

Ideal Applications

This lockable heavy-duty industrial latch is ideal for high-security applications:

High-Value Industrial & Telecom Cabinets: For securing and locking server racks, network cabinets, and power distribution units against unauthorized access and tampering.
Machinery Safety Guards & Access Hatches: Securing heavy guards, allowing a safety padlock to be added for Lockout/Tagout (LOTO) procedures during maintenance.
Outdoor Infrastructure Enclosures: Locking outdoor cabinets for communication base stations and power control systems to enhance physical security.
Secure Tool & Material Storage: Providing a sturdy and lockable closure for heavy-duty tool chests, precision instrument cases, or maintenance parts bins.

Powerful hold, definitive lock. The NRH R5101-105K provides reliable dual security for your critical assets with its 392N clamping force, stainless steel durability, and integrated padlock hole.
