R5101-105K SPCC Nickel Plated Spring Toggle Latch with Padlock Hole, Heavy Duty Industrial Fastener

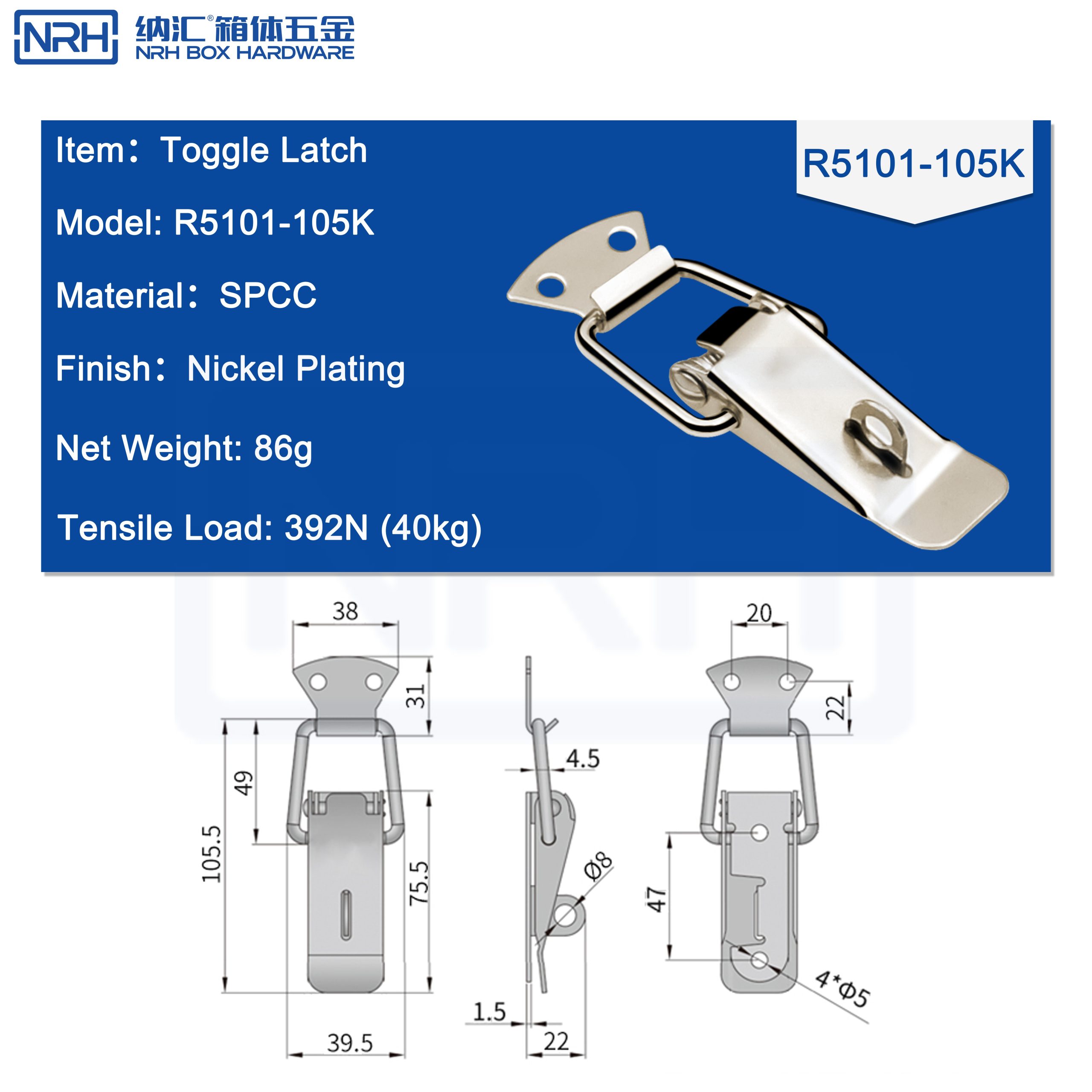

The NRH R5101-105K is a heavy-duty industrial toggle latch designed for high-security needs, combining strong mechanical locking with physical theft deterrence. As shown, it is made of SPCC (Cold Rolled Steel) with a Nickel Plating finish for durability. Its defining security feature is the integrated padlock hole on the latch hook. Key specs: net weight 86g and a high tensile load of 392N (40kg). Detailed engineering drawings below provide precise dimensions, including 105.5mm overall length, 4*Φ5 mounting holes, and the Φ5.5mm padlock hole, ensuring reliable design integration. From the NRH brand established in 1996, with OEM/ODM services and full certifications, it’s a trusted industrial security solution.

Technical Specifications (Based on Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5101-105K
Product Name	Toggle Latch / Industrial Latch
Material	SPCC (Cold Rolled Steel)
Finish	Nickel Plating
Net Weight	86g
Tensile Load	392N (40kg)
Key Security Feature	Integrated Padlock Hole (Φ5.5mm)
Key Dimensions (from drawings)	Overall Length: 105.5mm Mounting Plate Width: 39.5mm Hook Section Height: 47mm Mounting Holes: 4 x Φ5mm Material Thickness: 1.5mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001:2008, SGS, REACH, SVHC

(Note: The above are key dimensions from drawings. For 3D CAD files for design integration, please contact us.)

Product Overview: Strong Clamping with Padlock Security

The NRH R5101-105K industrial latch merges performance with security. Its over-center locking mechanism generates a strong 392N clamping force for tight closure. The dedicated Φ5.5mm padlock hole on the hook allows for adding a standard padlock, upgrading security from “fastened” to “physically locked” against unauthorized access. The SPCC with Nickel Plating offers excellent cost-effectiveness and basic rust protection. Precisely designed with comprehensive drawings, it meets the dual demands of reliability and security in harsh industrial settings.

Core Features

Dual-Function: High Load & Padlock Ready: Delivers a powerful 392N clamping force and includes an integrated padlock hole for adding a padlock, enabling access control and theft prevention.
Robust Nickel-Plated Steel Build: Made from SPCC steel with Nickel Plating, ensuring strength along with good corrosion resistance and appearance.
Precision Engineering & Certified Quality: Precisely dimensioned with comprehensive drawings. Manufactured under the ISO 9001:2008 quality system and compliant with REACH, SVHC international standards.
Brand Service & Technical Support: NRH offers OEM/ODM services and can provide 3D product drawings upon request to facilitate product development.

Ideal Applications

This lockable heavy-duty industrial latch is ideal for high-security applications:

High-Value Industrial Cabinets: For securing and locking server racks, network cabinets, and high-end power distribution units against unauthorized access and tampering.
Machinery Safety Guards & Access Hatches: Securing heavy guards, allowing a safety padlock to be added for Lockout/Tagout (LOTO) procedures during maintenance.
Outdoor Infrastructure & Communication Cabinets: Locking outdoor cabinets for base stations and power utilities to enhance physical security.
Tool & Material Security Storage: Providing a sturdy and lockable closure for heavy-duty tool chests and maintenance parts bins.

Powerful hold, definitive lock. The NRH R5101-105K provides reliable dual security for your critical industrial equipment with its 392N clamping force and integrated padlock hole.
