R5101-105 Heavy Duty Toggle Latch, SPCC Nickel Plated, Industrial Fastener

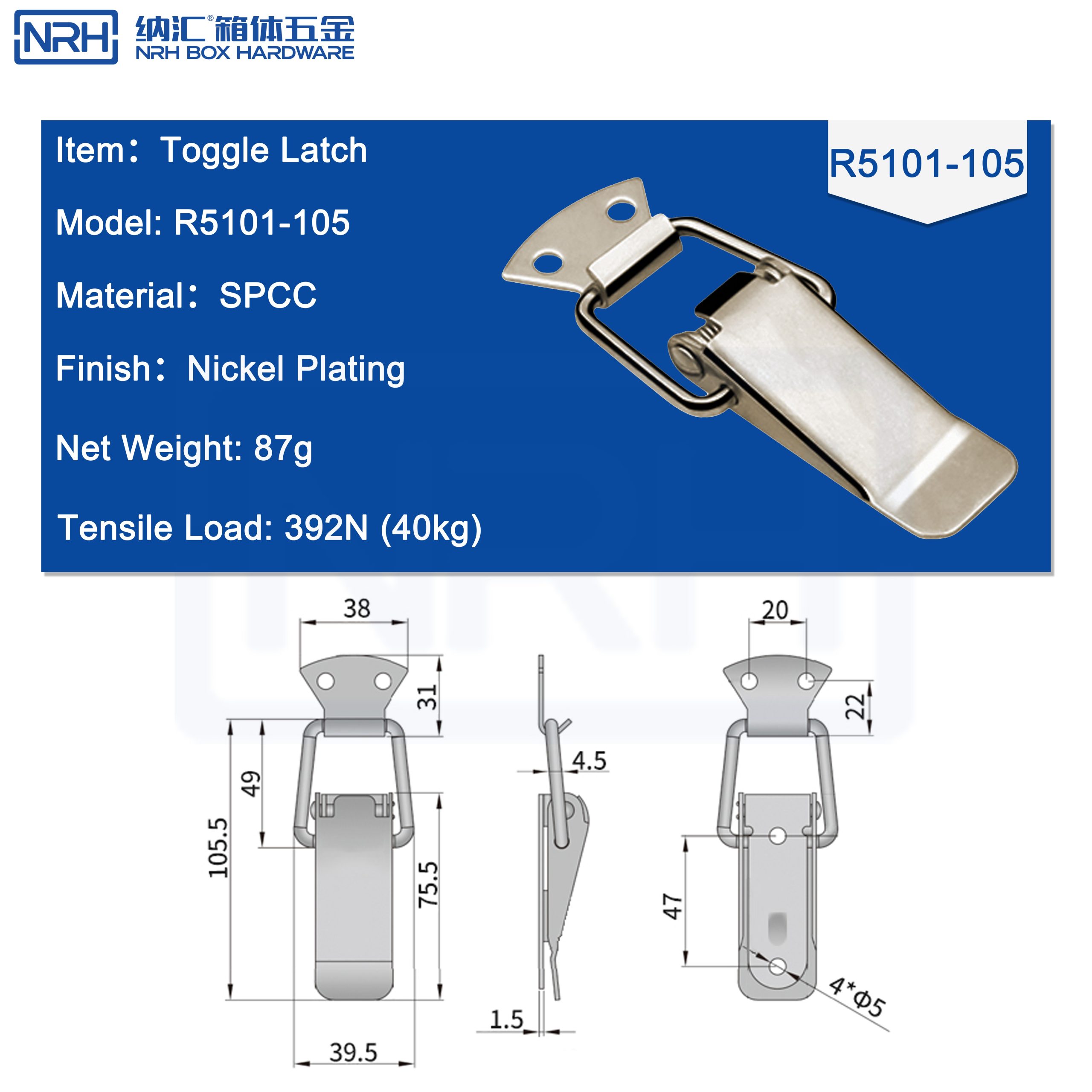

The NRH R5101-105 is a professional-grade heavy-duty toggle latch from NRH, designed for the most demanding industrial environments requiring exceptional pull force and durability. According to the specification sheet, this latch is constructed from SPCC (Cold Rolled Steel) and features a Nickel Plating finish, providing reliable rust resistance alongside its base strength. It boasts a net weight of 87g and a top-tier tensile load capacity of 392N (40kg), making it one of the highest-load models in its series. Detailed engineering drawings below the product image precisely annotate all key dimensions, including an overall length of 105mm, ensuring accurate design matching. 3D CAD files for design and simulation are available upon request.

Technical Specifications (Based on Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5101-105
Product Name	Toggle Latch
Material	SPCC (Cold Rolled Steel)
Finish	Nickel Plating
Net Weight	87g
Tensile Load	392N (40kg)
Key Dimensions (from drawings)	Overall Length: 105mm Mounting Plate Width: 39.5mm Hook Span: 47mm Mounting Holes: 4 x Φ5mm Key Structural Thickness: 1.5mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001:2000, SGS, REACH, RoHS, SVHC

(Note: The above are key dimensions from drawings. For 3D CAD files for design integration, please contact us.)

Product Overview: Engineered for Maximum Load

The NRH R5101-105 Toggle Latch employs a classic over-center locking design. Lever action from a manual press generates tremendous clamping force, with its high 392N holding capacity securely locking large, heavy, or vibration-prone doors and panels. The SPCC with Nickel Plating combination offers excellent cost-effectiveness and reliable durability. Its 105mm length makes it suitable for applications requiring a wider securing span. We can provide 3D model files to support your digital design and spatial verification.

Core Features

Exceptional Load Capacity: Delivers a top-tier 392N (40kg) tensile load, ideal for securing heavy doors, large access covers, and ensuring stability in vibrating environments.
Robust and Reliable Material: The SPCC steel core provides high structural strength, while the Nickel Plating finish effectively enhances corrosion resistance and appearance.
Precision Engineering & Detailed Drawings: Meticulously designed with comprehensive drawing data. Key dimensions like mounting hole pattern (4*Φ5) and 105mm length are clearly specified for easy integration.
Brand Assurance & Custom Service: From the NRH brand with over 25 years of experience. Manufactured under the ISO 9001 quality system, compliant with international environmental standards, and offering OEM/ODM services for specific needs.

Ideal Applications

This ultra-heavy-duty latch is the ideal choice for large and heavy industrial equipment:

Oversized Industrial & Electrical Enclosures: For heavy doors on large power distribution cabinets, automation system control cabinets, and server cluster racks.
Heavy Machinery Housings: Securing access panels and guards on large machine tools, stamping equipment, generator sets, and construction machinery.
Industrial Transport & Storage Equipment: Door latching for heavy freight containers, large equipment shipping crates, and industrial storage bins.
Special Vehicle & Marine Equipment Boxes: Securing covers on equipment boxes for communication vehicles, utility trucks, and marine deck applications.

Defining the standard for heavy-duty fastening. The NRH R5101-105 provides the ultimate fastening security for your largest, most critical equipment with its top-tier 392N load capacity and reliable SPCC nickel-plated construction.
