R5102-90K Stainless Steel Spring Toggle Latch with Padlock Hole, SUS201

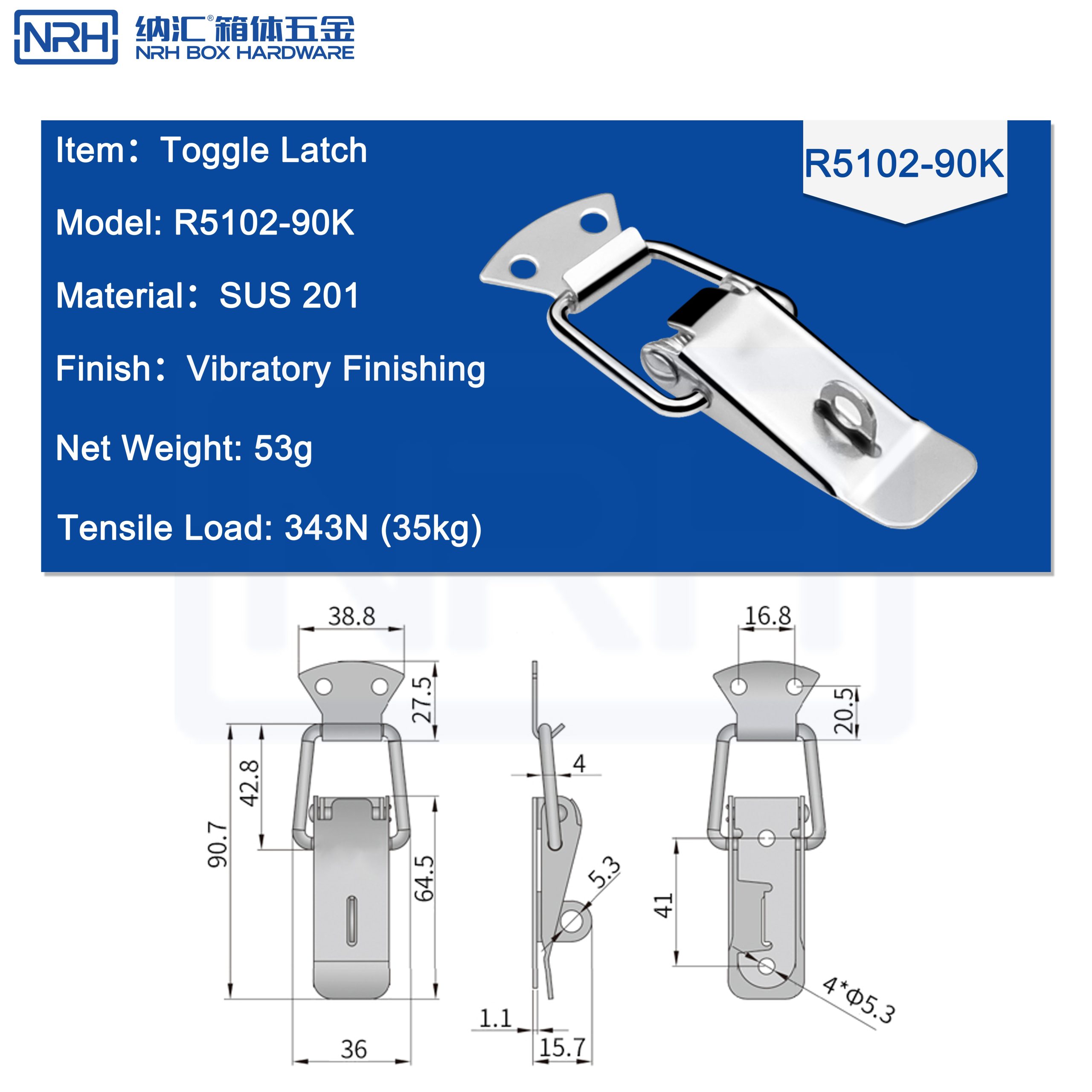

The NRH R5102-90K is a heavy-duty latch combining spring-assisted operation with physical security. Product images show its robust construction from SUS 201 Stainless Steel with a fine finish. Key specs are clear: net weight 53g and a high tensile load of 343N (35kg). Its standout features are an integrated circular padlock hole on the hook and an internal spring mechanism for smooth operation and positive feedback. Provided orthogonal drawings detail all key dimensions like the 90.7mm overall height and mounting holes (4xΦ5.3mm) for precise installation. 3D CAD files are available upon request for your digital design and assembly simulation.

Technical Specifications (Based on Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5102-90K
Product Name	Toggle Latch
Material	SUS 201 Stainless Steel
Finish	Vibratory Finishing
Net Weight	53g
Tensile Load	343N (35kg)
Key Features	Integrated Padlock Hole, Spring-Assisted Mechanism
Key Dimensions (from drawings)	Overall Height: 90.7mm Mounting Plate Width: 38.8mm Mounting Plate Length: 27.5mm Hook Span: 42.8mm Mounting Holes: 4 x Φ5.3mm Material Thickness: 1.1mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001:2000, SGS, REACH, RoHS, SVHC, CNAS

(Note: The above are key dimensions. For 3D CAD files for design integration, please contact us.)

Product Overview: Spring-Assisted Smoothness with Locking Security

The NRH R5102-90K enhances reliable mechanical fastening with spring-assisted operation and padlock security. Its built-in spring mechanism ensures smoother, easier pressing and release actions with positive feedback. The over-center locking design generates a strong 343N clamping force for tight closure. The dedicated padlock hole on the latch hook allows for adding a standard padlock, upgrading security from “fastened” to “locked” against unauthorized access. The SUS 201 Stainless Steel construction ensures structural strength and corrosion resistance.

Core Features

Spring-Assisted for Smooth Operation: The internal spring ensures fluid, low-effort manual engagement and disengagement with a positive feel, improving usability and efficiency.
Dual Security: Strong Hold & Padlock Ready: Delivers a powerful 343N clamping force and includes an integrated padlock hole for adding a padlock, providing physical theft deterrence and access control.
Robust Stainless Steel Build: Made from SUS 201 Stainless Steel for excellent strength and durability, suitable for long-term use in demanding industrial settings.
Precision Engineering & Full Certifications: Precisely dimensioned with detailed drawings. Manufactured in compliance with the ISO 9001:2000 quality system and certified to REACH, RoHS, SVHC international standards.

Ideal Applications

This lockable, spring-assisted heavy-duty latch is ideal for high-security and high-frequency access applications:

High-Value Industrial Cabinets: For frequently accessed server racks, network cabinets, and power distribution units, offering smooth operation and lockable security.
Machinery Safety Guards & Access Hatches: Securing guards that require regular access. Spring assistance eases operation, and the padlock hole supports safety locking (LOTO) during maintenance.
Outdoor Infrastructure & Communication Cabinets: Locking outdoor cabinets for base stations and utility boxes. The spring mechanism accommodates frequent access, and the padlock provides theft prevention.
Professional Tool & Material Storage: Providing an easy-to-operate and lockable closure for heavy-duty tool chests and maintenance parts bins.

Smooth operation, definitive security. The NRH R5102-90K enhances efficiency with its spring assist and reinforces safety with its padlock hole, delivering a reliable and convenient closure solution for your equipment.
