R5102-90 Heavy Duty Toggle Latch, SUS201 Stainless Steel, High Load Fastener

R5102-90 Heavy Duty Toggle Latch, SUS201 Stainless Steel, Vibratory Polish

R5102-90 Heavy Duty Toggle Latch, SUS201 Stainless Steel, Vibratory Polish

The NRH R5102-90 is a heavy-duty toggle latch designed for demanding industrial environments. As shown, it is constructed from SUS 201 Stainless Steel, ensuring excellent strength and corrosion r……

Send Inquiry

Functional characteristics

R5102-90 Heavy Duty Toggle Latch, SUS201 Stainless Steel, Vibratory Polish

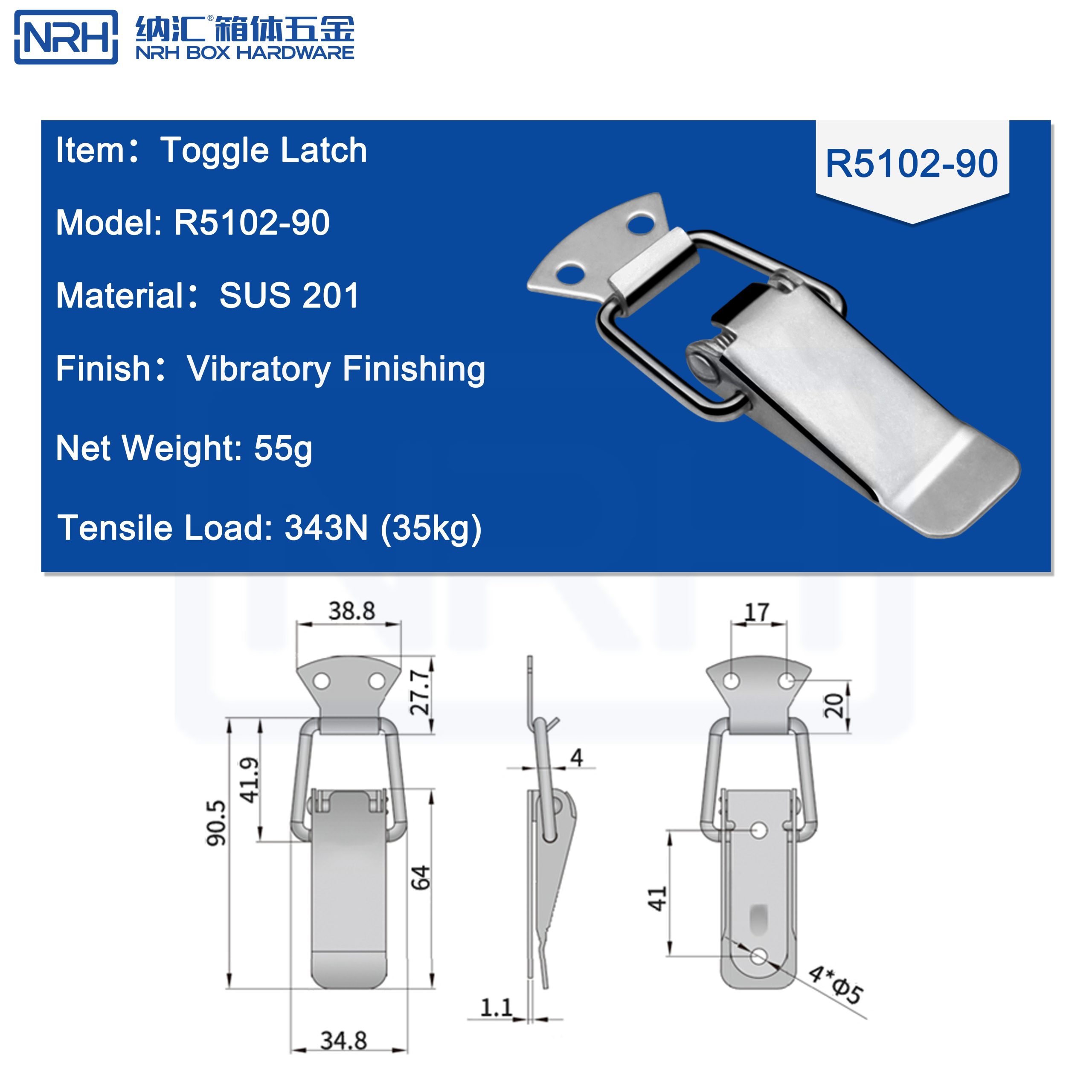

The NRH R5102-90 is a heavy-duty toggle latch designed for demanding industrial environments. As shown, it is constructed from SUS 201 Stainless Steel, ensuring excellent strength and corrosion resistance. The product image displays its build, while the spec sheet confirms a net weight of 55g and a high tensile load capacity of 343N (35kg). The detailed orthogonal drawings with dimension callouts (e.g., overall length, mounting holes) below provide precise references for integration. 3D model files are available upon request to support your digital design process.

Technical Specifications (Based on Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5102-90
Product Name	Toggle Latch
Material	SUS 201 Stainless Steel
Finish	Polished Finish
Net Weight	55g
Tensile Load	343N (35kg)
Key Dimensions (from drawings)	Mounting Plate Width: 38.8mm Mounting Plate Length / Hook Span: 41.9mm Mounting Holes: 4 x Φ5mm
Brand & Service	Since 1996, OEM/ODM Supported
Quality Compliance	ISO 9001:2008, SGS, REACH, RoHS, SVHC

(Note: Above are key dimensions. For 3D CAD files for design integration, please contact us.)

Product Overview: A Robust and Reliable Industrial Fastening Solution

The NRH R5102-90 utilizes a robust over-center locking mechanism. Pressing the handle generates significant force to securely pull and hold heavy doors or panels together. The SUS 201 Stainless Steel construction forms the basis of its reliability, while the refined polished finish ensures smooth operation and a consistent appearance. Its precise engineering allows for easy installation, meeting the fastening needs of various industrial cabinets and equipment enclosures.

Core Features

High-Load Stainless Steel Build: Made from SUS 201 Stainless Steel for excellent mechanical properties, stably withstanding the high 343N tensile load for long-term reliability.
Secure Locking Mechanism: The over-center locking design provides reliable, vibration-resistant latching, effectively preventing heavy doors from accidentally opening.
Precision Manufacturing & Full Certifications: Dimensions are accurate to drawing specifications. Manufactured under the ISO 9001:2008 quality management system and compliant with REACH, RoHS, and SVHC international standards.
Comprehensive Support & Service: Detailed product drawings are provided. We support OEM/ODM services and can supply 3D model files upon request to facilitate your product development and integration.

Ideal Applications

This heavy-duty toggle latch is an ideal choice for the following industrial sectors:

Heavy-Duty Industrial & Electrical Cabinets: Door fastening for large power distribution cabinets, server racks, and industrial automation control cabinets.
Large Machinery Housings: For securing access panels on machine tool guards, generator set enclosures, and heavy inspection equipment.
Professional Transport & Storage Cases: Box cover latching for heavy-duty tool chests, precision instrument cases, and equipment protection cases.
Telecom & Energy Infrastructure: Outdoor communication cabinets, power utility control boxes, etc.

Built for strength, crafted for reliability. The NRH R5102-90 provides secure fastening for your heavy-duty equipment with robust materials, dependable performance, and precise manufacturing.
