R5102-90K Heavy Duty Toggle Latch with Padlock Hole, SPCC Nickel Plated, High Load Fastener

The NRH R5102-90K is a heavy-duty toggle latch that combines high-strength clamping with physical security. As shown in the product images, it features a prominent circular padlock hole on it……

Send Inquiry

Functional characteristics

R5102-90K Heavy Duty Toggle Latch with Padlock Hole, SPCC Nickel Plated, High Load Fastener

The NRH R5102-90K is a heavy-duty toggle latch that combines high-strength clamping with physical security. As shown in the product images, it features a prominent circular padlock hole on its hook, adding an extra layer of protection for valuable assets. Constructed from SPCC (Cold Rolled Steel) with a Nickel Plating finish, it balances structural strength and rust resistance. Technical drawings specify a high tensile load of 343N (35kg) and a net weight of 56g, with precise dimensions (e.g., 90mm body length). Manufactured by NRH with over two decades of expertise, it complies with ISO 9001, REACH, RoHS, and other international certifications, and supports OEM/ODM services.

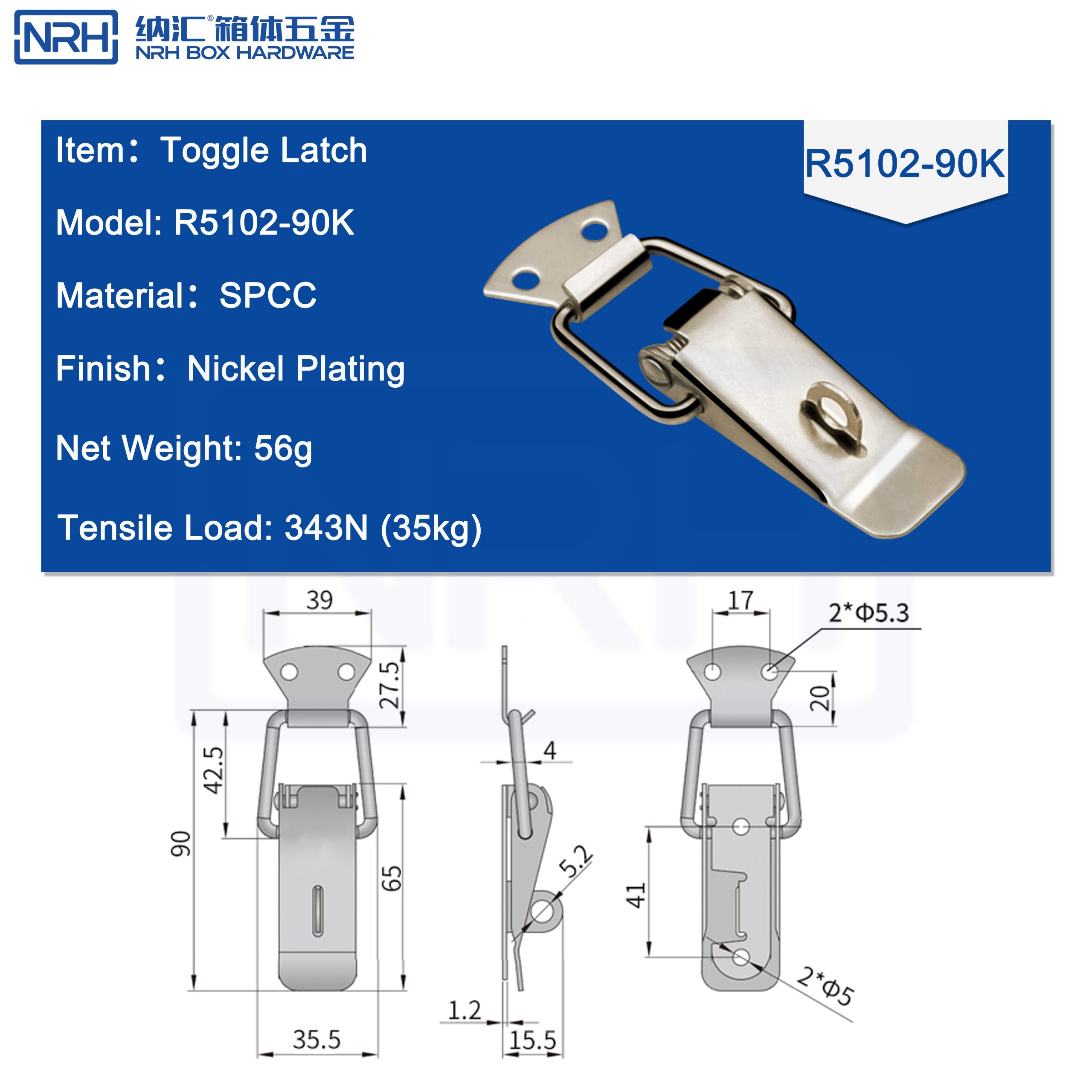

Technical Specifications (Based on Provided Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5102-90K
Product Name	Toggle Latch
Material	SPCC (Cold Rolled Steel)
Finish	Nickel Plating
Net Weight	56g
Tensile Load	343N (35kg)
Key Security Feature	Integrated Padlock Hole (on the latch hook)
Key Dimensions (from drawings)	Latch Body Length: 90mm Mounting Plate Width: 39mm Hook Section Height: 27.5mm Material Thickness: 1.2mm Mounting Holes: 2 x Φ5.3mm Padlock Hole Diameter: Φ5mm
Quality & Service	ISO 9001:2000, REACH, RoHS, SVHC Compliant. OEM/ODM Supported. Since 1996.

Product Overview: High-Load Clamping with Padlock Security

The NRH R5102-90K is designed for applications demanding both high security and high reliability. Its core employs a robust over-center locking mechanism; a simple press creates a powerful 343N clamping force, ensuring heavy doors and panels stay tightly closed under vibration or pressure. The dedicated padlock hole on the hook is its defining feature, allowing a standard padlock (not included) to be inserted, physically locking the latch and preventing unauthorized access. The SPCC with Nickel Plating offers excellent base strength and environmental corrosion resistance. Detailed technical drawings ensure precise and easy installation.

Core Features

Dual-Function: High Load & Security: Delivers a strong 343N clamping force and includes an integrated padlock hole, upgrading security from “fastening” to “locking.”
Heavy-Duty Steel Construction: The SPCC steel core ensures high load-bearing strength, while the Nickel Plating provides effective rust protection for long-term industrial use.
Precision Engineered Design: Engineering drawings clearly specify all critical dimensions (e.g., 90mm length, 1.2mm thickness). The padlock hole (Φ5mm) is well-positioned for use with standard padlocks.
Certified Quality & Custom Support: Complies with international quality and environmental standards (ISO 9001, REACH, RoHS). Manufacturer NRH offers OEM/ODM services for custom requirements.

Ideal Applications

This heavy-duty, lockable latch is ideal for high-demand applications:

Heavy-Duty Industrial & Electrical Cabinets: For securing and locking large doors on high-value equipment like power distribution units and automation control cabinets.
Machinery Safety Guards & Access Hatches: Securing heavy guards, with the option to add a padlock for Lockout/Tagout (LOTO) safety procedures during maintenance.
High-Value Tool & Equipment Cases: Providing a secure and lockable closure for precision instrument cases and heavy-duty tool carts.
Outdoor Communication & Power Equipment Boxes: Locking outdoor cabinets for base stations, power distribution, etc., against unauthorized access.

Powerful hold, definitive lock. The NRH R5102-90K provides dual security for your critical assets with its 343N clamping force and convenient padlock capability.
