R5102-90 Heavy Duty Toggle Latch, SPCC Nickel Plated, Industrial Panel Fastener

The NRH R5102-90 is a heavy-duty toggle latch engineered for applications requiring exceptional clamping force and durability. As detailed in the provided specification sheet, it is constructed from SPCC (Steel) and protected with a Nickel Plating finish, offering strength and corrosion resistance. It features a substantial net weight of 57g and a high tensile load capacity of 343N (35kg), making it suitable for securing heavy panels and doors. Comprehensive multi-view engineering drawings provide exact dimensions for seamless integration. Manufactured by NRH, a specialist in box hardware since 1996, the product is backed by certifications including ISO 9001:2000, SGS, REACH, RoHS, and SVHC, with full OEM/ODM support available.

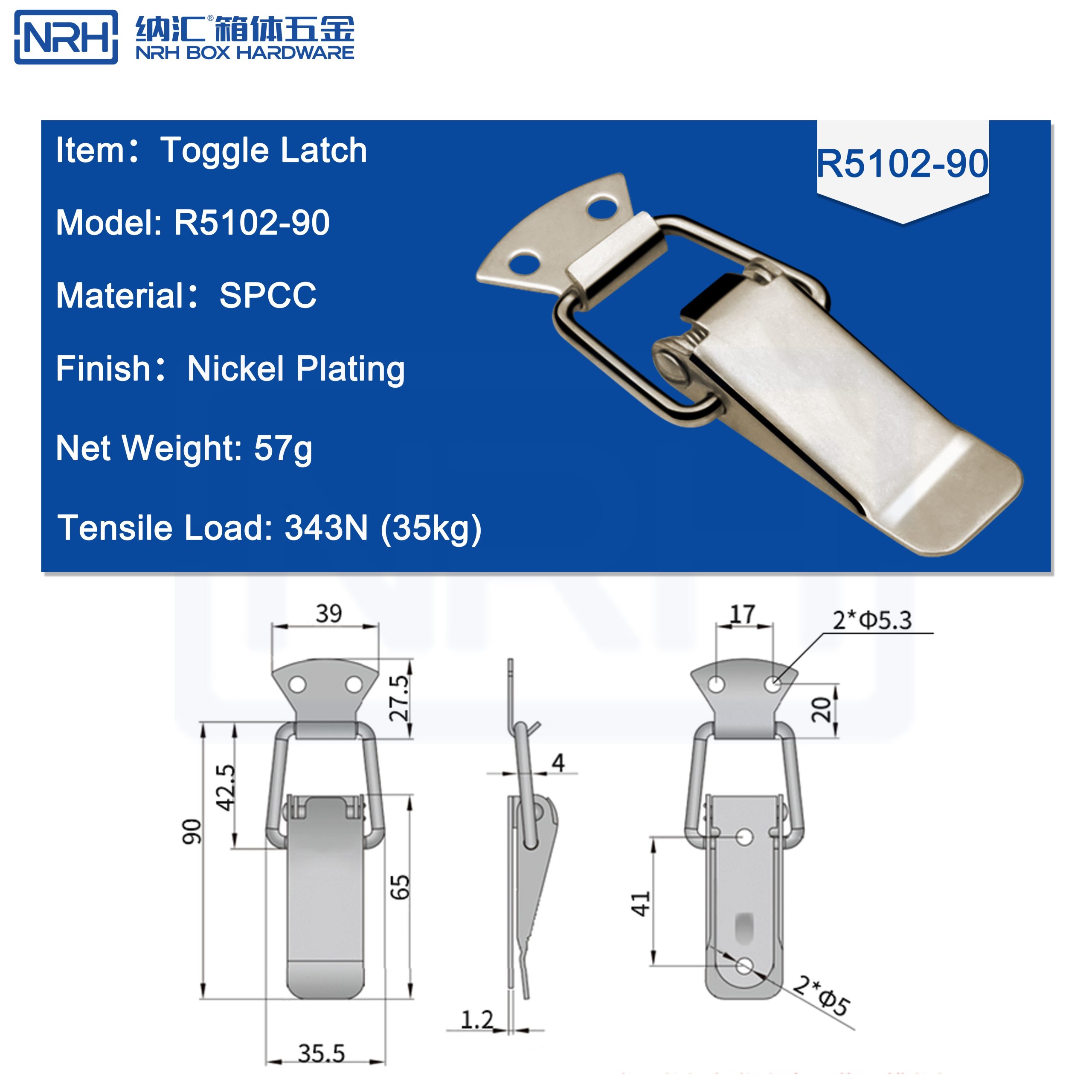

Technical Specifications (Based on Provided Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5102-90
Product Name	Toggle Latch
Material	SPCC (Steel)
Finish	Nickel Plating
Net Weight	57g
Tensile Load	343N (35kg)
Key Dimensions (from drawings)	Latch Body Length: 90mm Mounting Plate Width: 39mm Hook Section Height: 27.5mm Material Thickness: 1.2mm Mounting Holes: 2 x Φ5.3mm + 2 x Φ5mm
Quality & Service	ISO 9001:2000, SGS, REACH, RoHS, SVHC Compliant. OEM/ODM Supported. Since 1996.

Product Overview: Engineered for Maximum Holding Force

The NRH R5102-90 is designed for the most demanding fastening applications. Its core function is to securely clamp two heavy panels or surfaces together with a powerful 343N holding force, utilizing a robust over-center locking mechanism. The user manually engages the latch, creating a vibration-resistant lock ideal for heavy doors and panels. The Nickel Plating on the SPCC steel base provides reliable protection against rust, ensuring longevity in industrial environments. The precise engineering, detailed in the provided drawings, guarantees consistent performance and easy installation.

Core Features

Exceptional Load Capacity: With a 343N (35kg) tensile load rating, this latch provides one of the highest holding forces in its class, designed for securing very heavy panels and access points.
Robust Steel Construction: The SPCC steel core provides the necessary strength for high-stress applications, while the Nickel Plating offers durable corrosion protection.
Secure Over-Center Locking: Delivers a strong, positive mechanical lock that reliably resists vibration and accidental opening under load.
Precision Design for Easy Integration: Detailed orthogonal drawings specify all critical dimensions (e.g., 90mm Latch Body Length, 1.2mm Material Thickness), allowing for accurate design and straightforward mounting.

Ideal Applications

This heavy-duty latch is the ideal solution for the most challenging industrial and commercial fastening needs:

Heavy-Duty Industrial & Electrical Cabinets: For securing large, heavy doors on high-amperage power distribution units, industrial control systems, and large machinery enclosures.
Server Racks & Data Center Infrastructure: Providing a secure closure for heavy server cabinet doors and network infrastructure panels.
Machinery Housings & Large Equipment Guards: Securing oversized protective covers, heavy safety guards, and large access hatches on industrial equipment.
Professional-Grade Toolboxes & Transport Crates: Offering an ultra-strong closure for the largest tool chests, heavy equipment cases, and industrial shipping containers.

Engineered for the heaviest loads. The NRH R5102-90 Toggle Latch combines massive clamping force, durable materials, and precise engineering to secure your most critical and heavy-duty closures.
