R5103-75K Heavy Duty Toggle Latch with Padlock Hole, Nickel Plated SPCC

The NRH R5103-75K is a robust toggle latch designed for applications that demand both a powerful clamping force and the option for physical security via a padlock. Engineered for durability, it is……

Send Inquiry

Functional characteristics

R5103-75K Heavy Duty Toggle Latch with Padlock Hole, Nickel Plated SPCC

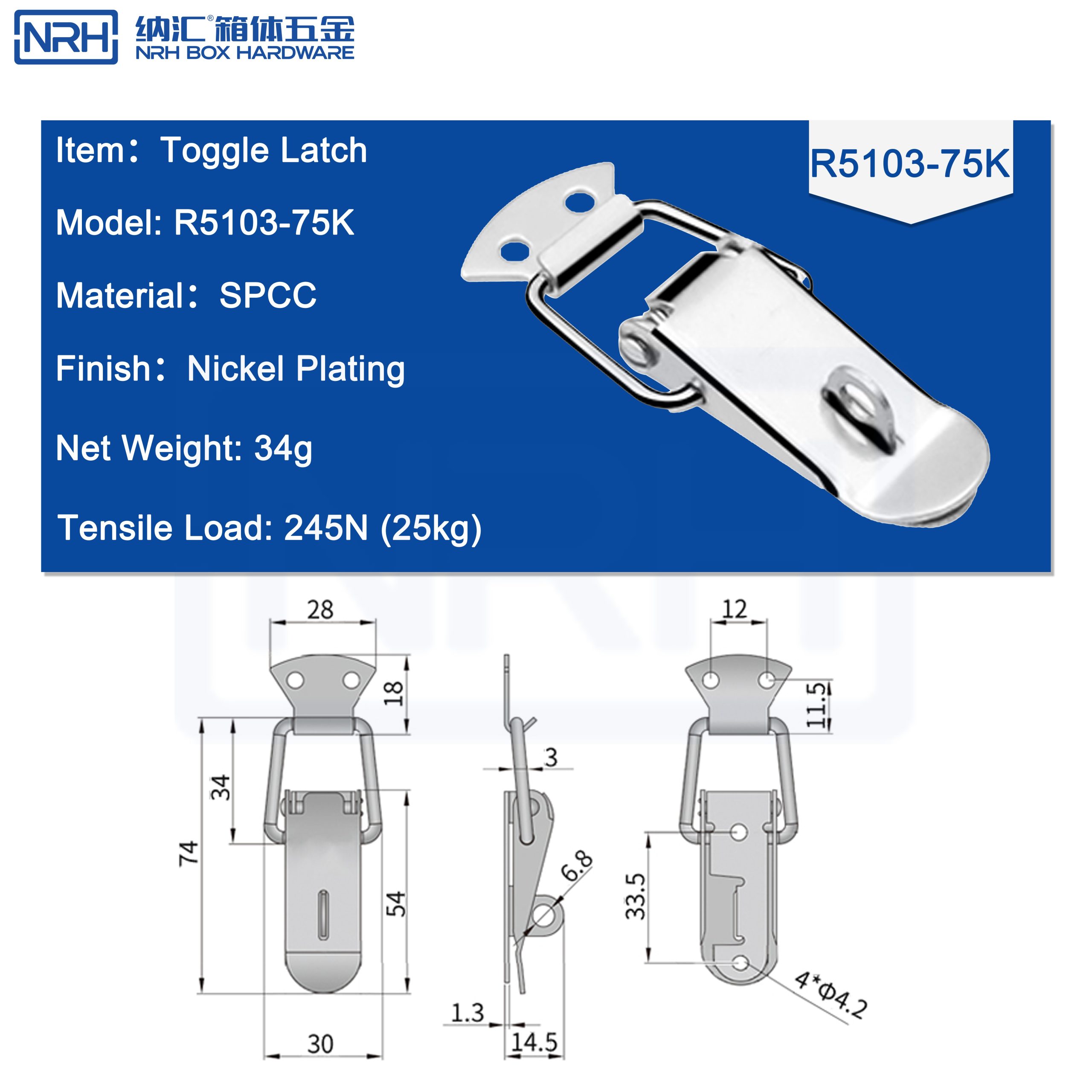

The NRH R5103-75K is a robust toggle latch designed for applications that demand both a powerful clamping force and the option for physical security via a padlock. Engineered for durability, it is constructed from SPCC (Cold Rolled Steel) and protected with a Nickel Plating finish, giving it a silver appearance and corrosion resistance. A key security feature is the integrated circular padlock hole on the latch hook, clearly visible in the provided diagrams. It boasts a substantial tensile load capacity of 245N (25kg) and a net weight of 34g, as detailed in the technical drawings. The comprehensive orthographic views (top, side, bottom) provide exact dimensions for seamless integration. Backed by NRH’s manufacturing heritage and certifications, it is a reliable solution for securing and locking heavy-duty enclosures.

Technical Specifications (Based on Provided Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5103-75K
Product Name	Toggle Latch
Material	SPCC (Cold Rolled Steel)
Finish	Nickel Plating
Net Weight	34g
Tensile Load	245N (25kg)
Security Feature	Padlock Hole (on the latch hook)
Key Dimensions (from drawings)	Latch Arm Span: ~74mm Mounting Plate Width: 28mm Mounting Plate Height: 18mm Material Thickness: 1.3mm Mounting Holes: 4 x Φ4.2mm Padlock Hole Diameter: Clearly shown in top/bottom views
Brand & Service	Since 1996. OEM/ODM Supported.

Product Overview: Powerful Clamping with Padlock Security

The NRH R5103-75K serves a dual purpose. Its primary function is to securely clamp two panels or surfaces together using a robust over-center toggle mechanism, providing a reliable 245N holding force. The secondary, crucial function is enabled by the dedicated padlock hole on the swinging latch hook. This allows a standard padlock to be inserted, physically preventing the latch from being disengaged and thereby locking the closure. The Nickel Plating on the SPCC steel base offers effective protection against rust, while the design ensures straightforward operation and installation, as evidenced by the detailed multi-view drawings.

Core Features

Primary Function: High-Strength Clamping: Engineered to firmly fasten heavy-duty panels, doors, or covers together with a 245N clamping force, preventing accidental opening under stress or vibration.
Padlock-Ready for Definitive Security: The integrated padlock hole allows the use of an external padlock to lock the latch in the closed position, adding a vital layer of physical security and access restriction.
Durable & Protective Construction: The combination of SPCC steel and Nickel Plating provides a cost-effective balance of high strength, good impact resistance, and corrosion protection for long service life.
Precision Engineered Design: Detailed technical drawings with exact dimensions (e.g., 74mm arm span, 4x Φ4.2mm mounting holes) ensure predictable performance and easy integration into product designs.

Ideal Applications

This heavy-duty, lockable latch is perfect for robust applications requiring both a strong mechanical hold and optional physical security:

Heavy-Duty Industrial Cabinets & Enclosures: For securely fastening and locking large doors on electrical control panels, server racks, and machinery housings.
Machinery Safety Guards & Access Hatches: Firmly securing protective guards, with the option to add a padlock for safety lockout/tagout (LOTO) procedures.
Secure Storage & Transport Cases: Providing a strong, lockable closure for heavy toolboxes, generator cases, ammunition crates, or sensitive equipment containers.
Outdoor Telecom & Utility Boxes: Locking robust field-deployed cabinets that house communication or power distribution equipment.

Clamp with force, lock for security. The NRH R5103-75K delivers powerful mechanical fastening for heavy panels, plus the straightforward option to add a padlock for definitive access control and theft deterrence.
