R5103-75 Heavy Duty Toggle Latch, Panel Fastener, Cabinet Lock

The NRH R5103-75 is a heavy-duty toggle latch engineered for applications demanding superior strength and reliable closure. As detailed in the product specification sheet, it is constructed from S……

Send Inquiry

Functional characteristics

R5103-75 Heavy Duty Toggle Latch, Panel Fastener, Cabinet Lock

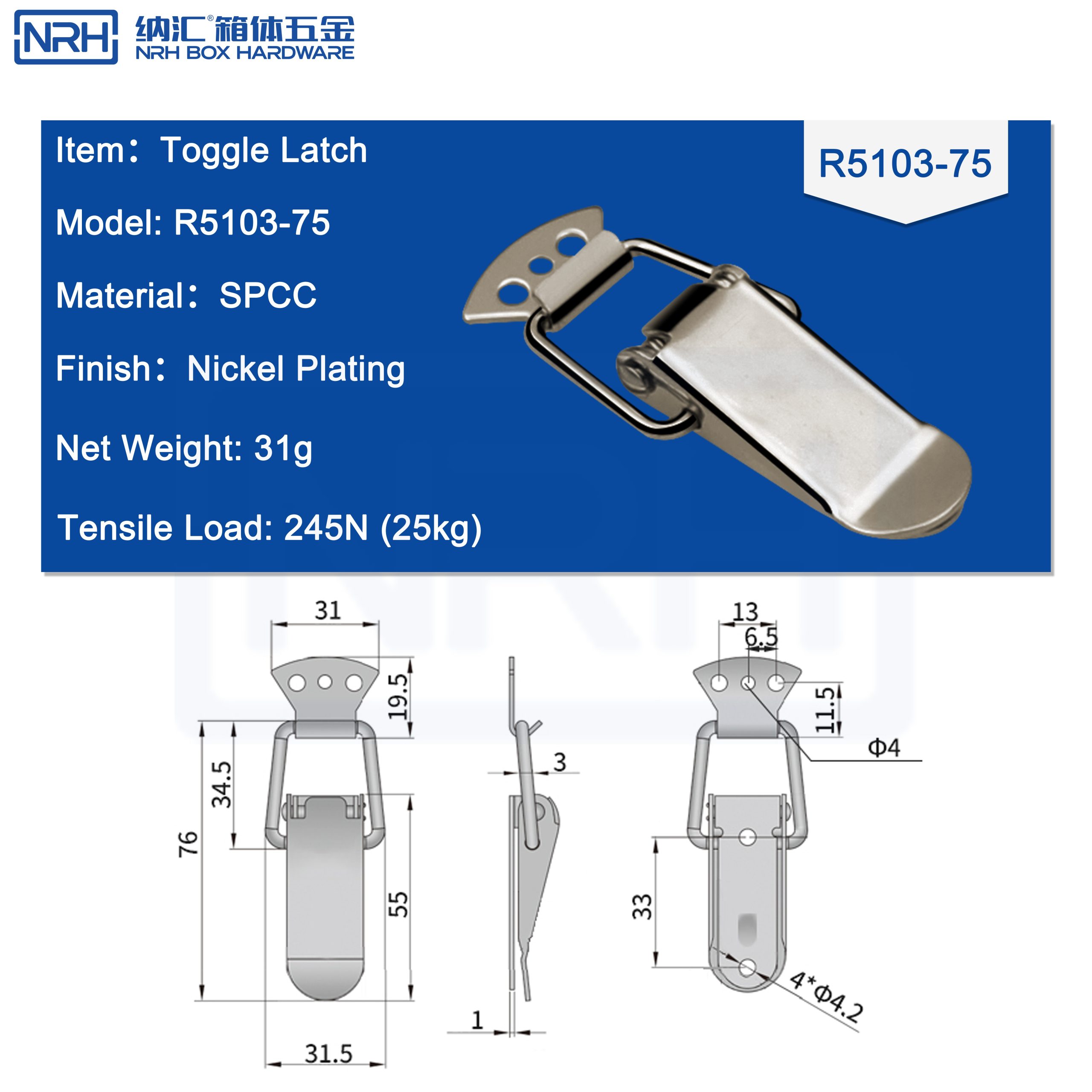

The NRH R5103-75 is a heavy-duty toggle latch engineered for applications demanding superior strength and reliable closure. As detailed in the product specification sheet, it is constructed from SPCC steel and protected with a Nickel Plating finish. This latch is built to handle significant stress, with a substantial net weight of 31g and an impressive tensile load capacity of 245N (25kg). Its robust design and precise engineering, detailed in the accompanying multi-view drawings, make it a dependable choice for securing heavy doors, panels, and equipment covers.

Technical Specifications (Based on Provided Product Drawing)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5103-75
Product Name	Toggle Latch
Material	SPCC (Steel)
Finish	Nickel Plating
Net Weight	31g
Tensile Load	245N (25kg)
Key Dimensions (from drawing)	Overall Height: 76mm Top Plate Width: 31mm Mounting Bracket Height: 19.5mm Latch Body Width: 34.5mm Hook Section Height: 55mm Mounting Holes: 4 x Ø4.2mm Strike Pin Hole: Φ4mm
Note	Detailed engineering drawings provided for integration.

Product Overview: High-Strength Fastening Solution

The NRH R5103-75 is designed for performance where standard latches may be insufficient. It operates on a reliable over-center toggle mechanism: the user presses the latch arm down to engage the hook with a fixed pin (Φ4mm), creating a powerful, positive lock. The Nickel Plating on the SPCC steel base provides effective corrosion resistance and a durable, clean finish suitable for industrial environments. With a load rating significantly higher than many comparable models, it is the ideal solution for heavier panels and doors that require a secure, vibration-resistant hold.

Core Features

High Load Capacity: A 245N (25kg) tensile load rating confirms its suitability for heavy-duty applications, providing a secure closure where greater force is required.
Robust & Protective Construction: The combination of SPCC steel and Nickel Plating offers a cost-effective balance of high strength and good corrosion resistance for long-term durability.
Precision Engineered Design: Comprehensive technical drawings with exact dimensions (e.g., 76mm height, 4x Ø4.2mm mounting holes) ensure predictable performance and easy integration into product designs.
Secure Over-Center Locking: The mechanism delivers a reliable, snap-in lock that resists accidental opening from vibration or impact.

Ideal Applications

Given its high strength rating and sturdy build, the R5103-75 is particularly well-suited for demanding industrial and commercial applications:

Heavy-Duty Industrial Cabinets: Securing large doors on electrical switchgear enclosures, server racks, and large control panels.
Machinery Guards & Safety Covers: Fastening robust protective covers and access hatches on industrial machinery and equipment.
Transport Cases for Heavy Equipment: Providing a secure closure for large tool chests, generator cases, and equipment transit containers.
Outdoor & Utility Enclosures: Locking access points on robust communication cabinets, power distribution boxes, and other field-deployed equipment.

Engineered for strength, built for reliability. The NRH R5103-75 Toggle Latch delivers the high-load performance needed for your most demanding fastening challenges.
