R5104-59K Toggle Latch with Padlock Hole, SUS201 Stainless Steel, Panel Fastener

The NRH R5104-59K is a robust and secure fastening solution designed to firmly clamp two panels, doors, or surfaces together. Constructed from durable SUS 201 Stainless Steel with a smooth Vibrato……

Send Inquiry

Functional characteristics

R5104-59K Toggle Latch with Padlock Hole, SUS201 Stainless Steel, Panel Fastener The NRH R5104-59K is a robust and secure fastening solution designed to firmly clamp two panels, doors, or surfaces together. Constructed from durable SUS 201 Stainless Steel with a smooth Vibratory Finishing, it offers reliable performance with a clean, professional look. Its primary function is to provide a strong mechanical lock via an over-center mechanism. The integrated 5mm diameter padlock hole allows for an additional layer of security by accepting a standard padlock, making it ideal for applications requiring controlled access. With a tensile load capacity of 147N (15kg) and weighing only 18g, it combines strength with a lightweight design.

Technical Specifications (Based on Provided Product Images)

Item	Specification / Description
Brand	NRH Box Hardware
Model Number	R5104-59K
Product Name	Toggle Latch
Material	SUS 201 Stainless Steel
Finish	Vibratory Finishing
Net Weight	18g
Tensile Load	147N (15kg)
Security Feature	Padlock Hole (Φ5mm)

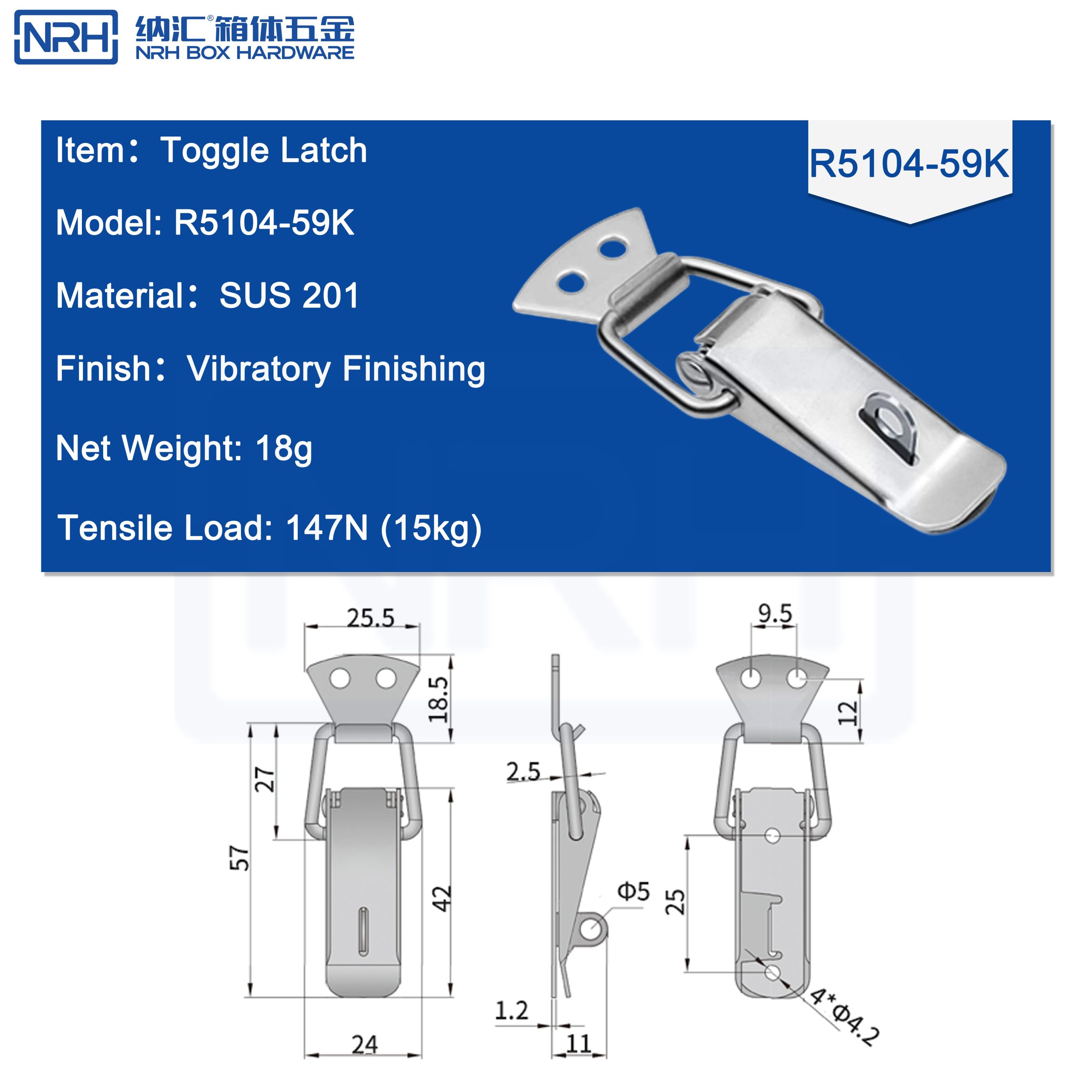

Key Dimensions (from drawing)	Overall Height: ~57mm Mounting Plate Width: 25.5mm Main Latch Body Width: ~24mm Mounting Holes: 2 x Ø4.2mm (as per front view)
Compliance	ISO 9001:2000, SGS, REACH, RoHS, SVHC
Brand Heritage	Since 1996
Service	OEM/ODM Supported

Product Overview: Secure Fastening with Locking Option

The NRH R5104-59K Toggle Latch is engineered for simplicity and reliability. Its core purpose is to securely fasten two objects together, such as a door to a frame or a lid to a base. The user manually presses the latch handle down, engaging a reliable over-center locking mechanism that pulls and holds the two surfaces tightly. For added security, the latch body features a 5mm hole designed to accommodate the shackle of a standard padlock. Once a padlock is in place, the latch cannot be opened, preventing unauthorized access. The use of SUS201 stainless steel ensures excellent corrosion resistance and longevity, suitable for various environments. The product is backed by NRH’s decades of manufacturing expertise and complies with major international quality and safety standards.

Core Features

Primary Function: Secure Fastening: The fundamental design is to firmly clamp two panels or objects together, creating a tight and reliable closure that resists vibration and accidental opening.
Over-Center Locking Mechanism: Provides a strong, snap-in action that ensures the latch stays securely closed under the rated 147N load.
Padlock-Ready for Security: The integrated Φ5mm hole allows the use of a padlock to physically prevent the latch from being opened, adding a crucial security feature for toolboxes, panels, and enclosures.
Durable & Compliant Construction: Made from SUS 201 Stainless Steel with a vibratory finish for durability and a clean appearance. Complies with ISO 9001, REACH, RoHS, and SVHC standards.
Trusted Manufacturer: Produced by NRH, a specialist in box hardware with a heritage since 1996, offering reliability and OEM/ODM support.

Ideal Applications

This latch is perfect for applications that require a simple, strong fastening method with optional physical security:

Toolboxes & Equipment Cases: For securely fastening the lid to the base of tool chests, instrument cases, or field kits. The padlock hole allows the case to be locked.
Electrical Enclosures & Control Cabinets: To firmly close and lock doors on industrial control panels, server racks, or network cabinets.
Machine Guards & Access Panels: Securing removable safety guards or inspection hatches on machinery, with the option to add a padlock for safety lockout (LOTO).
Storage Containers & Transport Crates: Providing a robust closure for storage boxes or shipping containers that may need to be secured with a padlock.

Clamp it shut, lock it down. The NRH R5104-59K provides a strong mechanical fastening to hold two parts together, with the added versatility of padlock security when you need it.
