R5106-38 Spring-Assisted Toggle Latch, Panel Fastener, Cabinet Lock

The NRH R5106-38 is a robust toggle latch engineered for secure, reliable fastening of panels, doors, and enclosure covers. It provides a positive mechanical lock through a straightforward, tool-free operation. The latch incorporates a spring mechanism designed to provide smooth action and clear tactile feedback during manual engagement and release, enhancing the user experience without altering the core manual operation.

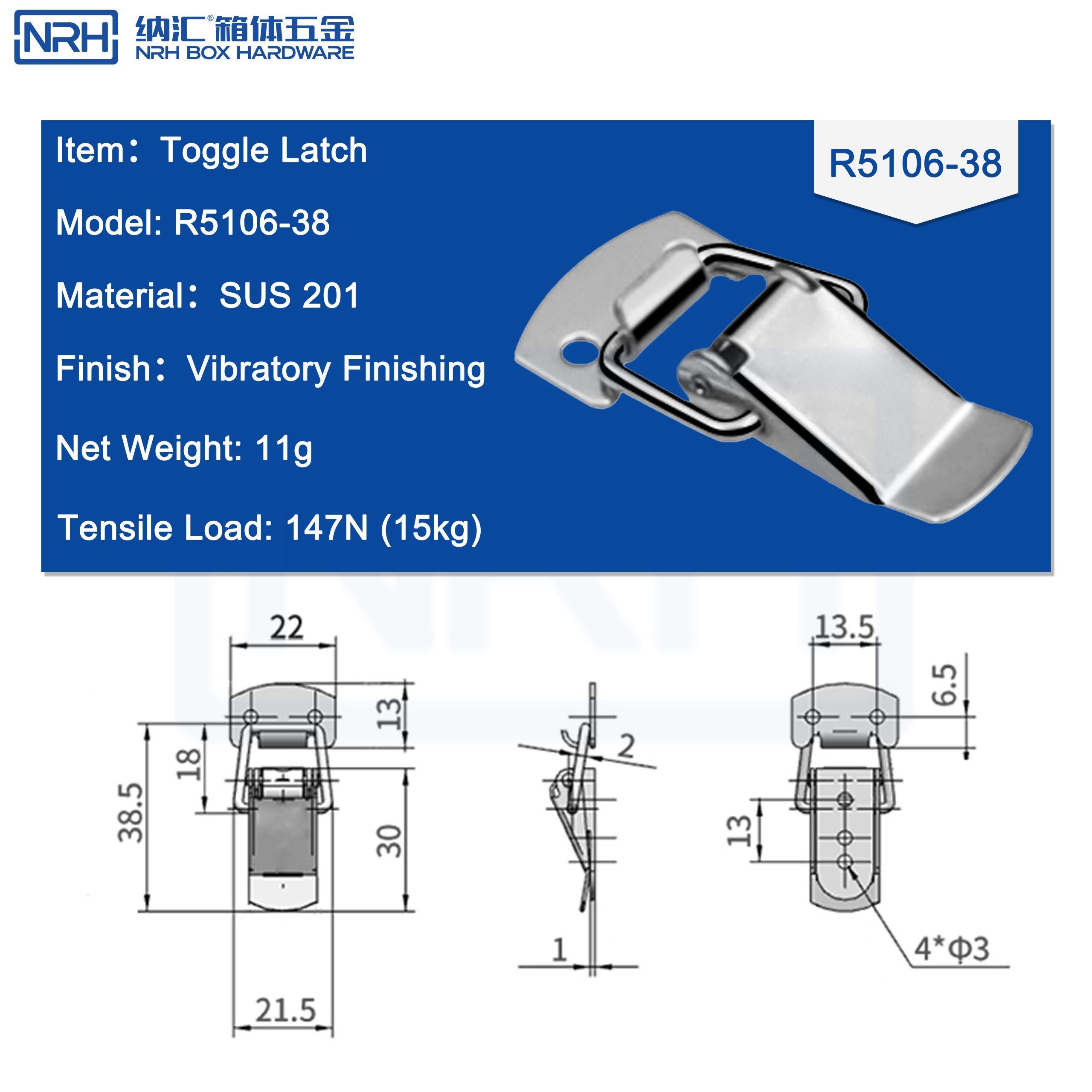

Technical Specifications (Based on Provided Technical Drawing)

Item	Specification / Description
Brand	NRH (Na Hui Box Hardware)
Model Number	R5106-38
Product Name	Toggle Latch
Primary Material	SUS 201 Stainless Steel
Finish	Vibratory Finishing
Net Weight	11g
Tensile Load	147N (15kg)
Key Dimensions (from drawing)	Overall Height: 38.5mm Overall Length: 30mm Material Thickness: 2mm Mounting Holes: 4 x Ø3mm

Product Overview: Secure Latching with Smooth Action

The R5106-38 is a high-quality toggle latch designed for durability and reliable performance. It operates on a classic over-center mechanism, with operation performed manually by the user. The built-in spring enhances the operation by providing a smooth, controlled feel when engaging and disengaging the latch. This spring-assist contributes to a premium user experience, ensuring the latch moves cleanly into its locked or open position without binding. The use of SUS 201 Stainless Steel provides excellent durability and corrosion resistance, while the Vibratory Finishing ensures a smooth, professional surface.

Core Features

Secure Over-Center Locking: The mechanism provides a positive, snap-in lock that is highly resistant to vibration and accidental release once engaged.
Smooth Spring-Assist Operation: The integrated spring delivers a consistent, smooth action for both locking and unlocking, improving tactile feedback and operational feel.
Durable Stainless Steel Construction: Offers a solid combination of strength and corrosion resistance suitable for long-term use in various industrial and commercial environments.
Precision Design for Easy Integration: Detailed dimensional drawings allow for accurate panel design and straightforward installation.

Ideal Applications

This latch is well-suited for securing access points on a wide range of equipment:

Instrument Cases & Electronic Enclosures: For securing lids on test equipment, portable devices, and control unit housings.
Electrical Cabinets & Server Racks: To fasten doors, panels, or covers on network cabinets, industrial control panels, and server chassis.
Toolboxes & Transport Cases: Providing a secure closure for tool chests, sample cases, and shipping containers.
Industrial Machinery: Locking service doors, inspection hatches, or guard covers on equipment.

Choose a robust and smooth-operating latching solution. The NRH R5106-38 Toggle Latch combines secure mechanical locking with the refined feel of a spring-assist mechanism for dependable performance.
