Home > Product Center > Hasps > Spring Latches​ > R5151-33 Toggle Latch, Stainless Steel, Compact Fastener

Spring Latches​

  • Functional characteristics

  • R5151-33 Toggle Latch, Stainless Steel, Compact Fastener



    The NRH R5151-33​ is a compact and lightweight toggle latch designed for reliable closure on small to medium-sized panels and enclosures. The product is constructed from Steel with Zinc Plating​ and finished with a Vibratory Finishing​ process. Key technical data confirms an ultra-lightweight design of 7g​ and a tensile load capacity of 78N (8kg). Its simple, over-center toggle mechanism provides a secure, tool-free latching solution for applications where space and weight are at a premium, offering a cost-effective fastening option.
    Core Specifications (from product image & update):
    • Model:​ R5151-33
    • Material:​ Steel with Zinc Plating
    • Finish:​ Vibratory Finishing
    • Product Weight:​ 7g
    • Tensile Load:​ 78N (8kg)

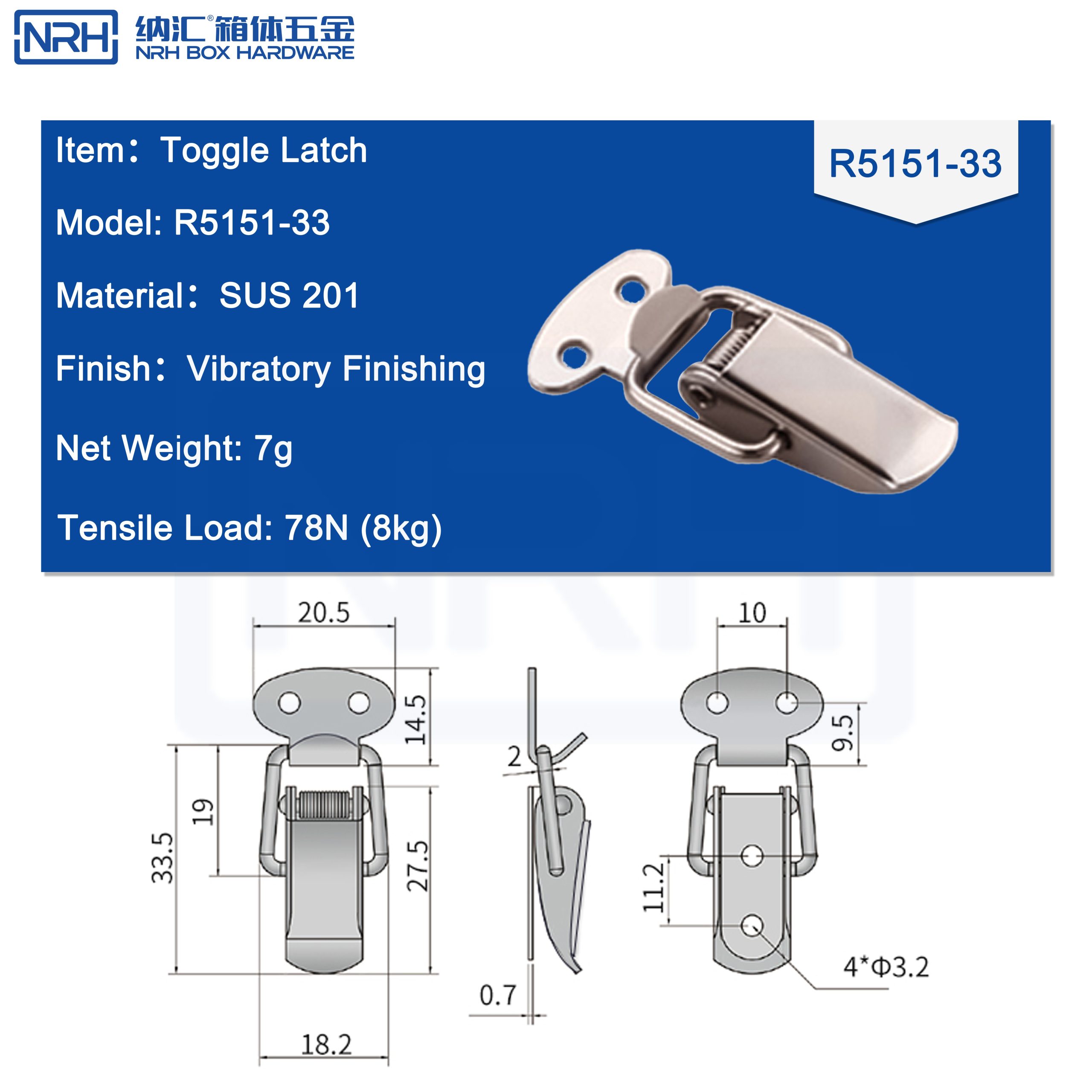

    • Key Dimensions (from drawing):​ Length: 33.5mm; Width: 19mm; Height: 27.5mm; Material Thickness: 2mm; Mounting Holes: 4 x Ø3.2mm.

    Product Overview: Compact and Reliable Latching

    The R5151-33​ operates on a straightforward toggle principle. The latch consists of a handle, a pivot, and a catch. In the open position, the handle stands upright. To close, the handle is pressed down, which causes the hooked catch to swing over and engage with a fixed strike plate or the edge of a panel. In the down position, the latch passes “over center,” creating a mechanically locked state that resists vibration. To open, the handle is simply lifted. The use of Zinc Plating on steel​ provides a basic level of corrosion resistance and a clean finish, while the Vibratory Finishing​ ensures smooth operation and removes sharp edges, making it suitable for functional applications in controlled environments.

    Technical Specifications & Core Features

    • Compact & Lightweight Design:​ With a minimal footprint (33.5mm L) and a weight of only 7g, this latch adds negligible bulk and mass, making it ideal for small equipment cases and electronic enclosures.
    • Reliable Toggle Mechanism:​ The over-center locking action provides a positive, vibration-resistant hold with a 78N tensile load​ capacity, securing panels effectively.
    • Cost-Effective Steel Construction:​ Made from Steel with Zinc Plating, it offers a good balance of strength and cost-effectiveness, providing basic rust protection for general-purpose use.
    • Smooth Finished Surface:​ The Vibratory Finishing​ process provides a uniform surface that is free of sharp edges, ensuring safe handling and a consistent appearance.

    Ideal Applications

    Given its small size, light weight, and dependable performance, the R5151-33 is well-suited for a variety of light-duty fastening needs in indoor or benign environments:
    • Small Instrument & Electronics Cases:​ Perfect for securing the lids of handheld test equipment, portable measurement devices, and sensor housings used indoors.
    • Control Panels & Access Covers:​ Used on small electrical control boxes, instrument panel covers, and inspection hatches on machinery in non-corrosive environments.
    • Network & Communication Devices:​ Suitable for securing covers on indoor modems, routers, switches, and other telecommunications equipment.
    • Lightweight Storage & Display Boxes:​ Ideal for presentation cases, sample boxes, or light-duty storage containers where a simple, secure closure is needed.
    Choose a minimal and economical latching solution.​ The NRH R5151-33 Toggle Latch delivers reliable performance in a tiny package, combining the strength of steel with the basic protection of zinc plating for cost-conscious applications.
    For further technical details or application support, please contact our team.
