NRH R5151-33 Toggle Latch | Spring Loaded Stainless Steel Latch | Cabinet Latch

The NRH R5151-33 is a compact and efficient toggle latch made from SUS 201 stainless steel. Featuring a spring-loaded mechanism and a clean vibratory finish, this latch is designed for secure closure on lightweight to medium-duty applications where corrosion resistance and reliable performance are essential.

Primary Applications:

Light Industrial Enclosures: Small control boxes, instrument cases, measurement device housings.
Electronics & Communications: Network equipment cases, server blade enclosures, telecom boxes.
Transportation & Mobility: UAV (drone) cases, portable electronics cases, vehicle glove compartments.
Consumer Products: Small toolboxes, sample cases, custom project enclosures.

How It Works (Operating Principle):

This latch utilizes a spring-loaded toggle action. Pushing the lever down engages the hook with the strike plate, and the over-center action locks it securely. The integrated spring assists in the release action, popping the lever open when disengaged. This design ensures positive latching and easy one-handed operation, with the three mounting points (as per the 4*Φ3.2mm holes) providing stable installation.

Features & Specifications:

Corrosion-Resistant Material: Constructed from SUS 201 stainless steel for good durability and rust resistance.
Spring-Assisted Operation: Integrated spring ensures smooth opening action and positive engagement.
Clean Surface Finish: Vibratory finishing provides a uniform, satin-like appearance and deburred edges.
Compact & Lightweight: With a total height of 35.5mm and a net weight of only 7g, it’s ideal for space and weight-sensitive applications.
Secure Load Rating: Designed to withstand a tensile load of 78N (8kg), suitable for securing small doors and panels.
Easy Installation: Clear dimensional drawing with 4x Φ3.2mm mounting holes allows for precise and straightforward installation.

Technical Specifications:

Item	Specification / Description
Brand	NRH (Na Hui Box Hardware)
Model Number	R5151-33
Product Name	Toggle Latch
Primary Material	SUS 201 Stainless Steel
Surface Finish	Vibratory Finishing
Product Weight	7g
Tensile Load	78N (8kg)

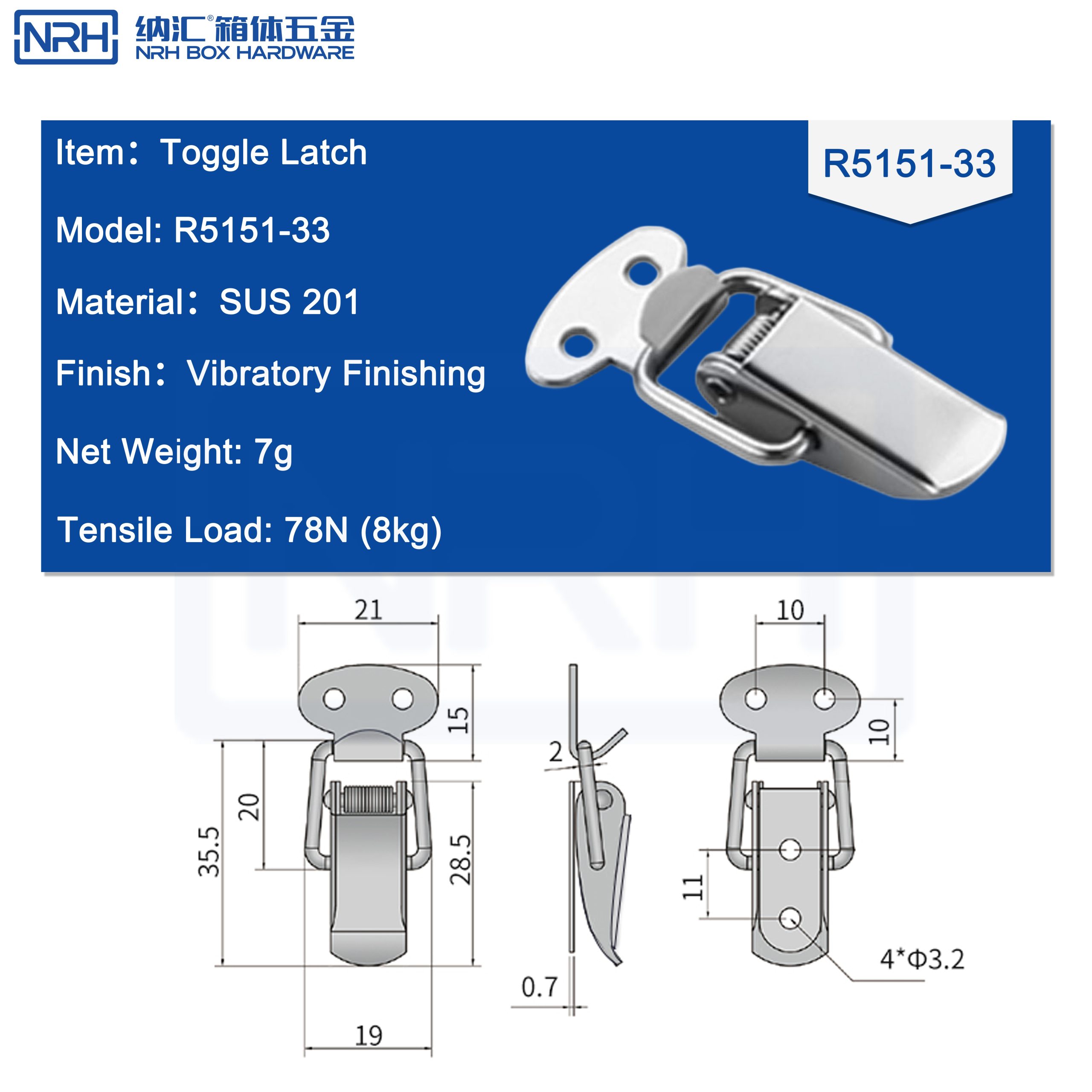

Key Dimensions (refer to drawing)	Total Height: 35.5mm, Various widths and depths as per drawing, Mounting Holes: 4 x Φ3.2mm.
Note	Data is for reference only.
