NRH 5104-56K Heavy Duty Draw Latch | Industrial Cabinet Latch

The NRH 5104-56K is a heavy-duty draw latch specifically designed for demanding industrial and commercial applications requiring reliable, durable closure solutions. With its robust construction and precise engineering, this industrial cabinet latch ensures exceptional performance even under frequent use and harsh conditions.

Primary Applications:

Industrial Cabinets & Control Panels: Server racks, network cabinets, PLC control cabinets, distribution boxes.
Tool & Equipment Storage: Metal toolboxes, tool carts, instrument cases, flight cases, military equipment boxes.
Vehicles & Transportation: Truck toolboxes, utility vehicle storage compartments, marine equipment boxes.
Specialized Furniture & Outdoor Enclosures: Industrial storage cabinets, communication boxes, outdoor electronic equipment enclosures.

How It Works (Operating Principle):

This heavy-duty draw latch features an efficient over-center cam mechanism. When the lever is engaged, the internal cam rotates and pulls the strike plate or latch bolt, tightly drawing the door panel toward the frame to create powerful locking force. This design provides effortless operation (leveraging the 70mm long arm) and maintains continuous tension when closed, effectively preventing accidental opening due to vibration and ensuring a secure seal.

Features & Specifications:

High-Strength Construction: Main body made of iron, ensuring overall sturdiness and durability.
Corrosion-Resistant Surface: Chrome plating provides excellent rust and wear resistance with a professional, bright appearance.
High Load Capacity: Withstands tensile load up to 196N, suitable for demanding conditions.
Precise Dimensions & Easy Installation: Comes with accurate technical drawings (overall height 70mm, base width 26mm, etc.) and features 4 standard Φ4mm mounting holes for precise and secure installation.
Lightweight Design: Net weight only 21g, achieving lightweight without compromising strength.

Technical Specifications:

Item	Specification / Description
Brand	NRH
Model Number	5104-56K
Primary Material	Iron
Surface Finish	Chrome Plated
Product Weight	21g
Tensile Load	196N

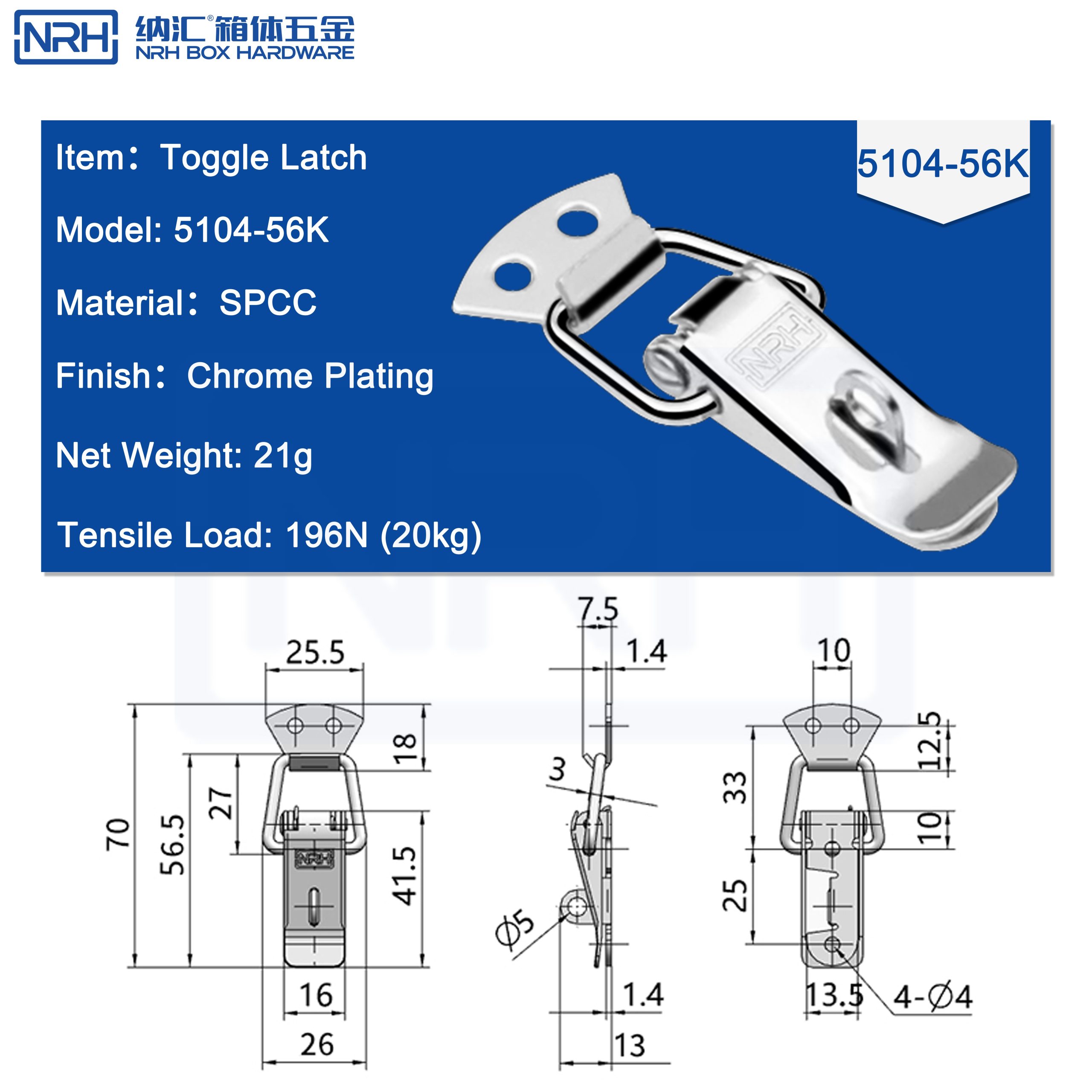

Key Dimensions (refer to drawing)	Overall Height: 70mm, Width: 25.5mm, Mounting Holes: 4 x Φ4mm, Lever Length: 56.5mm, etc.
Note	Data is for reference only and not for mold opening.
