SUS304 Heavy Duty Spring Plunger with Stay-Open | 10mm x 147mm for Server Rack & Cabinet Maintenance

Primary Applications

• Data Center & Server Room Maintenance

  Securing doors on server racks, network cabinets, intelligent PDU enclosures during hardware swaps, upgrades, or cable management.

• Industrial Automation & Equipment Service

  Keeping PLC panels, drive cabinets, large machinery guard doors securely open for technicians requiring both hands for troubleshooting or repair.

• Harsh & Special Environments

  Enclosures in food & beverage processing, pharmaceutical cleanrooms, marine engine rooms where hygiene and corrosion resistance are critical.

How It Works (Efficient 3-Step Operation)

1. Unlock & Open

   Pull the blue L-handle outward to retract the rod, disengage the lock, and open the door.

2. Stay-Open (Core Feature)

   For prolonged access, continue pulling the handle fully until it audibly clicks into the detent slot on the base. The plunger is now mechanically locked in the retracted position, and the door stays securely open, completely freeing the operator's hands.

3. Close & Auto-Lock

   Upon completion, manually disengage the rod from the detent slot. The high-force internal spring instantly triggers, automatically projecting the rod forward at high speed to engage the strike plate, achieving a one-motion close and positive lock.

Key Features & Benefits

• Productive Stay-Open, Hands-Free Efficiency

  The unique mechanical detent design enables true hands-free operation. Eliminates the need to prop doors open during maintenance, allowing single-person efficiency, reducing downtime, and enhancing safety.

• Industrial-Grade Corrosion Resistance

  Constructed from AISI 304 (SUS304) Stainless Steel, offering superior resistance to rust, chemicals, and moisture. Built to withstand wash-down environments, coastal atmospheres, and harsh industrial settings.

• Exceptional Shear Strength & Load Capacity

  The 10mm diameter solid stainless steel rod, paired with a high-load spring, provides far greater shear strength and locking force than standard plungers, engineered for heavy industrial doors.

• Extended Reach for Broad Compatibility

  With an overall length of 147mm, it accommodates deep cabinet frames, doors with substantial insulation, or applications with minor misalignment, offering greater versatility.

• Ergonomic & Fail-Safe Design

  The high-visibility blue L-handle ensures excellent grip and leverage. The all-mechanical, non-electric mechanism ensures ultra-low failure rates and long-term reliability.

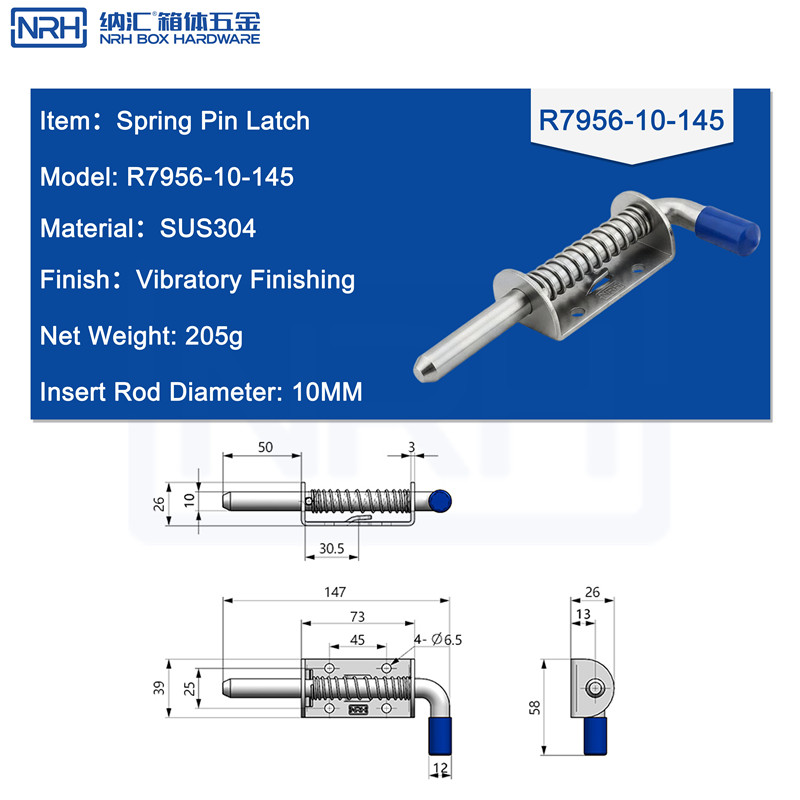

Technical Specifications
