SUS304 Stainless Steel Spring Pin Latch 135mm | Heavy Duty 10mm for Server Racks
SKU: 7956-10-135-S04-ZG
In Stock
Quick Specifications
| SKU | 7956-10-135-S04-ZG |
|---|---|
| Weight | 182 g |
| Dimensions | 135x50x23 mm |
| Material | 304 Stainless Steel (SUS304) |
| Origin | China |
| Certification | CE, ISO9001, UL, SGS, RoHS |
| MOQ | 1 |
| Lead Time | 7-30 days |
| Sample | Available |
Unit Price
$2.52
/ unit
Min. Order: 1
Factory Direct
ISO Certified
Global Shipping
The NRH R7956-10-135 is a premium, extra-long stainless steel spring pin latch, engineered for the most demanding industrial and commercial access applications. As detailed in the technical specification, it is constructed entirely from corrosion-resistant SUS304 stainless steel and finished with clean Vibratory Finishing, ensuring maximum durability and professional appearance in harsh environments. The robust design features a solid 10mm diameter plunger rod with excellent shear strength. It adopts simple manual operation: pull the blue L-shaped handle to retract the pin, release to achieve powerful automatic spring locking. With net weight 182g and total length 135.5mm, it is ideal for deep locking of heavy doors and large panels. Manufactured by NRH Box Hardware since 1996, this latch fully meets ISO 9001, SGS, REACH, SVHC and RoHS standards, and professional OEM & ODM custom service is supported.
Main Application Fields
Designed for superior performance across a wide range of heavy-duty sectors:
-
Large-Scale Data Center & IT: The ideal latch for deep server rack doors, high-capacity network cabinets, and large PDU/UPS enclosures where secure, reliable access is critical.
-
Heavy Industrial Machinery & Controls: Provides robust latching for large CNC machine guards, industrial control cabinet doors, welding machine housings, and processing equipment panels.
-
Outdoor & Harsh Environment Infrastructure: The SUS304 construction makes it perfect for telecommunication shelter doors, outdoor electrical cabinets, marine equipment hatches, and coastal facility enclosures.
-
Transportation & Logistics for Heavy Equipment: Secure closures for large shipping containers, heavy machinery transit cases, and oversized equipment skids.
Working Principle
Simple Operating Steps
The latch utilizes a simple, heavy-duty spring mechanism for fail-safe operation.
-
To Unlock: Grasp the blue L-shaped handle and pull it firmly outward. This action compresses the internal high-tension spring, fully retracting the 10mm plunger rod from the strike plate.
-
To Lock: Align the door or panel with the frame and simply release the handle. The stored energy in the spring automatically and forcefully drives the plunger forward to engage the strike hole, securing the assembly firmly.
Core Features & Advantages
-
Corrosion-Resistant SUS304 Construction: Grade 304 stainless steel ensures outstanding resistance to rust, chemicals, and moisture, guaranteeing long service life in tough conditions.
-
Extended 135.5mm Reach: The extra-long body fits deep-set, insulated and large-sized doors that ordinary latches cannot match.
-
Heavy-Duty 10mm Plunger Rod: Thick solid stainless steel structure owns strong bending resistance and shear resistance, suitable for high-load usage.
-
Automatic & Reliable Spring Return: Built-in high-strength spring ensures stable automatic locking after releasing handle.
-
Secure 4-Point Mounting: Reinforced base plate with 4 x Ø3.7mm mounting holes realizes firm and anti-vibration installation.
-
Ergonomic Blue L-Handle: Comfortable grip, easy to pull, clear visual recognition for open/closed state.
Full Technical Parameters
Complete Size & Performance Data
|
Item
|
Specification
|
|---|---|
|
Brand / Manufacturer
|
NRH Box Hardware (Since 1996)
|
|
Model Number
|
R7956-10-135
|
|
Product Name
|
Stainless Steel Spring Pin Latch
|
|
Primary Material
|
SUS304 Stainless Steel
|
|
Surface Finish
|
Vibratory Finishing
|
|
Product Net Weight
|
182g
|
|
Insert Rod Diameter
|
10mm
|
|
Overall Length
|
135.5mm
|
|
Mounting Holes
|
4 x Ø3.7mm
|
|

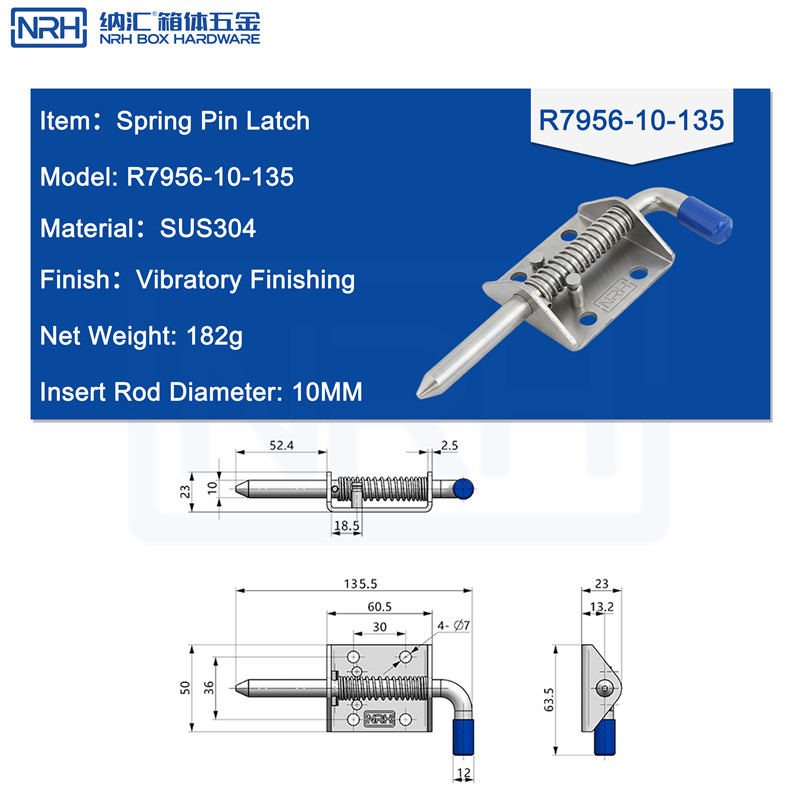

Key Dimensions
|
50, 36, 60.5, 30, 13.5, 63.5, 12, 2.5 (mm)
|
|
Operation Mode
|
Manual Pull-Push (Automatic Spring Return)
|
|
Compliance & Certification
|
ISO 9001:2000, SGS, REACH, SVHC, RoHS
|
|
Custom Service
|
OEM/ODM Customization Available
|
| Brand | NRH |
|---|---|
| SKU | 7956-10-135-S04-ZG |
| Weight | 182 g |
| Dimensions | 135x50x23 mm |
| Material | 304 Stainless Steel (SUS304) |
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | In Stock |
Spring Pin Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Spring pin latches for production line equipment enclosures, enabling rapid access for maintenance and operation.
Automotive & Transportation
Spring pin latches for transit cases, resisting vibration and shock during road transport.
Electronics & Technology
Spring pin latches for electronic cabinets, providing dust-proof and vibration-resistant secure closure.
Aerospace
Lightweight spring pin latches for aviation cases, meeting strict weight requirements without compromising strength.
Audio & Entertainment
Spring pin latches for stage equipment cases, built to withstand frequent opening during tours.
Logistics & Warehousing
Spring pin latches for shipping cases, enabling quick operation during frequent loading and unloading.
Broadcast & Media
Spring pin latches for broadcast equipment cases, allowing fast access during live events.
Laboratory & Research
Spring pin latches for instrument enclosures, ensuring secure closure for precision equipment.
Fire & Safety
Spring pin latches for fire equipment boxes, enabling rapid opening in emergency situations.
Photography & Film
Spring pin latches for camera cases, durable enough for frequent field use.
Telecommunications
Spring pin latches for telecom cabinets, preventing unauthorized access to network infrastructure.
Medical & Healthcare
Corrosion-resistant spring pin latches for medical device enclosures, easy to clean and sterilize.
Defense & Military
MIL-SPEC spring pin latches for military cases, reliable locking in harsh environments.
Packaging Machinery
Spring pin latches for machinery panels, quick operation in tight spaces.
Robotics & Automation
Lightweight spring pin latches for robot enclosures, supporting frequent maintenance access.
What is the minimum order quantity?
Our minimum order quantity is 1 units. For larger orders, please contact us for volume pricing.
What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union. Payment terms can be negotiated based on order size and business relationship.
Do you offer custom OEM/ODM services?
Yes, we provide OEM and ODM services. Please contact our sales team to discuss your specific requirements.
What are the shipping options?
We offer global shipping via DHL, FedEx, UPS, and sea freight. Shipping costs are calculated based on destination and order quantity.
