NRH R7956-10-128 is a premium heavy-duty spring pin latch engineered for secure, controlled access in demanding environments. Constructed entirely from corrosion-resistant SUS304 stainless steel with a clean vibratory finishing, it ensures long-term durability and a professional appearance. The robust design includes a 10mm diameter plunger rod with a machined detent groove, enabling a unique "stay-open" function that allows doors to be locked open for hands-free maintenance. Operation is a secure two-step process: pull the blue handle to engage the detent; manually release it to initiate instant, automatic spring-powered locking. Weighing 146g with an extended 128mm overall length, it delivers reliable performance for deep or insulated doors. Manufactured by NRH Box Hardware since 1996, this product complies with ISO 9001:2000, SGS, REACH, SVHC, and RoHS standards. Full OEM/ODM services are available.
Primary Applications
Designed for durability and secure access across multiple critical industries:
- Data Center & IT Infrastructure: Ideal for securing server rack doors, network cabinet panels, and PDU/UPS enclosures where hands-free access during maintenance is crucial.
- Industrial Automation & Control: Keeps PLC cabinet doors, motor control centers (MCC), and instrumentation housings safely open for calibration and servicing.
- Food, Beverage & Pharmaceutical Processing: The hygienic SUS304 stainless steel construction meets stringent standards for doors on mixers, homogenizers, and sanitary process cabinets.
- Marine, Offshore & Outdoor Telecommunications: Provides a corrosion-proof latching solution for communication cabinets, navigation equipment, and outdoor electrical enclosures.
- General Manufacturing & Transportation: Durable locking for machine guard doors, control panels, and heavy equipment cases.
How It Works
This latch provides a controlled, two-stage operation for optimal safety and convenience.
- To Open & Secure (Stay-Open Mode): Open the door and fully pull the blue L-handle. The plunger will retract and click into the detent groove, mechanically locking the latch in the open position. The door remains securely open, freeing both hands.
- To Close & Auto-Lock: Manually push the handle to release it from the detent groove. Once released, the high-tension internal spring instantly and forcefully drives the 10mm plunger forward, automatically engaging the strike plate and securely locking the door.
Features & Specifications
- Hygienic & Corrosion-Resistant SUS304: Grade 304 stainless steel ensures exceptional resistance to rust, chemicals, and moisture, ideal for harsh or sanitary environments.
- Productive Stay-Open Detent: The positive mechanical lock-open feature allows for safe, unimpeded access to enclosure internals, boosting maintenance efficiency.
- Secure Two-Stage Operation: Combines intentional manual release from the detent with reliable automatic spring-powered final locking.
- Extended 128mm Reach: The long body is engineered to properly engage doors or panels with significant depth, overlap, or insulation.
- Robust 10mm Plunger Rod: The thick 10mm diameter provides high shear strength and durability for long-term, reliable operation.

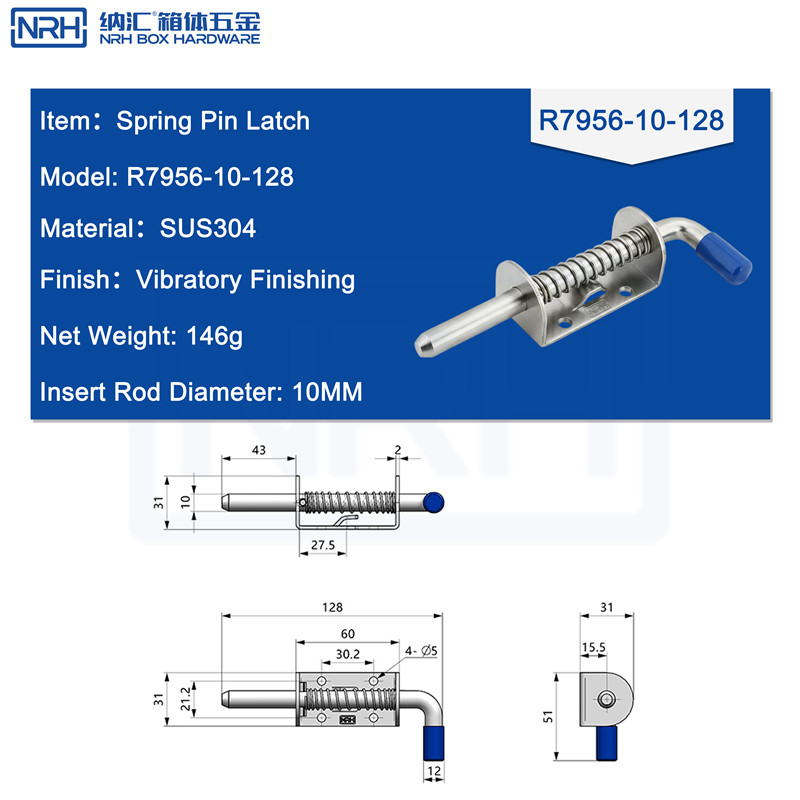

- Secure 4-Point Mounting: Features a reinforced base plate with 4x Ø5mm mounting holes (on 31mm & 21.2mm centers) for a solid, vibration-resistant installation.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | NRH Box Hardware |
| Model Number | R7956-10-128 |
| Product Name | Stainless Steel Spring Pin Latch |
| Primary Material | SUS304 Stainless Steel |
| Surface Finish | Vibratory Finishing |
| Product Weight | 146g |
| Insert Rod Diameter | 10mm (with stay-open detent) |
| Overall Length | 128mm |
| Mounting Holes | 4 x Ø5mm |
| Mounting Pattern | 31mm & 21.2mm centers (as per drawing) |
| Compliance | ISO 9001:2000, SGS, REACH, SVHC, RoHS |
| Manufacturer | Since 1996 |
| Services | OEM/ODM Customization Available |
Why trust NRH? With over 25 years of experience in box hardware manufacturing, NRH Box Hardware combines precision engineering with strict quality control. Every R7956-10-128 latch is produced under an ISO 9001:2000-certified facility and tested to meet international safety and environmental standards.
