NRH R7956-10-120 is a heavy-duty spring pin latch designed for secure manual fastening. Constructed from SPCC steel and finished with blue zinc plating for corrosion resistance, it delivers reliable performance in demanding environments. Key features include a 10mm diameter steel insert rod and an overall length of 120mm. The ergonomic L-shaped handle with a blue plastic sleeve ensures a firm, non-slip grip. Operation is intuitive: pull to unlock, release for automatic spring locking. Weighing 131g, this latch is built for dependable, long-term use. Manufactured by NRH Box Hardware since 1996 under ISO 9001:2000 standards. OEM/ODM services are available.
Primary Applications
- Industrial cabinets, server racks, and control panel doors.
- Large industrial toolboxes and equipment cases.
- Machine guards and access panels.
- Transport cases and heavy-duty storage.
How It Works (Operating Principle)
- Unlock: Pull the blue L-handle outward to retract the 10mm pin.
- Lock: Release the handle. The spring automatically extends the pin to lock securely.
Features & Specifications
- 120mm Overall Length: Provides extended reach for various applications.
- 10mm Thick Insert Rod: Offers high shear strength and durability.
- Ergonomic Blue L-Handle: For comfortable, non-slip operation.
- Automatic Spring Return: Ensures positive locking every time.

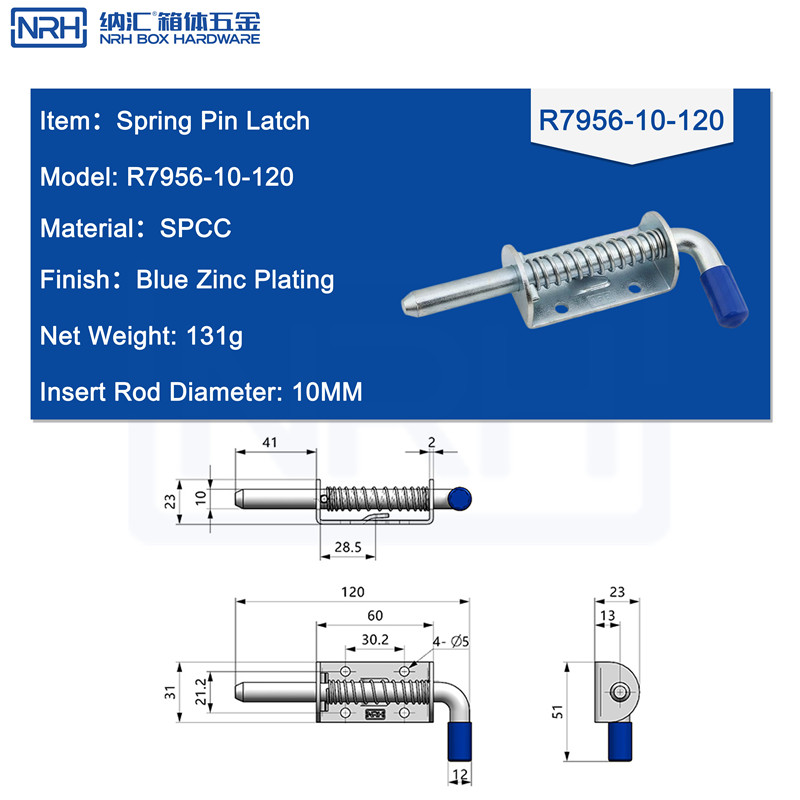

- Secure 4-Point Mounting: Base with 4x Ø5mm holes (spacing: 31mm & 21.2mm) for stable installation.
- Corrosion-Resistant Finish: Blue zinc plating protects against rust and wear.
Technical Specifications
| Item | Specification |
|---|---|
| Model |
R7956-10-120MaterialSPCC SteelFinishBlue Zinc PlatingWeight131g。
10mm。
120mm。
4 x Ø5mm
Why trust NRH? With over 25 years of experience in box hardware manufacturing, NRH Box Hardware combines precision engineering with strict quality control. Every R7956-10-120 latch is produced under an ISO 9001:2000-certified facility and tested to meet international safety and environmental standards.
