NRH R7956-6-100 is a reliable and compact spring pin latch, designed for secure manual fastening of doors, lids, and panels. It is constructed from durable SPCC steel and features a blue zinc plating finish for corrosion protection. The design includes an L-shaped pull handle, a compression spring, and a sturdy base plate. Operation is intuitive: pull the handle to retract the pin; release it for automatic spring locking. Weighing only 52g with an overall length of 94mm, it is a practical solution for light to medium-duty applications. Manufactured by NRH Box Hardware with expertise since 1996.
Primary Applications
- Toolboxes, instrument cases, and portable kits.
- Server racks, network cabinets, and control panels.
- Electrical enclosures and junction boxes.
- General storage cabinets and access panels.
How It Works
The latch operates on a simple spring-loaded mechanism. Pull the L-shaped handle to retract the 6mm pin. Release the handle and the internal spring automatically drives the pin forward to lock securely.
Features & Specifications
- Simple manual pull-push operation with automatic return.
- Durable SPCC construction with blue zinc plating.
- Compact and lightweight design (52g).
- 6mm diameter insert rod for reliable engagement.
- Secure 4-point mounting with 4x Ø5mm holes.

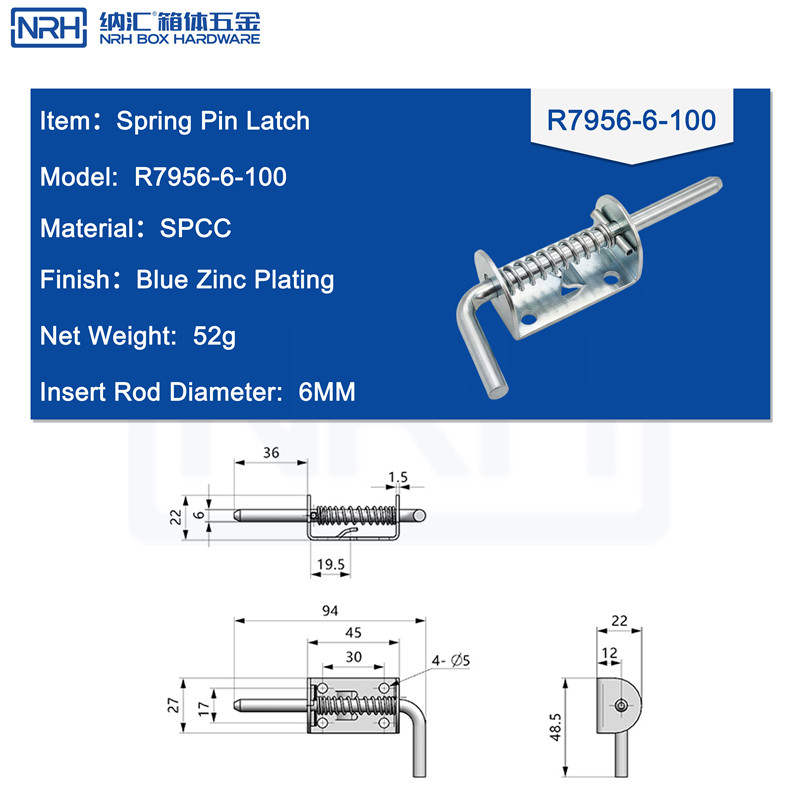

Technical Specifications
| Item | Specification |
|---|---|
| Model |
R7956-6-100。
SPCC Steel。
Blue Zinc Plating。
52g。
6mm。
94mm。
4 x Ø5mm
Brand & Compliance
- Manufacturer: NRH Box Hardware (Since 1996)
- Certifications: ISO 9001:2000, SGS, REACH, SVHC compliant.
- Services: OEM/ODM Customization Supported.
Why trust NRH? With over 25 years of experience in box hardware manufacturing, NRH Box Hardware combines precision engineering with strict quality control. Every R7956-6-100 latch is produced under an ISO 9001:2000-certified facility and tested to meet international safety and environmental standards.
