NRH 7954-32L Spring Plunger Latch - SPCC Blue Zinc, Left‑Hand Opening, 53mm, 7.6mm Plunger

The NRH 7954-32L is a robust and user‑friendly spring plunger latch designed for secure, tool‑free fastening of doors, lids, and access panels. Constructed from durable SPCC steel with a corrosion‑resistant blue zinc plating, this latch offers reliable performance and a functional appearance. The spring‑loaded mechanism works as follows: pull the L‑shaped handle to retract the Ø7.6mm plunger pin against spring pressure for opening; release the handle to let the spring automatically extend the pin into a strike hole, securely locking the panel. The “L” suffix indicates optimization for left‑hand opening doors (viewed from the front).

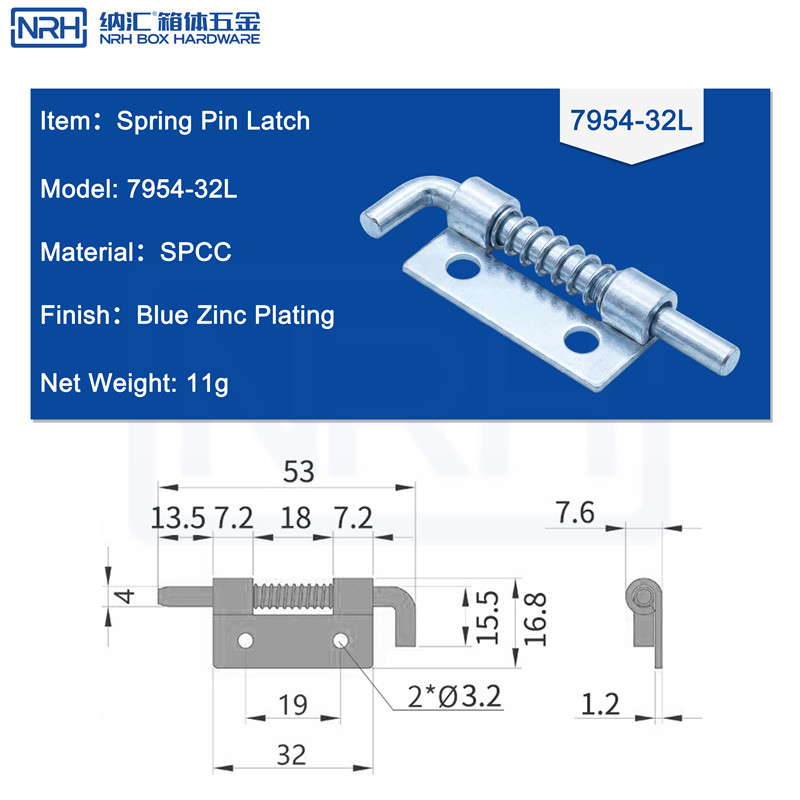

Weighing only 11g with a compact overall length of 53mm and mounting centers of 32mm, this latch is a lightweight and space‑efficient solution. The flat base plate features 2x Ø3.2mm mounting holes (material thickness: 1.2mm) for simple screw or rivet attachment.

The NRH 7954-32L is manufactured by NRH Box Hardware - a specialist with expertise since 1996 - under an ISO 9001:2000 certified quality management system. Regarding international compliance (SGS, REACH, RoHS, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available for custom designs.

Typical Applications

• Portable cases and toolboxes (tool chests, instrument cases, field service kits)
• Electrical enclosures and cabinets (control panels, junction boxes, server racks)
• Machine guards and safety covers (equipment access panels, inspection doors)
• Furniture and storage units (cabinets, lockers, technical furniture)

How It Works - Operating Principle

The latch utilizes a straightforward spring‑loaded mechanism for reliable one‑handed operation:

1. Locked State: The internal compression spring holds the plunger pin in its extended position, engaging a pre‑drilled strike hole in the mating panel.
2. To Unlock: Pull the L‑shaped handle outward. This compresses the spring and fully retracts the plunger pin from the strike hole.
3. To Re‑lock: Align the door/panel with the frame and simply release the handle. The stored spring energy automatically drives the plunger pin forward into the strike hole, securing the panel without any additional action.

Key Features & Benefits

• Tool‑Free, One‑Handed Operation: Simple pull‑to‑open, release‑to‑lock action for quick access.
• Automatic Spring Locking: Internal spring ensures positive engagement every time, providing a secure hold.
• Durable SPCC Construction: SPCC steel for strength, with blue zinc plating for corrosion protection.
• Compact & Lightweight: Only 11g net weight and 53mm overall length - minimizes space and added mass.
• Easy Installation: Flat base plate with 2x Ø3.2mm mounting holes on 32mm centers for simple screw or rivet attachment.
• Left‑Hand Opening Design: Model suffix “L” indicates configuration for left‑hand doors.

Quality & Compliance - Why Trust NRH

NRH Box Hardware has been producing industrial latches since 1996. The NRH 7954-32L is made under an ISO 9001:2000 certified system. Compliance with SGS, REACH, RoHS, or SVHC is available upon request - please inquire for feasibility and pricing. Our long‑standing expertise in box hardware, combined with flexible OEM/ODM capabilities, provides a reliable latching solution for critical applications.
