NRH 4201-140 Spring Handle | SUS 304 Stainless Steel 50kg Load Toolbox Handle

The NRH 4201-140 Spring Handle is a premium-grade, heavy-duty solution manufactured by NRH Box Hardware (established since 1996). Constructed from SUS304 stainless steel with a corrosion-resistant vibratory finishing, it integrates a high-tensile internal spring and a comfortable black rubber grip. When released, the handle automatically retracts flush to the mounting surface. Rated for an impressive 490N (50kg) tensile load with a net weight of only 209g, it is ideal for flight cases, industrial cabinets, toolboxes, and marine equipment.

Primary Applications of NRH 4201-140 Spring Handle

• Heavy-Duty Flight & Transport Cases: ATA road cases, military transport boxes, and sensitive electronics enclosures - the auto-return design prevents snagging during stacking.
• Professional Industrial Toolboxes: Rolling tool chests and field service kits carrying up to 50kg of tools.
• Industrial & Electrical Cabinetry: Control panel doors, server racks, generator enclosures - flush mounting saves space.
• Marine & Outdoor Equipment: Waterproof cases and offshore instrument housings - SUS304 delivers superior salt spray resistance.
• Military & Defense Solutions: Ruggedized transit cases where reliability is mission-critical.

Operating Principle: Spring-Loaded Auto-Return Mechanism

The handle operates on a reliable spring-return cam system. Pull the handle upward; it extends to a stable working angle (approx. 90°). Once released, the internal torsion spring automatically retracts the handle folding it completely flat against the mounting surface. This ensures safety (no protruding parts) and space efficiency - crucial for flight cases stacked in aircraft holds or equipment racks. The spring is fatigue-tested for over 10,000 cycles.

Key Features & Technical Benefits

• Exceptional Load Capacity: 490N (50kg) tensile load - suitable for the heaviest lids.
• Premium SUS304 Material: Superior corrosion resistance, hygiene, and durability.
• Vibratory Finishing: Easy-to-clean satin appearance that resists scratches.
• Ergonomic Rubber Grip (Ø16.5mm): Non-slip, comfortable even with gloves.
• Automatic Spring Return: Maximizes space efficiency and safety.
• Secure 5-Point Mounting: 5x Ø5.5mm mounting holes for vibration-resistant installation.
• Lightweight yet Durable: Net weight only 209g.
• Certified Quality: ISO 9001:2000, SGS, REACH, SVHC, RoHS compliant.
• OEM/ODM Services Available: Custom engraving, length variations, or finish modifications.

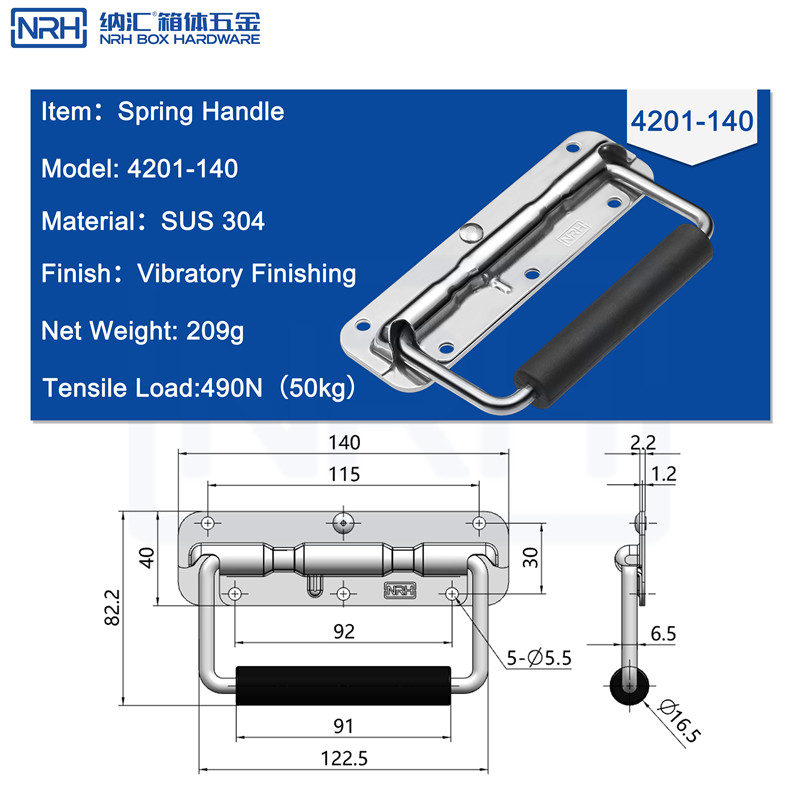

Technical Specifications

Quality Assurance & International Certifications

NRH Box Hardware maintains an uncompromising quality management system certified under ISO 9001:2000. Each 4201-140 spring handle undergoes rigorous inspections: material composition verification (SUS304), tensile load testing to 150% of rated capacity, spring cycle testing, and salt spray corrosion resistance evaluation. All components comply with REACH, SVHC, and RoHS directives, ensuring no restricted hazardous substances - essential for manufacturers exporting to European and North American markets. Third-party SGS testing further validates performance claims.

OEM / ODM Services

Need a custom spring handle? NRH offers end-to-end OEM/ODM capabilities: custom length (100mm to 200mm), laser-engraved logos, alternative surface treatments (polished, brushed, powder coating), and even grip color variations. Engineering support includes mounting hole adjustments, material upgrades (316 stainless on request), and packaging design for mass production. For volume pricing, free samples for qualified OEMs, or technical drawings (2D/3D), contact the NRH OEM department.

Installation Best Practices

• Use M5 stainless steel flathead screws (max head diameter 10mm) for flush fit.
• Mounting surface thickness: at least 2mm (metal) or 3mm (plastic) - use reinforcement washers for plastic cases.
• Pre-drill pilot holes with Ø5.5mm bit; avoid overtightening.
• Apply thread-locking compound (e.g., Loctite 243) for high-vibration applications.
• Keep pivot area free from debris; no lubrication required, but periodic cleaning extends life.

Model 4201-140 Summary: A professional-grade SUS304 spring handle with auto-return, 50kg load capacity, vibratory finish, and ergonomic rubber grip. Trusted by flight case manufacturers, industrial cabinet builders, and military suppliers worldwide. NRH - Box Hardware Excellence Since 1996.
